This 2MP HDR camera module is a high-performance embedded imaging solution designed for smart terminals and industrial applications. Equipped with a premium CMOS image sensor and advanced ISP processing, it delivers sharp, smooth 1080P video at 60fps high frame rate, effectively eliminating smear and motion blur for dynamic scenes.
The integrated wide dynamic range (HDR) algorithm automatically balances overexposed highlights and underexposed shadows, preserving complete image details even in strong backlight environments such as building entrances, window sides and outdoor monitoring scenes. With its compact PCB form factor, standard mounting holes and M12 interchangeable lens design, this module can be flexibly integrated into access control systems, face recognition terminals, security devices, industrial inspection equipment and more.
It supports standard UVC protocol for true plug-and-play operation across multiple operating systems, and offers extensive OEM/ODM customization options to match diverse project requirements.
Product Highlights
Full HD 1920×1080 resolution with 60fps high frame rate, motion blur-free capture for fast-moving subjects
Built-in HDR technology with up to 100dB dynamic range, clear imaging under backlight & high-contrast lighting
Industrial-grade CMOS sensor with excellent low-light sensitivity, reliable 24/7 operation
USB 2.0 UVC compliant, plug & play, no extra driver required for Windows/Linux/Android/Mac

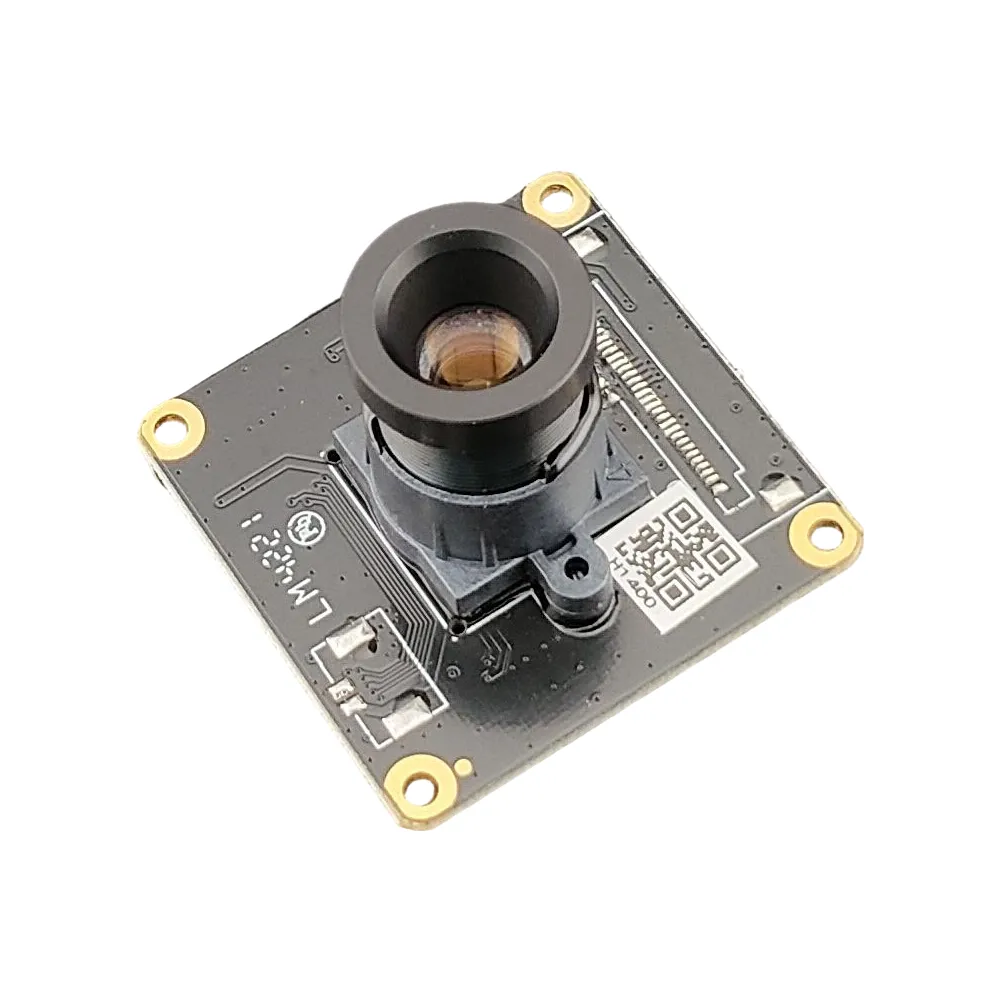

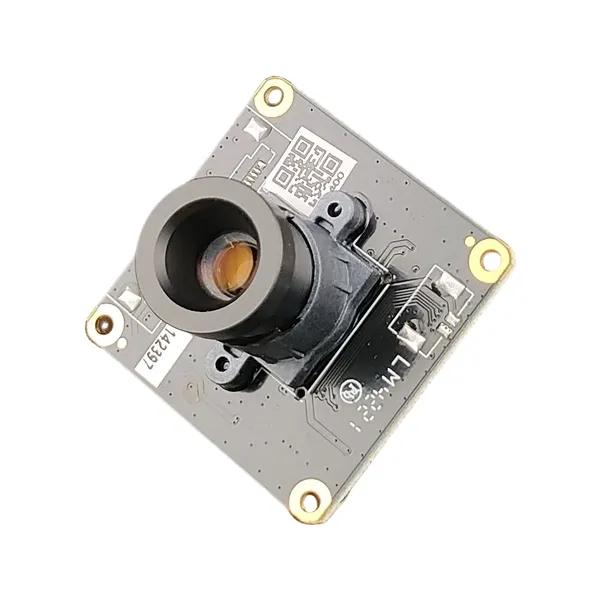

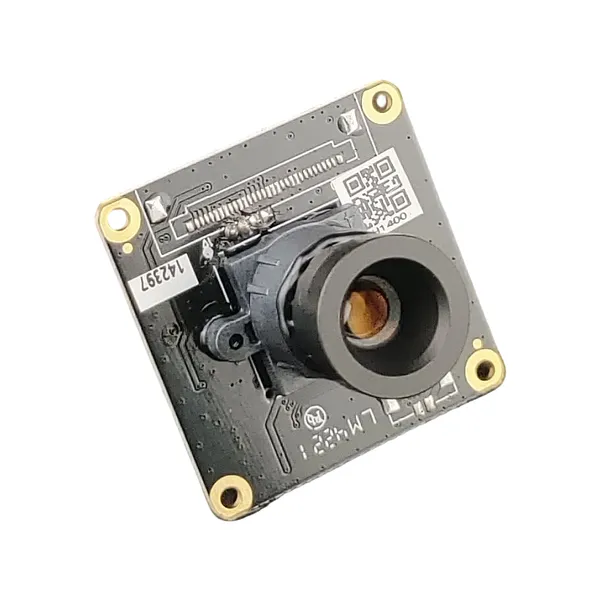

Ultra-compact 32×32mm PCB with standard M12 lens mount, easy to embed into terminal devices
Full customization support: lens, interface, functions, firmware tuning for project-specific needs

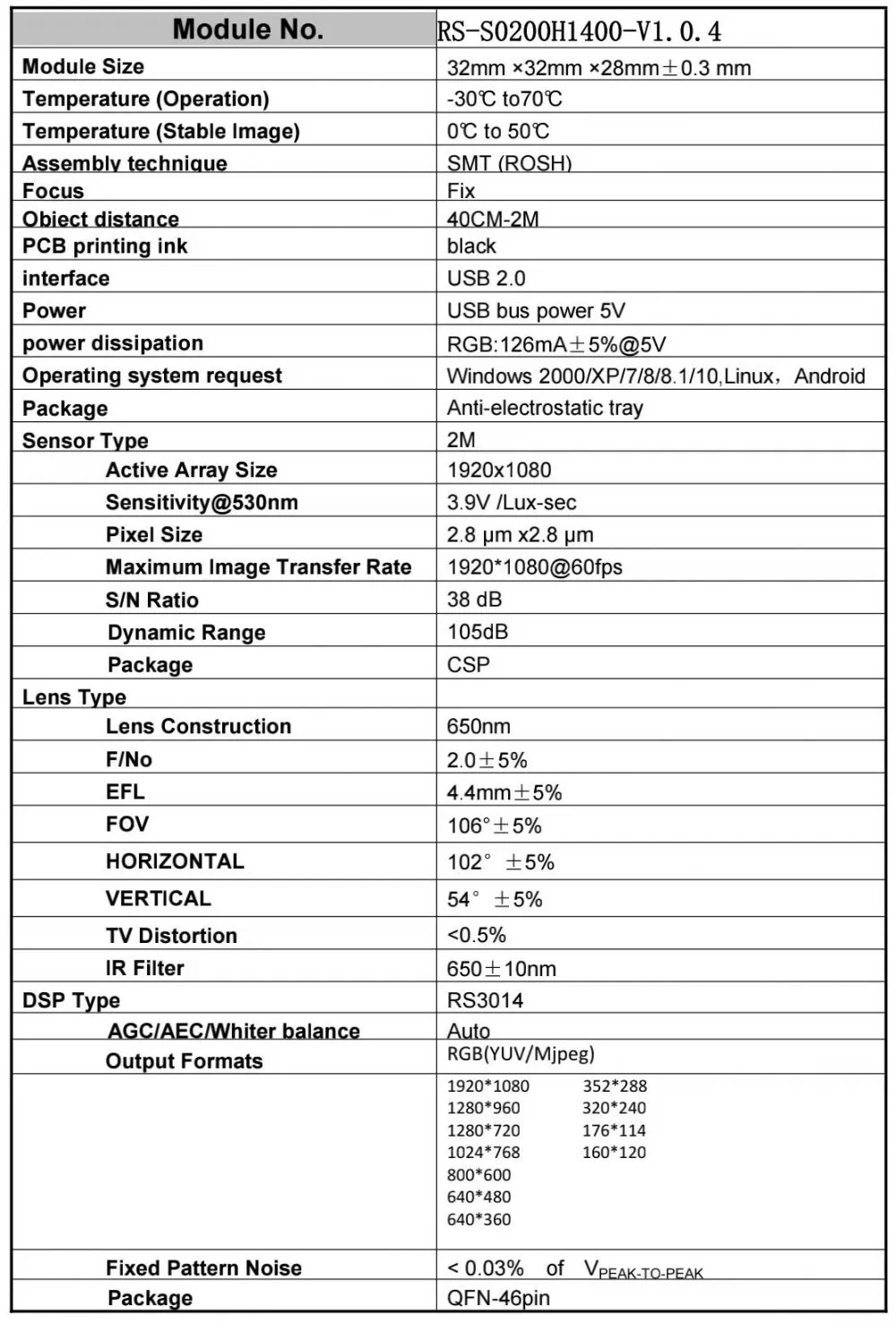

Detailed Specifications
| Category | Parameter | Specification |
|---|---|---|
| Image Sensor | Sensor Type | 1/2.7" CMOS Image Sensor |
| Effective Pixels | 1920(H) × 1080(V) (2 Mega Pixel) | |
| Pixel Size | 2.8μm ×2.8μm | |
| Video Performance | Max Resolution & Frame Rate | 1920×1080 @ 60fps (MJPEG format) |
| Common Resolutions | 1280×720@60fps, 800×600@60fps, 640×480@60fps | |
| Output Formats | MJPEG / YUY2 | |
| Dynamic Range | HDR, up to 105dB | |
| Image Processing | 2D/3D digital noise reduction, lens distortion correction | |
| Adjustable Parameters | Auto exposure, auto white balance, auto gain; brightness/contrast/saturation/hue adjustable | |
| Optical Parameters | Lens Mount | Standard M12 mount (replaceable) |
| Standard Lens | 3.6mm fixed focal length, F1.6 aperture | |
| FOV (3.6mm lens) | Horizontal 102°, Vertical 54°, Diagonal 106° | |
| Custom Lens Options | 2.8mm / 4.2mm / 6mm / 8mm / 12mm focal length; wide-angle / no-distortion lens | |
| Electrical Parameters | Interface | USB 2.0 (DVP / MIPI interface available for customization) |
| Protocol | UVC 1.0 standard compliant | |
| Power Supply | 5V DC via USB port | |
| Power Consumption | ≤ 250mW | |

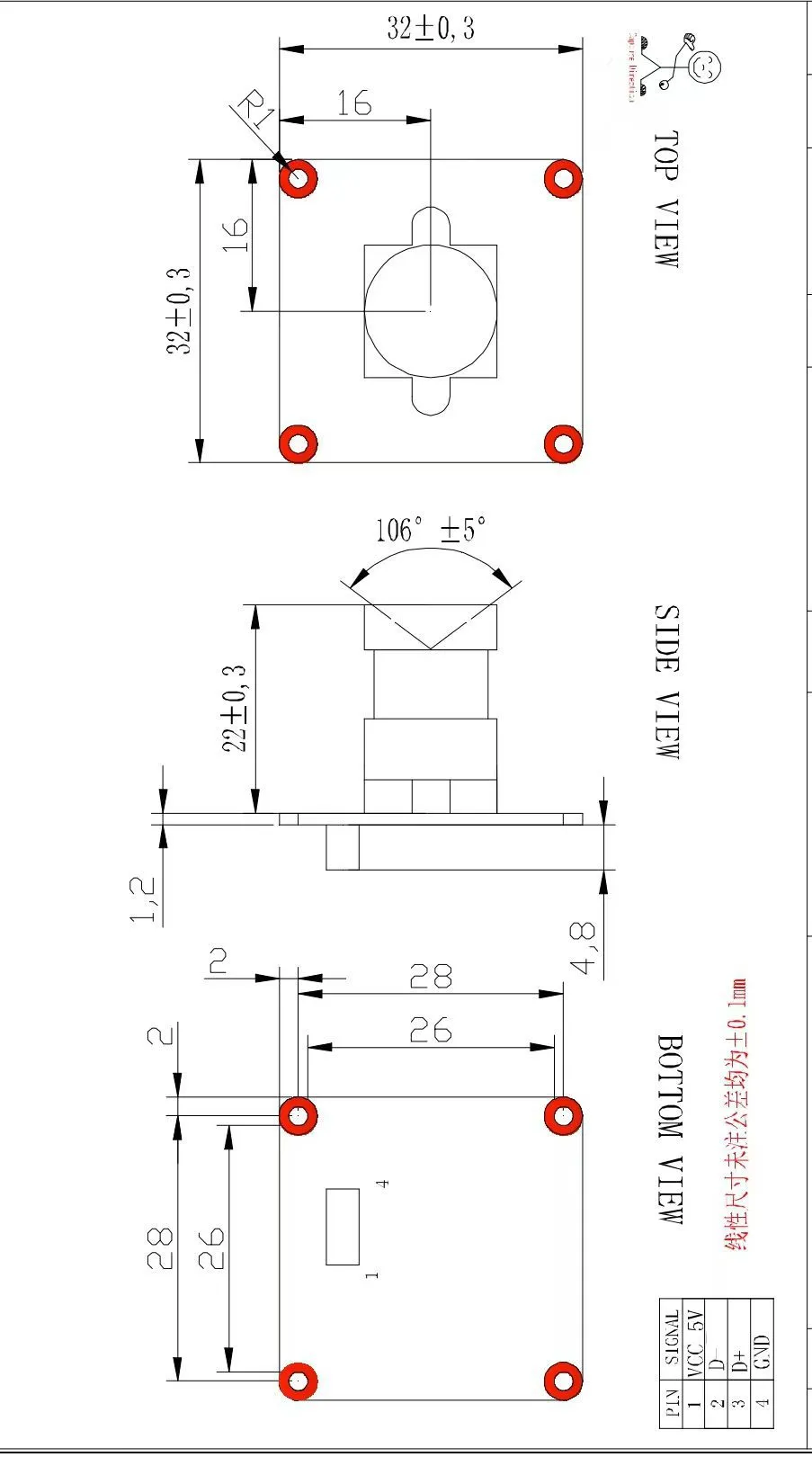

| Mechanical & Environment | PCB Dimension | 32 × 32 mm (custom size supported) |
| Mounting | 4× M2 copper mounting holes | |
| Operating Temperature | 0℃ ~ +50℃ | |
| Storage Temperature | -30℃ ~ +70℃ | |
| Compatibility & Certification | Supported Systems | Windows XP/7/8/10/11, Linux, Android 4.0+, Mac OS X 10.4+ |
| Certifications | CE, FCC, RoHS compliant |
Core Advantages
1. 60fps High-Speed Smooth Imaging
The module maintains full 1080P HD resolution at 60 frames per second under MJPEG format, delivering ultra-fluid video output. It drastically reduces motion blur and trailing when capturing fast-moving objects, making it perfectly suitable for motion detection, high-speed product inspection and real-time monitoring scenarios.
2. HDR Backlight Imaging Capability
With professional HDR wide dynamic range technology, the camera can handle complex lighting environments with strong light contrast. It simultaneously suppresses over-bright highlights and restores details in dark areas, ensuring clear facial and object features even when facing backlight at building entrances or outdoor positions.
3. Industrial-Grade Stable Performance
Adopting high-reliability CMOS sensor and precision SMT manufacturing, the module features strong anti-interference ability and stable performance in wide temperature ranges. It supports long-time continuous operation, meeting the durability requirements of industrial and commercial embedded devices.
4. Zero-Threshold Integration
Compliant with universal UVC protocol, the camera works immediately after connection without installing any driver on mainstream operating systems. The standard mounting hole design and compact board size allow quick assembly into various housings and terminal products, effectively shortening your product development cycle.
5. Full-Cycle Customization Service
We provide one-stop customization from optics to firmware: adjustable lens focal length and field of view, optional interface types, built-in microphone / IR-CUT day-night switch / IR night vision fill light, and personalized firmware parameter tuning to fully match your product solution.
Application Scenarios
Face recognition & liveness detection terminals
Smart access control & pedestrian turnstile systems
Indoor & outdoor security surveillance
Industrial machine vision & product quality inspection
Video conference & live streaming embedded devices
In-vehicle monitoring & assisted driving systems
Smart retail self-service kiosks & vending machines
Edge AI & IoT embedded imaging devices
Order & Service Information
MOQ: 100 pieces for standard model; custom order MOQ negotiable
Sample Lead Time: 3-5 working days
Bulk Lead Time: 21-28 working days (depends on order quantity & customization)
Packaging: Anti-static bag + shockproof foam + export standard carton
Warranty: 12 months product warranty, lifetime technical support
OEM/ODM: Custom logo, packaging, hardware structure and firmware function customization are fully supported
