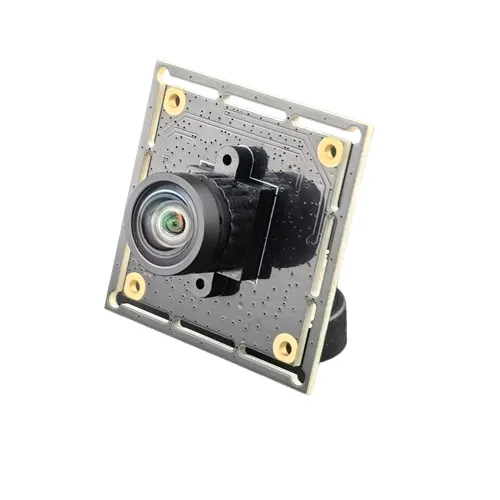

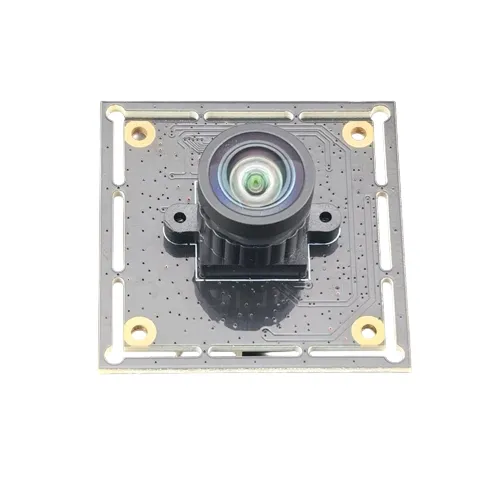

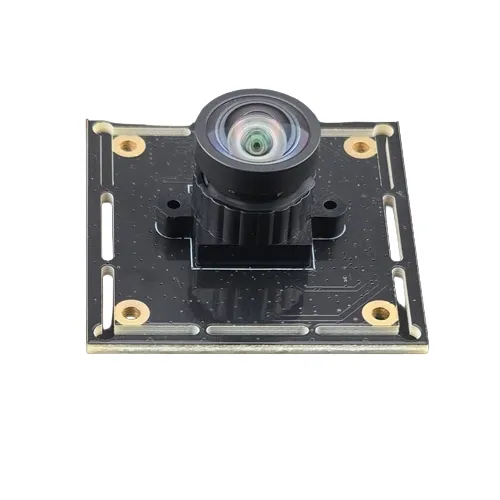

Product Overview
This 5-megapixel fixed-focus camera module is an embedded imaging solution optimized for morning check kiosks, health monitoring terminals and catering safety inspection devices. Built with a high-sensitivity CMOS image sensor and wide-angle lens, it delivers sharp, detailed image capture for hand hygiene inspection, wound detection and personnel health screening scenarios.
With standard USB 2.0 UVC plug-and-play compatibility, compact PCB form factor and wide operating temperature range, the module can be seamlessly integrated into various medical and industrial embedded systems. It supports automatic exposure, white balance and gain control, ensuring stable imaging performance under complex indoor lighting environments.

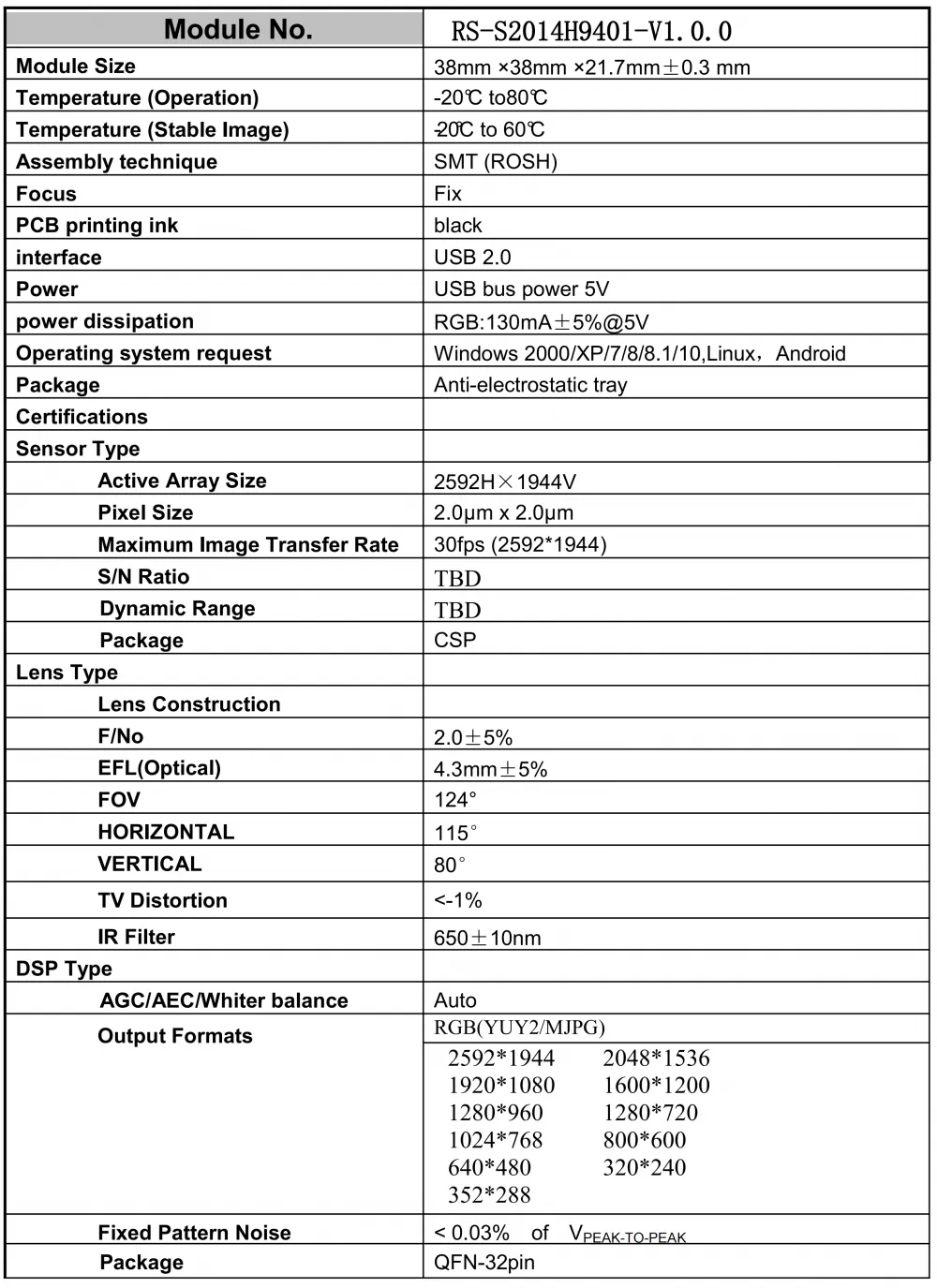

Key Specifications
| Parameter | Details |
|---|---|
| Image Sensor | 1/2.7-inch CMOS sensor, 5 Mega Pixels |
| Max. Resolution | 2592 × 1944 @ 30fps; 1920 × 1080 @ 30fps; 1280 × 720 @ 30fps |
| Lens Type | Fixed focus; M12 mount; standard 3.6mm EFL, F2.0 aperture |
| Field of View | 124° diagonal (customizable from 40° to 130°) |
| Focus Range | 25cm to infinity (pan-focus design for close-range detection) |
| Output Format | MJPEG / YUY2 |
| Interface | USB 2.0 High Speed, UVC compliant |
| Shutter Type | Electronic rolling shutter |
| Dynamic Range | ≥ 95dB |
| Minimum Illumination | 0.2 Lux |
| Signal-to-Noise Ratio | ≥ 41dB |
| Power Supply | DC 5V via USB bus; max 210mA current |

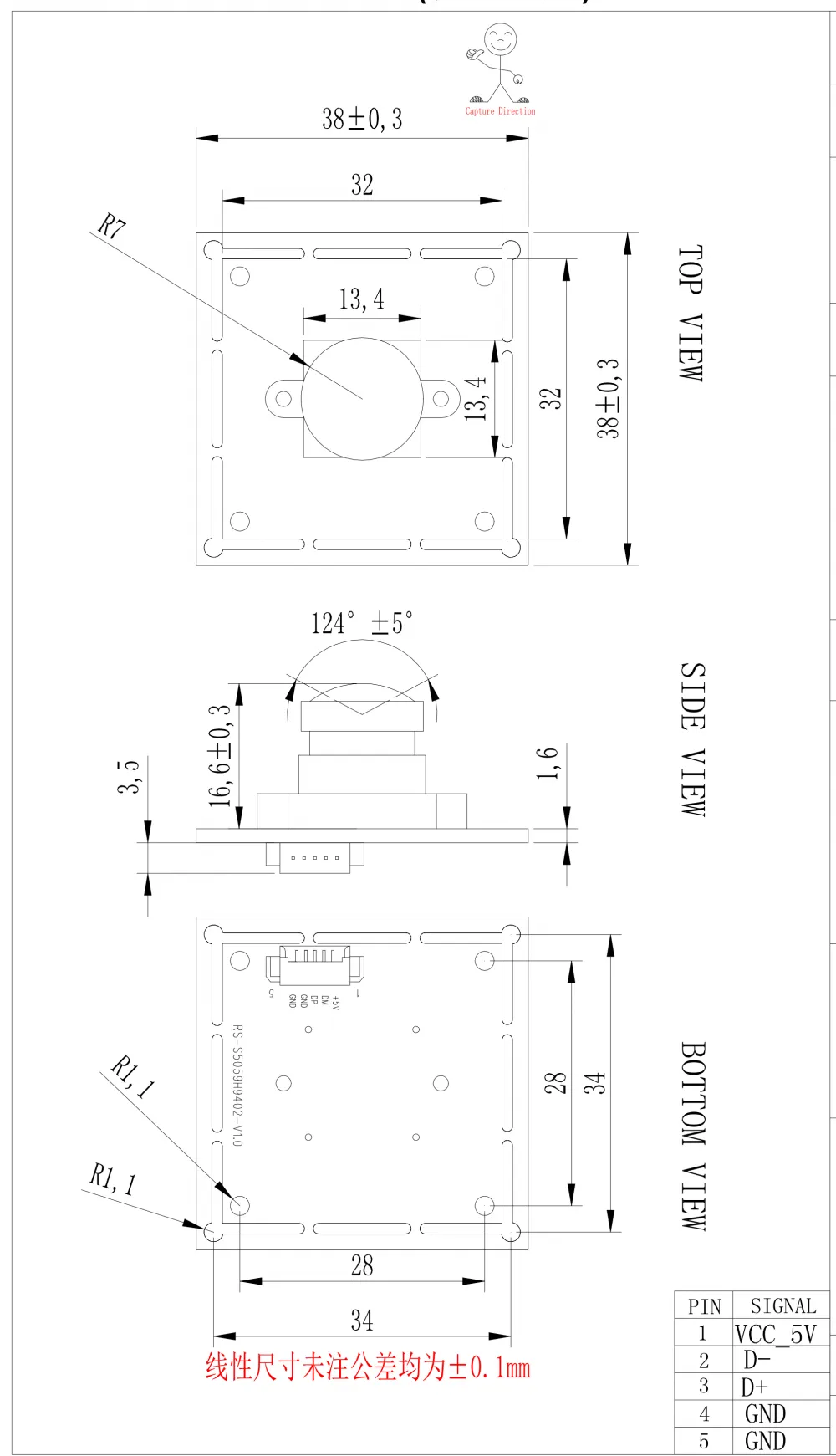

| Board Dimension | 38mm × 38mm (compatible with 32mm × 32mm mounting holes) |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 80°C |
| OS Compatibility | Windows XP/7/8/10/11, Linux (kernel 2.6.26+), macOS X 10.4.8+, Android 4.0+ |
| Certification | CE, FCC, RoHS compliant |
Product Highlights
High-Definition Detail Capture5MP resolution delivers fine-grained imaging for health inspection scenarios, capable of clearly identifying small wounds, band-aids, rings and nail details on hands, meeting the accuracy requirements of AI-powered morning check systems.
Adaptive Lighting PerformanceBuilt-in 3A algorithm (AE/AWB/AGC) with wide dynamic range technology, effectively suppresses overexposure and underexposure under backlight or uneven indoor lighting, ensuring consistent image quality for detection algorithms.

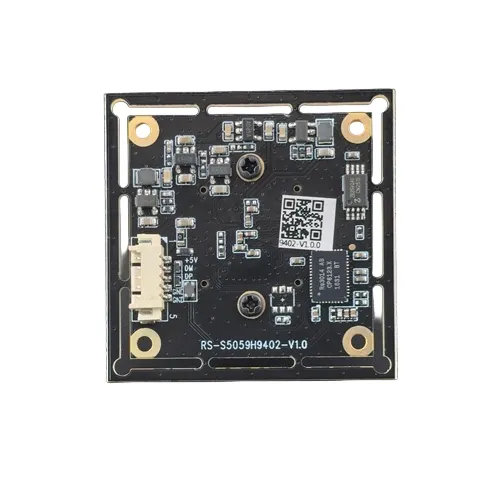

Embedded-Optimized DesignStandard 38×38mm PCB with universal mounting holes, compact structure and low power consumption. The fixed-focus design eliminates mechanical moving parts, improving long-term reliability for 24/7 operating devices.
Easy Integration & DeploymentFully compliant with UVC protocol, no extra driver required for mainstream operating systems. Supports parameter adjustment via standard video capture software, shortening product development and time-to-market.
Customizable Optical SolutionsMultiple lens options available including wide-angle, no-distortion and IR-sensitive lenses; support for custom PCB size, cable length, firmware tuning and IR cut filter configuration to match different device structures.
Application Scenarios
Morning check kiosks for catering staff health screening
Intelligent health monitoring terminals and medical self-service devices
Face recognition and access control systems
Industrial visual inspection and quality control equipment
Self-service kiosks and smart terminal devices
Biometric identification and attendance systems
Customization & Service
Optical Customization: Focal length, field of view, distortion level and IR sensitivity can be tailored
Hardware Customization: PCB shape, mounting hole position, cable length and connector type
Firmware Customization: Image parameter tuning, special function integration and device PID/VID modification
MOQ & Lead Time: Sample order supported; mass production lead time 21-28 working days
Warranty: 12-month standard warranty, lifetime technical support
Packaging & Shipping
Standard packaging: Anti-static bag + foam cushioning + outer carton
Custom packaging with private label available for OEM orders
Shipping via DHL, FedEx, UPS, sea freight and air freight as required
