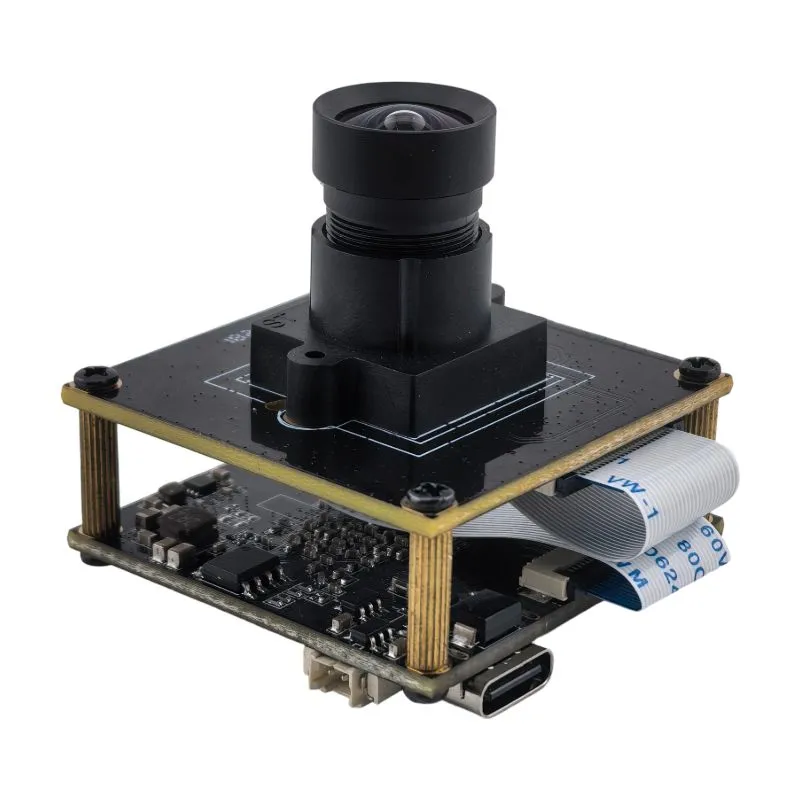

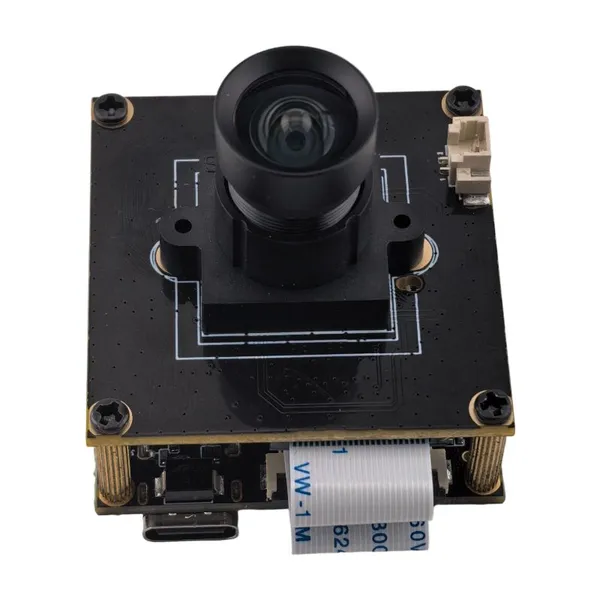

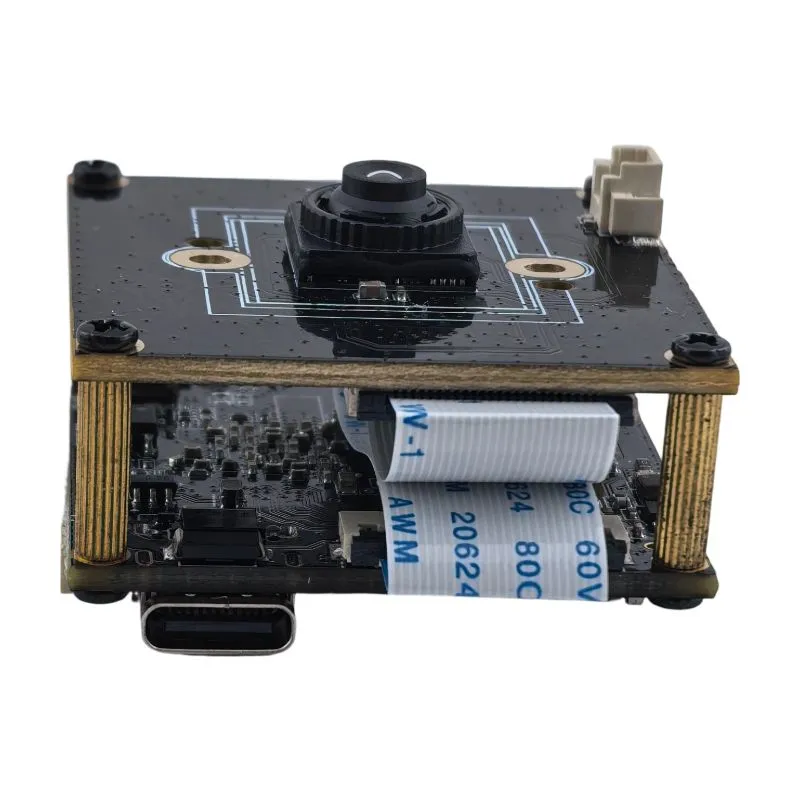

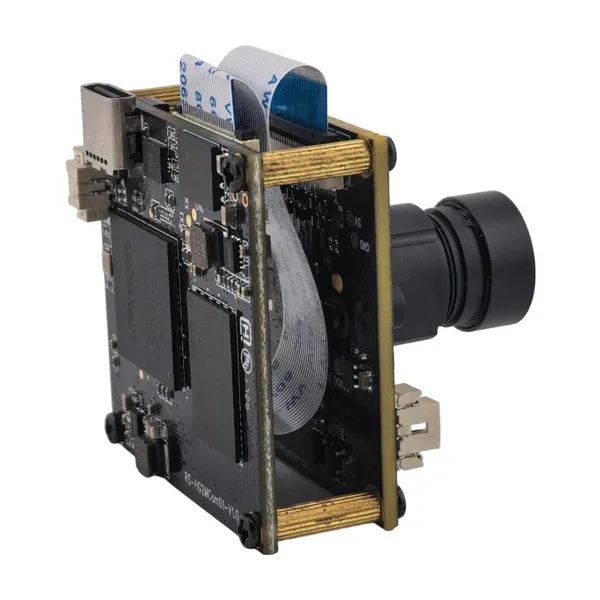

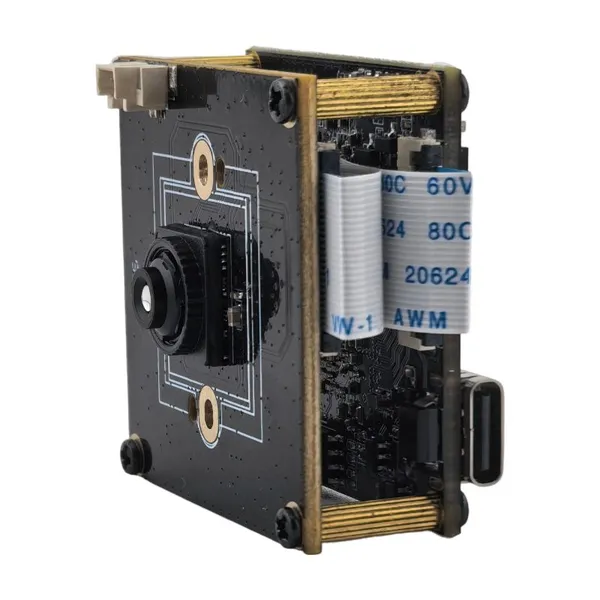

Help Center48MP High Resolution USB Camera Module 8000x6000 Fixed Focus UVC Free Driver Type-C Interface
Product Spotlights
UVC Plug & Play: Driver-free operation compatible with Windows, Linux, Android and Mac OS
Compact Embedded Design: 38×38mm double-layer PCB with mounting holes, easy for device integration
Stable Type-C Connectivity: USB 2.0 High Speed output with reliable Type-C interface
Industrial-Grade Reliability: FR-4 circuit board, 7/24 long-term operation supported
Related Products
-
1080P Synchronized Binocular 4MP USB Camera Module | Dual RGB Stereo Vision for 3D Depth ImagingNegotiableMOQ: 500 Pieces -
4MP+2MP Binocular Camera Module for Banking Financial SystemNegotiableMOQ: 500 Pieces
-
1080P 2MP Fixed Focus USB Camera ModuleNegotiableMOQ: 500 Pieces
-
5MP HD Camera Module With Separate LED Fill Light for Supermarket Self-Checkout TerminalsNegotiableMOQ: 500 Pieces
-
5MP HD USB Camera Module for Health Check Station & Medical Monitoring DevicesNegotiableMOQ: 500 Pieces
Product Description
This 48 megapixel board-level USB camera module is a high-performance embedded imaging solution designed for industrial, commercial and embedded development scenarios. Built with a high-sensitivity CMOS image sensor and integrated ISP processing, it delivers sharp, color-accurate image output with optimized noise control under complex lighting conditions.
The module adopts a standard M12 lens mount and supports replacement of lenses with different focal lengths and fields of view. Its double-layer PCB structure with copper pillar fixation ensures stable signal transmission and structural reliability, and the Type-C interface simplifies wiring and integration. Fully compliant with UVC protocol, it works out of the box on mainstream operating systems without additional driver installation, greatly shortening the development cycle for customers.
It is widely used in high-precision fields such as industrial visual inspection, document scanning and recognition, biometric identification, smart terminal equipment and embedded system development, providing stable and reliable high-definition visual collection capabilities for various terminal products.

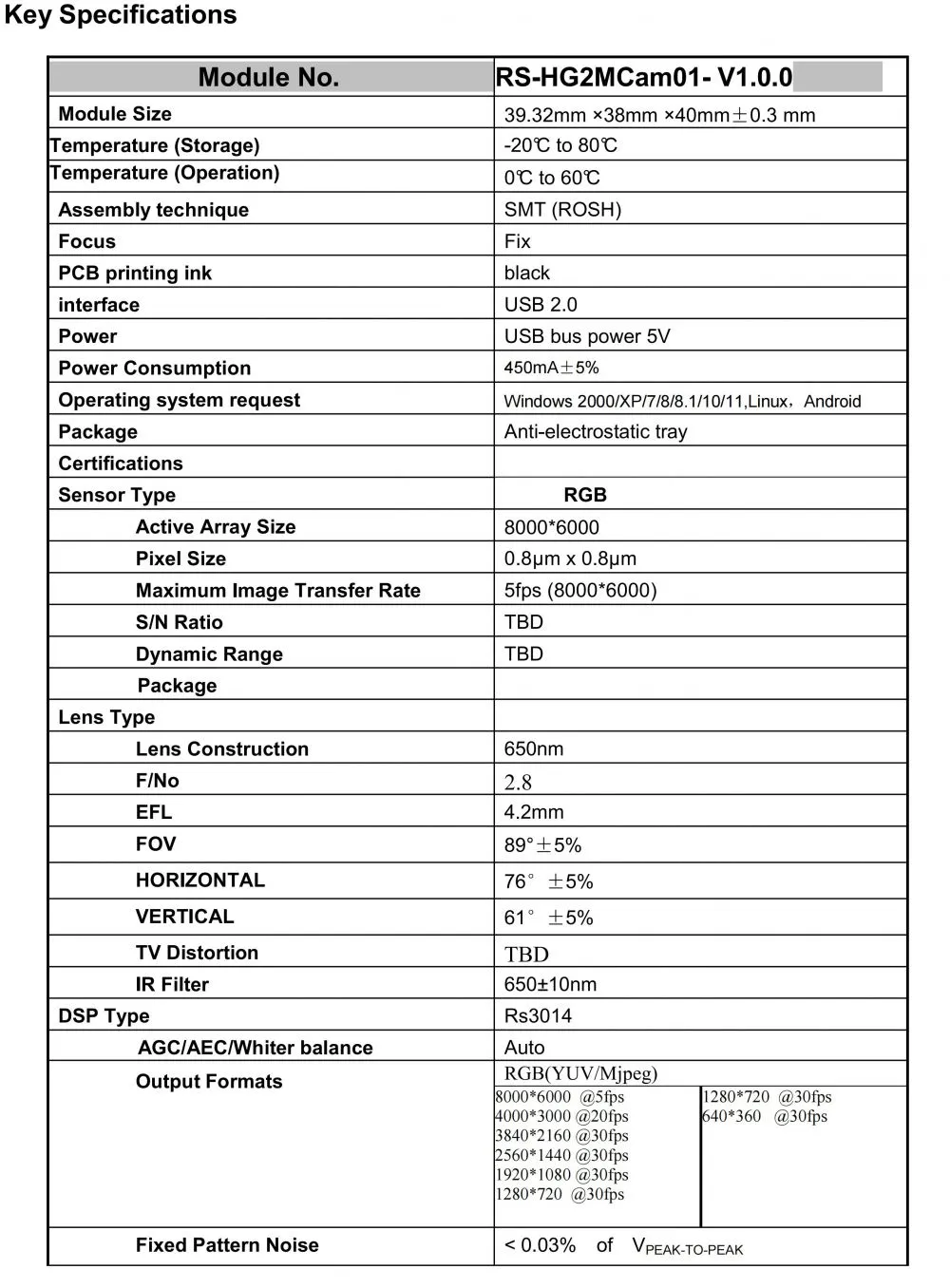

Detailed Specifications
| Parameter | Specification |
|---|---|
| Image Sensor | 1/2" CMOS Image Sensor |
| Max. Still Resolution | 48MP (8000 × 6000) |
| Video Output Format | MJPEG / YUY2(YUYV) |
| Resolution & Frame Rate | MJPEG: 8000×6000@5fps, 3840×2160@30fps, 1920×1080@30fps, 1280×720@30fpsYUY2: 1920×1080@10fps |
| Lens Mount | Standard M12 S-mount (fixed focus, customizable FOV) |
| Interface | USB 2.0 High Speed, Type-C Connector |
| Protocol Standard | UVC 1.0 Compliant |
| Power Supply | USB bus-powered, DC 5V |

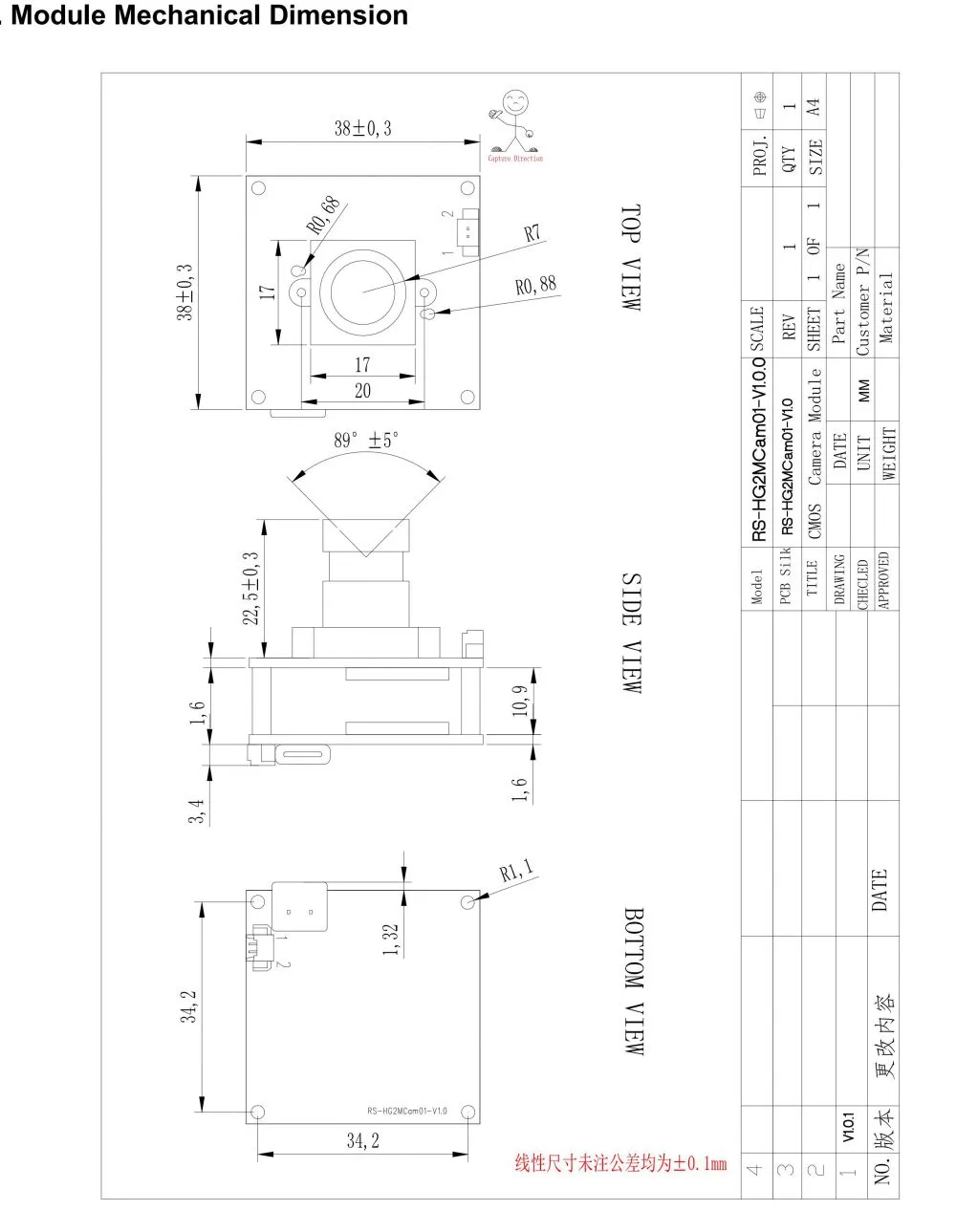

| PCB Dimension | 39 × 38mm (double-layer board structure) |
| Adjustable Parameters | Brightness, contrast, saturation, hue, sharpness, gamma, white balance, exposure |
| Compatible OS | Windows XP/7/8/10/11, Linux, Android 5.0+, Mac OS 10.6+ |
| Operating Temperature | 0℃ ~ 60℃ |
| Storage Temperature | -20℃ ~ 80℃ |
| Compliance | CE, RoHS compliant |
Application Scenarios
Industrial machine vision: product defect detection, dimensional measurement, surface quality inspection
Document & ID scanning: high-definition OCR recognition, file digitization
Biometric identification: face recognition, fingerprint acquisition, iris imaging
Embedded development: Raspberry Pi, Jetson Nano, ARM platform vision projects
Smart terminals: self-service kiosks, advertising displays, access control equipment
Medical & laboratory: medical imaging equipment, experimental sample observation
Security & monitoring: high-definition snapshot, fixed-point monitoring
Robotics: AGV navigation, visual positioning, environment perception
OEM & ODM Customization
We provide full one-stop customization services to match your project requirements:
Sensor customization: Optional sensors of different brands, resolutions and performance grades
Lens customization: Wide-angle lens, no-distortion lens, telephoto lens, different focal lengths available
Interface customization: USB-A, FPC, MIPI and other interface solutions
Hardware customization: PCB size, shape, mounting hole position, cable length and connector type
Firmware customization: Parameter preset, special image effect, function logic optimization
Packaging customization: Private label, neutral packaging, customized outer packaging
Packaging & Delivery
Standard packaging: Anti-static bag + shock-absorbing foam + export carton
Sample order lead time: 3-5 working days
Bulk order lead time: 21-28 working days (adjustable according to order quantity)
Shipping options: DHL, FedEx, UPS, TNT, air freight, sea freight, etc.
MOQ: 1 piece for sample evaluation, bulk order negotiable
After-sales & Service
1-year product warranty, free replacement for quality problems within the warranty period
100% full inspection before shipment to ensure product quality
Professional technical team provides 24-hour online technical support
Factory direct supply, stable supply capacity and competitive price
Long-term firmware iteration and technical upgrade support
