Product Overview
This high cost-performance 1080P camera module is a universal embedded vision solution widely adopted across multiple industries. Integrated with a high-sensitivity CMOS image sensor and precision fixed-focus lens, it delivers stable Full HD 1920×1080 video output with natural color reproduction and low noise performance.
Compliant with standard UVC protocol, it realizes true plug-and-play on mainstream operating systems without additional driver installation, effectively shortening product development cycles and lowering integration costs. The compact PCB design with standard mounting holes allows flexible assembly into various device housings, making it the preferred cost-effective choice for mass production projects in commercial and industrial fields.
Key Features
Full HD 1080P Imaging: 2 megapixel effective resolution, 1920×1080 @ 30fps smooth video capture, clearly presenting fine details for recognition and monitoring scenarios
Driver-Free Plug-and-Play: Standard USB 2.0 interface with UVC protocol compatibility; works seamlessly on Windows, Linux, Android and macOS systems
Reliable Fixed Focus Design: Pre-calibrated fixed focal length, free of focus adjustment and mechanical wear, suitable for long-term continuous operation
Wide Compatibility: Supports MJPEG and YUY2 video output formats, adaptable to various embedded main control schemes
Optimized Cost Structure: Mature solution with stable supply chain, excellent performance-to-price ratio for large-scale deployment
Compact PCB Form Factor: Standard mounting hole design for easy fixation, convenient for built-in installation of terminal equipment
Low Power Consumption: 5V DC power supply with low operating current, suitable for battery-powered and portable devices

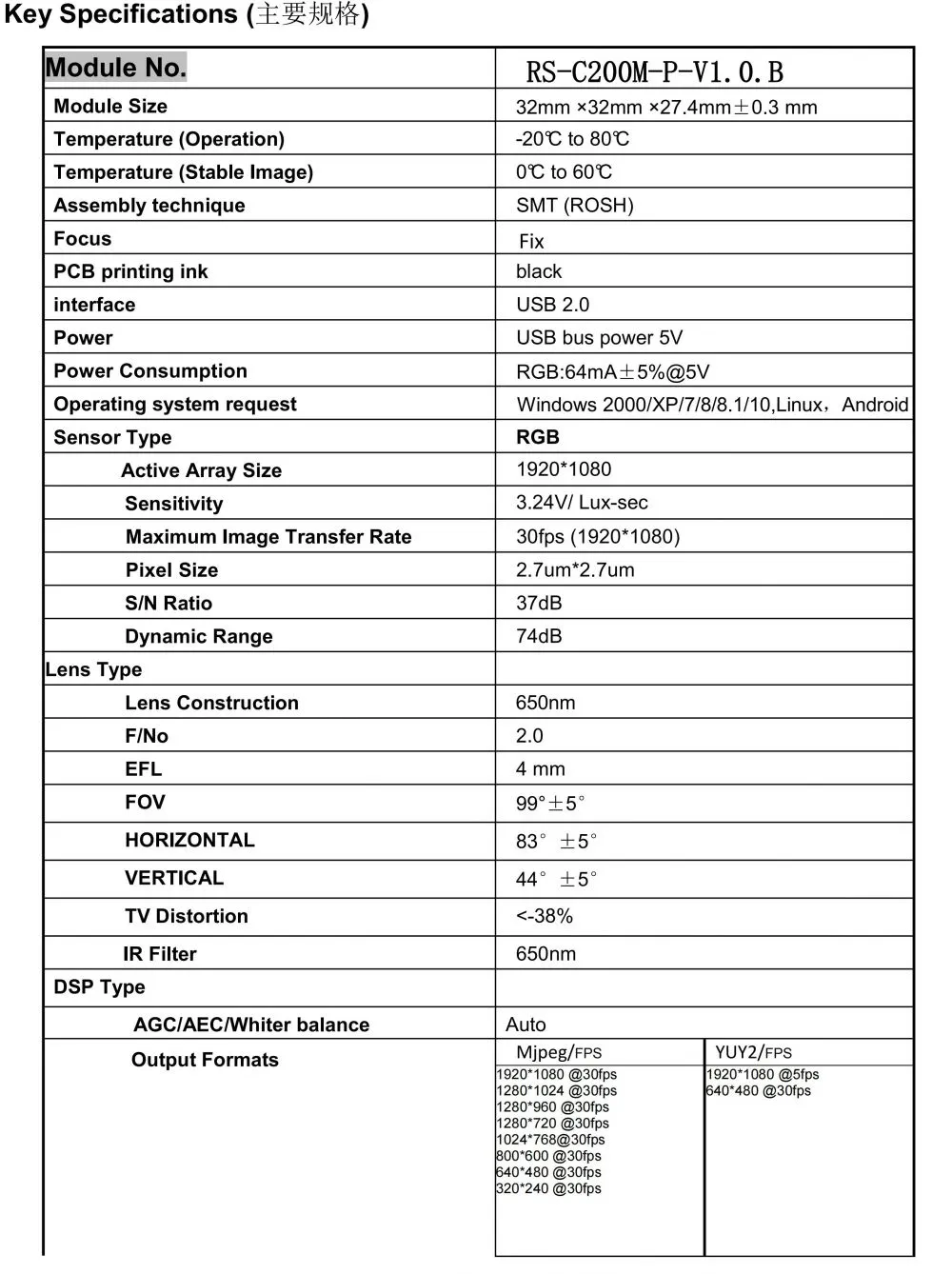

Technical Specifications
| Parameter Item | Detailed Specification |
|---|---|
| Image Sensor | 1/3.02 inch CMOS image sensor |
| Effective Pixels | 2.0 Megapixels, 1920(H) × 1080(V) |
| Lens Type | Fixed Focus (FF), M12 mount |
| Field of View | Standard 99° (customizable: 60° / 90° / 120° wide-angle) |
| Output Interface | USB 2.0, 5Pin JST connector |
| Video Formats | MJPEG, YUY2 |
| Max Frame Rate | 30fps @ 1920×1080 (MJPEG format) |
| Power Supply | DC 5V, operating current ≤ 200mA |
| Operating Temperature | 0℃ ~ +60℃ |
| Storage Temperature | -20℃ ~ +80℃ |

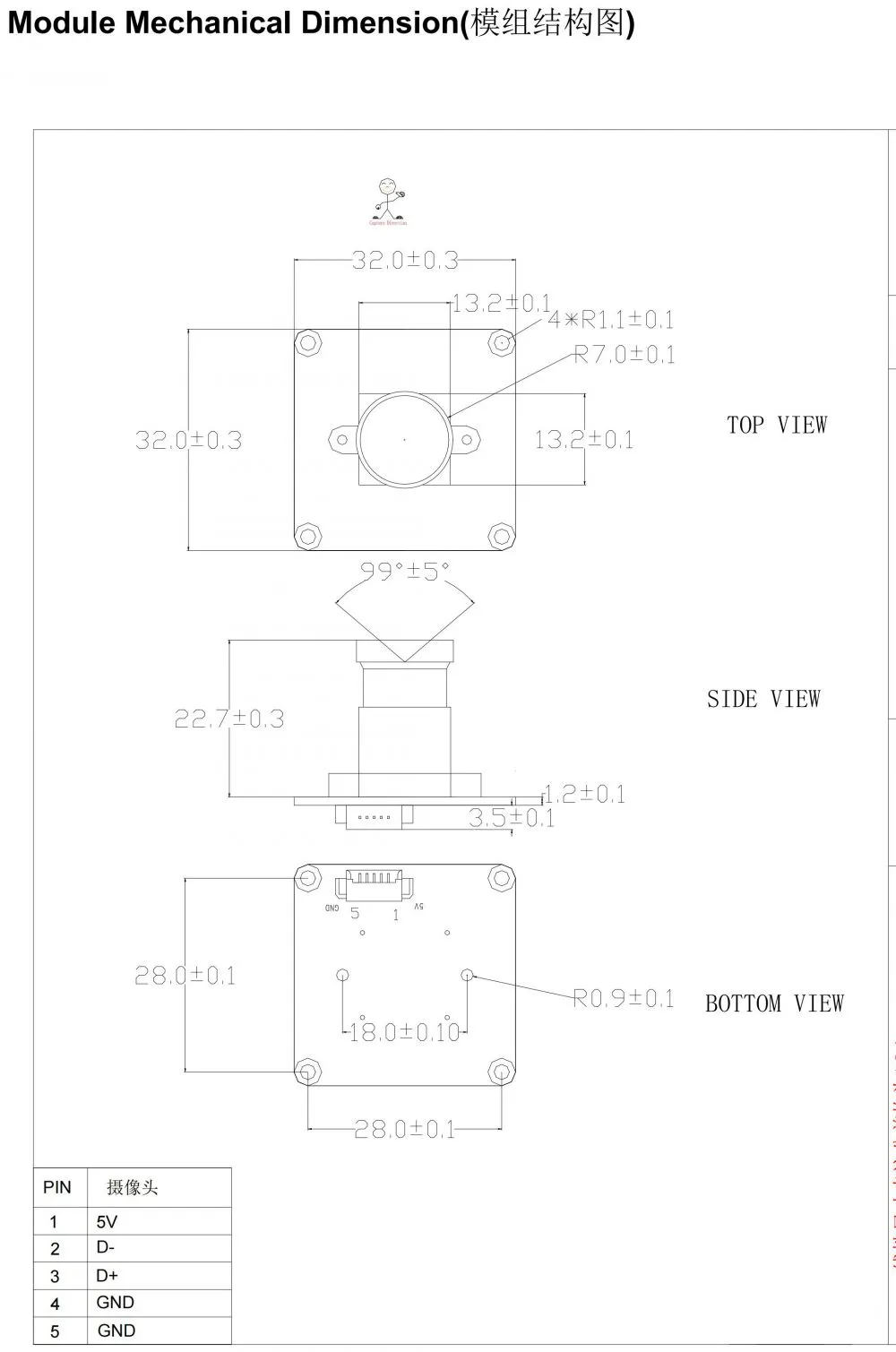

| PCB Size | 32×32mm (standard version) |
| Mounting Hole Spacing | 28mm (standard) |
| Compatible Systems | Windows XP/7/8/10/11, Linux, Android, macOS |
| Compliance Protocol | UVC (USB Video Class) |
Application Fields
This universal camera module is suitable for integration into a wide range of devices and systems, including but not limited to:
Face recognition terminals and access control systems
Advertising displays, digital signage and commercial display equipment
Smart home video intercom and indoor monitoring devices
Self-service kiosks, vending machines and smart retail terminals
Industrial visual inspection and equipment built-in monitoring
IoT perception terminals and embedded vision systems
Teaching equipment, video conference terminals and live streaming devices
Customization Service
We provide flexible OEM/ODM customization services to match different project requirements:
Lens customization: optional field of view, low-distortion lens, IR-CUT dual-filter for day/night mode
Firmware tuning: adjustable exposure, white balance, color saturation, noise reduction parameters
Hardware modification: PCB size and shape adjustment, connector type replacement, cable length customization
Function expansion: built-in digital microphone, LED fill light, infrared night vision function
Packing & Delivery
Standard packaging: Anti-static bag + shockproof foam + export carton, ensuring safe long-distance transportation
Sample order: Shipped within 2-3 working days
Bulk order: Production lead time negotiable according to order quantity
Logistics options: Support DHL, FedEx, UPS, air freight, sea freight and other international shipping methods
We are a professional manufacturer focusing on R&D and production of camera modules, with mature supply chain and strict quality control system. All products undergo full inspection before delivery to provide stable and reliable vision solutions for global customers.
