Product Overview

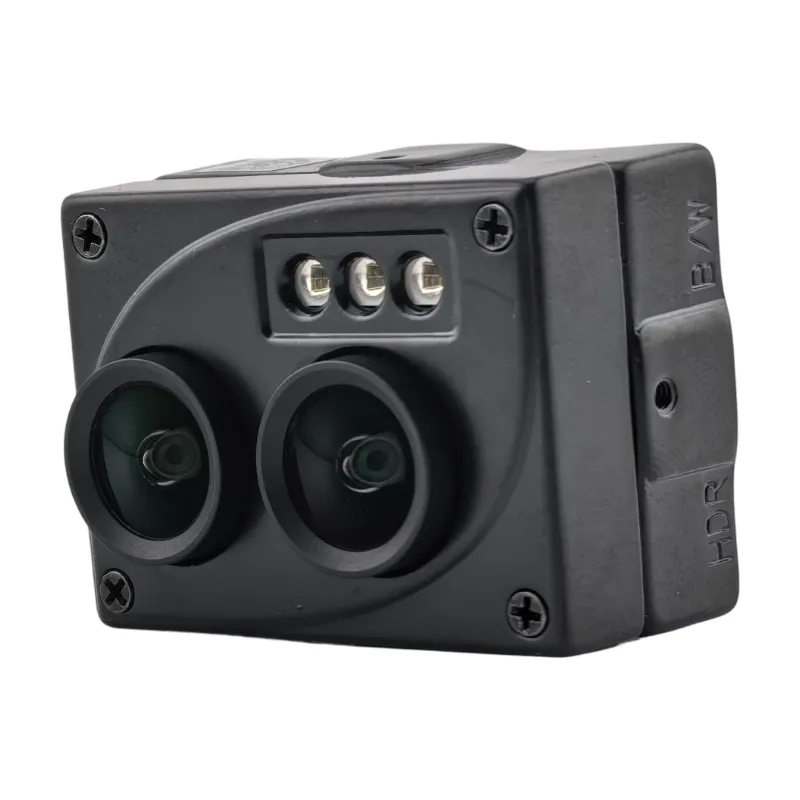

This industrial-grade binocular camera module is purpose-built for financial identity verification and biometric authentication scenarios. Featuring a 4MP RGB color sensor paired with a 2MP monochrome infrared sensor, it delivers synchronized dual-channel image acquisition with integrated HDR wide dynamic processing. It is engineered to deliver sharp, accurate facial imaging even under the challenging lighting conditions common in bank counters, ATM lobbies and self-service terminals.
With built-in infrared fill lights and compatibility with mainstream liveness detection algorithms, the module effectively defends against identity spoofing via photos, video playback and 3D masks, meeting financial-grade security requirements. Its compact embedded housing, standard UVC plug-and-play interface and wide OS compatibility make it easy to integrate into ATM, VTM, self-service kiosks and counter verification equipment.
Key Features
Dual-Lens Biometric Architecture: 4MP high-resolution color channel for visible-light face capture + 2MP B/W infrared channel for liveness authentication, with hardware-level synchronous acquisition to ensure matching accuracy
Professional HDR Performance: Built-in high dynamic range imaging technology, suppresses strong backlight and glare in bank counter scenarios, restores clear facial details under uneven lighting and high contrast environments
Financial-Grade Liveness Detection: Works with mainstream face recognition algorithms to support silent liveness detection, resists photo, video and 3D mask spoof attacks, suitable for high-security identity verification scenarios
Industrial-Grade Reliability: Wide operating temperature range, low power consumption design and anti-interference housing structure, supports 7/24 uninterrupted operation in self-service terminal equipment
Plug & Play Universal Compatibility: Standard USB 2.0 high-speed interface, fully compliant with UVC protocol, driver-free on Windows, Linux, Android and other mainstream systems
Integrated IR Supplementary Lighting: Built-in 3pcs 850nm infrared fill lights, supports clear imaging in 0Lux low-light/fully dark environments without additional lighting equipment

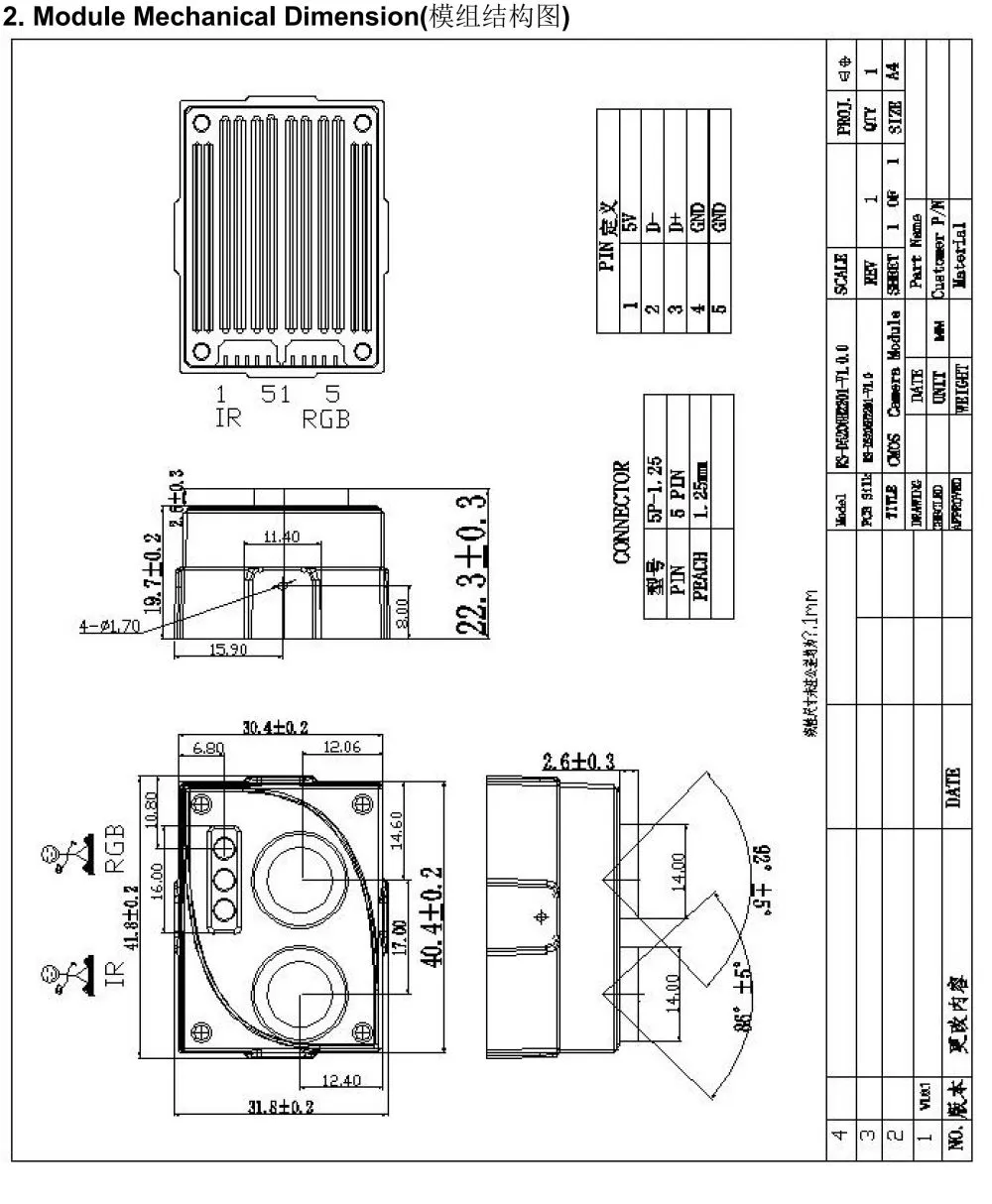

Miniature Embedded Design: Compact housing with reserved mounting holes, easy to embed into various terminal devices without occupying extra space
Flexible Customization: Supports OEM/ODM customization including lens viewing angle, cable length, firmware parameters and housing structure, adapting to different project requirements

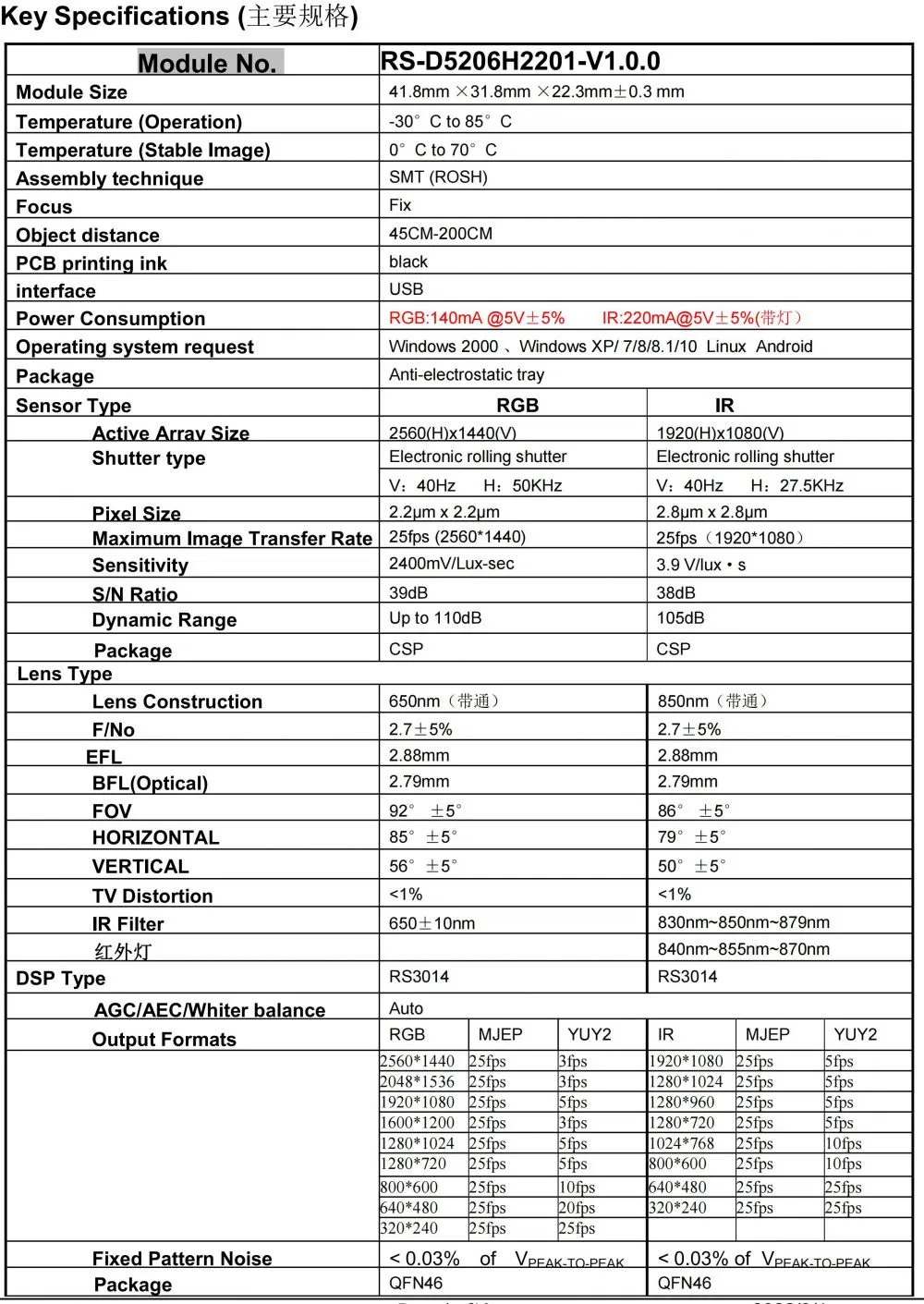

Technical Specifications
| Parameter | Specification |
|---|---|
| Image Sensor | 1/2.7" CMOS (Color Channel) + 1/2.9" CMOS (B/W IR Channel) |
| Effective Pixels | 4MP (2560×1440) Color Channel; 2MP (1920×1080) B/W IR Channel |
| Frame Rate | 30fps @ 2MP; 25fps @ 4MP (MJPEG output) |
| Dynamic Range | ≥110dB HDR |
| Minimum Illumination | 0.1Lux (Color mode); 0Lux with IR fill light (B/W mode) |
| Lens Type | Fixed focus lens, standard viewing angle customizable (86°/92° optional) |
| Interface | USB 2.0 High Speed, UVC compliant |
| IR Fill Light | 3× 850nm infrared LEDs |
| Operating Temperature | 0℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +85℃ |
| Compatible Systems | Windows 7/8/10/11, Linux, Android, Mac OS |
| Housing Material | Reinforced ABS housing |
| Certifications | CE, RoHS, FCC |
| Installation | Embedded mounting with screw holes, suitable for terminal integration |
Application Scenarios
Banking & Finance: ATM machines, VTM video teller machines, CRS self-service terminals, bank counter identity verification, account opening authentication
Payment & Retail: Face payment terminals, self-checkout machines, member verification systems
Government & Public Services: Government service kiosks, customs inspection channels, visitor management systems, real-name authentication terminals
Access Control & Attendance: Office building access gates, community face access control, staff attendance systems
Other Verticals: Hotel self check-in terminals, station security equipment, medical self-service machines
Packing & Delivery
Packaging: Anti-static bag + shock-absorbing foam + standard export carton; customized packaging available for bulk orders
MOQ: 1 unit for sample evaluation; bulk order quantity negotiable
Lead Time: 3-5 working days for sample orders; 21-28 working days for mass production
Shipping: DHL, FedEx, UPS, TNT for express delivery; sea freight / air freight available for bulk shipments
Payment Terms: T/T, Trade Assurance, L/C and other mainstream trade terms accepted
Service Support
Complete SDK development kit provided for secondary development and algorithm integration
Professional technical team supports pre-sales consultation and after-sales debugging guidance
Full OEM/ODM service: customizable lens, interface, housing, firmware and function configuration
100% full inspection before shipment, with standard product warranty service
