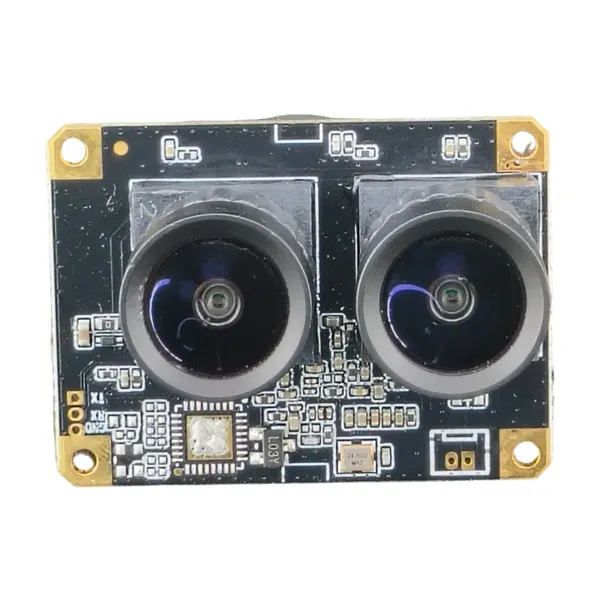

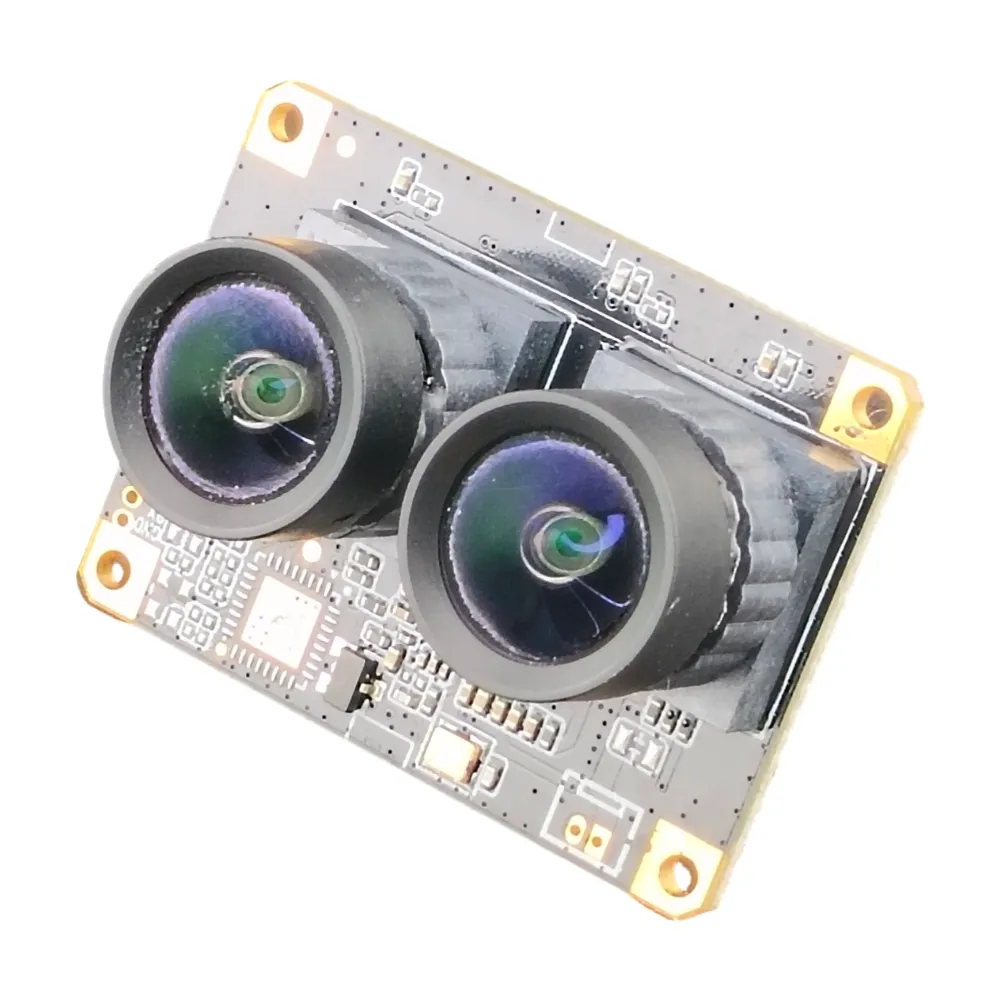

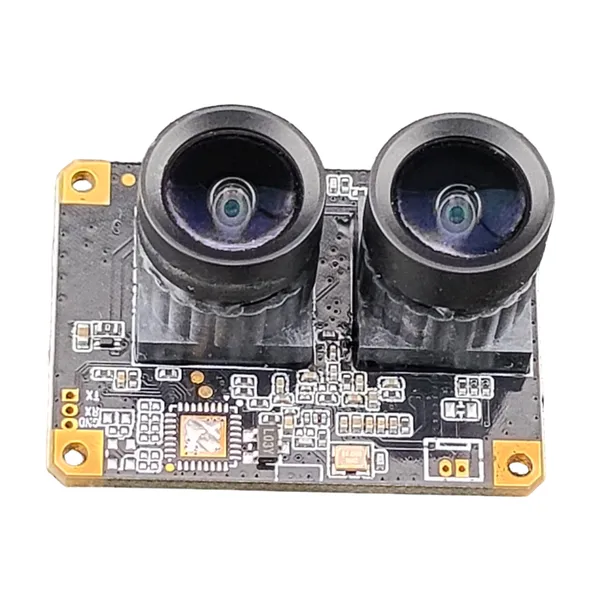

This industrial-grade stereo depth camera module leverages native binocular stereo vision technology to deliver real-time, high-precision depth information output. It is equipped with two perfectly synchronized 5-megapixel global-shutter CMOS sensors, supporting both high-resolution color imaging and sub-millimeter level depth measurement. With a compact PCB design and standard USB interface, it is easy to integrate into various embedded systems. It is an ideal perception solution for robotics, machine vision, AR/VR interaction, 3D scanning and industrial inspection scenarios.
Core Features
Dual 5MP Global-Shutter SensorsTwo matched 1/2.5" global-shutter CMOS sensors capture sharp 2592×1944 color images at up to 30 fps, completely eliminating motion blur for moving objects and dynamic scenes.
Hardware-Accelerated Real-Time Depth CalculationBuilt-in hardware-accelerated stereo matching algorithm generates depth maps on the fly. It supports a disparity range of up to 200px, enabling stable long-distance depth perception.
Sub-Millimeter Depth AccuracyDelivers 1-10mm depth resolution within a 0.2m–3m working range (60mm baseline), with accuracy up to ±0.5mm at 1m distance, meeting high-precision measurement requirements.

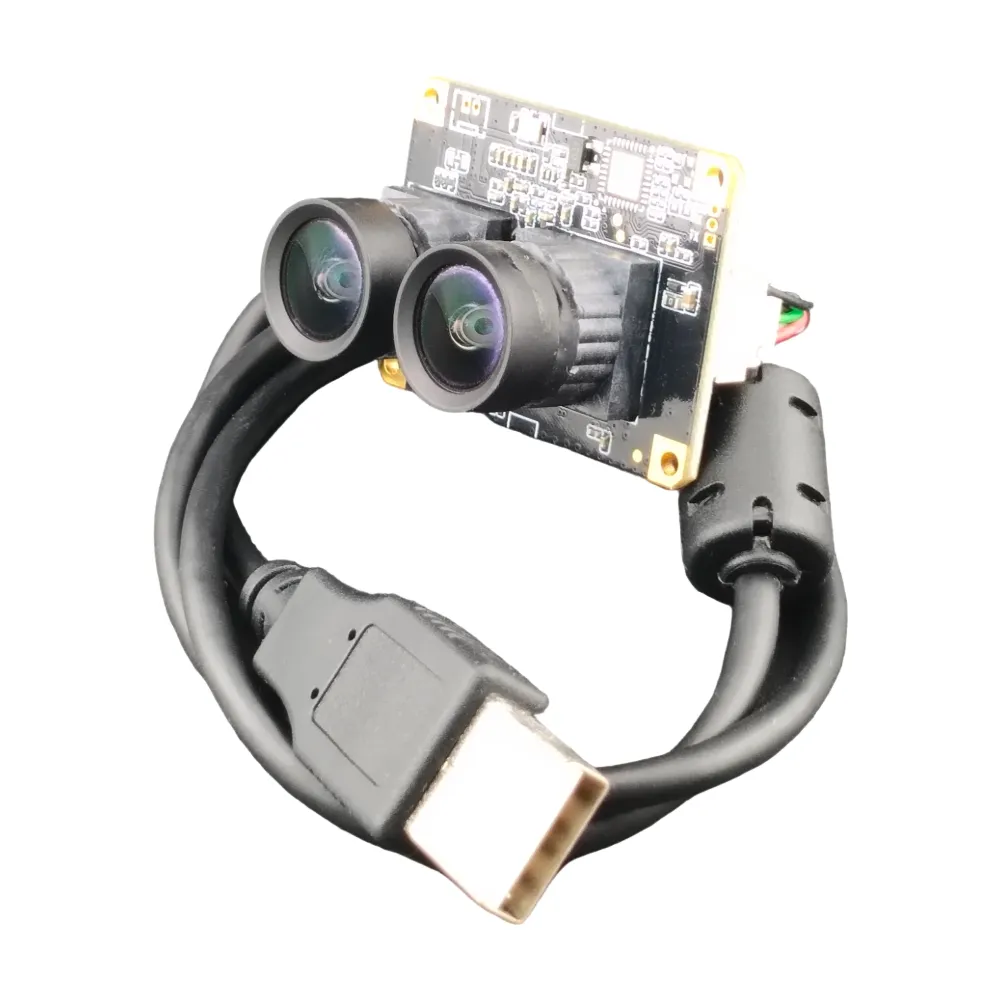

Plug-and-Play USB 2.0 InterfaceStandard USB 2.0 interface with UVC/UAC protocol, compatible with Windows, Linux and Android systems, supporting driver-free plug-and-play for quick deployment.

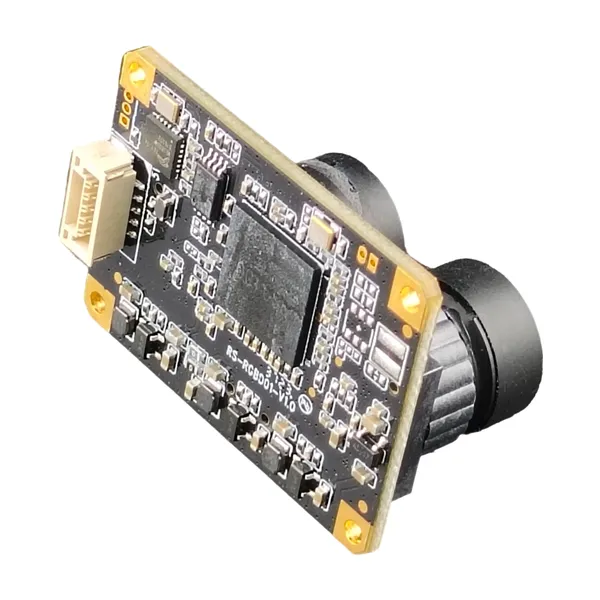

Rugged Industrial-Grade DesignUltra-compact 42×32mm PCB board with reserved screw mounting holes; wide operating temperature range from 0°C to +60°C, adapting to harsh industrial and outdoor environments.

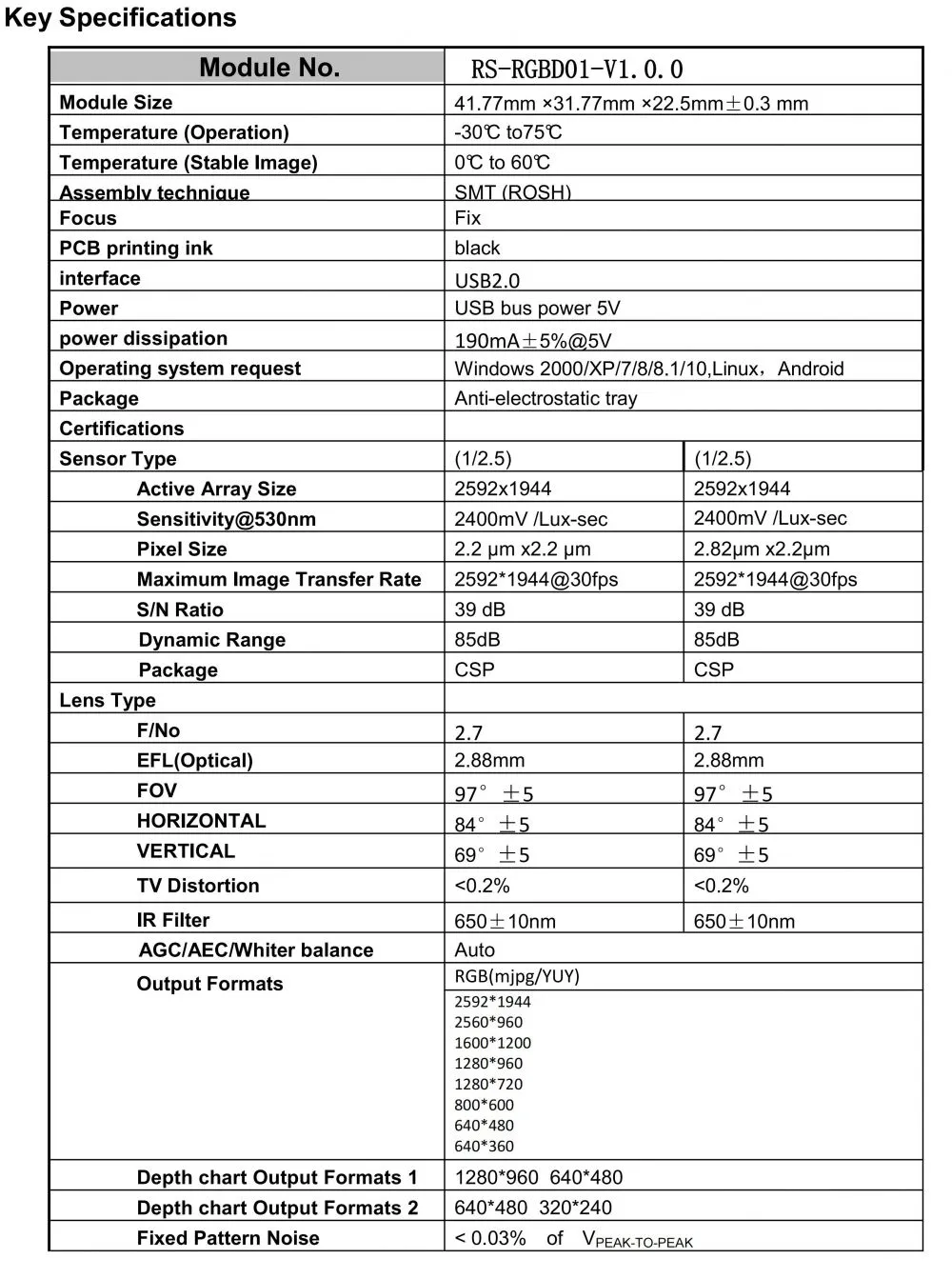

Technical Specifications
| Specification | Details |
|---|---|
| Image Sensor | 1/2.5" 5MP Global-Shutter CMOS × 2 |
| Effective Resolution | 2592 × 1944 |
| Max Frame Rate | 30 fps @ full resolution |
| Interface | USB 2.0 (UVC/UAC compliant) |
| Depth Detection Range | 0.2 m – 3 m (60mm baseline) |
| Depth Accuracy | ±0.5 mm @ 1m distance |
| Lens Parameter | Fixed focus, 97° horizontal FOV |
| Power Supply | 5V DC, 500mA |

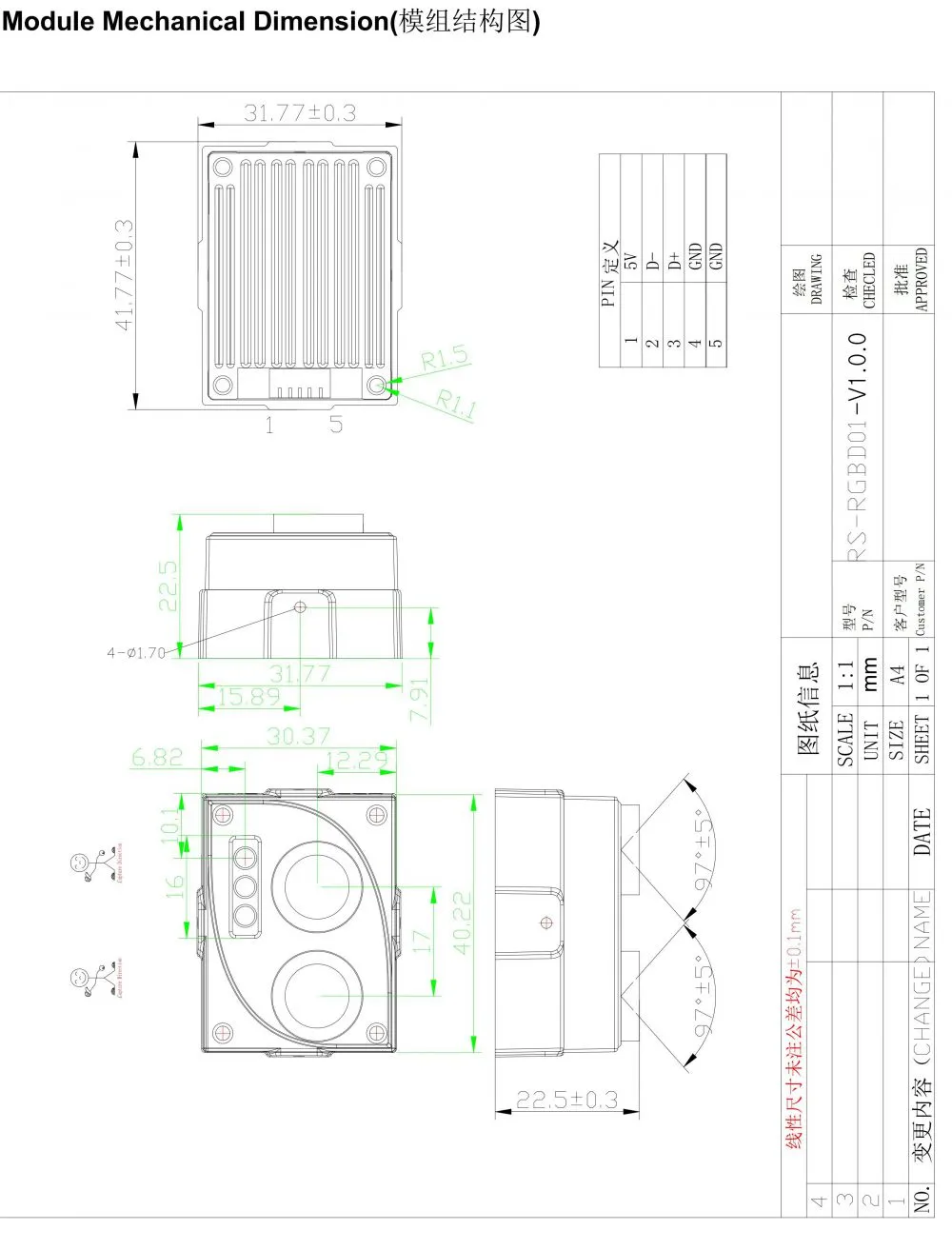

| Module Dimension | 42 × 32 × 23mm (L×W×H) |
| Operating Temperature | 0 °C to +60 °C |
Application Scenarios
Robotics & Autonomous Navigation: Obstacle avoidance, SLAM mapping and path planning with high-precision 3D point cloud output
Machine Vision & Quality Inspection: Online measurement of object height/volume and surface defect detection on production lines
AR/VR & Human-Computer Interaction: Low-latency hand gesture and facial motion tracking for immersive interactive experience
3D Scanning & Reverse Modeling: High-fidelity digital twin reconstruction for small and medium-sized objects
Biometric Recognition & Security Monitoring: Binocular liveness detection and depth-based identity verification
Why Choose This Product
Premium Imaging Performance: Global shutter technology ensures blur-free capture of high-speed moving targets, outperforming rolling shutter solutions in dynamic scenarios.
Industry-Leading Depth Precision: Sub-millimeter measurement accuracy supports fine detection and measurement tasks in industrial and scientific research fields.
High Reliability & Adaptability: Industrial-grade temperature tolerance and compact structure support long-term stable operation in space-constrained and harsh environments.
Flexible Customization Service: We support customization of lens specifications, baseline distance, firmware functions and housing design to match diversified project requirements.
Trade & Service Information
Shipping: Support express delivery (DHL/FedEx/UPS), air freight and sea freight options
Payment: T/T, trade assurance and other mainstream payment methods are acceptable
MOQ: Support sample order for testing, bulk order price is negotiable
Warranty: 12-month product warranty with lifetime technical support
