Help CenterSOBOLA BF-V5000E Wireless Transmission Life Search Detector, 4-Probe All-Scenario Disaster Emergency Rescue Camera
Product Spotlights
✅ Four Interchangeable Professional Probes for Full-Scenario Rescue Coverage
✅ 50m Long-Distance Wireless Transmission System for Remote Command
✅ Ultra-Sensitive Audio System & Long Endurance Dual Battery Design
✅ Wide Applicability for Multi-Department Emergency Rescue Missions
Related Products
-
BF-V2000E Handheld Audio Video Life Search Detector, Dual Probe Night Vision Rescue Device With Noise Reduction HeadsetUS$ 300 - 30000MOQ: 1 Case -
BF-V8 Portable Audio Video Life Search Detector With 4 Probes, Night Vision Two-Way Intercom Rescue DeviceUS$ 300 - 30000MOQ: 1 Case
-
SOBOLA BF-V9/R600 Thermal Audio Video Life Search Detector, Smoke Penetrating Thermal Imager Emergency Rescue EquipmentUS$ 300 - 30000MOQ: 1 Case
-
SOBOLA BF-V10 6-Probe Thermal Audio Video Life Search Detector, All-Scenario Disaster Emergency Rescue DeviceUS$ 300 - 30000MOQ: 1 Case
-
SOBOLA BF-V12/50R Dual-Screen Thermal Audio-Video Life Search Detector With Wireless Vibration Sensors for Disaster RescueUS$ 300 - 30000MOQ: 1 Case
Search and Rescue Audio Video Camera System (BF-V5000E)
I. Basic Product Information
Item |
Details |
Product Name |
Audio & Video Life Detector |
Model NO. |
BF-V5000E |
Brand |
SOBOLA |
Certification |
Test Report, Software Copyright Registration Certificate |
Core Technology |
Multi-probe synchronous split-screen display + wireless 50m long-distance image transmission + two-way voice intercom; integrate infrared night vision, electric rotation, pipeline hard cable detection & IP68 deep underwater inspection, transmit on-site video/audio to rear command center wirelessly |
Detection Environment |
Earthquake collapse, mudslide, fire smoky ruins, narrow pipelines, deep wells, flood underwater salvage, rainy muddy harsh disaster sites |
Primary Function |
Visually locate buried survivors under debris and conduct real-time voice communication; support 4 interchangeable probes for multi-scene rescue; 1/2/4 split screen switchable display, built-in recording & playback; 50m wireless image transmission to external receiving monitor for remote command scheduling |
System Configuration |

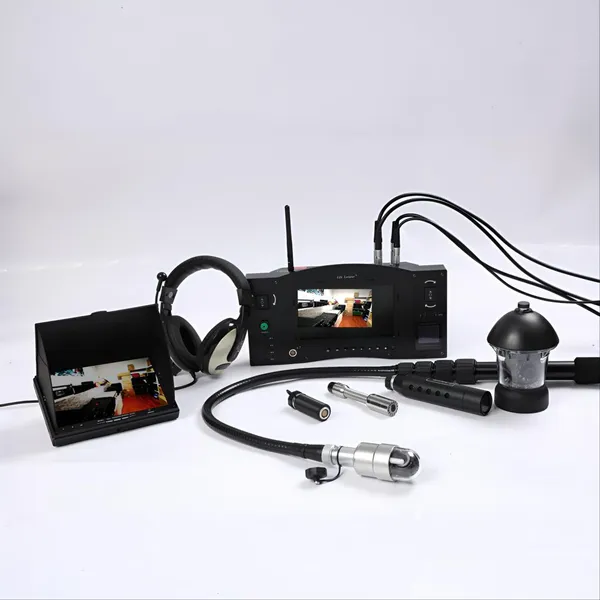

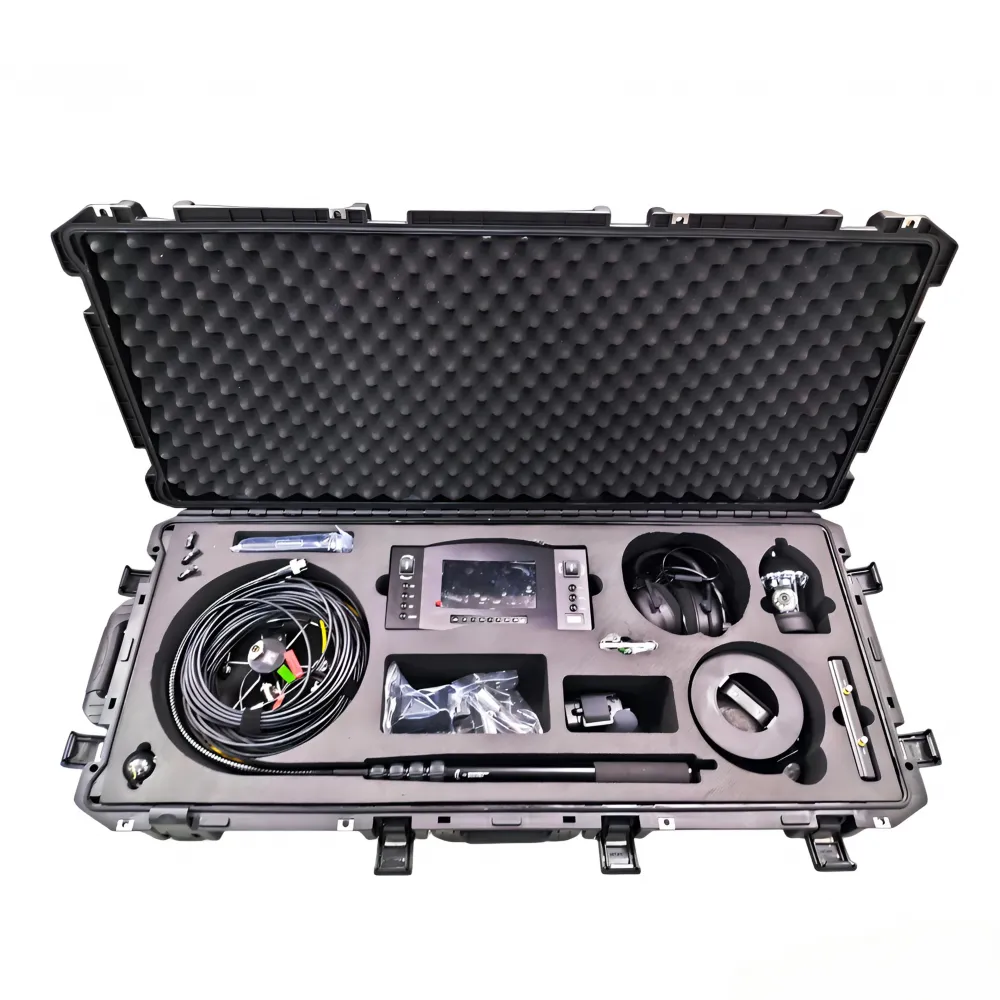

1 × Metal Shell Main Unit 1 × Infrared Voice Intercom Probe 1 × Pipeline Hard Cable Probe 1 × 360° Electric Rotating Probe 1 × IP68 Underwater Probe 1 × Noise Reduction Headset 1 × External Spare Battery Pack 1 × 7-inch Wireless Handheld Receiver with Sunshade 1 × AV Video Output Cable 1 × Charger, Documents (User Manual, Qualification Certificate, Warranty Card) 1 × Safety Protection Hard Case |
II. Product Description
BF-V5000E audio-video life detector is globally recognized professional rescue equipment widely adopted by international rescue teams. It enables rescuers to observe trapped survivors buried under ruins and carry out barrier-free two-way voice communication. All captured on-site images and audio signals can be wirelessly transmitted to rear command centers for unified scheduling. Suitable for emergency rescue operations after fires, earthquakes, bombings and indoor gas building explosions. Widely equipped for fire brigades, earthquake bureaus, maritime administrations, civil defense bureaus, work safety supervision bureaus, armed police forces and reserve service teams.
Ⅲ.Key Product Advantages
1.All-metal rugged main unit shell, anti-drop, wear-resistant and ductile, stable operation under collapse, mudslide and other extreme harsh disaster environments

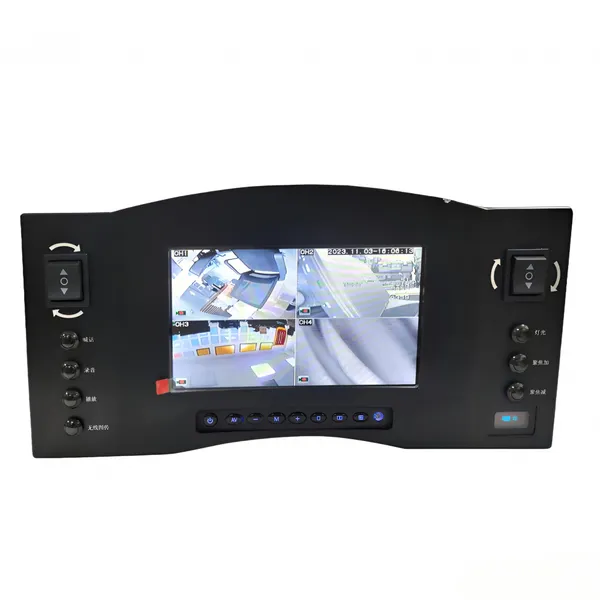

2.Multi-split screen display: single / dual / quad screen switchable via physical buttons; built-in ≥64GB memory with video recording & playback function; large 7-inch TFT color LCD for ultra-clear imaging
3.4 interchangeable dedicated probes, support simultaneous multi-probe working or independent single probe operation to cover all rescue scenarios
4.Built-in 50m long-distance wireless transmission module, matched external wireless receiving monitor to synchronize on-site footage for remote command; support AV signal output to connect large command display screens
5.Complete supporting accessories: shoulder strap for portable carrying, noise-canceling headset for clear intercom, independent spare battery pack to extend continuous field working time
Ⅳ. Technical Specifications
Parameter Item |
Specific Parameter |
Display Screen of Main Unit |
7-inch TFT color LCD; FBAS video signal output; adjustable brightness, chroma and contrast via physical buttons; single/dual/quad split screen switchable display mode |
Storage & Recording |
Built-in 64GB memory, support real-time video recording and historical video playback |
Wireless Transmission Function |

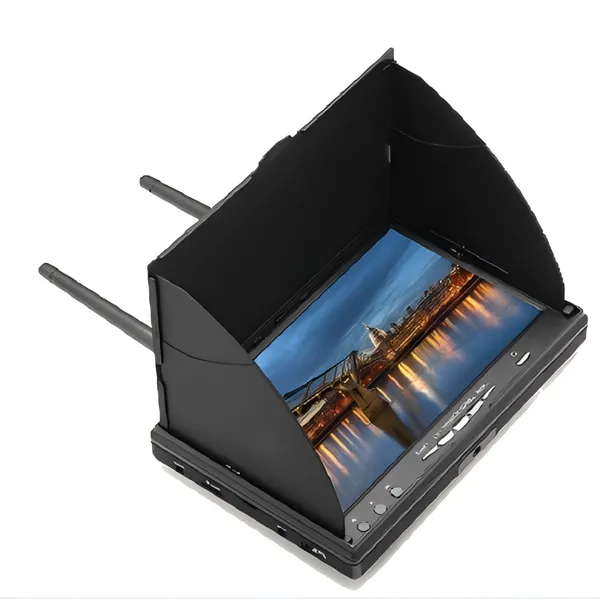

wireless transmission distance between main unit and external receiver; synchronously display main unit screen or independent split different images; 7-inch wireless receiver equipped with integrated sunshade for clear viewing under strong sunlight |
Audio Interface |
Matched professional noise reduction headset, support full-duplex two-way voice intercom with trapped survivors |
Working Time |
Built-in lithium battery supports over 6 hours continuous operation; independent external spare battery pack included for extended endurance |
Shell & Carrying Design |
All metal anti-drop wear-resistant housing; equipped with shoulder strap for easy handheld & shoulder carrying |
Type of Probe |
4 interchangeable probes: Infrared Voice Intercom Probe, Pipeline Hard Cable Probe, 360° Electric Rotating Probe, IP68 Underwater Rotating Probe |
Ⅴ. Application Scenarios
1. Earthquake & Building Collapse Rescue: Thermal long-distance life detection & multi-angle visual observation under stacked rubble
2. Fire & Explosion Disaster Rescue: Smoke-penetrating thermal imaging to locate hidden survivors in smoky, low-visibility fire sites
3. Narrow Pipeline & Confined Space Inspection: Slim snake eye & pipeline probe for sewer, tunnel, tiny gap hidden danger search
4. Underwater Emergency Salvage: IP68 underwater probe for lake, well flood drowning rescue & underwater structure inspection
5. All-weather Outdoor Rescue: IP67 waterproof probes adapt to heavy rain, damp & muddy post-disaster field environments
Ⅵ. After Sales Service
Sobola provides complete and reliable after-sales support to keep your thermal imaging inspection equipment running stably and durably.
1.Professional Operation Guidance We supply detailed operation manuals and remote one-on-one video training covering equipment startup, parameter setting, thermal image analysis and wireless data transmission operation, helping operators master all functions quickly. Customized operation tutorials can be provided according to customer actual inspection demands.
2.Scheduled Inspection & Calibration Service We offer periodic equipment performance inspection and temperature calibration service, regularly test detector accuracy, update system firmware to maintain stable measurement performance long-term.
3.24/7 Online Technical Support Round-the-clock online technical assistance is available. Our professional technical team responds to equipment operation questions timely, remotely diagnose and solve faults, providing consistent long-term professional technical support anytime you need.
