Search and Rescue Audio Video Camera System (BF-V2000E)
I. Basic Product Information
Item |
Details |
Product Name |
Audio and Video Life Detector |
Model NO. |
BF-V2000E |
Brand |
SOBOLA |
Certification |
Test Report, Qualification Certification |
Core Technology |
Integrated high-definition video monitoring, infrared night vision filling, two-way voice intercom and noise reduction audio pickup technology, realizing visual search and audio communication of trapped personnel in ruins |
Detection Environment |
Post-earthquake collapse, building explosion, fire collapse, ruins rescue, humid and rainy harsh environments, dark low-light scenes |
Primary Function |
Visually inspect and locate trapped personnel under ruins, support real-time video shooting and recording, realize clear two-way voice communication with survivors; equipped with dual probes for all-scene rescue detection, greatly improving rescue accuracy and efficiency |
System Configuration |

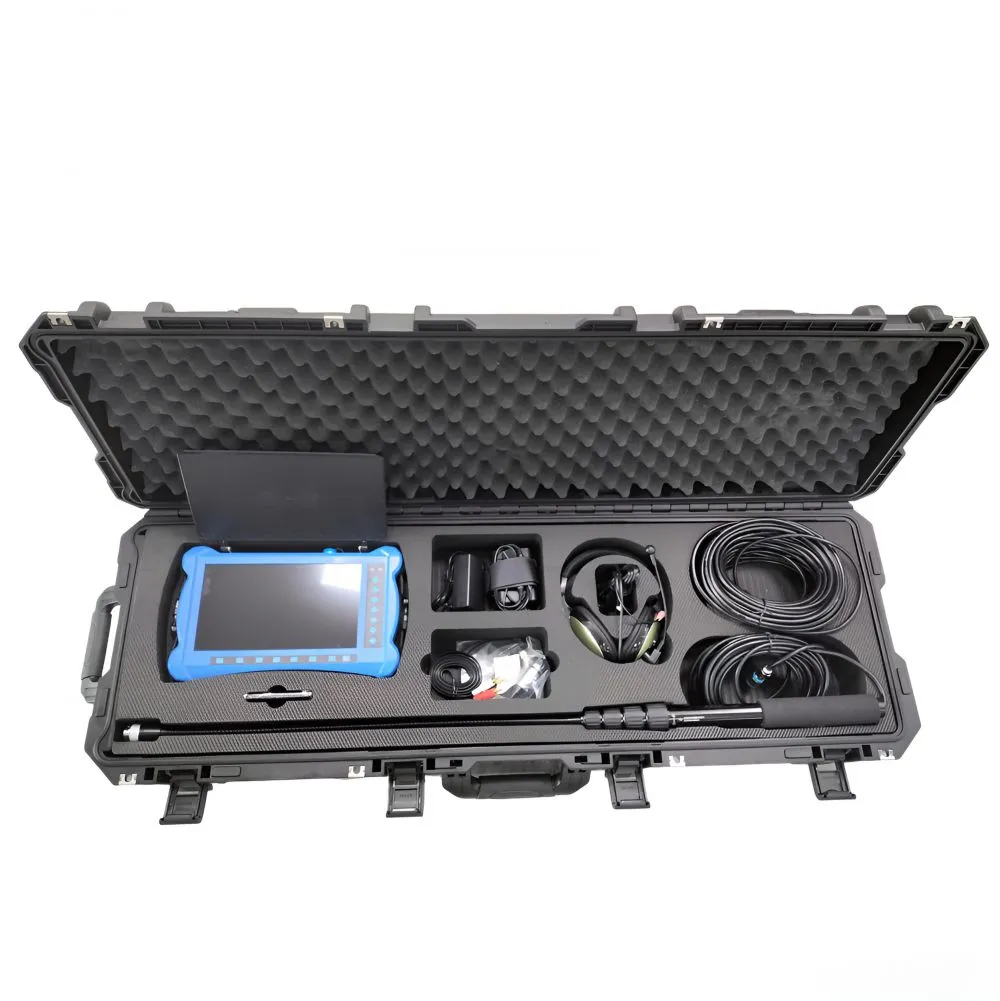

1 × Main Unit 1 × Laser Intercom Video Probe 1 × Infrared Waterproof Probe 1 × Noise Reduction Headset 1 × Telescopic Rod 1 × Remote Controller 1 × Video Cable 1 × Battery Pack 1 × 12V Charger 1 × Shoulder & Waist Strap Set 1 Set of Documents (User Manual, Qualification Certificate, Warranty Card) 1 × Safety Protection Case |
II. Product Description
The BF-V2000E audio and video life detector is a professional rescue equipment specially developed for post-disaster ruins search and rescue. It adopts a dual-probe complementary design, equipped with a laser intercom video probe and an IP67 infrared waterproof probe, covering visual monitoring, night vision detection and two-way voice intercom functions. The laser intercom probe combines infrared and LED fill lights, with built-in high-sensitivity pickup and speaker modules to realize barrier-free voice communication with trapped personnel. The all-metal infrared waterproof probe features excellent waterproof and moisture-proof performance, adapting to rainy and humid rescue scenarios.
Matched with a high-definition touch display host, telescopic adjustable detection rod and professional noise reduction headset, the device supports video recording, picture capturing, screen flipping and external display output. It can clearly observe the under-ruins environment, accurately locate survivors and establish real-time two-way communication, effectively solving the problems of difficult personnel search and ineffective information interaction in complex disaster scenes. It is widely applicable to fire rescue, earthquake disaster relief, building explosion collapse and other emergency rescue scenarios.
Ⅲ.Key Product Advantages
• Dual Probe Complementary Detection: Laser intercom probe + IP67 waterproof infrared probe, meeting night vision monitoring, voice intercom and humid environment detection needs, full-scene rescue coverage
• Clear Two-Way Voice Rescue: High-sensitivity noise reduction headset and built-in probe audio module, capable of picking up weak survivor sounds and realizing smooth two-way dialogue

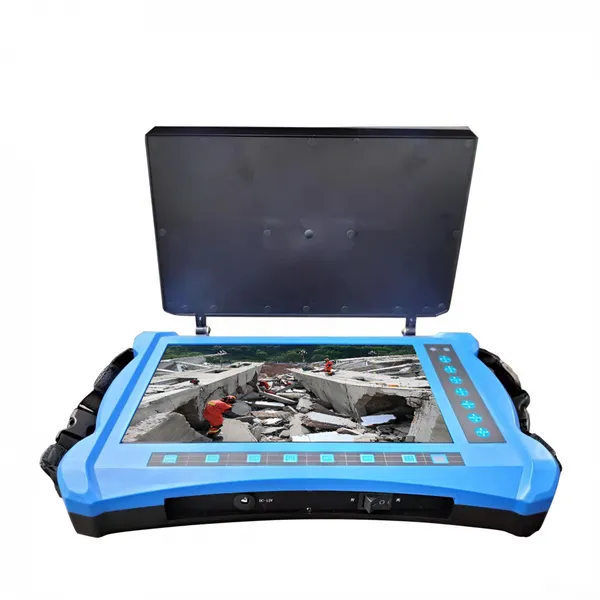

• 10-inch HD Touch Display: XGA high resolution, multi-angle screen flipping, zoom function and multi-language switching, intuitive and convenient operation
• Professional Night Vision & Positioning: Dual infrared & LED fill lights, 6-meter long-distance night vision, laser positioning and flashing warning light to assist rapid survivor search
• Rich Video Recording Functions: 1080P/720P adjustable definition, multiple timed recording gears, real-time shooting and playback for rescue process recording and evidence retention
• Flexible & Portable Rescue Design: 2.2m telescopic bendable rod, one-hand operable host with shoulder & waist straps, flexible adaptation to complex ruins detection angles
• Harsh Environment Adaptation: IP67 waterproof probe, dustproof and moisture-proof body, stable operation in rainy, humid and dark disaster scenes
• Multi-functional Auxiliary Configuration: Built-in host lighting, adjustable border color, external screen output and remote control operation, improving on-site rescue efficiency
Ⅳ. Technical Specifications
Integrates visual detection, night vision monitoring, two-way voice intercom and noise reduction audio pickup, achieving high-precision and high-efficiency ruins life search and rescue
Parameter Item |
Specific Parameter |
Display Screen |
Equipped with an 10 - inch display and control terminal to operate the device functions |
Storage |
Generally configured with 32GB of memory(Optional and customizable) |
Audio Interface |
Built-in microphone & speaker on laser intercom probe; matched noise reduction headset with volume control, audio compression circuit for two-way intercom |
Size of the Display and Control Terminal |
10-inch screen integrated main unit |
Weight of the Display and Control Terminal |
Lightweight handheld main unit with hand strap & shoulder strap |
Total Weight of the Device |
Complete set equipped with portable safety protection case |
Working Time |
Built-in rechargeable lithium battery, 6 hours standby duration |
Working Temperature |
Adapt to normal disaster ambient temperature range |
Protection Level |
Infrared waterproof probe: IP67 dustproof & waterproof; laser intercom probe: regular dust-proof structure |
Length of the Telescopic Rod |
1- 3.5 meters, can be configured according to different customer requirements |
Weight of the Telescopic Rod |
Lightweight portable telescopic rod |
Lights of the Rotating Probe (Laser Intercom Video Probe) |
8 infrared fill lights, 6 LED white fill lights, visible positioning light, 1Hz flashing warning lamp; auto induction switch for infrared lights |
Type of probe |
2 interchangeable probes: 1 × Laser Intercom Video Probe ; 1 × IP67 Infrared Waterproof Probe |
IV. Application Scenarios
1. Earthquake & Collapse Disaster Rescue
Suitable for life detection and personnel communication after earthquake, building collapse and ruin stacking, quickly finding trapped survivors under complex stacked obstacles.
2. Explosion & Fire Accident Rescue
Applicable to post-explosion and post-fire building accident rescue, adapting to dark, smoky and humid disaster environments to realize visual search and voice communication.
3. Complex Ruins Emergency Search
The bendable telescopic rod and dual probes adapt to narrow, deep and irregular ruins gaps, solving the detection dead angle of traditional rescue equipment.
4. All-weather Harsh Environment Operation
IP67 waterproof probe and night vision filling system support stable detection in rainy, humid, dark and low-light environments, realizing 24-hour emergency rescue operation.
Ⅵ. After Sales Service
Sobola provides complete and reliable after-sales support to keep your thermal imaging inspection equipment running stably and durably.
1.Professional Operation Guidance We supply detailed operation manuals and remote one-on-one video training covering equipment startup, parameter setting, thermal image analysis and wireless data transmission operation, helping operators master all functions quickly. Customized operation tutorials can be provided according to customer actual inspection demands.
2.Scheduled Inspection & Calibration Service We offer periodic equipment performance inspection and temperature calibration service, regularly test detector accuracy, update system firmware to maintain stable measurement performance long-term.
3.24/7 Online Technical Support Round-the-clock online technical assistance is available. Our professional technical team responds to equipment operation questions timely, remotely diagnose and solve faults, providing consistent long-term professional technical support anytime you need.
