Audio & Video Life Detector BF-V16
I. Basic Product Information
Product Name |
Audio & Video Life Detector |
Model NO. |
BF-V16 |
Brand |
SOBOLA |
Certification |
Test Report, Software Copyright Registration Certificate |
Core Technology |
Multi-channel split-screen display technology + interchangeable multi-function probes, integrating HD visible inspection, smoke-penetrating thermal imaging, IP67/IP68 waterproof detection and full-range two-way voice intercom; realize synchronous monitoring of 4 probes at once for multi-scene ruins survivor search & communication |
Detection Environment |
Earthquake collapse, building debris, smoky fire sites, narrow pipelines, flood underwater salvage, rainy & muddy damp disaster environments |
Primary Function |
Locate buried survivors via multiple detection probes, observe real-time underground conditions, conduct smooth two-way voice dialogue to comfort victims and guide self-rescue; 6 types of interchangeable probes cover land, narrow gap, underwater, smoke & dark environment rescue; 15 split-screen display modes support multi-channel simultaneous observation |
System Configuration |

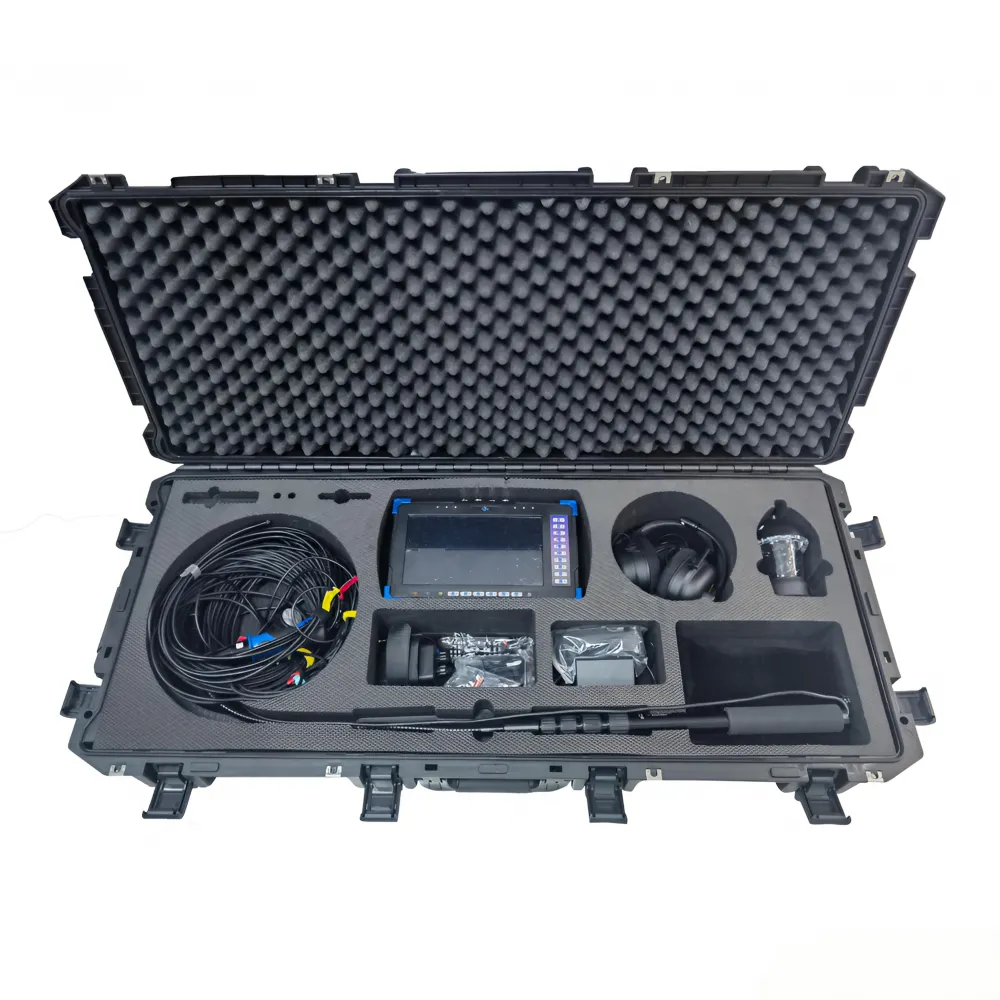

1 × Main Unit 1 × 360° Rotating Intercom Probe 1 × Laser Positioning Infrared Intercom Probe 1 × IP68 Underwater Rotating Probe 1 × Slim Snake Eye Probe 1 × Thermal Imaging Intercom Probe 1 ×Rotating Waterproof Video Probe 1 × Infrared Waterproof Probe 1 × Noise Reduction Headset 1 × Bendable Telescopic Rod 1 × Spare Independent Battery Pack 1 × Charger, Documents (User Manual, Qualification Certificate, Warranty Card) 1 × Safety Protection Hard Case |
II. Product Description
BF-V16 audio-video life detector is professional search equipment exclusively designed for post-earthquake and collapse disaster rescue. It adopts HD waterproof probes to penetrate narrow rubble gaps and transmit real-time underground images, helping rescuers quickly confirm survivor locations and surrounding hazards. Built-in full-duplex two-way audio intercom enables clear communication with trapped victims to soothe emotions, judge injuries and guide cooperative rescue operations, greatly boosting rescue efficiency and survival rate. Rugged lightweight body with intuitive operation makes it essential core gear for life search missions.
Widely applicable to fire brigades, earthquake bureaus, maritime administrations, civil defense departments, work safety supervision bureaus, armed police forces and reserve service teams.
III.Key Product Advantages
1. Main unit supports 4 probes working simultaneously, with 15 optional split-screen display modes (1/2/3/4 channel switchable) + image flip function
2. 6 interchangeable dedicated probes to match all rescue scenarios: rotating intercom, laser infrared intercom, IP68 underwater, slim snake eye, thermal imaging, dual-grade waterproof rotating camera
3. 360° horizontal + 180° vertical electric rotating probes achieve zero blind-angle observation to avoid missing hidden life signs
4. Thermal imaging probe penetrates smoke & fog to capture human heat signatures, long-distance non-contact life positioning up to 200m
5. Ultra-slim snake eye flexible probe accesses ultra-narrow gaps and pipelines unreachable by other equipment
6. Dual waterproof standard: IP67 for damp rainy land sites, IP68 for deep underwater long-time salvage operation
7. Built-in large storage for photo/video recording, 1-minute loop voice broadcast reduces repeated shouting burden for rescuers
8. Dual battery configuration: built-in lithium battery for 10-hour continuous work + spare independent battery pack for extended field endurance
9. Multi-stage adjustable LED/IR fill lights + laser red positioning & warning flash lamp for dark low-visibility environments
10. Professional noise reduction headset amplifies faint survivor tapping sounds for clear two-way intercom in noisy ruins
IV. Technical Specifications
Parameter Item |
Specific Parameter |
Display Screen |

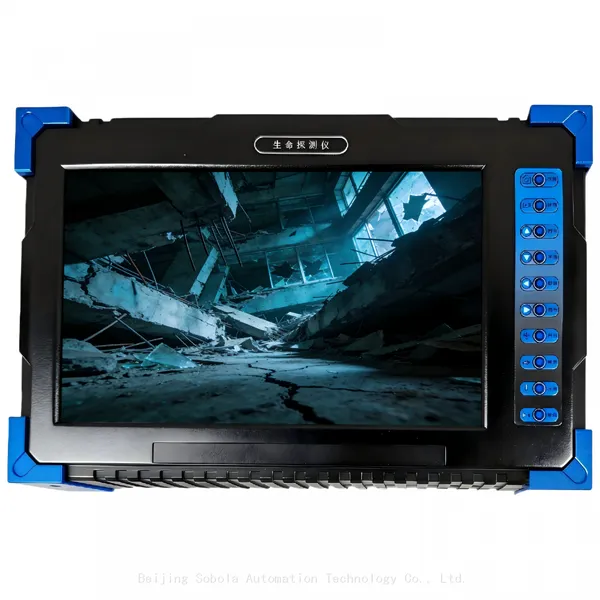

10-inch (25.5cm) color LCD; 15 split-screen display modes; support image flip; adjustable language, time, recording resolution, brightness & other parameters; built-in auxiliary fill light with independent switch |
Storage & Audio Function |
256GB built-in memory, photo capture & video recording with playback support; 1min loop audio recording & broadcast function |
Audio Interface |
Matching noise reduction headset with high-gain microphone, amplify faint survivor sound, full-duplex two-way voice intercom |
Working Time |
Built-in lithium battery lasts 10 hours continuous operation; independent spare battery pack included for extended power supply |
Length of Telescopic Rod |
Max extension length 5m, soft flexible top joint for arbitrary bending angle adjustment |
Type of Probe |
6 interchangeable probes: 360° Rotating Intercom Probe, Laser Infrared Intercom Probe, IP68 Underwater Rotating Probe, 8.3mm Snake Eye Probe, Thermal Imaging Intercom Probe, IP68 Rotating Waterproof Probe, IP67 Infrared Waterproof Probe |
Ⅴ. Application Scenarios
1. Earthquake & Building Collapse Rescue: Thermal long-distance life detection & multi-angle visual observation under stacked rubble
2. Fire & Explosion Disaster Rescue: Smoke-penetrating thermal imaging to locate hidden survivors in smoky, low-visibility fire sites
3. Narrow Pipeline & Confined Space Inspection: Slim snake eye & pipeline probe for sewer, tunnel, tiny gap hidden danger search
4. Underwater Emergency Salvage: IP68 underwater probe for lake, well flood drowning rescue & underwater structure inspection
5. All-weather Outdoor Rescue: IP67 waterproof probes adapt to heavy rain, damp & muddy post-disaster field environments
Ⅵ. After Sales Service
Sobola provides complete and reliable after-sales support to keep your thermal imaging inspection equipment running stably and durably.
1.Professional Operation Guidance We supply detailed operation manuals and remote one-on-one video training covering equipment startup, parameter setting, thermal image analysis and wireless data transmission operation, helping operators master all functions quickly. Customized operation tutorials can be provided according to customer actual inspection demands.
2.Scheduled Inspection & Calibration Service We offer periodic equipment performance inspection and temperature calibration service, regularly test detector accuracy, update system firmware to maintain stable measurement performance long-term.
3.24/7 Online Technical Support Round-the-clock online technical assistance is available. Our professional technical team responds to equipment operation questions timely, remotely diagnose and solve faults, providing consistent long-term professional technical support anytime you need.
