Fire Infrared Thermal Imager -HRYXJ-R530
I. Basic Product Information
Item |
Details |
Product Name |
Fire Infrared Thermal Imager |
Model NO. |
HRYXJ-R530 |
Brand |
SOBOLA |
Certification |
Test Report, Software Copyright Registration |
Core Technology |
Adopts uncooled infrared focal plane array detection technology, converting object infrared radiation into high-definition visible thermal images with ultra-low temperature difference resolution |
Detection Environment |
Fire emergency rescue, on-site fire investigation, hidden fire source inspection, life body detection, industrial temperature detection, harsh smoky and dim environments |
Primary Function |
Accurately locate fire sources, high-temperature heat sources and trapped personnel in smoky and dark scenes; support high-precision temperature measurement, on-site data recording and evidence collection; realize real-time thermal imaging monitoring and fire early warning to improve rescue efficiency |
System Configuration |

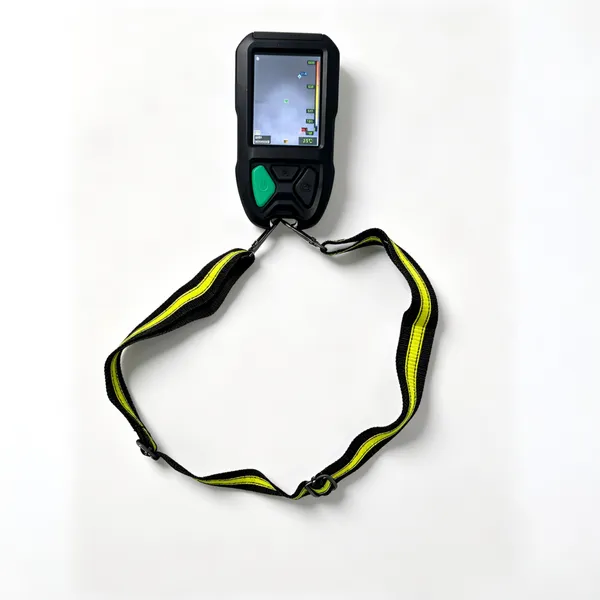

1 × Main Unit 1 × Base Charger 1 × Power Charger 1 × Car Charger Fixing Plate 1 Set of Screws 1 × Fuse 1 × Serial Cable 1 × Cigarette Lighter Adapter 1 × Neck Strap 1 Set of Documents (User Manual, Qualification Certificate, Warranty Card) 1 × Safety Protection Case |
II. Product Description
The HRYXJ-R530 fire infrared thermal imager is a multi-functional professional firefighting emergency device tailored for fire rescue and on-site investigation scenarios. Equipped with a high-pixel uncooled infrared detector and wide-angle lens, it delivers clear and sensitive thermal imaging effects, performing excellently in life signal detection and hidden fire source search. It can stably present accurate thermal distribution images of targets in smoky, dark and harsh weather conditions, helping rescuers quickly lock fire points and trapped personnel.
Featuring foolproof operation with large physical shortcut keys and an intuitive user interface, the device is friendly for rapid on-site operation by firefighters. Built with a 128G large-capacity memory, it supports real-time photo and video recording for on-site evidence collection and subsequent data analysis and report sorting. With IP67 high-level protection, drop resistance and high-temperature resistance, it adapts to various complex and harsh fire rescue environments, ensuring stable and continuous operation on site.
Ⅲ.Key Product Advantages
• High-Definition & High-Sensitivity Imaging: 256×192 high-pixel uncooled infrared detector with ultra-low 0.03℃ NETD, capturing tiny temperature differences and presenting ultra-clear thermal images
• Wide-Angle Rescue Design: Professional wide-angle lens with 50°×37.2° large field of view, covering a wider monitoring range to meet full-scene fire search and rescue needs
• Professional Firefighting Custom Mode: Multiple dedicated modes including fire detection, firefighting and search & rescue, with independent high/low temperature highlight functions to adapt to diverse on-site conditions

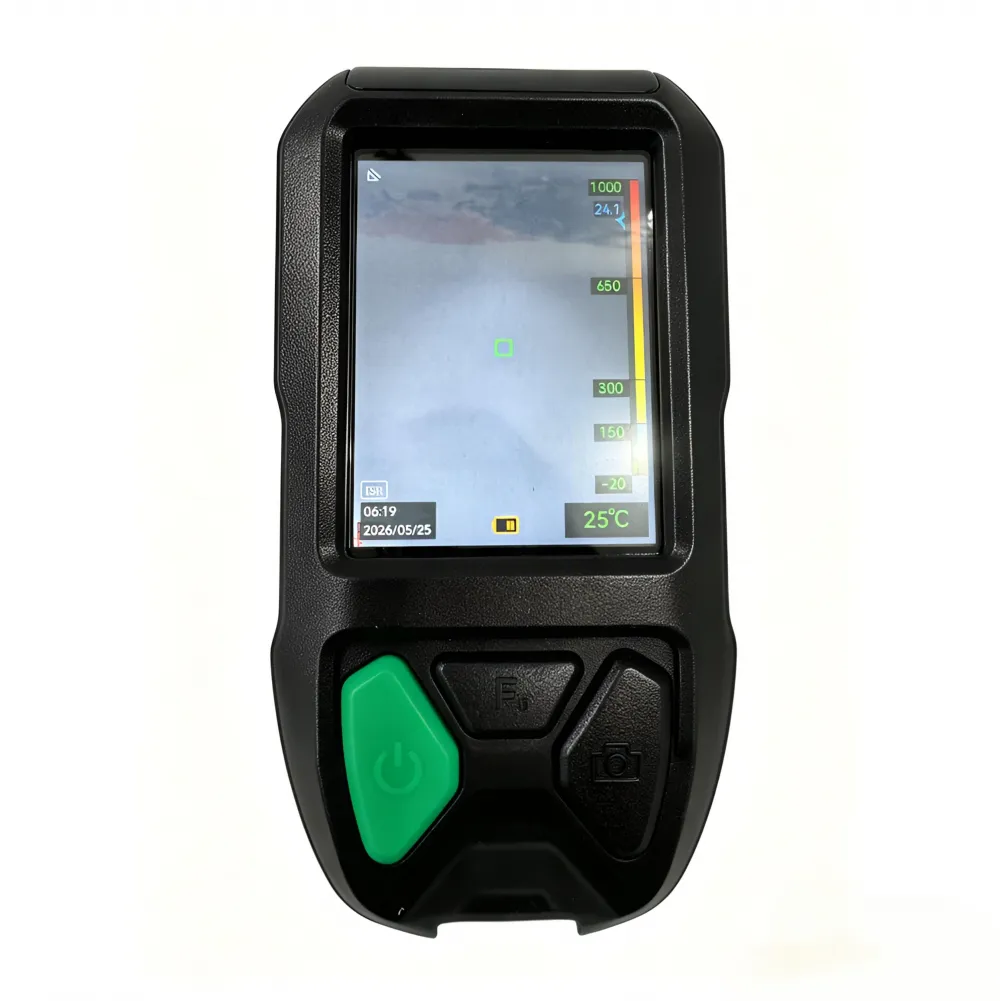

• On-Site Rapid Operation: 3.2-inch high-definition display + 3 oversized custom shortcut keys, enabling one-touch switching of functions for efficient emergency operation
• Large-Capacity Data Storage: Built-in 128G large memory, supporting real-time photo and video recording, local viewing and one-click deletion for convenient on-site evidence collection and data sorting
• Harsh Environment Resistance: IP67 high-standard protection, excellent anti-drop, shock and vibration resistance, supporting stable operation in ultra-high temperature and complex working conditions
• Wireless Intelligent Transmission: Built-in Wi-Fi hotspot, compatible with mobile APP and PC software, supporting screen casting and wireless data transmission for efficient data sharing
• Ultra-Low Minimum Focus Distance: 0.1m minimum imaging distance, supporting close-range precise temperature measurement and equipment fault detection
Ⅳ. Technical Specifications
Real-time full temperature field display, ultra-sensitive temperature difference identification, accurate fire source positioning and life body detection to support efficient fire rescue and safety inspection
Compliance Standard |
Firefighting thermal imager industry standard |
Detector Type |
Uncooled Infrared Focal Plane Array Detector |
Sensor Resolution |
256 × 192 pixels |
Display Screen |
3.2-inch color 1080P LCD, real-time display of time, date, battery level and temperature value, full Chinese operating system |
Field of View |
50° × 37.2° wide-angle view |
Optical Index |
7~14μm spectral response band, 6.7mm thermal imaging focal length, 2.83mm visible light focal length, 1.79mrad spatial resolution, 25Hz frame rate, 60Hz refresh rate |
Visible Light Resolution |
8MP high definition |
NETD |
0.03℃ (30mK) @25℃, F#=1.0 ultra-low temperature difference resolution |
Temperature Measurement Range |
-20℃ ~ +1000℃, automatic range switching |
Temperature Measurement Accuracy |
±0.1℃ (take the larger value) |
Temperature Tracking Modes |
Center point temperature, maximum temperature, minimum temperature tracking |
Image Modes |
Thermal Image, Visible Light, Thermal Fusion; support 2x / 4x digital zoom |
Palette Modes |
Basic, Smooth, White Hot, Black Hot, Fire Mode, Search & Rescue, Heat Detection, Cold Detection, Inspection Mode |
Temperature Highlight Function |
Heat detection (high temperature highlight), Cold detection (low temperature highlight) |
Emissivity Adjustment |
Customizable setting; preset parameters for PCB, concrete, ceramic, rubber, paint, wood, brick, soil, water and other media |
Minimum Imaging Distance |
0.1m ultra-close focusing |

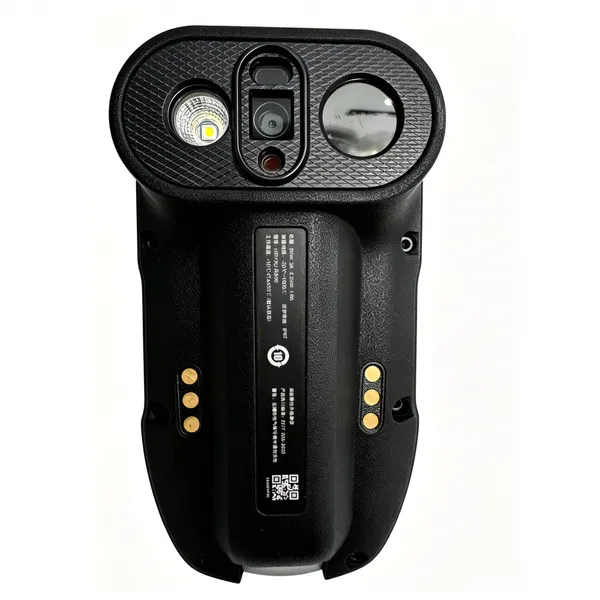

Auxiliary Lighting |
Built-in LED fill light, support independent turn-on without booting the device |
Focus Mode |
Focus-free, automatic calibration |
Storage Function |
128G built-in large-capacity memory, support photo/video recording, local viewing and one-click deletion, customizable file naming (time/serial number format) |
Wireless Function |
Built-in Wi-Fi hotspot, compatible with mobile APP, PC software and screen casting for wireless data transmission |
Hardware Interfaces |
DC power interface, Type-C data interface |
Auto Sleep Function |
1min / 5min / 10min / 20min / 30min optional timing setting |
Working Environment |
Working temperature: -10℃ ~ 50℃; |
Protection Grade |
IP67 dustproof & waterproof, shockproof and vibration resistant |
Power Supply |
Built-in rechargeable lithium battery, up to 8 hours continuous working time |
Net Weight |
400g (lightweight portable body) |
Overall Dimension |
143 × 79 × 54mm |
V. Application Scenarios
1. Fire Emergency Search & Rescue

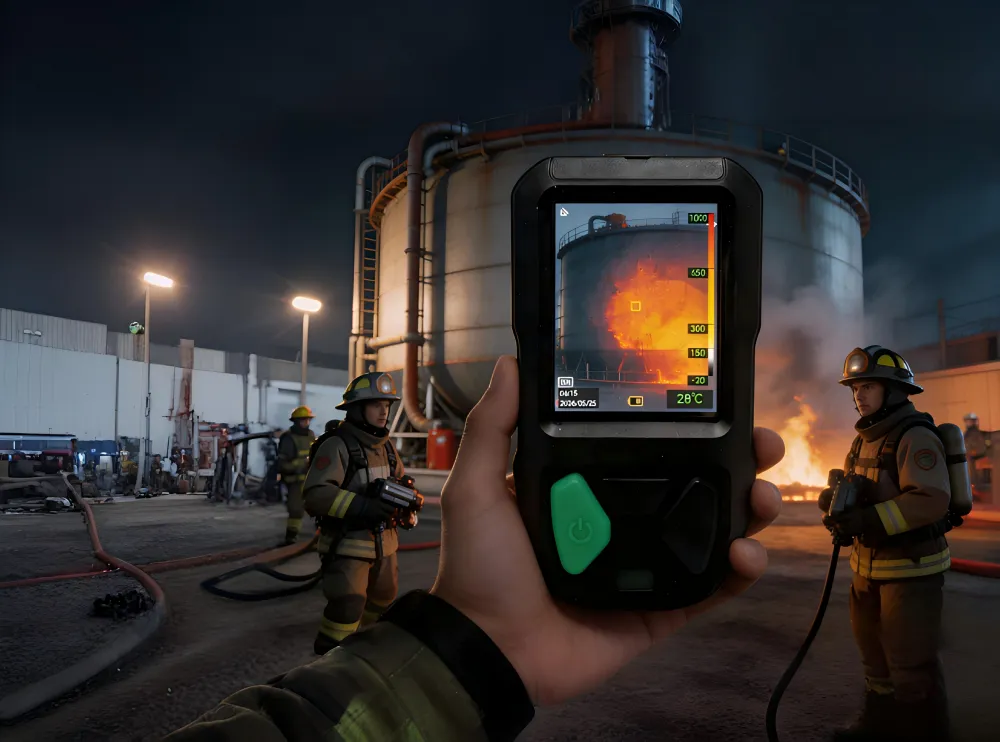

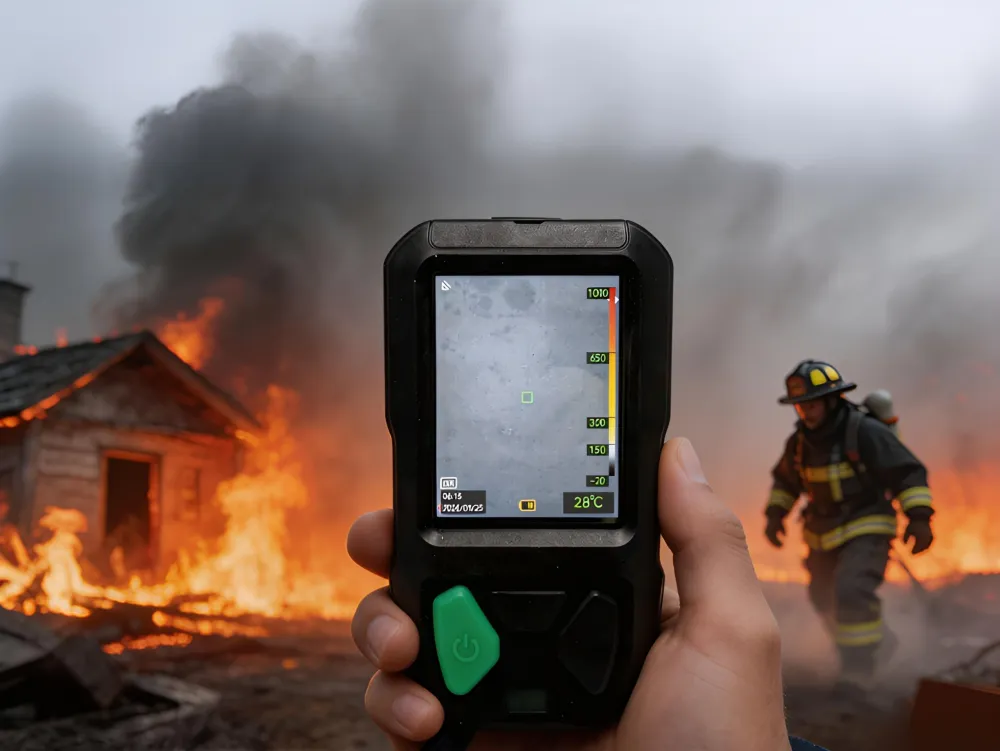

Quickly detect trapped personnel and life signs in smoky, dark and enclosed fire scenes; accurately locate hidden fire sources and residual high-temperature points to avoid re-ignition, greatly improving rescue efficiency and safety.
2. On-Site Fire Investigation & Evidence Collection
Real-time record on-site thermal imaging data, capture fire scene photos and videos, support subsequent accident analysis, data sorting and professional report production.
3. Building & Industrial Safety Inspection

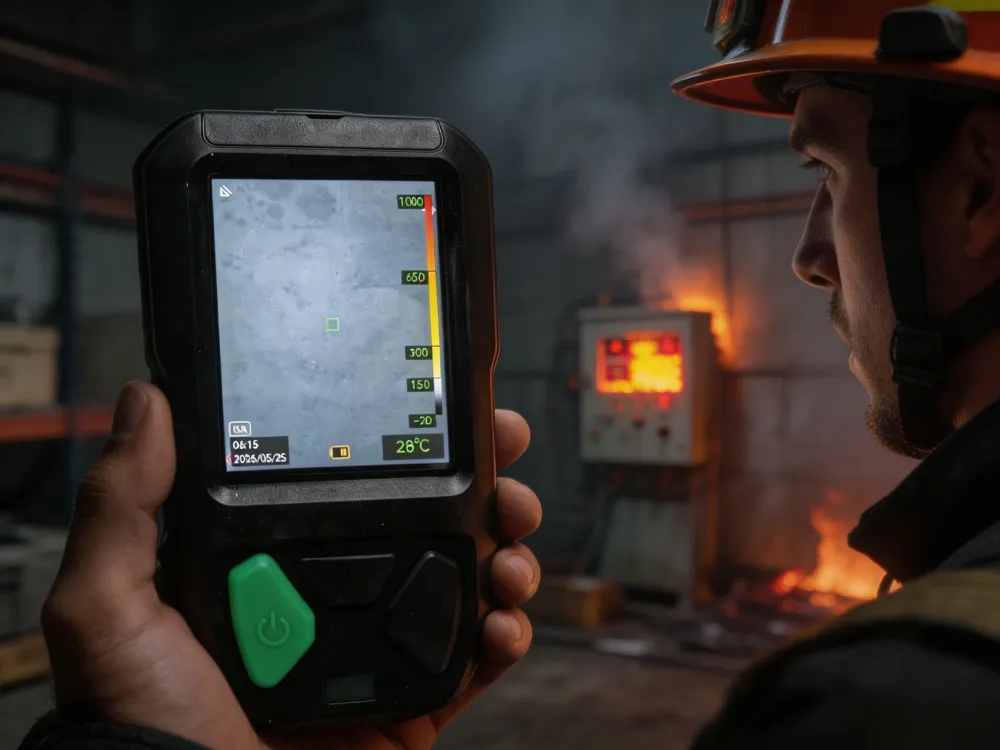

Daily temperature detection and hidden danger troubleshooting for high-rise buildings, underground garages, tunnels, power equipment, circuit systems and industrial pipelines; identify overheating faults in advance to prevent fire accidents.
4. Special Harsh Environment Operation

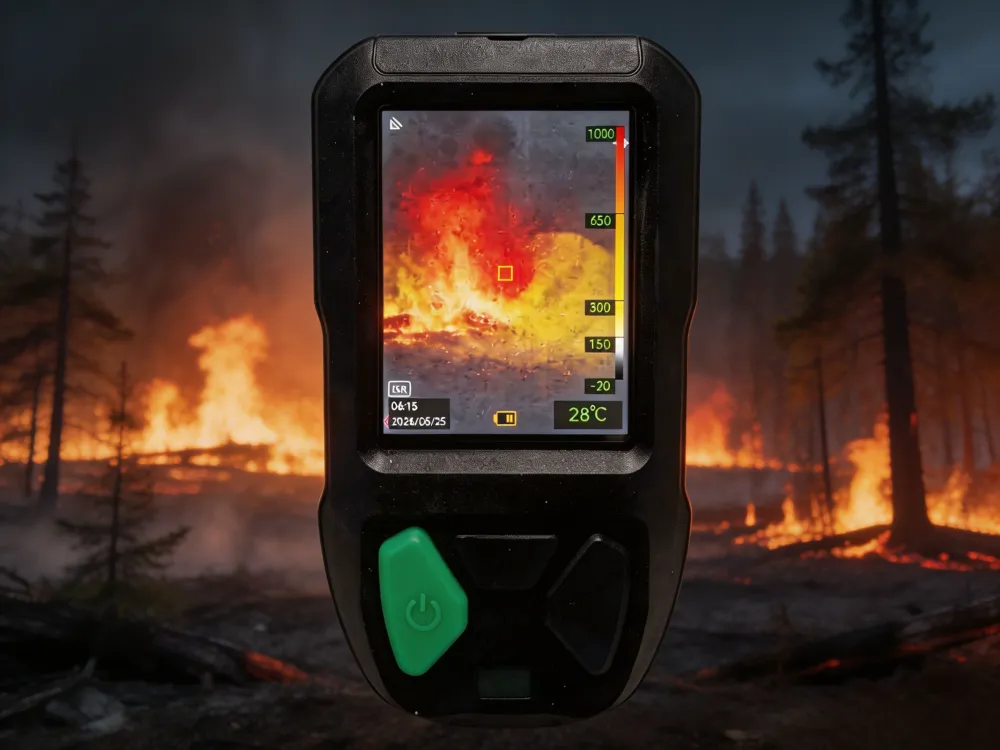

Stable detection and monitoring applicable to low-temperature, high-temperature, smoky and other complex harsh working scenarios, meeting all-weather firefighting and safety inspection demands.
Ⅵ. After Sales Service
Sobola is committed to providing complete, reliable after-sales service to keep your emergency rescue equipment running stably and durably.
1.Professional Hands-on Training
Our professional engineers offer on-site training covering equipment setup, operation standards and real rescue applications, helping operators master all skills quickly.
We support joint operation drills with local rescue teams to improve your on-site response efficiency.
Besides, we supply one-on-one customized training plans tailored to your actual working demands, delivering targeted and practical operation guidance.
2.Scheduled Inspection & Maintenance
We provide regular equipment inspection and preventive maintenance. Our engineers will carry out full performance testing, error evaluation and system technical updates periodically to maintain your whole system in optimal working condition.
3.24/7 Online Technical Support
We offer round-the-clock online technical assistance. Our expert team is always ready to answer your questions, troubleshoot failures remotely and provide long-term consistent professional technical support anytime you need.
