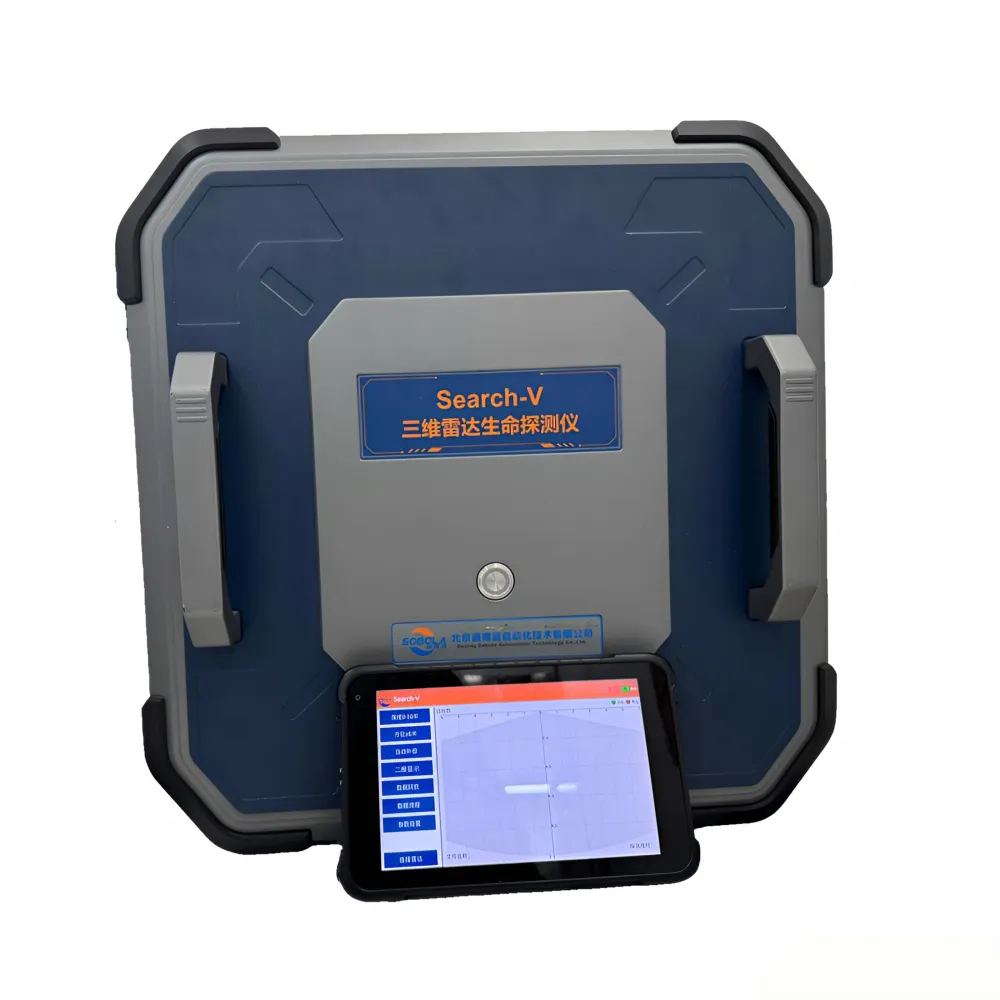

I. Basic Product Information
Product Name |
3D Radar Life Detector |
Model NO. |
Search–V |
Brand |
SOBOLA |
Certification |
Test Report, Software Copyright Registration ISO |
Core Technology |
Ultra-wide band radar with high penetration and intelligent identification |
Detection Environment |
Ruins, air, through walls, snow, wood |
Primary Function |
Detect trapped survivors behind non-metallic obstacles, track real-time location, identify body height and standing/crouching postures, and scan surrounding building structures |
System Configuration |

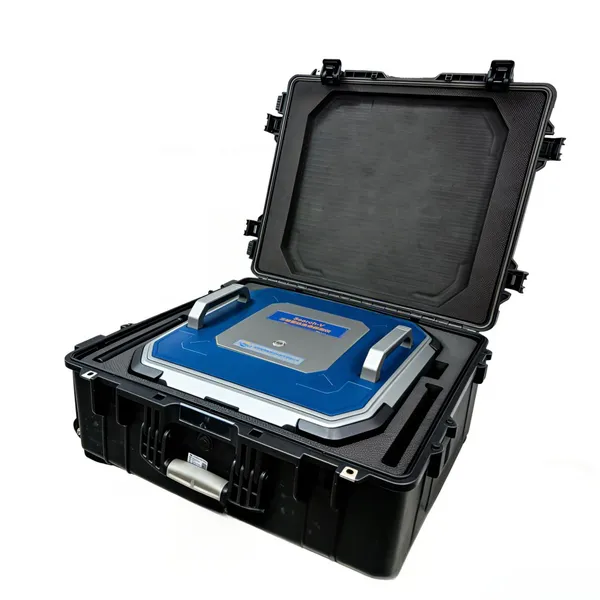

1 × Radar Host 1 × Display Control Terminal 2 × Rechargeable Batteries 1 × Charger 1 Set of Data Cables 1 Set of Documents (Warranty Card, Certificate of Conformity, User Manual) 1 × Transport Packing Box |
I. Product Description
The Search–V 3D Radar is an ultra-wide band radar utilizing advanced radar technology, featuring superior penetration capability and intelligent decision-making. It excels in detection methods, high-speed response, and precision accuracy, while being user-friendly. Widely applied in emergency rescue scenarios such as counter-terrorism operations, hostage rescue, and military urban warfare, it enables rapid target searches behind non-metallic walls or obstacles. The system can track real-time human locations, identify body height, posture (standing or crouching), and other environmental data, offering extensive application scenarios.
II. Key Product Advantages

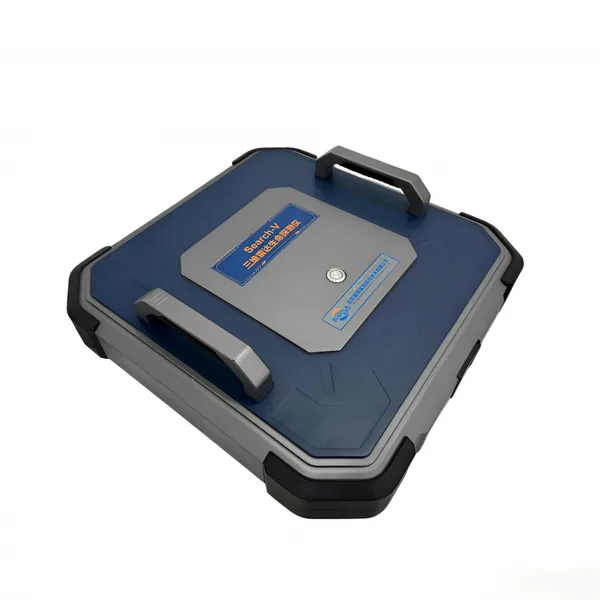

· Compact all-in-one radar unit; dual-handle design with external control buttons, one-touch power on for easy field operation
· 3D positioning & imaging: Detects multiple static and moving targets and recognizes human body postures
· Powerful penetration capability through most non-metallic wall materials
· Simple intuitive UI, ready to use immediately after startup
· 64GB built-in storage; automatically erases oldest records when storage hits capacity
· Full video recording & playback support with drag-to-scrub fast forward / rewind
· Ultra-fast detection: Target lock completed within 3 seconds
· Rugged construction: Waterproof, shockproof and dust proof
III. Technical Specifications
Penetrable Materials |
Standard walls, timber and other low-moisture non-metallic substances |
Detection Distance (through 55cm brick-concrete wall) |
Static targets 10 m | Moving targets 10 m |
Detection Distance |
Static targets ≥ 29 m | Moving targets ≥45 m |
Sensitivity |
High,medium,low |
Maximum Simultaneous Trackable Targets |
5 |
Field of View |
120° azimuth, 90° elevation |
Runtime |
11.4 hours with two fully charged batteries |
Spare Battery |
2 rechargeable lithium batteries |
Selectable Distance Ranges |
0–10m, 0–20m, 0–30m, 30–40m |
False & Missing Alarm Rate |
20% |
· Wireless Communication Distance |
· ≥150 m |
· Operating Temperature |
· -20℃ ~ 55℃ |
· Host Dimensions |
· 520mm × 520mm × 120mm |
· Host Weight (including batteries) |
· 7.5 kg |
· Storage Capacity |
· 64GB auto-overwrite memory |
· Imaging Output |
· Real-time 2D coordinates + dynamic rotatable/zoomable 3D target outlines |
· Built-in Environmental Scan |
· Identifies walls, load-bearing pillars, metal cabinets and other structures |
· Terminal Features |
· Real-time battery level display, low battery text & color alert, adjustable detection sensitivity, range and playback speed |
· Environmental Protection |
· Waterproof, shockproof, dustproof |
· Connections Mode |
· Wireless WIFI |
· Protect Level |
· IP67 |
