Help CenterHandheld Thermal Imager
Product Spotlights
2. 8-14μm infrared band penetrates smoke and darkness for clear onsite imaging.
3. 300g lightweight body supports one-handed operation with an adjustable screen.
4. IP66 waterproof & dustproof design, featuring 8-hour long battery life.
5. Integrated with laser positioning, photographing and multi imaging modes.
Related Products
-
2D Life DetectorUS$ 300 - 3000MOQ: 1 Combo -
SOBOLA Search-V 3D Radar Life Detector | UWB Through-Wall Survivor Search Device for Urban Search & RescueUS$ 30 - 3000MOQ: 1 Case
-
Handheld Thermal ImagerUS$ 300 - 3000MOQ: 1 Case
-
Infrared Thermal Imaging Camera/thermal Imager（ Wechat:13510231336 Whatsapp 008613510231336）NegotiableMOQ: 1000 Pieces
-
Fire Proof Thermal Break Glass SystemUS$ 120 - 200MOQ: 100 Square Meters
I. Basic Product Information
Product Name |
Fire infrared thermal camera |
Model NO. |
HRYXJ-R300 |
Brand |
SOBOLA |
Certification |
Test Report, Software Copyright Registration ISO |
Core Technology |
Uncooled vanadium oxide microbolometer sensor |
Detection Environment |
Daily fire hazard inspection, fire emergency rescue, fire scene temperature monitoring |
Primary Function |
Penetrate smoke and dark environments to display internal heat distribution of fire scenes, accurately measure temperature, detect abnormal heat sources, identify hidden dangers and trapped personnel |
System Configuration |

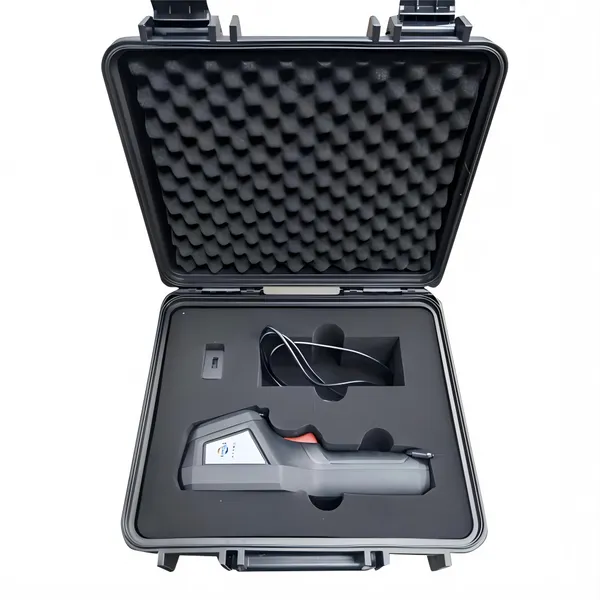

1 × Thermal Camera Main Unit 1 × Power Adapter 1 × Dual-head Type-C Data Cable 1 Set of Documents (User Manual, Certificate of Compliance, Warranty Card) 1 × Safety Protection Case |
II. Product Description
The HRYXJ-R300 firefighting infrared thermal imager is professional equipment developed for fire rescue and fire prevention. It focuses on precise temperature measurement and penetrating detection, with lightweight design and complete functions. It provides full technical support for firefighters in fire inspection, early warning and rescue. It eliminates visual obstacles caused by heavy smoke and darkness, improves rescue efficiency and safety, and acts as reliable visual equipment for frontline firefighters.
III. Key Product Advantages
· High-precision temperature measurement (±2% accuracy), captures tiny temperature changes to avoid missed hazards and misjudgment
· 8–14μm waveband & multi-mode imaging, penetrates smoke and dark environments to show clear heat distribution
· 300g lightweight compact body for one-handed operation; 2.4-inch adjustable screen adapts to various light conditions
· IP66 dustproof & waterproof rating; built-in lithium battery supports 8-hour continuous operation
· All-in-one integrated functions: temperature measurement, photo capture, laser indication, UVC projection; multiple switchable pseudo-color modes; JPEG data storage for offline analysis
IV. Technical Specifications
Real-time temperature field display, instantly identify abnormal temperature to prevent potential risks |
|
Display |
2.4-inch adjustable LCD screen |
Infrared Detector Resolution |
192*192 |
Visible Light Resolution |
640×480 |
Sensor |
Uncooled Vanadium Oxide Microbolometer |
Optical Parameters |
8–14μm waveband, 25Hz frame rate, 8.89mrad spatial resolution, 50MK NETD |
Distance Parameters |
Min imaging distance 0.1m, min measuring distance 0.1m |
Field of View |
50°×50° |
Pseudo-color Modes |
White Hot, Black Hot, Iron Red, Rainbow, Highlight High Temperature, Red Hot, Fusion |
Temperature Measurement Range |
-20 ℃ ~ +550 ℃ |
Temp Measurement Functions |
Center point, maximum, minimum temperature detection |
Temperature Measurement Accuracy |
±2% |
Image Modes |
Thermal Imaging, Thermal Fusion, Visible Light |
Storage |
4GB built-in memory; JPEG photos with temperature data, support offline client analysis |
Auxiliary Functions |
Laser indication, photographing, UVC screen projection |
Continuous Working Time |
8 hours |
Protection Rating |
IP66 |
Net Weight |
300g |
