Multi-functional Audio & Video Life Detector BF-V10
I. Basic Product Information
Product Name |
Multi-functional Audio & Video Life Detector |
Model NO. |
BF-V10 |
Brand |
SOBOLA |
Certification |
Test Report, Software Copyright Registration Certificate |
Core Technology |
Integrated HD visible camera, infrared night vision, thermal imaging & high-sensitivity two-way audio intercom; equipped with six interchangeable professional probes to realize all-scene ruins visual detection, thermal life sensing and real-time voice communication |
Detection Environment |
Earthquake collapse, building ruins, fire smoky sites, narrow pipelines, underwater, damp muddy, dark low-visibility disaster environments |
Primary Function |
Locate trapped survivors under debris, observe real-time surrounding conditions, conduct stable two-way voice dialogue to guide rescue cooperation; six complementary probes fully cover land, narrow gap, pipeline and underwater multi-scene emergency search demands |
System Configuration |

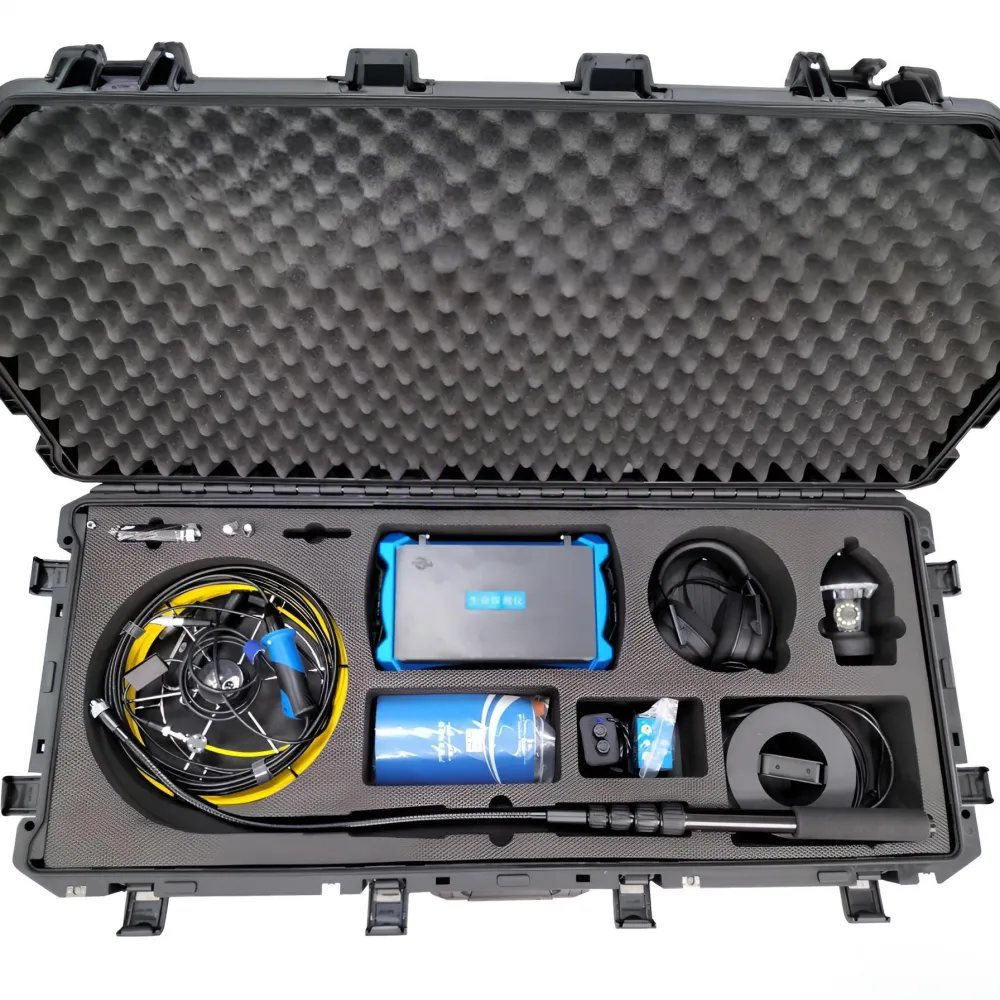

1 × Main Unit 1 × Thermal Intercom Probe 1 × Dual-lens Infrared Intercom Probe 1 × IP67 Infrared Waterproof Probe 1 × IP68 Underwater Probe Kit 1 × Pipeline Special Probe Kit 1 × Snake Eye Probe 1 × Noise Reduction Headset 1 × Telescopic Bendable Rod 1 × Charger 1 × Spare Battery Pack, Documents (User Manual, Qualification Certificate, Warranty Card) 1 × Safety Protection Hard Case |
II. Product Description
BF-V10 multi-functional audio-video life detector is professional high-efficiency search equipment specially developed for earthquake, building collapse and ruins rescue missions. It integrates HD video capture and real-time audio transmission, capable of rapidly locating trapped victims and observing their vital signs in complex rubble and tiny gaps. Real-time two-way voice communication allows rescuers to comfort survivors, collect critical on-site information and guide cooperation, greatly improving rescue success rate.
The complete set is equipped with six mutually complementary dedicated probes to cover all core rescue demands including thermal life detection, dual-angle observation, waterproof damp site inspection, narrow pipeline detection, deep underwater search and ultra-slim gap exploration, providing comprehensive technical support for all disaster life search operations.
III.Key Product Advantages
Six interchangeable professional probes to realize full-scene rescue coverage (thermal imaging / dual-lens intercom / IP67 waterproof / pipeline / IP68 underwater / slim snake eye)
Thermal imaging probe penetrates smoke & fog to capture human heat signatures, long-distance non-contact life positioning up to 200m
Dual-lens intercom probe eliminates visual blind spots with front & side simultaneous monitoring
Multi-grade waterproof design: IP67 for land damp sites, IP68 for deep underwater long-time operation
Ultra-slim snake eye flexible probe for tiny holes and complex narrow gaps
10-inch HD touch screen with one-channel quick switching, photo/video recording & 1min loop voice broadcast to reduce rescue shouting burden
Built-in large-capacity lithium battery for 6h continuous work, low power reminder indicator
Integrated sunshade, host fill light, chest hanging strap & hand strap for fatigue-free field operation
Professional noise reduction headset amplifies faint survivor sounds in noisy disaster ruins, stable two-way audio pickup within 10m radius
IV. Technical Specifications
Parameter Item |
Specific Parameter |
Display Screen |

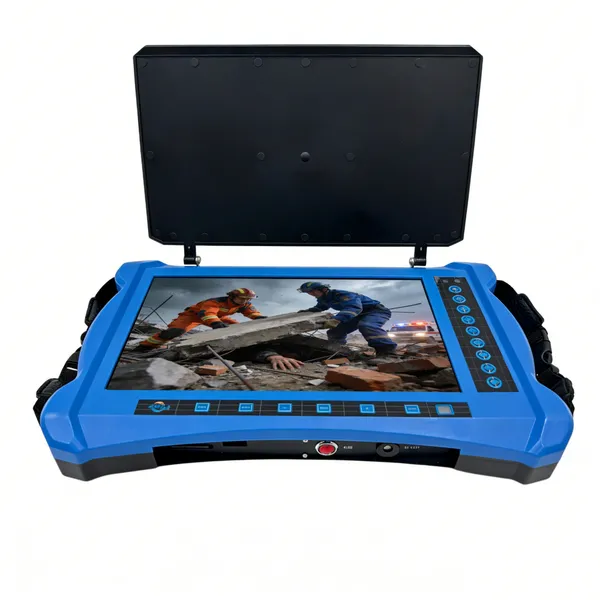

10-inch (25cm) color HD LCD; one-click single channel switching; adjustable brightness, chroma, contrast, time, recording resolution & video format; Chinese & English bilingual switch; integrated sunshade, built-in auxiliary fill light |
Storage & Audio Function |
Support photo capture & video recording playback; max 1min loop voice recording & broadcast; low voltage indicator light |
Audio Interface |
Two-way intercom compatible with all probes; matched noise reduction headset with audio compression for weak sound amplification |
Working Time |
Built-in polymer lithium battery, up to 6 hours continuous operation; spare battery pack included |
Length of Telescopic Rod |
Max extension length 2.2m, flexible top joint for arbitrary bending angle adjustment |
Type of Probe |
6 interchangeable probes: Thermal Intercom Probe, Dual-lens Infrared Intercom Probe, IP67 Infrared Waterproof Probe, Pipeline Special Probe, IP68 Underwater Probe, Slim Snake Eye Probe |
Ⅴ. Application Scenarios
1. Earthquake & Building Collapse Rescue: Thermal long-distance life detection & multi-angle visual observation under stacked rubble
2. Fire & Explosion Disaster Rescue: Smoke-penetrating thermal imaging to locate hidden survivors in smoky, low-visibility fire sites
3. Narrow Pipeline & Confined Space Inspection: Slim snake eye & pipeline probe for sewer, tunnel, tiny gap hidden danger search
4. Underwater Emergency Salvage: IP68 underwater probe for lake, well flood drowning rescue & underwater structure inspection
5. All-weather Outdoor Rescue: IP67 waterproof probes adapt to heavy rain, damp & muddy post-disaster field environments
Ⅵ. After Sales Service
Sobola provides complete and reliable after-sales support to keep your thermal imaging inspection equipment running stably and durably.
-
Professional Operation Guidance We supply detailed operation manuals and remote one-on-one video training covering equipment startup, parameter setting, thermal image analysis and wireless data transmission operation, helping operators master all functions quickly. Customized operation tutorials can be provided according to customer actual inspection demands.
-
Scheduled Inspection & Calibration Service We offer periodic equipment performance inspection and temperature calibration service, regularly test detector accuracy, update system firmware to maintain stable measurement performance long-term.
24/7 Online Technical Support Round-the-clock online technical assistance is available. Our professional technical team responds to equipment operation questions timely, remotely diagnose and solve faults, providing consistent long-term professional technical support anytime you need.
