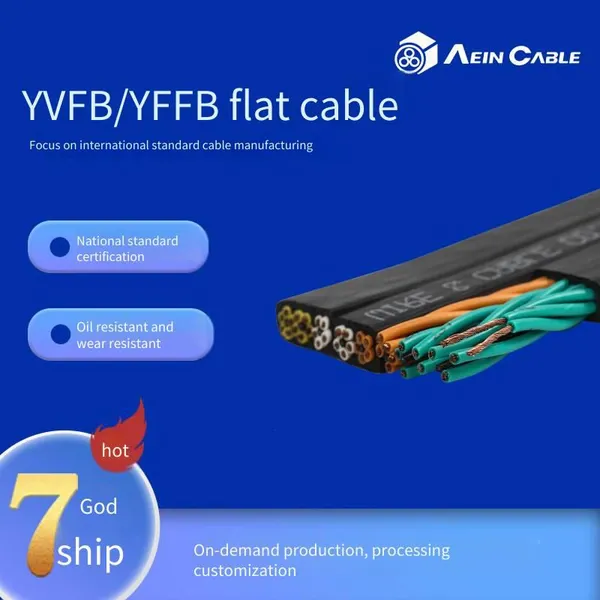

Crane and gantry flat cable YVFB
·Oil resistance
·Weather resistance
·Wear resistance, tensile and tear resistance
The flat cable VFB for cranes is used in power, control, lighting, communication and other lines of mechanical equipment such as traveling cranes, trolleys and hoists. It has tensile resistance, tear resistance, oil resistance,
wear resistance, cold resistance, weather resistance, flexibility and bending resistance.
Conductor: Finely stranded oxygen-free bare copper wire, complying with VDEO295 CLASS 5 or 6
Conductor class: Complying with IEC 60228 cl. 5 standard
Insulation: Special nitrile blended insulation
Stranding: In-line arrangement for general cores; quincunx arrangement for 24 cores
Reinforcement (optional): Two galvanized soft steel wires (when the free suspension exceeds 80 meters) or fiber aramid yarn (optional)
Sheath: Special blended nitrile with specific characteristics
Sheath color: Black (RAL9005), Gray (RAL7001)
Rated voltage: Uo/U 450/750V
Test voltage: 2500V
Bending radius: For mobile installation: 10xD (cable outer diameter); For fixed installation: 8xD (cable outer diameter)
Temperature rating for fixed installation: -40°C to +70°C
Temperature rating for mobile installation: -20°C to +70°C
Flame retardant rating: Self-extinguishing and flame retardant, complying with IEC 60332-1-2
Standard: Similar to EN 50525-3-11
Product identification: Aein beike Shanghai Aiyin Electric Wire & Cable Co., Ltd. Sichuan Branch Model Specification Voltage
