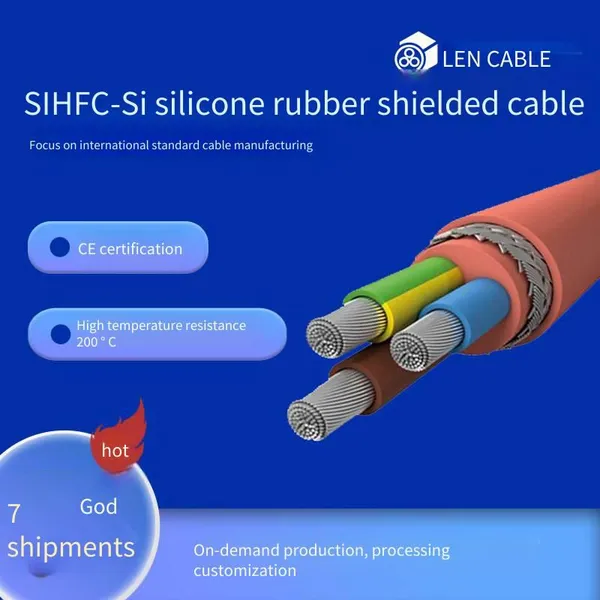

SiHFC-Si CE Certified Silicone Rubber Shielded Cable
· High temperature resistance up to 180°C
· No flame conduction during a fire, with intact insulation and low smoke density
· Silicone is resistant to ozone, oxygen, seawater, and weather
· Hydrolysis and UV resistance
· Above +100°C and in the absence of air, the mechanical properties of silicone wires will degrade prematurely. Adequate ventilation should be ensured.
SiHF CE Certified Silicone Rubber Cable, used as a coordinated heat and cold-resistant power, control, and connection cable in electrical systems for fixed and mobile installations, without a specific cable
There is no tensile stress in the path. It is suitable for use in dry, damp, and wet rooms as well as outdoors, and does not need to be laid underground.
Conductor material: Tinned copper stranded wire
Conductor class: Complies with IEC 60228 cl.5 standard
Insulation: EI2 type silicone rubber cross-linked mixture
Core wire identification: Complies with DIN VDE 0293-308 colored core wires
Stranding: Layered stranding
Inner sheath: EM9 type silicone rubber cross-linked mixture
Shielding: Tinned copper braiding
Outer sheath: EM9 type silicone rubber cross-linked mixture
Sheath color: Black RAL9005 (optional)
Rated voltage: Uo/U: 300/500V
Test voltage: 2KV
Conductor resistance: Complies with IEC 60228 Class 5 at +20°C
Insulation resistance: Minimum 20 MΩ x km
Minimum fixed bending radius: 4 x d
Minimum moving bending radius: 15 x d
Operating temperature for fixed installation, minimum/maximum: -50°C/+180°C (with sufficient ventilation)
Halogen-free: Complies with IEC 60754-1
Corrosivity: Complies with IEC 60754-2
Flame retardant rating: Self-extinguishing and flame retardant comply with IEC60332-1-2
Product identification: Aein beike SHANGHAI AEIN WIRE&CABLE CO.,LTD Model Specification Voltage CE
·Complies with RoHS standard
·Complies with 2014/35/EU - Directive ("Low Voltage Directive") CE
·Customization is acceptable for products with special structures, other sizes, and colors of core wires and sheaths
