Ul4476-certified by American Standard, Heat-resistant up to 200°c, 1000v Silicone Rubber Shielded Power Cable

Ul4476-certified by American Standard, Heat-resistant up to 200°c, 1000v Silicone Rubber Shielded Power Cable thumbnail-1
Ul4476-certified by American Standard, Heat-resistant up to 200°c, 1000v Silicone Rubber Shielded Power Cable thumbnail-2
Ul4476-certified by American Standard, Heat-resistant up to 200°c, 1000v Silicone Rubber Shielded Power Cable thumbnail-3
Ul4476-certified by American Standard, Heat-resistant up to 200°c, 1000v Silicone Rubber Shielded Power Cable photo-1
Ul4476-certified by American Standard, Heat-resistant up to 200°c, 1000v Silicone Rubber Shielded Power Cable photo-2
Ul4476-certified by American Standard, Heat-resistant up to 200°c, 1000v Silicone Rubber Shielded Power Cable photo-3
US$ 0.46 1 Meter
US$ 0.23 ≥2 Meter
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Chengdu, Sichuan, China
Contact Supplier Request Quote Chat Now
Shanghai Aiyin Electric Wire & Cable Co., Ltd. Sichuan Branch
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

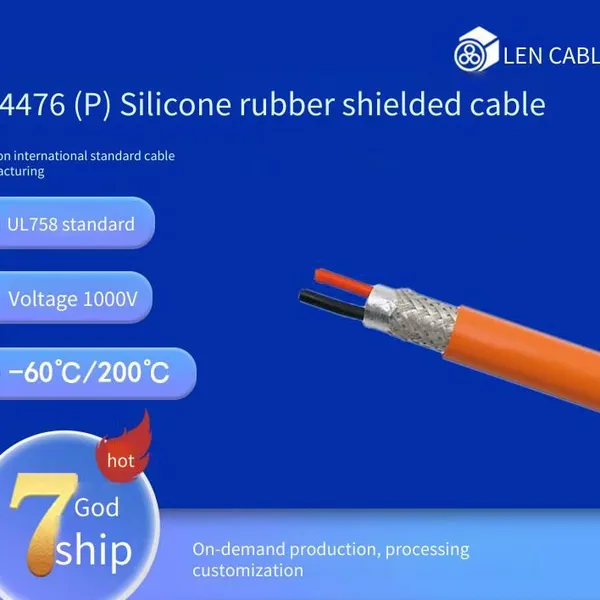

UL4476 certification for American standard, temperature resistance up to 200&＃39;℃, 1000V, silicone rubber shielded power cable


· Flame retardant meets FT2 standard


· High flexibility and cold resistance




This cable is widely used for internal wiring of household appliances, lighting, heaters, robots and industrial equipment.




Conductor material: Flexible stranded copper conductor


Conductor class: Class 5


Core insulation: SR (Silicone rubber)


Core identification: Black cores with white numbers, with or without GNYE


Twisting: Insulated cores are twisted into cable with optimal pitch


Shielding: Aluminum foil + tinned copper braided shielding


Outer sheath: SR (Silicone rubber)


Outer sheath color: Black RAL9005 or grey RAL7001 (optional)


Rated voltage: 1000V


Temperature class: -60°C/+200°C


Flame retardant class: Self-extinguishing, meets UL FT2 standard


Standard: UL758


Product identification: AEIN CABLE E503807(UL) Model *x**AWG Temperature Voltage c(UL) FT2




· Meets RoHS standard


· UL certified


· Meets UL758/ UL1581



Our advantages


Shanghai Aiyin Electric Wire & Cable Co., Ltd. Sichuan Branch owns a modern production base integrating production, quality inspection and development. The whole process of the company's production and operation is strictly in line with the requirements of ISO9001:2000 Quality Management System Standard for comprehensive quality control, thus ensuring the product quality. The products produced by our company meet international standards and can directly replace foreign products. Let you own international - level products at a reasonable price.


       The main products produced by Shanghai Aiyin Electric Wire & Cable Co., Ltd. Sichuan Branch are: Drag chain cables, robot cables, servo cables, braider cables, highly flexible control cables, UL certified cables, EAC customs certified cables, CE certified cables, SAA Australian standard certified cables, TUV German standard certified cables, Japanese standard cables, traveling crane cables, reel cables, signal cables, crane cables, oil-resistant cables, cold-resistant cables, bucket wheel machine cables, overhead crane cables, marine cables, zero buoyancy cables,Armored cables, RS-485, Corrosion-resistant, Acid and alkali-resistant cables, Control cables,BUS, National standard CCC cables, PUR polyurethane cables,Self-supporting steel cable cables, elevator cables, Cables for electrical installation,Special cables etc. After years of development, the company has won the recognition of a large number of users with its good reputation and high-quality products.




Product Tags: American standard silicone rubber cable , American standard high temperature resistant cable , American standard silicone rubber shielded cable , UL758 standard cable , Cable resistant to low temperature of -60°C
