ULSOOW/H07RN-F 450/750V UL62 Standard Rubber Cable
UL & UL & CUL certified, suitable for indoor/outdoor use, as well as in the field of wind power generation, portable tools for electrical equipment exposed to oil, solvents, flames, moisture and other environments requiring flexibility and durability,
Equipment, small motors and related machinery, appliances, devices. Suitable for applications up to 600 V and temperatures from -40°C to +105°C.

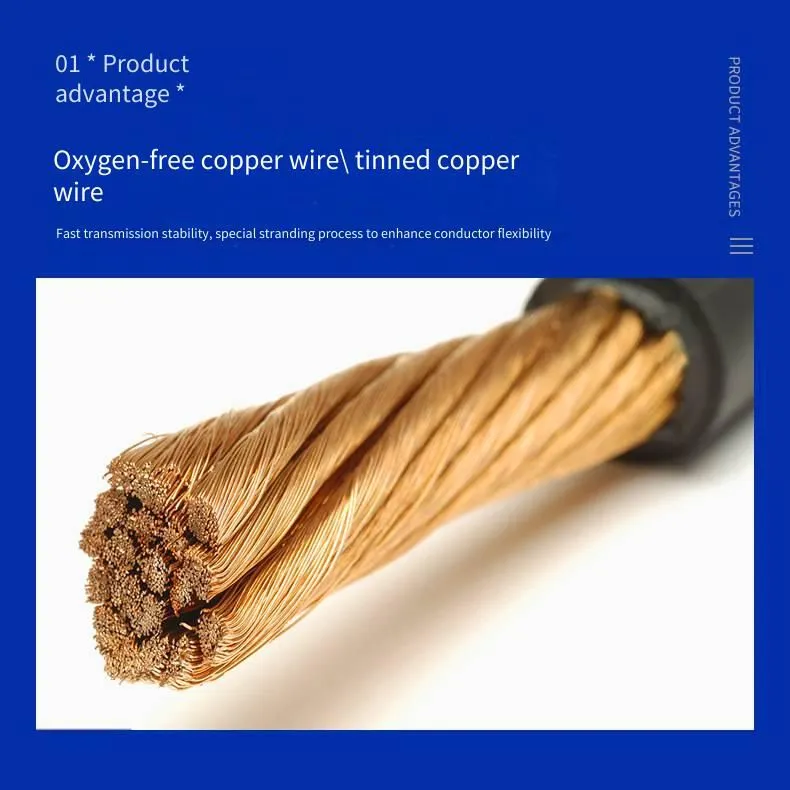

Conductor material: Copper stranded wire
Conductor class: Complies with DIN VDE 0295 Class 5, referring to IEC 60228 Class 5

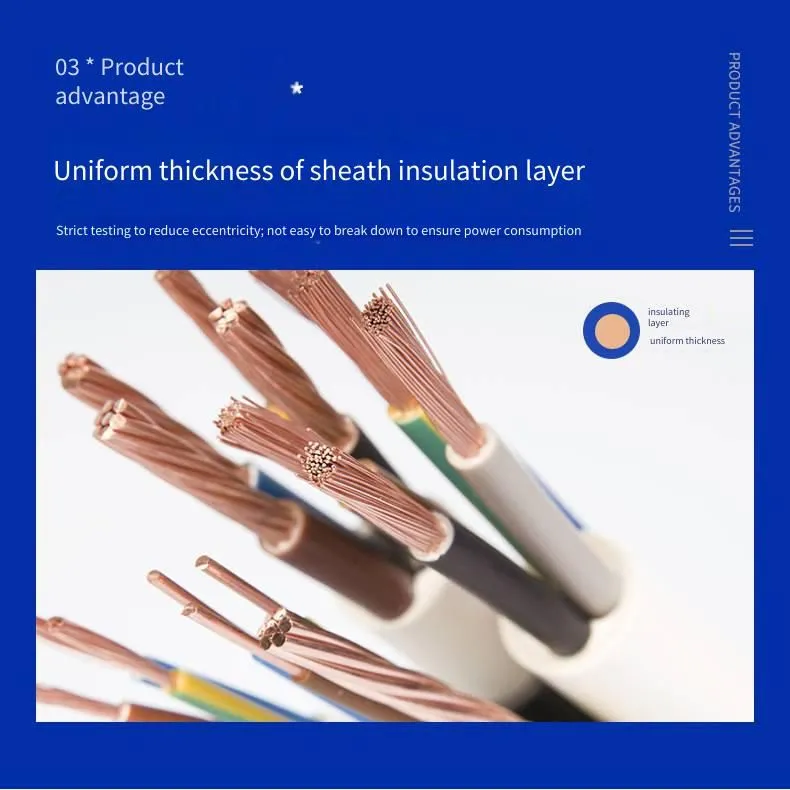

Core insulation: EP
Core identification: Preferred colors: Black, white, red, yellow-green (green), orange. From 6 black RAL9005 wires with white numbers, with or without yellow/green
Stranding: Core layer stranding with filler
Outer sheath: CPE
Outer sheath color: Black RAL9005 (optional)
Rated voltage: 600V
Test voltage: ≤13AWG 2000V; 12AWG - 9AWG 3000V; 8AWG - 2AWG 4000V
Minimum bending radius for fixed installation: 7.5xd
Minimum bending radius for movable installation: 10xd
Working temperature for fixed installation, minimum/maximum: -40°C/+105°C, -40°C/+90°C, -40°C/+75°C, -40°C/+60°C
Temperature class for movable installation, minimum/maximum: -40°C/+105°C, -40°C/+90°C, -40°C/+75°C, -40°C/+60°C

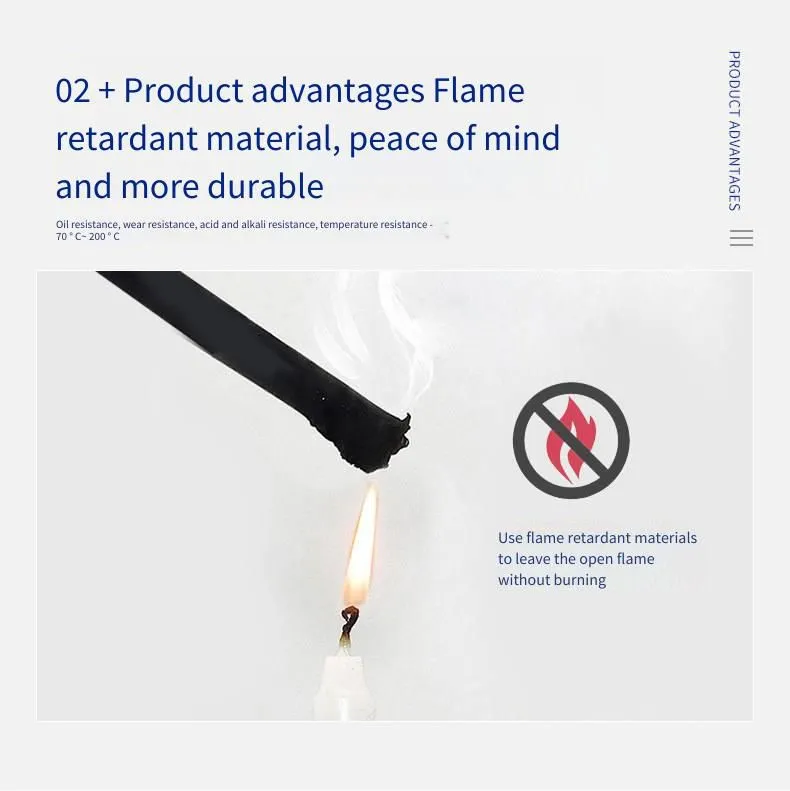

Flame retardant rating: Self-extinguishing and flame retardant, complies with IEC60332-1-2 FT1 VW-1
Oil resistance: Complies with EN 60811-2-1
Certification: UL/CE

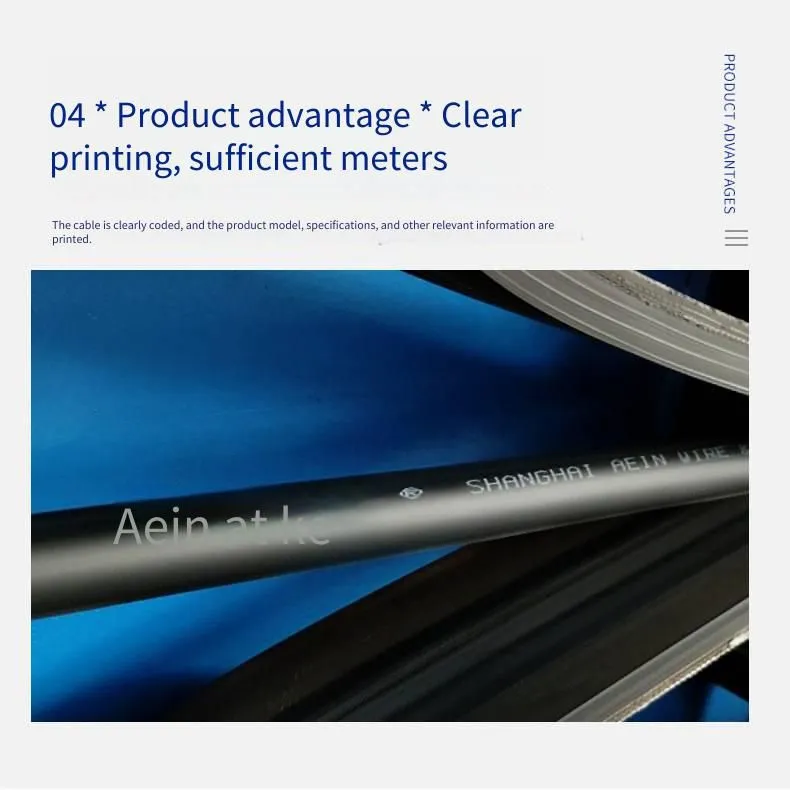

Product identification: Aein bei ke SHANGHAI AEIN WIRE & CABLE CO.LTD Model Specification Voltage
Our advantages

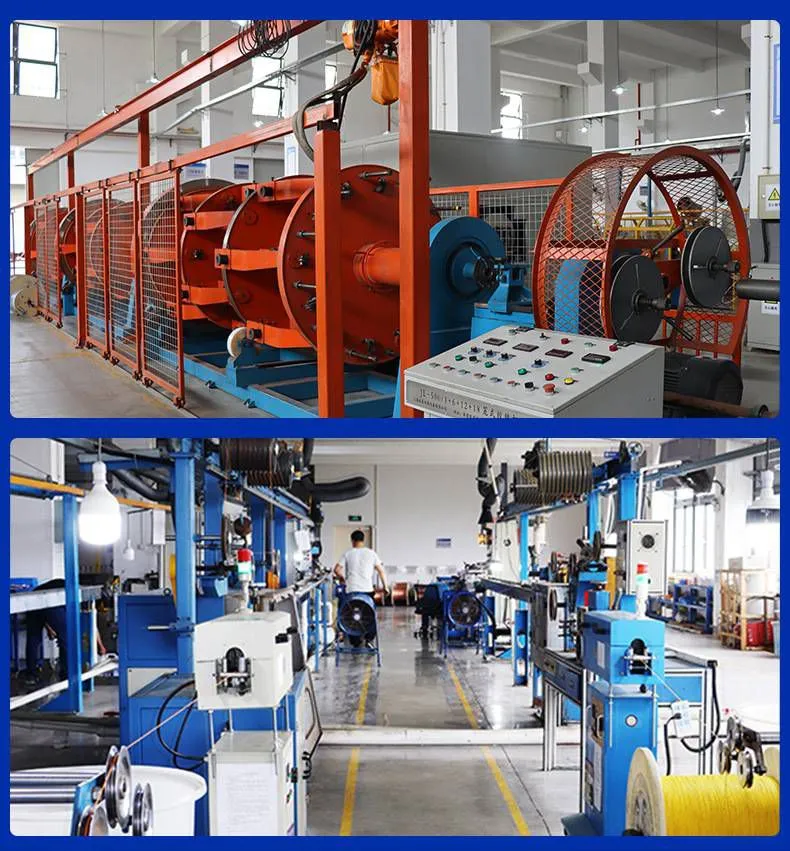

Our company has a modern production base integrating production, quality inspection, and development. The whole process of the company's production and operation is strictly in line with the requirements of the ISO9001:2000 Quality Management System Standard for comprehensive quality control, thus ensuring the product quality. The products produced by our company all meet international standards and can directly replace foreign products. Let you own products of international level at a reasonable price.
Our company mainly produces: Drag chain cables, robot cables, servo cables, braider cables, highly flexible control cables, UL certified cables, EAC customs certified cables, CE certified cables, SAA Australian standard certified cables, TUV German standard certified cables, Japanese standard cables, traveling crane cables, reel cables, signal cables, crane cables, oil-resistant cables, cold-resistant cables, bucket wheel machine cables, overhead traveling crane cables, marine cables, zero-buoyancy cables,Armored cables, RS-485, corrosion-resistant, acid and alkali-resistant cables, control cables,BUS bus, national standard CCC cables, PUR polyurethane cables,Self-supporting steel cable cables, elevator cables, cables for electrical installation,Special cables etc. After years of development, our company, Shanghai Aiyin Electric Wire & Cable Co., Ltd. Sichuan Branch, has been recognized by a large number of users with good reputation and high-quality products.
