Custom Filament Wound FRP Fiberglass Tank for Chemical Pickling Workshop Acid Liquid Storage
Product Spotlights
Custom filament wound FRP tank, engineered for chemical pickling & acid storage, offers superior corrosion resistance, lightweight strength, and long service life (≥20 years). Fully customizable dimensions, fittings, and resin systems. Backed by 15+ years of manufacturing experience and global exports to 15+ markets.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
FRP (Fiberglass Reinforced Plastic)
Manufacturing Process:
Filament Winding
Capacity:
Customizable (e.g., 1000L - 50000L)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
15 days
Related Products
-
Outdoor UV Stabilized Fiberglass FRP Storage Tank Anti-UV Fiberglass Vessel for Open Air Chemical StorageNegotiableMOQ: 1 Piece -
Anti-Corrosion Fiberglass FRP Sodium Hypochlorite Storage Tank for Disinfectant Chemical StorageNegotiableMOQ: 1 Piece
-
Industrial FRP Waste Acid Storage Tanks for Mining Acid Drainage Neutralization SystemsNegotiableMOQ: 1 Piece
-
High Chemical Resistance Fiberglass FRP Tank Anti Acid Alkali Corrosion for Industrial Waste TreatmentNegotiableMOQ: 1 Piece
-
Custom Size FRP Fiberglass Tank Specialized for Dilute Hydrochloric Acid Liquid Storage TreatmentNegotiableMOQ: 1 Piece
Material
FRP (Fiberglass Reinforced Plastic)
Manufacturing Process
Filament Winding
Capacity
Customizable (e.g., 1000L - 50000L)
Application
Chemical pickling workshop, acid liquid storage
Color
Customizable (e.g., green, gray, blue)
Wall Thickness
Customizable based on design
Working Temperature
-40°C to 120°C
Working Pressure
Atmospheric or low pressure (customizable)
Connection Type
Flanges, threaded ports (customizable)
Standards
Designed per customer specifications
As a leading manufacturer with over 15 years of expertise in composite materials, Hengshui City Yike Composite Materials Co., Ltd. proudly presents our Custom Filament Wound FRP Fiberglass Tank, specifically engineered for chemical pickling workshops and acid liquid storage. Our tanks are designed to withstand the harshest acidic environments while providing long-term reliability and cost-efficiency. With an annual export value of US$1.5 million to US$2.5 million and global shipments to major ports including Tianjin and Shanghai, we have established a reputation for quality and precision in over 15 international markets.
Key Features & Technical Specifications
- Filament Winding Process: Utilizes advanced computer-controlled winding technology to ensure uniform fiber distribution and optimal mechanical strength.
- Corrosion Resistance: Excellent resistance to a wide range of chemicals including hydrochloric acid, sulfuric acid, nitric acid, and pickling solutions. The resin matrix can be tailored to specific chemical exposure (e.g., vinyl ester, epoxy, or polyester resins).
- Lightweight & High Strength: FRP tanks weigh only 1/4 to 1/5 of steel tanks, reducing foundation requirements and installation costs, while offering comparable or superior strength.
- Customizable Dimensions: Available in diameters from 0.5m to 4m and heights up to 12m (or larger upon request). Capacity can be customized from 500 liters to over 50,000 liters.
- Temperature Performance: Designed to operate continuously at temperatures up to 120°C (with appropriate resin selection), suitable for hot pickling solutions.
- Integral Flanges & Connections: Flanges, inlet/outlet nozzles, manholes, and other fittings can be integrally wound or bonded to meet your process requirements.
- UV Resistance: Top coat with UV-stabilized gel coat ensures prolonged outdoor service life.
| Parameter | Value / Range |
|---|---|
| Material Composition | Glass fiber (E-glass, S-glass optional) + thermosetting resin |
| Wall Thickness | 6 mm – 30 mm (customizable) |
| Working Pressure | Full vacuum to 1.0 MPa (customizable) |
| Design Life | ≥ 20 years under normal conditions |
| Surface Finish | Smooth gel coat; optional anti-slip exterior |
| Insulation | Optional thermal insulation layer |
Advantages for Chemical Pickling Workshops
Our custom filament wound tanks are specifically optimized for the demanding conditions of pickling processes:
- No Corrosion Failure: Unlike metal tanks, FRP does not rust or corrode when exposed to strong acids, eliminating costly replacements and downtime.
- Smooth Inner Surface: The resin-rich interior prevents scale buildup and facilitates easy cleaning, maintaining process purity.
- Leak-proof Construction: Continuous filament winding creates monolithic joints, reducing the risk of leaks at seams.
- Cost Savings: Lower maintenance costs, no need for protective linings, and reduced installation expense compared to alloy or lined steel tanks.
- Customization to Fit Your Workshop: Tanks can be designed with specific height-to-diameter ratios to fit within existing workshop layouts, and with multiple inlets/outlets to match your piping.
About Hengshui City Yike Composite Materials Co., Ltd.
Since our founding in 2009, we have been dedicated to the research and production of high-performance FRP products. Our factory is located in Hengshui, Hebei, China – a region known as the “Composite Material Capital”. With an annual export value exceeding US$1.5 million, we have successfully supplied tanks to markets across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and many other regions. We ship through major Chinese ports including Tianjin and Shanghai, ensuring timely delivery worldwide. Each tank undergoes strict quality control procedures, including hydrostatic testing, spark testing, and thickness verification.
We invite you to contact us with your specific requirements. Whether you need a standard acid storage tank or a complex custom design for your pickling workshop, our engineering team will provide a comprehensive solution. Trust Yike Composite to deliver durable, safe, and cost-effective FRP tanks that enhance your production efficiency and reduce operational risks.
Frequently Asked Questions (FAQ)
-
Q: What types of acids can your FRP tanks store?
A: Our tanks are compatible with a wide range of acids including hydrochloric acid (up to 37%), sulfuric acid (up to 70%), phosphoric acid, nitric acid (up to 40%), and organic acids like acetic acid. The specific resin system (vinyl ester, epoxy, or polyester) is selected based on your chemical composition and temperature. -
Q: How do you ensure the tank's corrosion resistance?
A: We use a corrosion liner (veil or veil/mat) of high-quality resin with high chemical resistance, followed by structural layers. The inner surface is smooth and rich in resin to prevent chemical attack. Testing reports can be provided upon request. -
Q: Can you customize the tank connections and accessories?
A: Absolutely. We can integrate flanges (ANSI, DIN, JIS, etc.), threaded couplings, manholes (round or oval), vents, and level indicators. All fittings are designed for your process needs. -
Q: What is the typical lead time for a custom tank?
A: Lead time depends on size and complexity. Typically, it ranges from 15 to 45 working days after design confirmation. Urgent orders can be expedited upon prior arrangement. -
Q: Do you provide installation guidance or on-site service?
A: Yes, we offer installation manuals and technical support via video or phone. For large projects, on-site supervision can be arranged at an additional cost. -
Q: How are the tanks shipped and what packaging is used?

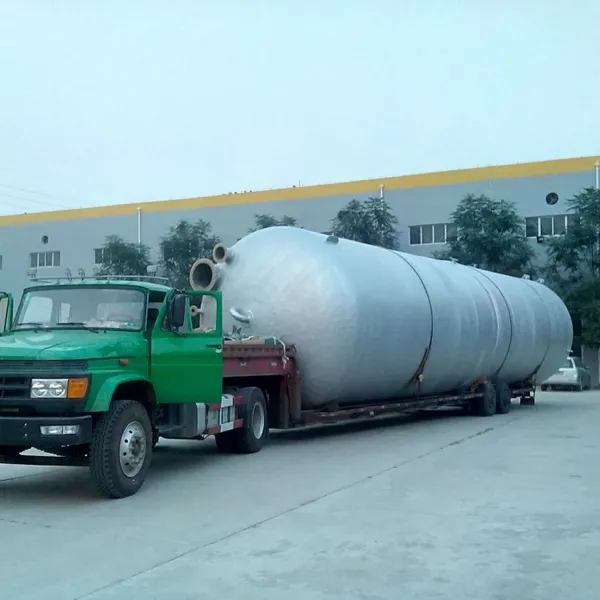

A: Tanks are packed with wooden crates or steel supports to prevent movement during transit. We can also ship in containers (up to 40HC) or flat racks for oversized tanks. All tanks are protected with plastic film and cushioning material. -
Q: What is the warranty period?
A: We offer a standard warranty of 12 months from the date of shipment, covering defects in materials and workmanship. Extended warranty options are available upon request. -
Q: Can you provide certificates or third-party inspection?
A: We can provide a Certificate of Conformity (COC) and test reports for material properties. Third-party inspection (such as SGS, BV) can be arranged at the buyer's cost if required.
