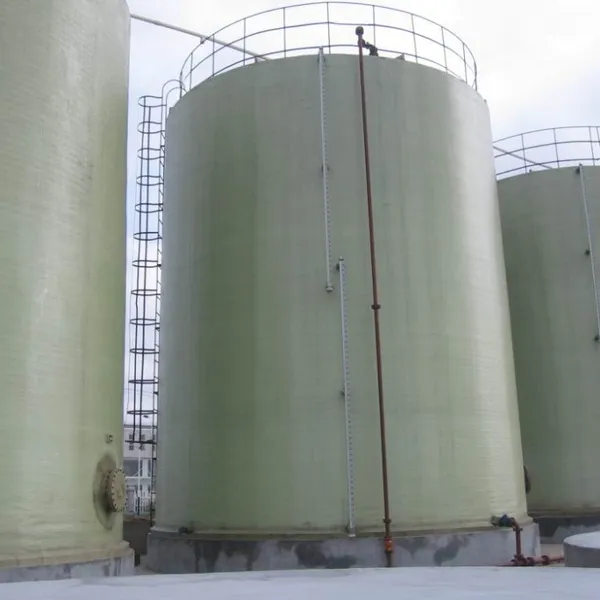

Help CenterCustom FRP Storage Tank Fiberglass Reinforced Plastic Vessel for General Chemical Liquid Storage
Product Spotlights
Related Products
-
Vertical Wound Fiberglass FRP Tank for Dilute Sulfuric Acid Storage With Anti-Corrosion LinerNegotiableMOQ: 1 Piece -
High Strength FRP Tank for Hydrochloric Acid Storage Solutions, Custom SizesNegotiableMOQ: 1 Piece
-
FRP Chemical Storage Tank for Hydrochloric Acid – Corrosion Proof DesignNegotiableMOQ: 1 Piece
-
32% Hydrochloric Acid Storage Tank – Fiberglass FRP With UV ResistanceNegotiableMOQ: 1 Piece
-
Vertical FRP Hydrochloric Acid Storage Tank – Chemical Resistant GradeNegotiableMOQ: 1 Piece
Hengshui City Yike Composite Materials Co., Ltd., established in 2009, is a specialized manufacturer of high-quality composite products. Our Custom FRP Storage Tank – Fiberglass Reinforced Plastic Vessel for General Chemical Liquid Storage is engineered to deliver durable, corrosion-resistant, and cost-effective solutions for storing a wide range of chemical liquids. With years of expertise in FRP technology, we offer tanks that are lightweight yet strong, ensuring long service life and minimal maintenance. Whether you need a standard design or a fully customized vessel, our team works closely with you to meet your specific storage requirements.
Our FRP storage tanks are constructed using advanced winding techniques and premium resins, providing exceptional resistance to corrosion, UV radiation, and chemical attack. The fiberglass reinforcement ensures high structural integrity while keeping the weight significantly lower than steel or concrete alternatives. This makes our tanks ideal for industries such as water treatment, chemical processing, agriculture, and general industrial liquid storage. Each tank is designed with safety and reliability in mind, offering options for internal liners, insulation, and various connection types.
Key Features and Technical Specifications
- Material: High-quality fiberglass reinforced plastic (FRP) with premium resin systems (e.g., orthophthalic, isophthalic, vinyl ester).
- Capacity Range: Customizable from 500 liters to over 100,000 liters to suit various storage needs.
- Operating Temperature: Typically from -40°C to 100°C, depending on resin selection.
- Corrosion Resistance: Excellent resistance to a broad spectrum of chemicals, including acids, alkalis, and solvents.
- Lightweight: Approximately 1/4 the weight of steel, reducing transportation and installation costs.
- Long Service Life: Average lifespan of 20-30 years with minimal maintenance.
- Customizable Features: Options for internal liners, insulation jackets, manways, nozzles, ladders, and level indicators.
- Color Options: Custom colors available to match your facility or identification needs.
| Parameter | Description |
|---|---|
| Resin System | Orthophthalic, Isophthalic, Vinyl Ester (customizable) |
| Fiber Reinforcement | E-glass fiber, continuous strand mat, woven roving |
| Manufacturing Process | Filament winding, hand lay-up, or RTM (depending on design) |
| Design Pressure | Atmospheric or low pressure (typically up to 0.5 MPa) |
| Connection Types | Flanged, threaded, or plain end (customized per request) |
| Surface Finish | Gel coat (smooth, UV-resistant) or anti-static coating |
Advantages for Your Business: By choosing our custom FRP storage tanks, you benefit from a product that is tailored to your exact chemical storage requirements. The corrosion-resistant nature eliminates the need for expensive linings or frequent replacements, while the lightweight construction simplifies handling and installation. Our tanks are designed to comply with international standards for safety and performance, providing peace of mind for your operations. Additionally, the ability to customize dimensions, fittings, and accessories means you get a perfect fit for your facility, reducing downtime and improving efficiency.
Trust and Credibility: Hengshui City Yike Composite Materials Co., Ltd. has been a reliable partner in the composite industry since 2009. With an annual export value of US$1.5 million to US$2.5 million, we have successfully served clients across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and many other regions. Our products are shipped from major ports including Tianjin and Shanghai, ensuring timely delivery worldwide. We combine our manufacturing expertise with a customer-centric approach, offering full technical support and after-sales service. Choose Yike Composite for your next FRP storage tank project and experience the difference of quality and customization.
We invite you to contact us for a quote or to discuss your specific requirements. Our team is ready to design and produce the ideal FRP storage tank that meets your chemical liquid storage needs efficiently and economically.
Frequently Asked Questions (FAQ)
-
Q: What chemicals can be stored in your FRP storage tanks?
A: Our tanks are suitable for a wide range of chemicals including acids, alkalis, salts, and many organic compounds. The specific resin system can be selected based on the chemical compatibility requirements. Please provide the chemical composition and concentration for a tailored recommendation. -
Q: How long does it take to manufacture a custom FRP tank?
A: Production lead time depends on the size and complexity. Typically, standard custom tanks are completed within 2-4 weeks after design approval. Larger or more complex projects may require additional time. We will provide a detailed schedule upon order confirmation. -
Q: Can you provide tanks with high-temperature resistance?
A: Yes, by using specialized resin systems such as vinyl ester or epoxy, our tanks can withstand elevated temperatures up to 100°C or higher, depending on the application. Please specify your temperature requirements. -
Q: What is the minimum order quantity (MOQ)?
A: We accept orders for single tanks as well as bulk quantities. For custom designs, MOQ may start from 1 unit. For standard sizes, we can offer competitive pricing for multiple units. Contact us for details. -
Q: Do you offer installation guidance or on-site support?
A: Yes, we provide detailed installation manuals and technical support. For large projects, we can arrange on-site supervision or training upon request (additional charges may apply). -
Q: Are your tanks compliant with international standards?
A: Our manufacturing processes follow industry best practices and can be designed to meet standards such as ASME, BS, or other relevant specifications. We do not claim specific certifications unless confirmed. Please inquire about your required standards. -
Q: How do I determine the right thickness for my storage tank?
A: The wall thickness is calculated based on the tank diameter, height, specific gravity of the liquid, operating pressure, and safety factors. Our engineering team will perform the design calculations and provide a recommendation. We will share a detailed technical drawing for your approval before production. -
Q: What payment terms do you accept?
A: We typically accept T/T (wire transfer), L/C, and other terms negotiable. Please discuss with our sales team for your preferred payment method.
