Welcome to Hengshui City Yike Composite Materials Co., Ltd. – your reliable partner in advanced composite solutions. Since 2009, we have been dedicated to manufacturing high-performance fiberglass storage tanks, and our Outdoor UV Stabilized Fiberglass FRP Storage Tank is specifically engineered to withstand harsh sunlight and open-air chemical storage conditions. This anti-UV fiberglass vessel combines exceptional durability with corrosion resistance, ensuring your chemicals remain safely contained year after year. Built to last, our tank is the ideal choice for agricultural, industrial, and municipal applications requiring reliable outdoor storage.
Our tank features a special UV-stabilized gel coat that prevents degradation from prolonged sun exposure, maintaining structural integrity and aesthetic appearance. The fiberglass reinforced plastic (FRP) construction delivers outstanding mechanical strength while remaining lightweight, making installation and transportation simple. Whether you need to store acids, alkalis, or other corrosive chemicals, this vessel provides a cost-effective, maintenance-free solution. Key benefits include:
- Superior UV Resistance: Specially formulated gel coat with UV inhibitors blocks harmful radiation, preventing chalking, cracking, and color fading.
- Excellent Chemical Compatibility: Corrosion-resistant resin systems (vinylester, polyester, epoxy) tailored to your stored media.
- Lightweight & Strong: Up to 75% lighter than steel tanks, yet high tensile strength (up to 300 MPa) ensures long-term reliability.
- Customizable Sizing: Available in capacities from 100 liters to over 100,000 liters; vertical or horizontal orientation; various nozzle configurations.
- Low Maintenance: Non-conductive, non-corrosive, and resistant to rot, rust, and insect damage – no painting or lining required.
- Weatherproof Performance: Operating temperature range of -40°C to 80°C (optional high-temperature design available).
| Parameter | Details |
|---|---|
| Material | Fiberglass reinforced polymer (FRP) with UV-stabilized gel coat |
| Capacity Range | 100L – 100,000L (custom sizes available) |
| Operating Pressure | Atmospheric to 0.6 MPa (higher on request) |
| Temperature Range | -40°C to +80°C (high-temp version up to 120°C optional) |
| Colors Available | White, gray, green, blue, or custom RAL/color code |
| Surface Finish | Gel coat (UV inhibitor) – standard, or durable top coat available |

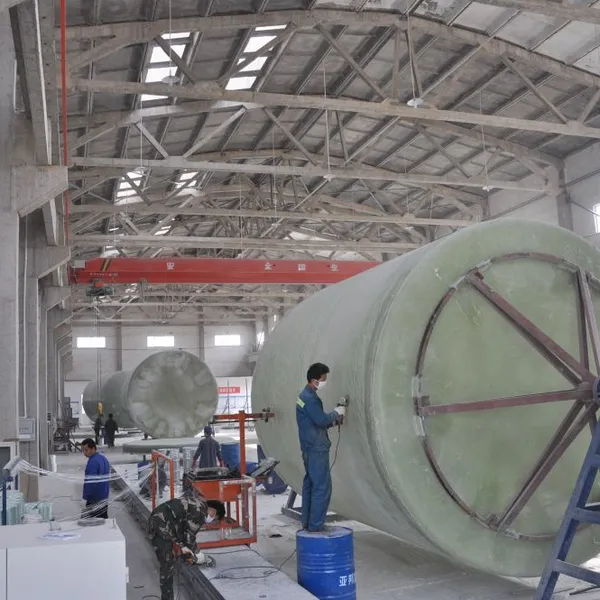

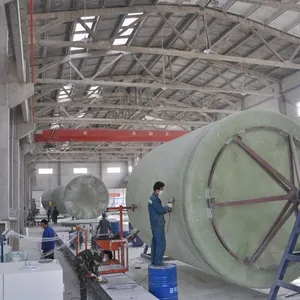

The technical construction follows strict quality control processes: we use winding or hand lay-up techniques depending on tank size and application, ensuring uniform wall thickness and consistent resin-to-glass ratio. Every tank undergoes hydrostatic pressure testing and 100% visual inspection before shipment. Our design ensures safe chemical containment with no leaks or permeation, meeting stringent international standards for storage vessels. For open-air installations, we recommend optional accessories such as anchoring brackets, manways, level indicators, and ventilation fittings – all available as customized add-ons.

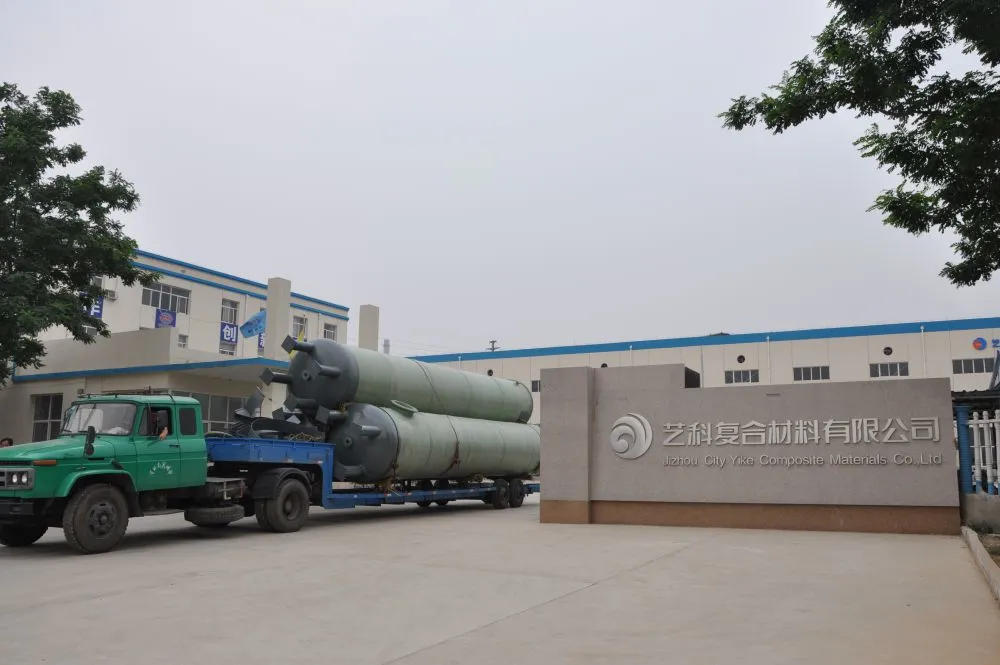

Why choose our UV-stabilized FRP tank? The answer lies in our commitment to quality and customer satisfaction. As a manufacturer with over 15 years of experience, we have exported to more than 20 countries across North America, South America, Europe, Africa, and Asia. Our annual export value ranges from US$1.5 million to US$2.5 million, a testament to global trust. We work closely with clients to tailor tanks to exact specifications, whether for water treatment, chemical processing, agriculture, or oil & gas. Our factory in Hengshui, Hebei, China, is equipped with advanced CNC winding machines and skilled engineers who ensure every product meets your requirements.
Backed by a dedicated after-sales team, we provide installation guidance, warranty support, and replacement parts promptly. Our flexible logistics network allows shipping via Tianjin Port, Shanghai Port, or other Chinese ports to destinations worldwide. We understand that outdoor chemical storage demands reliability – that’s why every tank is designed with a minimum 20-year service life under normal outdoor conditions. Don’t compromise on safety; invest in a tank that protects your business. Contact us today for a customized quotation or technical consultation.
Frequently Asked Questions (FAQ)
-
Q: What is the UV stabilization method used in this tank?
A: We incorporate UV inhibitors directly into the gel coat layer during the molding process. The topcoat acts as a barrier, absorbing and reflecting UV radiation to prevent degradation. For extreme UV environments, optional additional UV-resistant topcoats are available. -
Q: Can this tank store concentrated sulfuric acid?
A: Yes, if the proper resin system (e.g., vinylester or specific epoxy) is selected. We recommend consulting our technical team to confirm chemical compatibility based on concentration and temperature. Most common acids, bases, and solvents are compatible. -
Q: What is the typical lead time for a custom tank?
A: Standard tanks (up to 5000L) ship within 15-20 working days after order confirmation. Larger or highly customized tanks may require 30-45 days depending on complexity and current production load. -
Q: Do you provide installation instructions or on-site support?
A: Yes, each tank comes with a detailed installation manual. Additionally, we can arrange online video guidance or recommend local service partners upon request. On-site supervision is possible for large projects (costs negotiable). -
Q: Is the tank suitable for underground installation?
A: While primarily designed for above-ground outdoor use, we can reinforce the structure for buried service. Please specify underground application, and we will adjust wall thickness and add anti-buoyancy straps. -
Q: What certifications does your tank hold?
A: Our production follows ISO 9001 quality management system standards. Tanks are tested per ASTM D3299 (filament-wound) and ASTM D4097 (contact-molded) guidelines. Specific third-party certifications (e.g., CE, ASME) can be arranged at extra cost and time – please inquire. -
Q: How do I choose the correct capacity and dimensions?
A: Determine required volume and available space. We offer standard diameters from 0.6m to 4.5m, heights up to 12m. Custom ratios are possible. Our sales team can help calculate optimal dimensions based on your footprint and fill height. -
Q: What is the warranty period?
A: We offer a standard 3-year structural warranty against manufacturing defects. Extended warranties (up to 10 years) are available as an optional upgrade. The warranty covers delamination, cracking, or blistering under normal use conditions.
Conclusion: Our Outdoor UV Stabilized Fiberglass FRP Storage Tank is the smart choice for businesses seeking a long-lasting, corrosion-free chemical storage solution. With proven export success and a global customer base, Hengshui City Yike Composite Materials Co., Ltd. delivers quality you can rely on. Request a quote today and experience the difference of professional engineering and customer-centric service.
