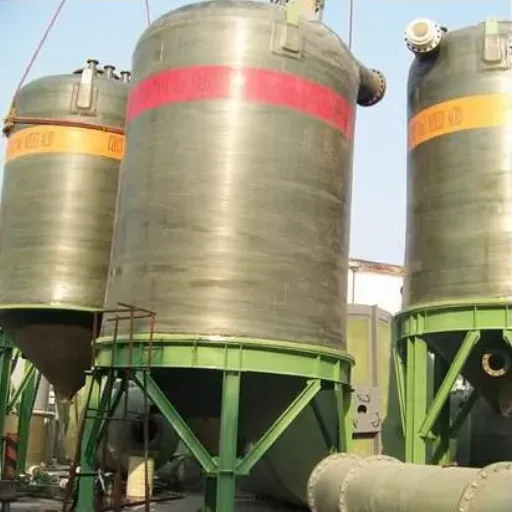

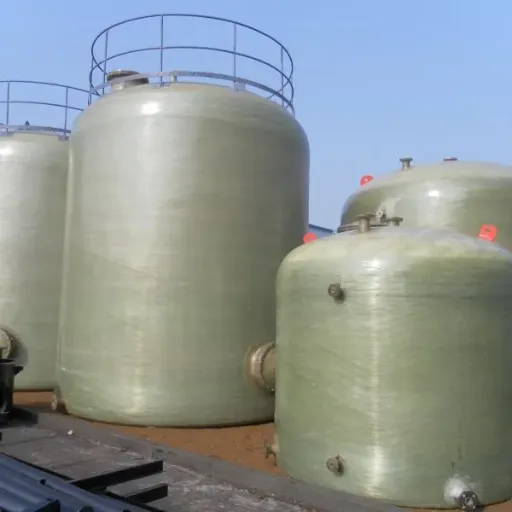

At Hengshui City Yike Composite Materials Co., Ltd., we take pride in delivering premium FRP NaOH storage tanks engineered for demanding chemical environments. Our 12ft diameter, 20ft height FRP tank supports a maximum working temperature of 150°F, making it an ideal solution for storing sodium hydroxide and other aggressive chemicals. Established in 2009, our company has accumulated over a decade of expertise in composite materials, ensuring each tank meets rigorous quality standards. This model combines robust construction with lightweight design, offering you a cost-effective and long-lasting storage solution that minimizes maintenance downtime and enhances operational safety.
The FRP NaOH storage tank is specifically fabricated using high-grade fiberglass and corrosion-resistant resins, providing exceptional resistance to chemical attack. Its large capacity of approximately 16,920 gallons (based on standard cylindrical volume) allows for efficient bulk storage in industries such as water treatment, chemical processing, mining, and pharmaceuticals. With a diameter of 12 feet and height of 20 feet, the tank is designed for both indoor and outdoor installations, and its lightweight nature reduces foundation load compared to steel or concrete alternatives. Every tank is customizable in terms of fittings, manways, nozzles, and linings to match your exact process requirements.
| Specification | Value |
|---|---|
| Material | FRP (Fiberglass Reinforced Plastic) |
| Diameter | 12 ft (3.66 m) |
| Height | 20 ft (6.10 m) |
| Max Working Temperature | 150°F (65.6°C) |
| Approximate Capacity | 16,920 gallons (64,050 liters) |
| Wall Thickness | Custom-designed based on service conditions |
| Top Style | Domed or flat – customizable |
| Fittings | Inlet, outlet, vent, manway – as per customer request |
Key features and benefits of our FRP NaOH storage tank:
- Superior corrosion resistance: The FRP laminate is formulated to withstand the caustic nature of sodium hydroxide, even at elevated temperatures up to 150°F. This extends service life and reduces replacement costs.
- Lightweight construction: Compared to steel or concrete, FRP tanks are significantly lighter, simplifying transportation, installation, and handling. This can lower your overall project costs.
- Customizable designs: We offer options for internal linings (e.g., vinyl ester, epoxy), insulation, heating coils, and various nozzle configurations to match your exact process needs.
- Low maintenance: FRP does not rust, rot, or require cathodic protection. The smooth interior surface resists scaling and buildup, reducing cleaning frequency.
- High strength-to-weight ratio: Engineered to handle static and dynamic loads, including wind and seismic forces, while maintaining structural integrity.
- UV resistance: External gel coat protects against sunlight degradation when installed outdoors, ensuring long-term performance.
- Compliance with industry standards: Our tanks are manufactured in accordance with recognized guidelines such as ASME RTP-1, ASTM D3299, or BS 4994 (available upon request).
Typical applications for this 12ft x 20ft FRP NaOH storage tank include:
- Chemical processing plants handling sodium hydroxide, hydrochloric acid, sulfuric acid, and other aggressive chemicals.
- Water and wastewater treatment facilities for pH adjustment and chemical storage.
- Pulp & paper mills using caustic soda in bleaching processes.
- Mining operations for leaching and reagent storage.
- Food processing industries for cleaning and sanitation chemical storage.
Why choose Hengshui City Yike Composite Materials Co., Ltd.?
As a reliable manufacturer since 2009, we have served a diverse global clientele across North America, South America, Europe, Africa, Oceania, the Middle East, and Asia. Our annual export value ranges from US$1.5 million to US$2.5 million, reflecting strong trust from international buyers. We ship from Tianjin port, Shanghai Port, and other major Chinese ports, ensuring efficient logistics anywhere in the world. our experienced engineering team works closely with you to tailor the tank to your specific chemical properties, temperature, and pressure requirements. We provide comprehensive documentation, including design calculations, material certificates, and installation guidelines. With a commitment to quality and customer satisfaction, we stand behind every tank we deliver. Contact us today to discuss your project and receive a competitive quote.
Frequently Asked Questions (FAQ)
-
Q: What is the maximum concentration of NaOH this tank can handle?
A: The tank is designed for typical sodium hydroxide concentrations up to 50% by weight. For higher concentrations or specific process conditions, please consult our engineering team for customized resin and lining recommendations. -
Q: Can the tank be installed outdoors in cold climates?
A: Yes. The FRP material can be manufactured with a UV-resistant gel coat for outdoor use. For freezing environments, we recommend optional insulation and heat tracing to maintain the working temperature and prevent liquid solidification. -
Q: What fittings are included as standard?
A: Standard configurations typically include one inlet nozzle, one outlet nozzle, a vent, and a manway. Additional nozzles, sight glasses, level indicators, and handrails are available as options. We customize based on your P&ID. -
Q: How long does it take to manufacture and deliver this tank?
A: Lead time depends on customization complexity and current production capacity. Typically, standard designs are shipped within 4–6 weeks after order confirmation. Rush orders may be possible with prior arrangement. -
Q: Is the tank pressure rated?
A: This model is designed for atmospheric or low-pressure service (typically up to 1–2 psi). For pressurized storage, we offer tanks with reinforced construction and appropriate design codes. Please specify your required design pressure when inquiring. -
Q: What is the warranty period?
A: We provide a standard 12-month warranty against manufacturing defects from the date of shipment. Extended warranty options are available for an additional fee. Our warranty covers workmanship and material integrity under normal operating conditions. -
Q: Can I get a sample or small test unit?
A: While we focus on large custom tanks, we can produce smaller prototype vessels for testing purposes. Please contact us with your required dimensions and chemical specifications to discuss feasibility and pricing. -
Q: How do you ensure quality control during production?
A: Every tank undergoes rigorous in-process and final inspections, including thickness testing with ultrasonic gauges, hardness checks, visual inspection for defects, and hydrostatic or vacuum pressure tests as per your requirements. We also provide material test reports and a certificate of conformance upon request.
