Welcome to Hengshui City Yike Composite Materials Co., Ltd. – your reliable partner in advanced composite storage solutions. Since 2009, we have specialized in manufacturing high-quality FRP tanks designed to safely store aggressive chemicals like sodium hydroxide. Our FRP Sodium Hydroxide Storage Tank with 0.5 Inch Thickness and 5000 Gallon Capacity is engineered for exceptional durability and high tensile strength, making it an ideal choice for industrial NaOH storage. Built with premium fiberglass and resin systems, this tank offers outstanding corrosion resistance, lightweight construction, and long service life.
This tank is specifically designed to handle sodium hydroxide solutions up to 50% concentration at ambient temperatures. With a wall thickness of 0.5 inches (12.7 mm), it provides robust structural integrity, while the high tensile strength ensures reliable performance under varying pressure and load conditions. The 5000-gallon (18,927-liter) capacity makes it suitable for medium to large-scale operations in chemical processing, water treatment, and industrial manufacturing facilities.

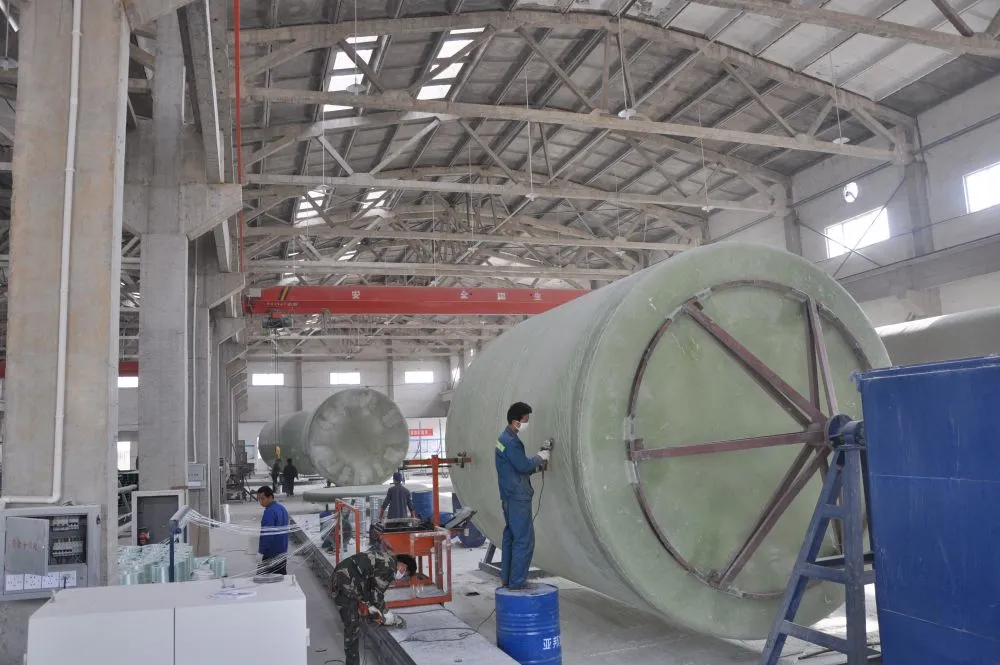

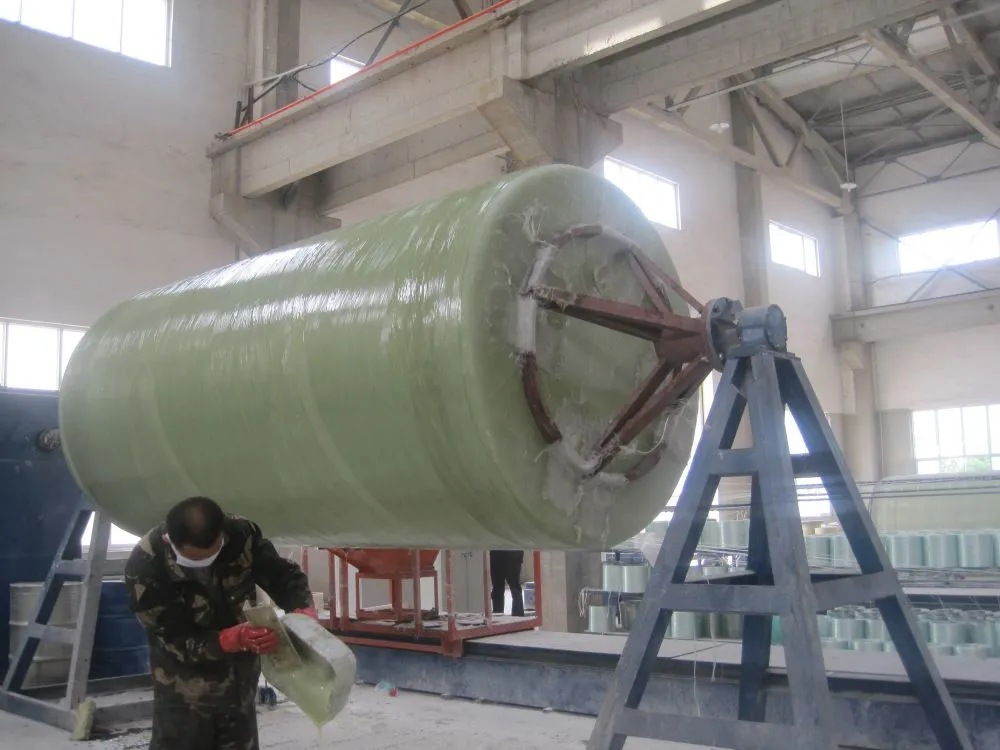

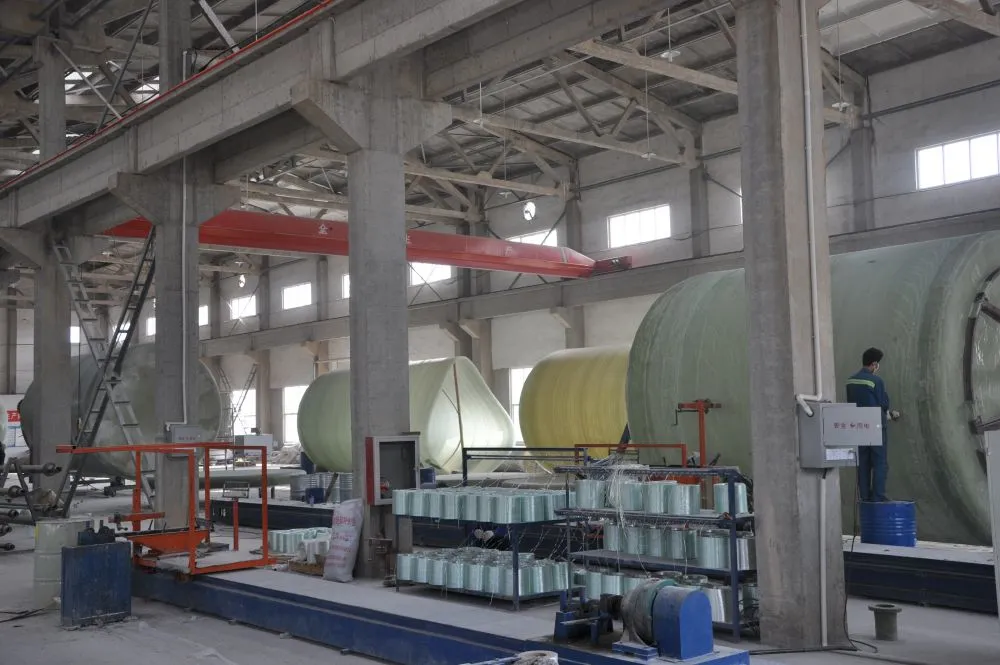

Each tank is manufactured using the filament winding process, which guarantees uniform wall thickness and consistent mechanical properties. We offer customization options for fittings, manways, nozzles, and supports to meet your specific installation requirements. Our tanks comply with international standards and undergo rigorous quality testing before shipment.
Key Features & Technical Specifications
- Material: Premium FRP (vinyl ester or polyester resin) with UV-resistant topcoat
- Wall Thickness: 0.5 inch (12.7 mm) – reinforced for high strength
- Capacity: 5000 gallons (18,927 liters)
- High Tensile Strength: Exceeds 300 MPa in hoop direction
- Corrosion Resistance: Excellent against sodium hydroxide, acidic, and alkaline solutions
- Lightweight: Approximately 60% lighter than equivalent steel tanks
- Low Maintenance: No rust, no painting needed; extends lifespan
- Operating Temperature: Up to 180°F (82°C) depending on resin system
- Customizable: Inlet/outlet sizes, manhole, gaskets, and supports available
Technical Parameters (Typical Values)
| Parameter | Value |
| Overall Diameter (outer) | ~96 inches (2.44 m) |
| Overall Height | ~160 inches (4.06 m) |
| Empty Weight | Approx. 1,200 lbs (544 kg) |
| Design Pressure | Atmospheric (optional vacuum rating) |
| Resin Type | Vinyl Ester (standard for NaOH) |
| Tensile Strength (hoop) | ≥320 MPa |
| Flexural Modulus | ≥17 GPa |
Why Choose This FRP Tank for NaOH Storage?
- Superior chemical resistance - The vinyl ester resin matrix resists attack from sodium hydroxide, preventing degradation and contamination of the stored chemical.
- High tensile strength ensures safety - Even at 0.5-inch thickness, the filament-wound structure delivers strength comparable to thicker steel tanks, reducing risk of rupture.
- Lower installation costs - Lightweight FRP reduces foundation and crane requirements; our tanks can be shipped in one piece for most destinations.
- Long service life - With proper maintenance, these tanks last 20+ years, reducing replacement frequency and total cost of ownership.
- Customizable design - We offer various options for manways (18" or 24"), vent connections, drain ports, and lifting lugs to fit your layout.
Trusted Manufacturing Backed by Data
Hengshui City Yike Composite Materials Co., Ltd. has been dedicated to composite manufacturing since 2009. With an annual export value of US$1.5–2.5 million, we serve clients across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, Europe, and domestic markets. Our tanks are shipped from major Chinese ports including Tianjin, Shanghai, and Tianjin, ensuring efficient global logistics.
We employ strict quality control procedures – each tank undergoes hydrostatic testing and visual inspection before leaving our factory. Our skilled engineers can provide detailed stress analysis and design certifications upon request. Choose our 5000-gallon FRP Sodium Hydroxide Storage Tank and benefit from a product that combines 0.5-inch thickness, high tensile strength, and proven corrosion resistance. Contact us today for a quote or technical consultation – we are ready to support your project with reliable storage solutions.
Frequently Asked Questions (FAQ)
Q1: Can this tank store 50% sodium hydroxide at room temperature?
A: Yes, the vinyl ester resin system is compatible with sodium hydroxide concentrations up to 50% at ambient temperatures (up to 100°F). For higher temperatures or concentrations, please consult our engineering team for resin selection.
Q2: Is the tank certified for hazardous chemical storage?
A: Our tanks are designed following industry standards such as ASTM D3299 and can be manufactured to meet specific local regulations. We do not self-certify without verification – please inquire about your required certification, and we will advise if it can be supplied.
Q3: What is the wall thickness tolerance?
A: The nominal thickness is 0.5 inch. Manufacturing tolerance is typically ±0.03 inch (0.8 mm). This ensures consistent mechanical properties throughout the tank.
Q4: Can I get a larger or smaller tank?
A: Yes, we offer custom capacities from 500 to 30,000 gallons. The 5000-gallon model is a popular standard size, but we can adjust diameter and height to meet your volume requirements.
Q5: How long does manufacturing and shipping take?
A: Typical lead time is 30–45 days after order confirmation, depending on customization. Shipping from Tianjin port to main global ports takes 20–35 days.
Q6: Does the tank come with fittings and a manway?
A: The basic price includes one 18-inch manway and standard vent/nozzle connections. Additional fittings (e.g., bottom drain, side inlet, level gauge) can be added as options.
Q7: What warranty do you offer?
A: We provide a standard 12-month warranty against manufacturing defects from the date of shipment. Extended warranty options are available upon request.
Q8: Is the tank suitable for outdoor installation?
A: Yes, the FRP material includes a UV-resistant topcoat that protects against sun degradation. However, we recommend supporting the tank on a concrete foundation and providing proper anchoring in high-wind areas.
