The main purpose of using an electric heating respirator is:
To prevent the condensation of water droplets from the gas passing through the filter element in the respirator from forming and affecting the permeability of the filter; to keep the filter element dry and inhibit the growth of microorganisms.
Currently, the domestic electric heating products are mainly dominated by foreign brands, with high prices. Our company has independently developed and designed a series of intelligent temperature-controlled electric heating filter products. These products are lightweight, aesthetically pleasing, easy to install, have stable performance, are energy-saving and environmentally friendly, and are safe and reliable. The heating body of the intelligent temperature-controlled electric heating filter adopts imported carbon fiber heating film, which heats up quickly and has a long service life. It is equipped with multiple protection functions such as over-temperature protection, ensuring safety and reliability. The insulation material uses imported silicone foam material, which is safe and environmentally friendly. The filter housing and outer cover are made of stainless steel 316L material, and the surface is polished to a mirror finish, making them both beautiful and practical. The product specifications are complete, and they can be customized according to user requirements. They can be upgraded directly on the basis of the existing filter without the need for repeated investment.

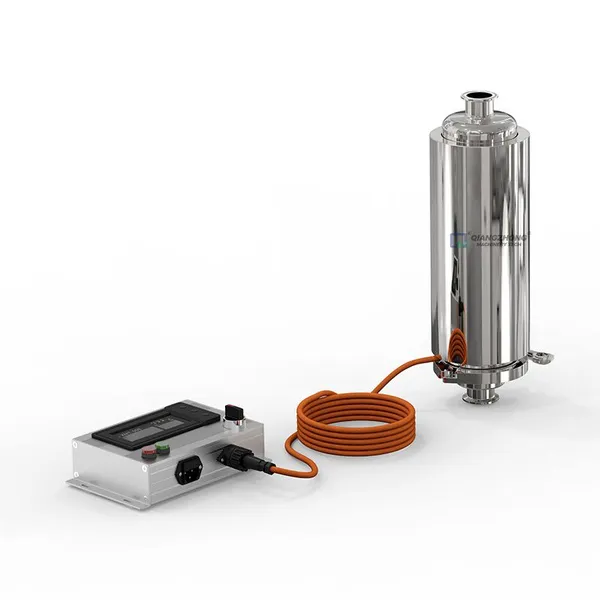

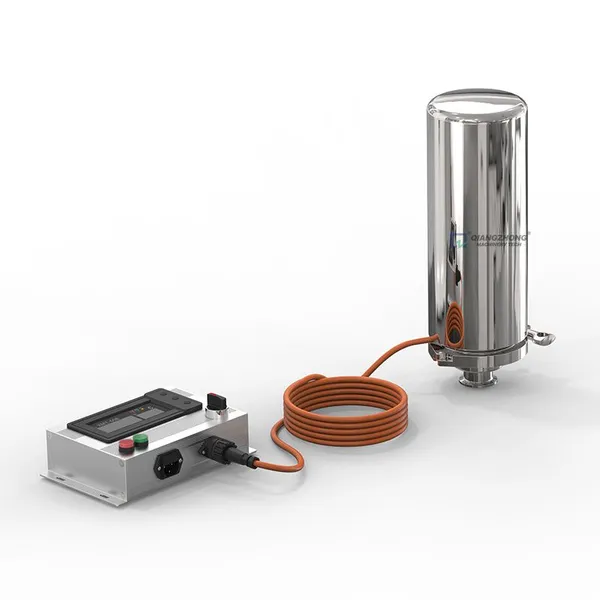

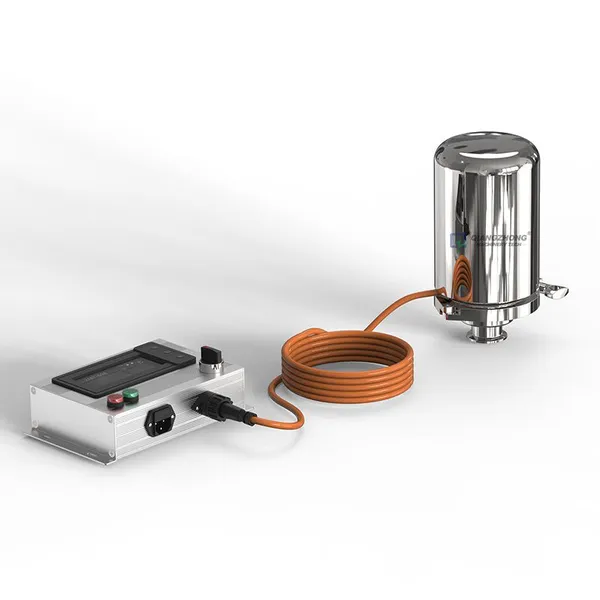

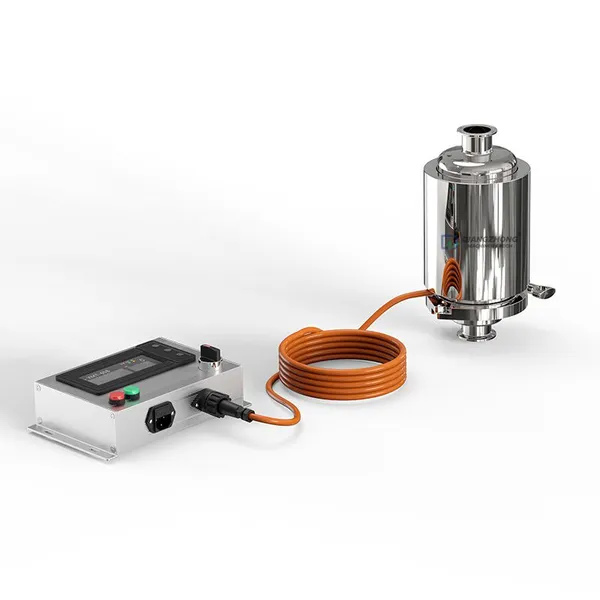

The electric heating temperature-controlled respirator is designed in accordance with GMP requirements and consists of a flexible heating insulation sleeve and a temperature control box. It is mainly used to provide heating and insulation functions for the filter housing, preventing the accumulation of condensate and the growth of microorganisms. It is widely applicable to injection water systems, filtration and purification processes, as well as filters and respirators for tanks and containers in industries such as biologics, pharmaceuticals, and fermentation.
◆Product Features:
1. It can effectively prevent the occurrence of condensation.
2. The automatic heating and insulation sterilization respirator adopts the most advanced electric heating technology in the international market. The heating plate has passed CE certification and is combined with foaming insulation materials. It achieves significant energy savings and consumption reduction, meeting the requirements of national energy conservation and emission reduction.
3. The LED digital temperature control system allows the temperature to be adjusted from 0 to 150℃ at will. It is equipped with an over-temperature alarm function, ensuring safe and reliable use.
4. The surface of the respirator can be safely touched.
5. Multiple safety protection measures are in place, suitable for different environments.
6. A separate stainless steel control box can be positioned as needed, not limited by the specific location of the respirator or container.
7. The respirator adopts a double-layer structure. The outer layer uses high-quality 304 stainless steel with mirror polishing, and the inner layer in contact with the air is made of mirror-polished 316L stainless steel. It fully complies with the requirements of GMP for equipment in clean workshops.
8. The automatic heating and insulation sterilization respirator overcomes the drawbacks of similar products during operation, such as noise, safety hazards, and rough surface that does not meet GMP standards. It is the most advanced heating, insulation, and anti-condensation equipment for respirators in China and internationally.
◆Application Scope:
1. Sterile filters for the exhaust ports of water for injection storage tanks and mixing tanks - to prevent the formation of condensate water inside the filters;
2. Exhaust filters for freeze-drying machines - to remove residual condensate water after steam sterilization or water content from raw materials and finished drug solutions after integrity tests and for drying treatment of heat-insulating and heating filter elements;
3. To reduce the viscosity of high-viscosity materials - making them easier to filter.
◆Product Selection Table: (Special requirements can be customized. Compatible with imported filter elements from Millipore, Pall, etc.)
Specification Model Power Operating Temperature Exhaust Method Filter Material
5" 226 Type 180W 0-150℃ Top exhaust with bottom exhaust Outer sleeve SUS304
Inner cylinder SUS316L
10" 226 Type 380W
20" 226 Type 700W
◆Technical Specifications:
Heating sleeve material: Composite silicone;
Temperature sensor: PT100, K type;
Working voltage: Single-phase AC, 220V, 50Hz;
Working power: 180W (5"), 380W (10"), 700W (20");
Display error: Less than ±0.5% F.S ± 1 digit, less than ±1.0% ± 1 digit;
Display method: Heating temperature - Red LED, Set temperature - Green LED;
Protection level: IP65;
Temperature setting range: 0 - 150℃;
Power cord: 10A three-prong plug;
Operating environment: Temperature 0 - 50°C; Humidity ≤ 85%; No corrosive substances and no strong electromagnetic radiation;
Temperature control method: Intelligent thermostat, can work in two-position mode (P=0) or PID regulation mode;
Controller size: Length × Width × Height (200mm × 150mm × 54mm).
◆ Note:
1. The wall-mounted electric heating jacket is characterized by its simplicity and ease of use, small size, convenient installation, and no space occupation;
2. The desktop electric heating jacket is more reasonably designed and easier to place. It is suitable for situations requiring long-term heating and where the heating contacts have frequent operations.
