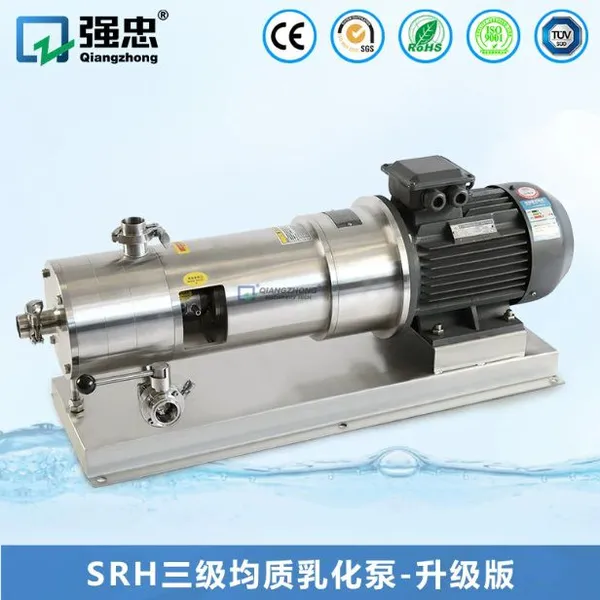

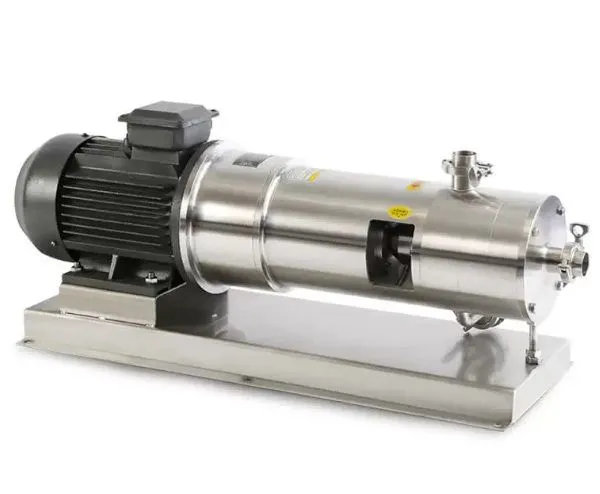

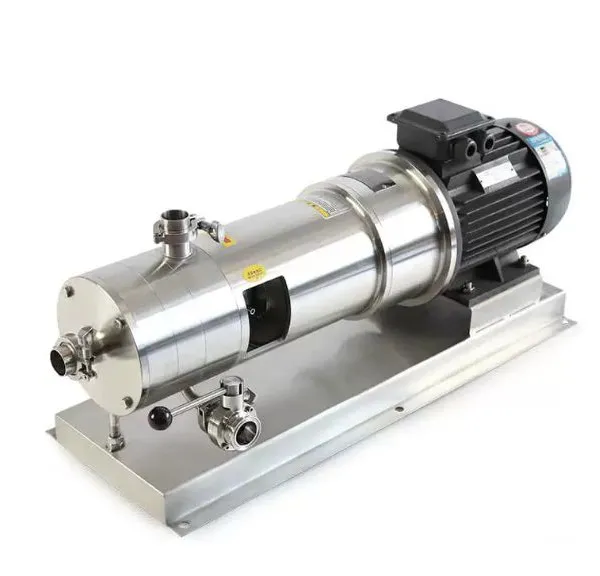

Help CenterSRH Three-stage Homogeneous Emulsifying Pump (Enhanced Version)
Product Spotlights
Related Products
-
WRL High Shear Homogenization Emulsification Machine Type IUS$ 385.15 - 5615.66MOQ: 1 Set -
WRL High Shear Homogenization Emulsification Machine Type IIUS$ 408.67 - 7022.52MOQ: 1 Set
-
WRL High Shear Homogenization Emulsification Machine Type IIIUS$ 461.60 - 8026.58MOQ: 1 Set
-
ZB3A Sanitary Cam Rotor PumpUS$ 917.32 - 9658.35MOQ: 1 Set
-
QZ-Z Hygiene Camshaft Rotor PumpUS$ 1087.85 - 5453.95MOQ: 1 Set
►High shear homogenization emulsification pump
The pipeline type high shear dispersion emulsification machine is a highly efficient mixed and fine emulsification pump product that integrates mixing, dispersion, crushing, dissolution, fine processing, depolymerization, homogenization, and emulsification. The main working components of the emulsification pump series mixed and fine emulsification pumps consist of stators and rotors. Under the centrifugal force and hydraulic force generated by the rapid rotation of the rotor, the emulsification pump performs intense shearing, centrifugal compression, impact rupture, liquid layer friction, turbulent uniformity, etc. combined actions on the materials, thereby enabling various non-soluble solid phases, liquid phases, and gas phases to be uniformly and finely dispersed and emulsified in an instant. Through reciprocating circulation, the original product reaches a stable high-quality product.
Homogeneous emulsifying pump / pipeline type high shear dispersion emulsifier is a highly efficient, rapid and uniform device that distributes one or more phases into another continuous phase, where the phases are usually immiscible. The single-stage emulsifying pump, due to the high tangential speed generated by the high-speed rotation of the rotor and the strong mechanical effect brought by high-frequency mechanical action, causes the material to be subjected to intense mechanical and hydraulic shearing, centrifugal compression, liquid layer friction, impact tearing and turbulence in the narrow gap between the fixed and rotating rotors. Thus, in the presence of the corresponding mature process and appropriate additives, the immiscible solid phase, liquid phase and gas phase are uniformly and finely dispersed and emulsified instantaneously. Through the high-frequency cyclic repetition, a stable and high-quality product is ultimately obtained.
The homogeneous emulsifying pump / pipeline type high shear dispersion emulsifier is a high-performance equipment used for continuous production or cyclic processing of fine materials. Within the confined cavity, there are 1-3 sets of paired meshed multi-layer stator and rotor. The rotor rotates at high speed under the drive of the motor, generating a strong axial suction force to draw the material into the cavity. The material is dispersed, sheared, and emulsified within the shortest time, and the particle size distribution range is significantly narrowed. Thus, fine and long-term stable products can be produced.
The homogeneous emulsifying pump / pipeline type high shear dispersion emulsifier is a high-performance equipment used for continuous production or cyclic processing of fine materials. Within the confined cavity, there are 1 to 3 sets of paired meshed multi-layer stators and rotors. The rotors, driven by the motor, rotate at high speed, generating strong axial suction force that sucks the material into the cavity. The material is dispersed, sheared, and emulsified in the shortest time, and the particle size distribution range is significantly narrowed. Thus, fine and long-term stable products can be produced.
The homogeneous emulsifying pump / pipeline type high shear dispersion emulsifier has three sets of fixed and rotating rotors in its working chamber. The transmission shaft in the working chamber is of the cantilever type, and the elastic coupling connects the motor with the main shaft inside the bearing box to improve the running quality of the transmission shaft. The sealing form is selected according to different working conditions. It is suitable for medium and large-scale online continuous production or cyclic processing production processes.
Characteristics of Homogeneous Emulsifying Pump
◎ Large processing capacity, suitable for industrialized online continuous production
◎ Narrow particle size distribution range, high uniformity
◎ Time-saving, efficient, energy-saving
◎ Low noise, stable operation
◎ Eliminates quality differences between batches of production
◎ No dead corners, 100% of the material passes through dispersion and shearing
◎ Has the function of short-distance, low-head transportation
◎ Simple to use, easy to maintain
◎ Can achieve automatic control
Application fields
Fine chemicals: pigments, adhesives, sealants, resin emulsification, fungicides, coagulants...
Petrochemicals: lubricating oils, diesel emulsification, asphalt modification, catalysts, paraffin emulsification...
Biomedicine: injections, antibiotics, ointments, biological preparations, microcapsule emulsified sugar coatings...
Coatings and inks: printing inks, latex paints, building coatings, car paints, coating additives...
Pesticide industry: fungicides, seed coatings, herbicides, pesticide emulsions, fertilizers, biological pesticides...
Nanomaterials: dispersion and depolymerization of nanomaterials, reaction extraction of nanoproducts...
Food industry: fruit juices, jams, jellies, ice cream, dairy products, additives, tea beverages...
Cosmetics: detergents, shampoos, creams, lip balms, facial cleansers, daily fragrance...
Paper industry: pulp, adhesives, rosin emulsification, papermaking additives, resin emulsification...
Coarse teeth:
Impact, fragmentation, shearing, dissolution, coarse dispersion
Medium teeth:
Dispersion, refinement, accelerated dissolution, emulsification
Fine teeth:
Ultra-fine dispersion, enhanced emulsification, homogenization, flocculation
SRH-3 Series Three-Stage Homogenizing Emulsifying Pump Function Table
Model Power KW Speed rpm Flow Range m³/h Inlet Outlet SRH-3-60 4kw 2880 0-4 DN40 DN40
SRH-3-100 7.5kw 0-8 DN50 DN40 SRH-3-120 11kw 0-12 DN50 DN40
SRH-3-140 15kw 0-18 DN50 DN50
SRH-3-165 22kw 0-22 DN65 DN50
SRH-3-200 37kw 0-30 DN80 DN50
SRH-3-220 55kw 0-40 DN100 DN65
SRH-3-240 75kw 0-55 DN100 DN65
SRH-3-260 90kw 1440 0-65 DN125 DN80
SRH-3-300 110kw 0-80 DN125 DN100
SRH-3-360 132kw 0-100 DN150 DN125
SRH-3-380 160kw 0-120 DN150 DN125
SRH-3-400 185kw 0-140 DN150 DN125
Order Instructions
* The flow range in the table refers to the data measured when the medium is "water". The outlet pressure of the listed models is ≤ 0.2 Mpa.
* If a circulating process is adopted, it is recommended to use it in conjunction with intermittent high shear dispersion emulsifiers.
* If there are conditions such as high temperature, high pressure, flammable, explosive, corrosive, etc., please clearly provide the relevant accurate parameters to ensure correct selection and customization.
* For less fluid media, it is recommended to use a pump with matching flow rate at the inlet for transportation, and the pressure at the pump inlet ≤ 0.2 Mpa.
