1500V DC Oil-cooled EV Charging Cable - IEC 62893-4-2 Standard

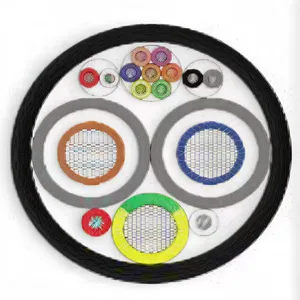

1500V DC Oil-cooled EV Charging Cable - IEC 62893-4-2 Standard photo-1

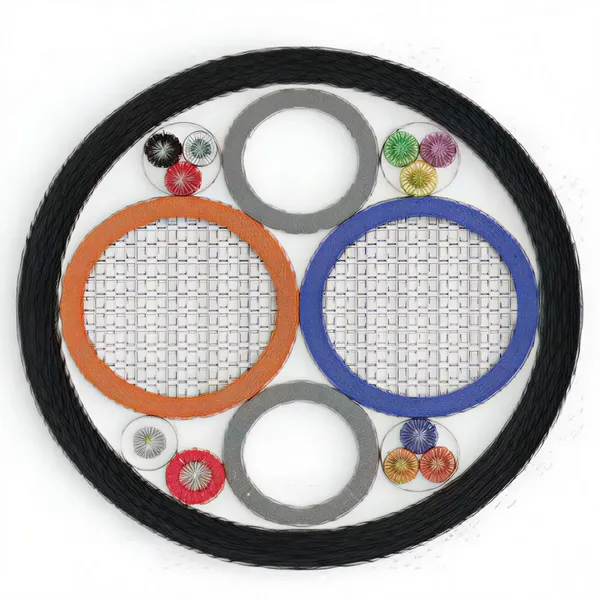

1500V DC Oil-cooled EV Charging Cable - IEC 62893-4-2 Standard photo-2

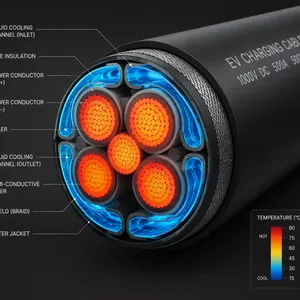

1500V DC Oil-cooled EV Charging Cable - IEC 62893-4-2 Standard photo-3

Product Spotlights

• Lightweight cables with excellent handling characteristics
• High current-carrying capacity and superior temperature rise performance, significantly enhancing charging efficiency
• No risk of bursting, ensuring safety and reliability
• Fully certified to meet global cable standards across multiple regions
• Tailored liquid-cooled ultra-fast charging solutions available to meet specific customer requirements
Negotiable MOQ: 300 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Bare
Certification:
ISO9001, ROHS, Other, UL;TUV;CQC
Application:
Other, EV Charging Connector
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days
Type Bare
Certification ISO9001, ROHS, Other, UL;TUV;CQC
Application Other, EV Charging Connector
Insulation Material Other, XLPO
Conductor Material Copper
Conductor Type Stranded
Brand Other, OMG EV CABLE
Sheath Material Other, TPU
Material Shape Round Wire
Range of Application Other, EV Charging Connector
Transport Package rolls,boxes
Specification UL2263;IEC 62893/ CQC1147
Trademark OMG EV CABLE
Origin China
Standard

Specifications

Outer diameter of twisted main core wire conductor

Reference return pipe specifications

(customised to client requirements)

Main conductor resistance

Reference Current

Finished external diameter

Packaging

UL2263




 2x1AWG+9AWG+10x18AWG

9.7 Ref.

Φ6*8

≤0.55

600-700A

Designed according to standards and customer needs.

According to the order or agreement

2x2AWG+3AWG+6x18AWG

8.3 Ref.

Φ6*8

≤0.554

500-600A

2x3AWG+3AWG+6x18AWG 7.0 Ref. Φ6*8 ≤0.78 400-500A
IEC 62893/ CQC1147





 2x16mm2+Earth wire(6-16)+Auxiliary Source+Nx(0.5-0.75)+Return pipe


5.5 Ref.

Φ6*8

≤1.21

250-300A

2x25mm2+Earth wire(6-16)+Auxiliary Source+Nx(0.5-0.75)+Return pipe

7.0 Ref.

Φ6*8

≤0.78

400-500A

2x35mm2+Earth wire(6-16)+Auxiliary Source+Nx(0.5-0.75)+Return pipe

8.3 Ref.

Φ6*8

≤0.554

500-600A

2x50mm2+Earth wire(6-16)+Auxiliary Source+Nx(0.5-0.75)+Return pipe

9.6 Ref.

Φ6*8

≤0.386

700-800A

2x70mm2+Earth wire(6-16)+Auxiliary Source+Nx(0.5-0.75)+Return pipe

11.6 Ref.

Φ8*10

≤0.272

800-900A


Product Tags: EV Charging cable , Oil-cooled charging cable , HPC cable
