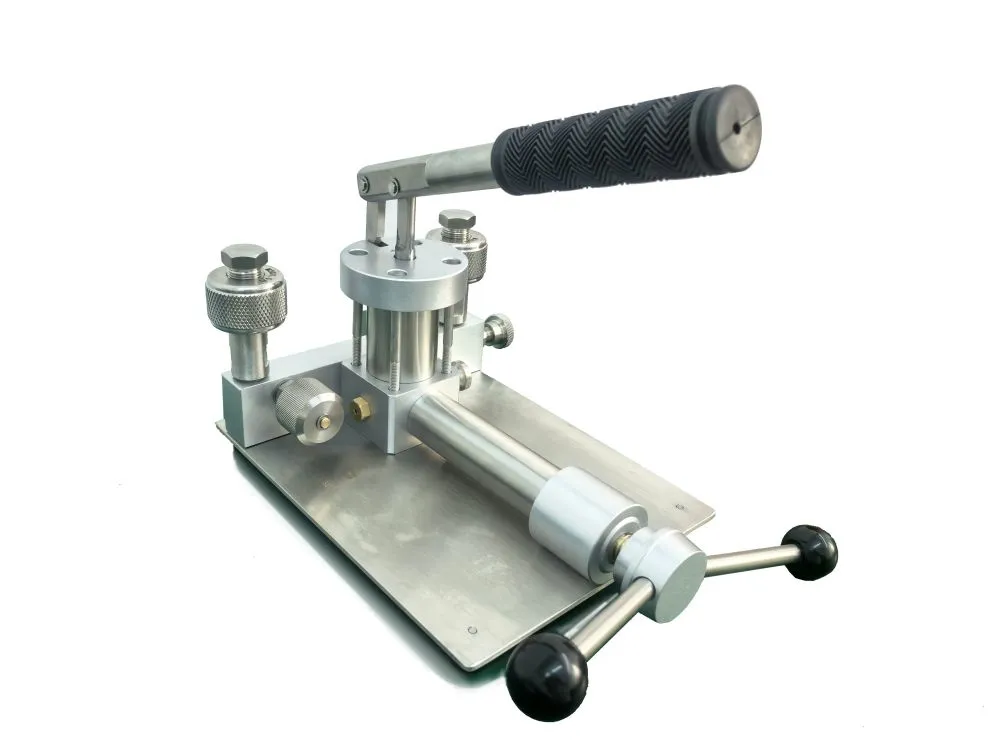

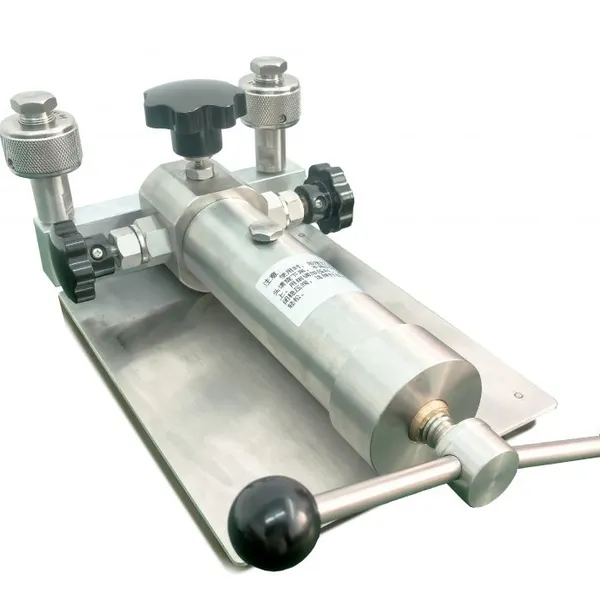

I. IQS10X Portable (Laboratory) Manual Pressure Pump
Product Introduction
This manual pressure pump is applicable for both laboratory and on-site working scenarios. Adopting an open and transparent structural design, it features easy operation, stable pressure rise and fall, high fine adjustment resolution, convenient maintenance and excellent leak-proof performance.The built-in gas-liquid separator and elaborately designed exhaust valve effectively prevent pump body contamination. The unique precision stop valve ensures stable pressure throughout the calibration process. A safety pin is installed at the pressure/vacuum switching position to avoid accidental displacement of the switching valve during pressurization.Equipped with specially designed M20×1.5 internal thread quick connectors, pressure instruments can be rapidly assembled and disassembled without wrenches or PTFE tape. The ergonomically designed pressure lever enables labor-saving pressure generation, greatly improving calibration efficiency.
Manual Pressure Pump Selection Parameters
| Model Selection | IQS101 Manual Micro Pressure Pump | IQS102 Manual Air Pressure Pump | IQS103 Manual Hydraulic Pressure Pump |
|---|---|---|---|
| Pressure Range | (-95～700) kPa(-0.095～2.5/6/16) MPa | (-0.095～6／16) MPa | (0～60/160/250) MPa |
| Fine Adjustment Resolution | 0.01 Pa | 0.01 kPa | 0.1 kPa |
| Pressure Transmission Medium | Air | Air | Water / Oil |
| Dimension | 251×160×150 mm | 320×215×160 mm / 460×350×200 mm | 300×530×215 mm |
| Weight | 1.0 kg | 2.1 kg / 6 kg | 3.9 kg / 16 kg |
| Pressure Connection | 2 × M20×1.5 Internal Thread Ports | 2 / 3 × M20×1.5 Internal Thread Ports | 2 / 3 × M20×1.5 Internal Thread Ports |

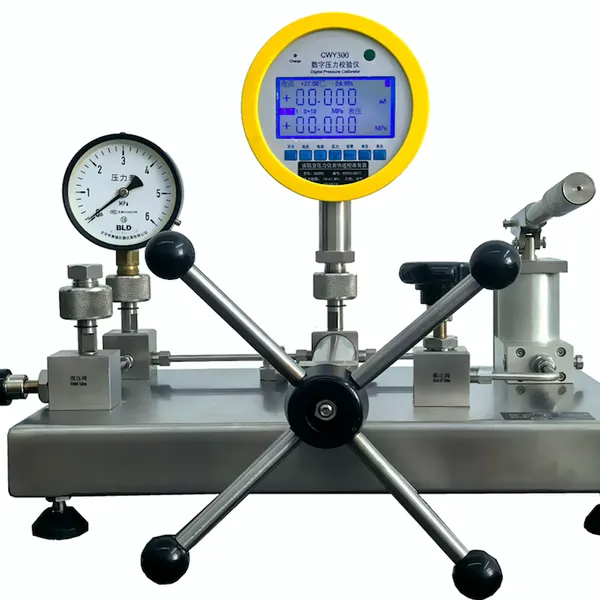

II. IQS63X Manual Rapid Calibration Device for Pressure Instruments
Main Features
It can replace traditional manual pressure pumps, featuring simple operation, labor-saving design, fast pressure stabilization and high cost performance.
Solution Introduction
This rapid pressure instrument calibration device is mainly used for calibrating analogue pressure gauges, pressure sensors, differential pressure sensors, pressure sensitive elements and pressure transmitters, capable of rapidly generating target pressure values.Designed and manufactured in strict accordance with national, industrial and enterprise relevant standards, it is widely used for factory inspection and on-site calibration of various pressure instruments in pressure gauge manufacturers, product quality inspection institutes, research institutions, universities and third-party testing organizations.
Solution Characteristics
● Built-in rechargeable lithium battery
● Equipped with built-in electric pump and pressure regulating device
● Integrated three-in-one pressure control valve for pressure inlet, pressure cutoff and pressure relief
● Fitted with high-pressure and low-pressure regulating valves
● The current control board provides five protection functions: overcurrent protection, short-circuit protection, undervoltage protection, overcharge protection and temperature protection
● Hydraulic configuration: external liquid cup with automatic liquid suction and automatic blowdown functions to prevent pipeline blockage
● Provided with 4 output ports of M20×1.5 internal thread
Translation Notes
Professional industry terms such as PTFE tape , stop valve, fine adjustment resolution adopt standard expressions for instrumentation and metrology industries.
Specifications including model, unit, dimension, thread standard retain the original format of industrial product manuals.
Five protection functions are standardized in electrical industry English descriptions to conform to international technical document writing habits.
Sentences are optimized for formal English product brochure style without changing original technical parameters and functional descriptions.
Xiamen Jiangjing Technology Co., Ltd. (Jiangjing Technology for short)
Headquartered in Yuepu Innovation Center, Xiamen, Fujian Province, Xiamen Jiangjing Technology Co., Ltd. is an enterprise integrating R&D, production, sales and after-sales services that specializes in metrological calibration equipment. We professionally supply metrological calibration equipment for pressure, temperature, temperature and humidity, and provide customers with solutions for the construction and renovation of metrological calibration laboratories.
With our service network consisting of the headquarters in Xiamen, a Beijing R&D Center, Shanghai Operation Center, Guangdong Operation Center and Guiyang Operation Center, we have built a technical exchange platform and a rapid service response system, adhering to the customer-centric service philosophy in the long run.
Sticking to independent technological innovation, the company develops calibrators tailored for metrological calibration technicians. Our pressure, temperature as well as temperature & humidity products have obtained a number of patents and software copyrights.
Our corporate mission follows the IQS principle: Innovationthrough collaboration, superior product Quality, and premium Services.Our core value lies in delivering customized metrological calibration laboratory solutions and sustaining long-term services to meet clients’ evolving demands.Our corporate goal is to achieve win-win cooperation with partners and build a customer-oriented technology service enterprise.
The company has independently developed a full range of metrological calibration equipment covering pressure, temperature and humidity fields, including:IQS900-X Laboratory Rapid Calibration Device for Pressure Instruments,IQS800-X Portable Rapid Calibration Device for Pressure Instruments,IQS890 Metrological Verification & Calibration Device for Aneroid Barometers,IQS810-X Handheld Rapid Calibration Device for Pressure Instruments,IQS700 Fully Automatic Gas Pressure Generator,IQS830 Metrological Verification & Calibration Device for Gas Pressure Regulators,IQS60X Portable Intelligent Dry Block Calibrator,IQS30X Portable Precision Constant-Temperature Liquid Bath,IQSLH Temperature & Humidity Calibration Chamber,Wireless Temperature, Pressure and Humidity Data Loggers,IQS516 Multifunctional Process Calibrator.
Our products are widely adopted in metrology institutes, metallurgy, petroleum, chemical, nuclear power, electric power, food, pharmaceutical, railway, shipbuilding, higher education, aerospace, third-party calibration institutions, medical devices, machinery manufacturing and other industries. Some of our products have been exported to Argentina, Serbia, Brazil, the United States, Malaysia, the Philippines, South Korea, Thailand, Singapore, the Democratic Republic of the Congo and many other countries.
