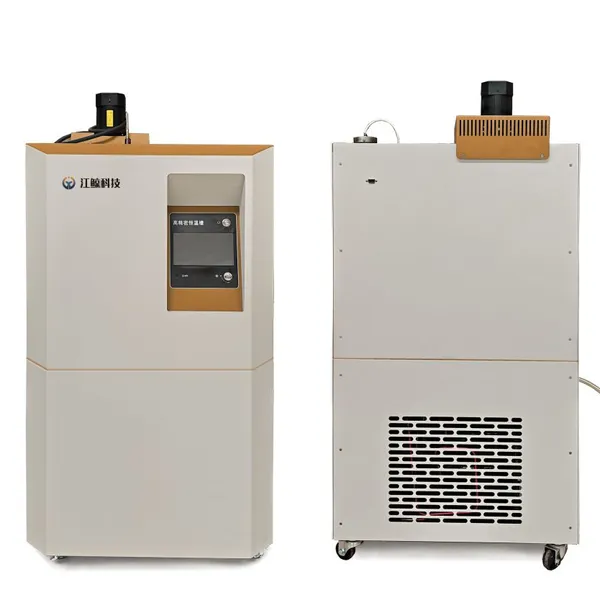

Jiangjing Technology IQSLH20 Temperature & Humidity Calibration ChamberNegotiableMOQ: 1 Combo -
Jiangjing Technology High Precision Digital ThermometerNegotiableMOQ: 1 Combo
-
Jiangjing Technology Manual Piston Pressure GaugeNegotiableMOQ: 1 Combo
-
Jiangjing Technology Rapid Verification & Calibration System for Pressure InstrumentsNegotiableMOQ: 1 Combo
-
Jiangjing Technology IQS63X Rapid Verification Apparatus for Pressure InstrumentsNegotiableMOQ: 1 Combo

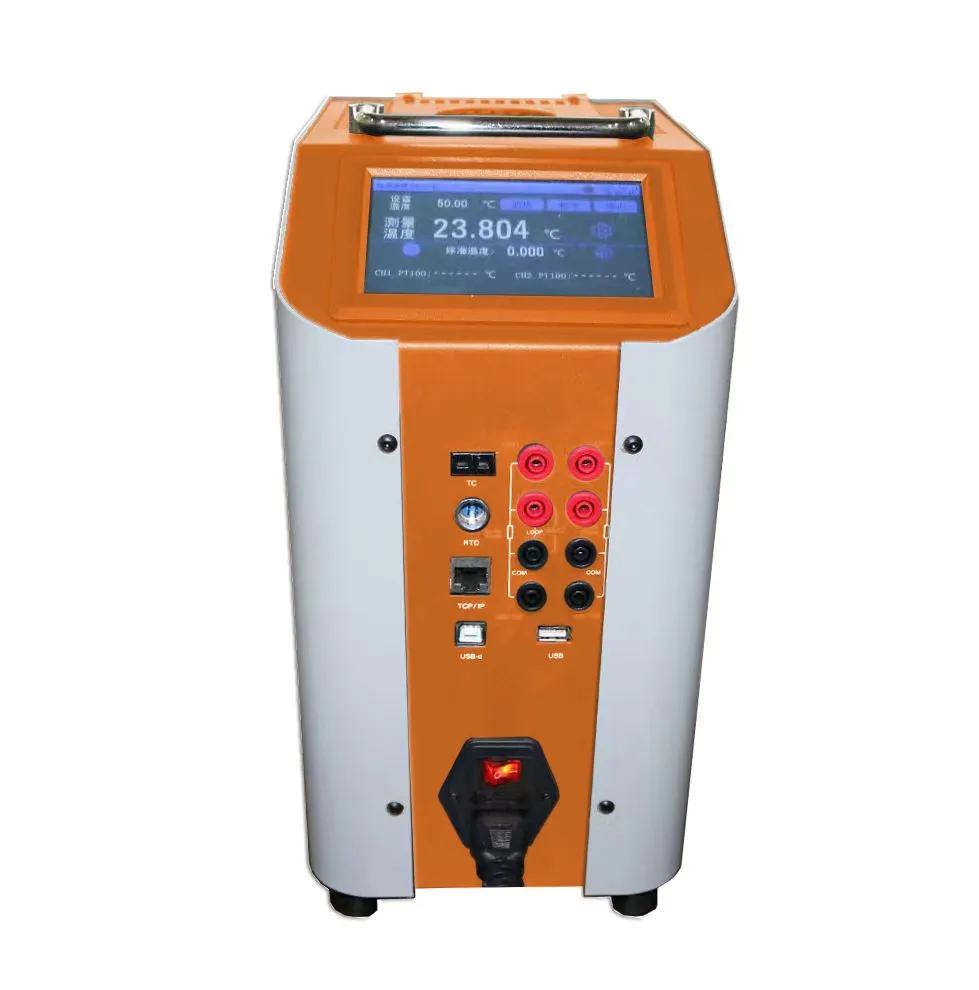

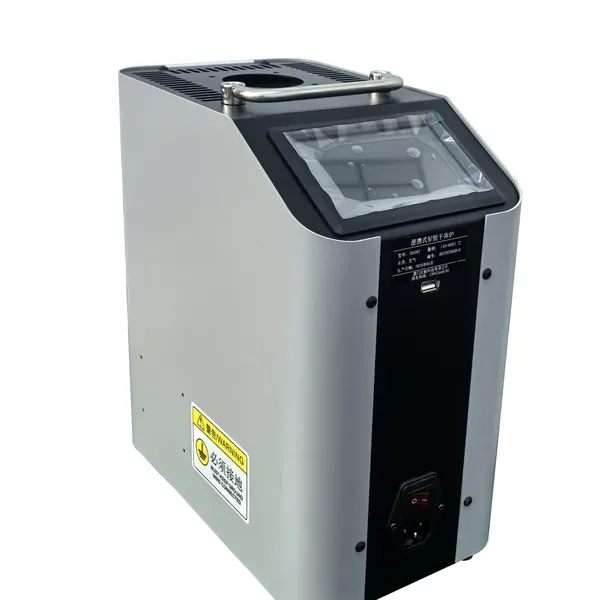

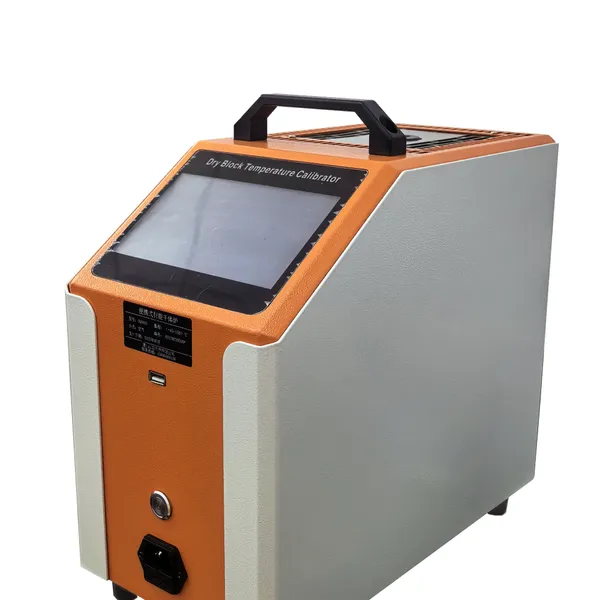

The IQS60X Series Portable Intelligent Dry Block Calibrator is an intelligent temperature calibration instrument featuring simple operation, easy portability, fast heating and cooling rates, excellent temperature stability and strong anti-interference capability. It can calibrate temperature instruments including thermal resistors, thermocouples, thermistors, temperature transmitters and temperature switches. Widely adopted for on-site calibration of temperature measuring equipment in metrology, petroleum, electric power, petrochemical, metallurgy, pharmaceutical, machinery, biotechnology, food and other industries.
Product Features
Superior horizontal and vertical temperature fields
Rapid heating and cooling: only 20 minutes to heat up from 45°C to 650°C; only 40 minutes to cool down from 650°C to 40°C
5-inch touch screen with intuitive operation and clear display
Compact size and lightweight design for easy carrying
Comprehensive protective functions: load short-circuit protection, load open-circuit protection, sensor fault protection and overtemperature protection
Strong anti-interference performance, ideal for on-site temperature instrument calibration
Technical Temperature Specifications
| Model | IQS601 / IQS601A | IQS602 / IQS602A | IQS603 / IQS603A |
|---|---|---|---|
| Temperature Range | Optional: (-20 / -30 / -45 ~ 150) °C | 45 ~ 650 °C | 100 / 300 ~ 1200 °C |
| Heating Rate | -45°C to 30°C: 20 min30°C to 150°C: 35 min | 45°C to 650°C: 20 min | 30°C to 1200°C: 65 min |
| Cooling Rate | 150°C to 20°C: 15 min20°C to -45°C: 35 min | 650°C to 45°C: 40 min | 1200°C to 30°C: 95 min |
| Temperature Accuracy | ≤ ±0.1°C | ≤ ±0.35°C below 400°C≤ ±0.5°C from 400°C to 650°C | ≤ ±1.2°C |
| Insertion Depth | 160 mm | 150 mm | 135 mm |
| Equalizing Block Diameter | 32 mm | 32 mm | 39 mm |
| Customizable Equalizing Block Hole Sizes | 4, 6, 8, 10 mm | 4, 6, 8, 10, 12 mm | 6.5, 8, 10 mm |
| Temperature Field Stability | ≤ ±0.02°C | ≤ ±0.05°C | ≤ ±0.2°C |
| Horizontal Temperature Uniformity | ≤ ±0.05°C | ≤ ±0.05°C | ≤ ±0.25°C |
| Vertical Temperature Uniformity | Deviation ≤ 1°C within 30 mm from the bottom of equalizing block holes | Deviation ≤ 1°C within 10 mm from the bottom of equalizing block holes | — |
| Weight | 13 kg | 11 kg | — |
| Overall Dimension | 300 × 200 × 350 mm | 246 × 148 × 300 mm | — |
| Max Power Consumption | 300 W | 1200 W | 3000 W |
| Temperature Unit | °C / °F | °C / °F | °C / °F |
| Temperature Control Precision | 0.1% | 0.1% | 0.1% |
| Display Resolution | 0.1°C or 0.01°C | 0.1°C or 0.01°C | 0.1°C or 0.01°C |
| Operating Environment | Ambient temperature: 0 ~ 50°C, relative humidity ≤ 95% (non-condensing) | Ambient temperature: 0 ~ 50°C, relative humidity ≤ 95% (non-condensing) | Ambient temperature: 0 ~ 50°C, relative humidity ≤ 95% (non-condensing) |
| Power Supply | 220 VAC ±10%, 45~60 Hz; 110 VAC ±10% optional | 220 VAC ±10%, 45~60 Hz; 110 VAC ±10% optional | 220 VAC ±10%, 45~60 Hz; 110 VAC ±10% optional |
Electrical Measurement Specifications (IQS601A / IQS602A / IQS603A)
3 electrical measurement channels: 1 standard reference channel + 2 multi-functional measuring channels
Multi-functional measuring channels: DC current / voltage / resistance measurement, 24 VDC output, switch state measurement, etc.
Standard Reference Channel
Thermocouple (S/R/B types): Measuring range (-18 ~ 18) mV, Accuracy ±(0.005% Reading + 2 μV)
Resistance Thermometer (ITS-90 standard): Measuring range (0 ~ 400) Ω, Accuracy ±0.002 Ω
Unit Under Test (UUT) Channels
Thermocouple types: S/R/K/B/N/J/E/T/C/D/G/L/UD etc.Measuring range (-75 ~ 75) mV, Accuracy ±(0.01% Reading + 8 μV)
Resistance Thermometers: PT100 / PT25 / PT50 / PT200 / PT500 / PT1000 / CU10 / CU50 / CU100 etc.Measuring range (0 ~ 400) Ω / (0 ~ 4000) Ω, Accuracy ±0.002 Ω
DC Current: Measuring range (-30 ~ 30) mA, Accuracy ±(0.01% Reading + 2 μA)
DC Voltage: Measuring range (-30 ~ 30) V, Accuracy ±(0.01% Reading + 0.6 mV)
