Help CenterJiangjing Technology IQS63X Rapid Verification Apparatus for Pressure Instruments
Product Spotlights
Designed and manufactured in full compliance with relevant national, industrial and corporate standards, this testing equipment is widely adopted by pressure instrument manufacturers, product quality inspection institutes,
Related Products
-

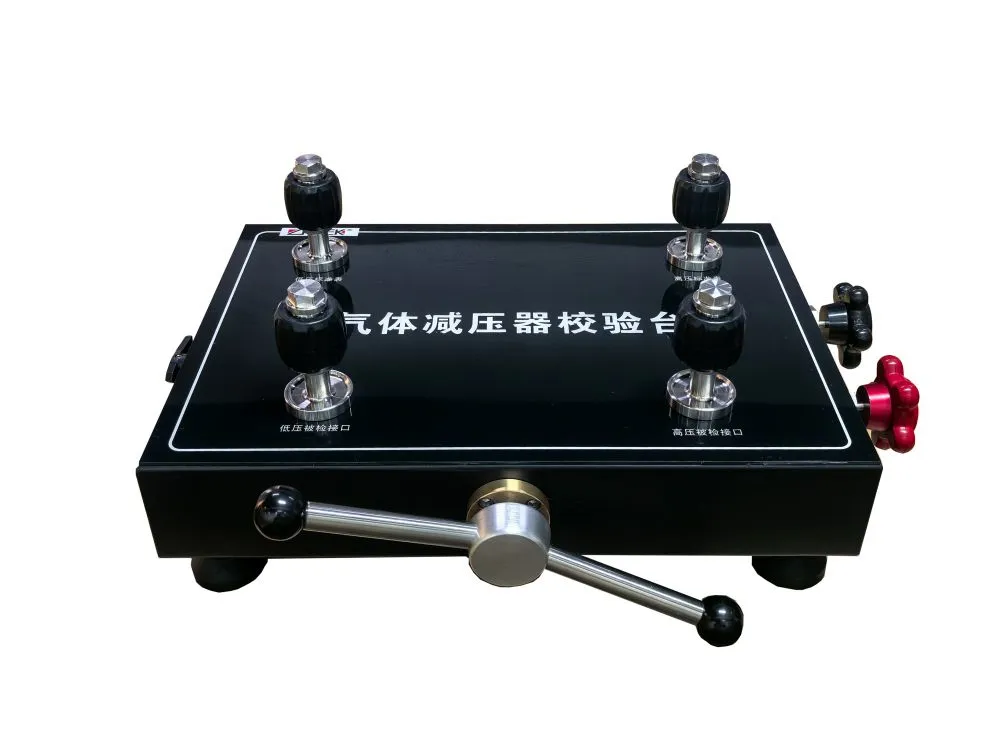

Jiangjing Technology IQS830 Calibration Solution for Gas Pressure ReducersNegotiableMOQ: 1 Combo -
Jiangjing Technology IQS890 Calibration Solution for Aneroid BarometersNegotiableMOQ: 1 Combo
-
Jiangjing Technology Intelligent Auto Pressure Control SystemNegotiableMOQ: 1 Combo
-
Jiangjing Technology Manual Piston Pressure GaugeNegotiableMOQ: 1 Combo
-
Jiangjing Technology On-Site Micro & Differential Pressure Verification SchemeNegotiableMOQ: 1 Piece
The rapid pressure instrument verification apparatus is mainly used for calibrating analog pressure gauges, pressure sensors, differential pressure sensors, pressure sensitive elements and pressure transmitters, and can generate target pressure rapidly.Designed and manufactured in strict accordance with relevant national, industrial and enterprise standards, this process and testing equipment is widely used by pressure instrument manufacturers, product quality inspection institutes, research institutes, universities and third-party testing organizations for factory inspection and on-site calibration of various pressure instruments.
Product Features
Built-in rechargeable lithium battery
Integrated electric pump and pressure regulating device
Three-in-one pressure control valve with pressure inlet, cut-off and pressure relief functions
Equipped with high-pressure and low-pressure regulating valves
The current control board realizes five protection functions: overcurrent protection, short-circuit protection, undervoltage protection, overcharge protection and temperature control
Hydraulic assembly: external liquid cup with automatic liquid suction and automatic blowdown to prevent pipeline blockage
Fitted with 4 output ports with internal thread M20×1.5
Technical Parameters
Optional pressure generating ranges:IQS630 Vacuum type: (-0.095 ~ 0) MPaIQS636 Pneumatic type: (0 ~ 0.6) MPaIQS639 Hydraulic type: (0 ~ 6) MPa
Pressure generation mode: gas-liquid driving mode
Power supply: DC 12 V, 100 W
Charging input: AC 220 V
Weight: 5 kg
Xiamen Jiangjing Technology Co., Ltd.
Headquartered in Xiamen Free Trade Zone, Fujian Province, Xiamen Jiangjing Technology Co., Ltd. is an integrated enterprise specializing in metrology and calibration equipment that integrates R&D, production, sales and after-sales service. We professionally supply pressure and temperature metrology calibration equipment and operate as a technology service enterprise focusing on comprehensive turnkey solutions for metrology and calibration laboratories.
The company has established a nationwide service network with headquarters in Xiamen, an R&D center in Beijing, and operation centers in Shanghai and Guiyang. This layout enables us to deliver in-depth technical exchanges and rapid after-sales responses to all customers, adhering consistently to a customer-centric service philosophy.
Sticking to independent technological innovation, Jiangjing develops calibrators tailored for metrology technicians. Our pressure and temperature product lines hold over 40 patents and software copyrights. The company has obtained ISO9001:2015 Quality Management System Certification, AAA Enterprise Credit Rating Certificate and AAA Enterprise Credit Standing Certificate.
Our corporate mission is defined by three core principles abbreviated as IQS: Innovation through collaboration, superior Quality products, and premium Services.
Our core value is delivering all-round laboratory calibration solutions and sustaining long-term services aligned with clients’ actual demands.
Our corporate goal is to achieve win-win cooperation with all partners and build a customer-oriented technology service enterprise.
Jiangjing has independently developed a full portfolio of pressure, temperature and temperature-humidity calibration equipment:
IQS900-X Laboratory Rapid Verification Apparatus for Pressure Instruments
IQS800-X Portable Rapid Verification Apparatus for Pressure Instruments
IQS600 Rapid Calibration Solution for Pressure Instruments
IQS810-X Handheld Rapid Verification Apparatus for Pressure Instruments
IQS700 Portable Pressure Generator
IQS830 Calibration Solution for Gas Pressure Reducers
IQS intelligent dry block furnaces and constant temperature baths (temperature series)
Wireless temperature recorders, wireless pressure recorders, wireless humidity recorders
IQS process calibrators
Our products are widely adopted across metrology institutes, metallurgy, petroleum, chemical, military, power, food, pharmaceutical, railway, shipbuilding, universities, aerospace, third-party calibration labs, medical devices, machinery manufacturing and other industries. Selected products have been exported to Argentina, Serbia, Brazil, the United States, Malaysia, the Philippines, South Korea, Thailand, Singapore, the Democratic Republic of the Congo and many other countries.
