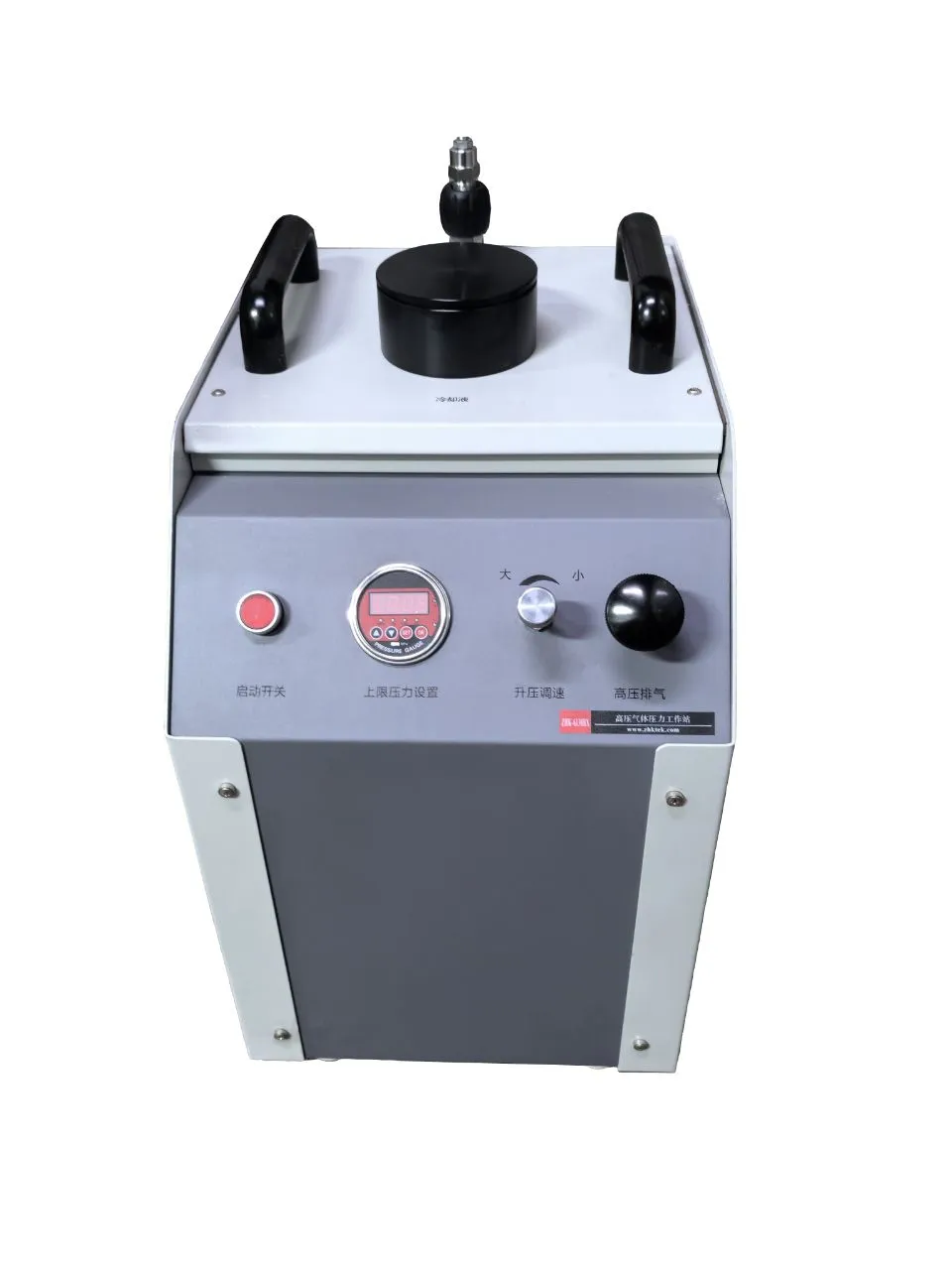

IQS700 High-Pressure Gas Generating Unit
Technical Parameters
Pressure generating range: (0～30) MPa
Fast pressure rise rate: 3 MPa per minute
Built-in air storage tank with continuous pressure output under load
Overpressure protection and filtration protection functions
Integrated automatic pump to generate pressure independently; no external pressure boosting system required
Dual gas output ports
Single-cycle gas pressure output
Equipped with flow control valve to regulate output gas flow rate
Upper and lower limit setting; automatic start-stop and pressure replenishment function
IQS800-1 Rapid Verification Bench for Pressure Instruments
Technical Parameters
Pressure control range: (0～6) MPa, equipped with pressure regulating device
Fitted with 5 side-by-side quick pressure connectors for convenient reading during instrument verification; each connector is equipped with an independent shut-off valve
Single-cycle gas circuit design to directly exhaust gas inside pipelines
Built-in gas-liquid separator and gas filter to effectively remove oil stains and impurities from tested pressure gauges
Preset pressure value input and adjustment function: target pressure values can be entered quickly. Combined with pressure control valve and fine-tuning device, it enables efficient verification of pressure instruments
Built-in overpressure protection and automatic blowdown functions
-
Step-down pressure output by fixed value steps
Xiamen Jiangjing Technology Co., Ltd.
Headquartered in Xiamen Free Trade Zone, Fujian Province, Xiamen Jiangjing Technology Co., Ltd. is an integrated enterprise specializing in metrology and calibration equipment that integrates R&D, production, sales and after-sales service. We professionally supply pressure and temperature metrology calibration equipment and operate as a technology service enterprise focusing on comprehensive turnkey solutions for metrology and calibration laboratories.
The company has established a nationwide service network with headquarters in Xiamen, an R&D center in Beijing, and operation centers in Shanghai and Guiyang. This layout enables us to deliver in-depth technical exchanges and rapid after-sales responses to all customers, adhering consistently to a customer-centric service philosophy.
Sticking to independent technological innovation, Jiangjing develops calibrators tailored for metrology technicians. Our pressure and temperature product lines hold over 40 patents and software copyrights. The company has obtained ISO9001:2015 Quality Management System Certification, AAA Enterprise Credit Rating Certificate and AAA Enterprise Credit Standing Certificate.
Our corporate mission is defined by three core principles abbreviated as IQS: Innovation through collaboration, superior Quality products, and premium Services.
Our core value is delivering all-round laboratory calibration solutions and sustaining long-term services aligned with clients’ actual demands.
Our corporate goal is to achieve win-win cooperation with all partners and build a customer-oriented technology service enterprise.
Jiangjing has independently developed a full portfolio of pressure, temperature and temperature-humidity calibration equipment:
IQS900-X Laboratory Rapid Verification Apparatus for Pressure Instruments
IQS800-X Portable Rapid Verification Apparatus for Pressure Instruments
IQS600 Rapid Calibration Solution for Pressure Instruments
IQS810-X Handheld Rapid Verification Apparatus for Pressure Instruments
IQS700 Portable Pressure Generator
IQS830 Calibration Solution for Gas Pressure Reducers
IQS intelligent dry block furnaces and constant temperature baths (temperature series)
Wireless temperature recorders, wireless pressure recorders, wireless humidity recorders
IQS process calibrators
Our products are widely adopted across metrology institutes, metallurgy, petroleum, chemical, military, power, food, pharmaceutical, railway, shipbuilding, universities, aerospace, third-party calibration labs, medical devices, machinery manufacturing and other industries. Selected products have been exported to Argentina, Serbia, Brazil, the United States, Malaysia, the Philippines, South Korea, Thailand, Singapore, the Democratic Republic of the Congo and many other countries.
