Solution Introduction

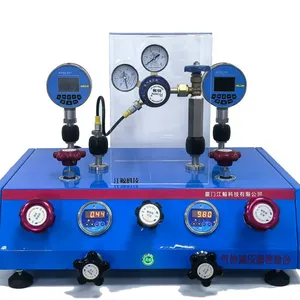

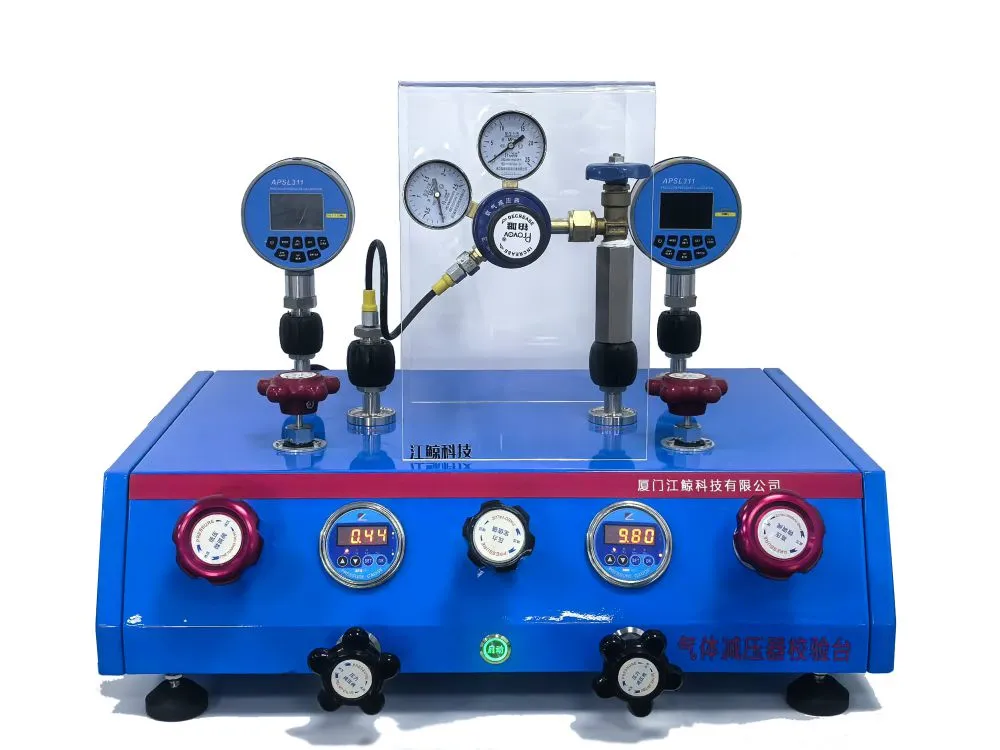

The IQS830 gas pressure regulator calibration solution is developed in accordance with JJF1328-2011 Calibration Specification for Gas Pressure Regulators with Bourdon Tube Pressure Gauges. The system consists of a gas pressure regulator calibration bench, portable pressure generator, precision digital pressure gauge, and special connector kits for gas pressure regulators.
It supports integrated calibration of gas pressure regulators. There is no need to remove the built-in Bourdon tube pressure gauge from the regulator when verifying and calibrating pressure gauges fitted on oxygen, acetylene, argon, carbon dioxide, nitrogen, hydrogen and other types of gas pressure regulators. Adopting aerospace-grade sealing materials, the device features high safety, reliability and zero leakage, which greatly improves verification efficiency. It serves as an ideal calibration solution for metrology departments, industrial enterprises and other institutions to verify various gas pressure regulators.
Solution Features
● DC power supply design for portable use
● Pressure generation range: (0～25) MPa
● Working medium: Gas
● Pressure rising speed: 25 MPa can be reached within 90 seconds
● The calibration bench is composed of a high-pressure system and a low-pressure system
● Equipped with high-pressure standard port and high-pressure input port
● Equipped with low-pressure standard port and low-pressure input port
● High-pressure withstand range: (0～25) MPa
● Low-pressure withstand range: (0～6) MPa
● High/low-pressure fine-tuning function available
● Integrated calibration mode with no need for gauge disassembly
IQS700 Fully Automatic Gas Pressure Generator
Product Overview
The IQS700 fully automatic gas pressure generator can deliver high gas pressure up to 30 MPa. It is designed to solve high-pressure gas calibration tasks both in laboratories and on-site, such as calibrating gas pressure regulators, oxygen inhalers, tyre pressure gauges, high-static-pressure differential pressure gauges and other pressure instruments. In laboratory scenarios, it can be connected with any standard calibration instruments as a gas pressure source to form a complete calibration system for metrological verification and calibration services.
Technical Parameters
● Built-in automatic pump for automatic pressure generation
● Pressure range options: (-0.095~0) MPa / (0～18) MPa / (0～30) MPa
● Fast pressure rising rate: 3 MPa per minute
● Built-in gas storage tank to ensure continuous pressure output under load
● Equipped with overpressure protection and filter protection functions
Xiamen Jiangjing Technology Co., Ltd. (Jiangjing Technology for short)
Headquartered in Yuepu Innovation Center, Xiamen, Fujian Province, Xiamen Jiangjing Technology Co., Ltd. is an enterprise integrating R&D, production, sales and after-sales services that specializes in metrological calibration equipment. We professionally supply metrological calibration equipment for pressure, temperature, temperature and humidity, and provide customers with solutions for the construction and renovation of metrological calibration laboratories.
With our service network consisting of the headquarters in Xiamen, a Beijing R&D Center, Shanghai Operation Center, Guangdong Operation Center and Guiyang Operation Center, we have built a technical exchange platform and a rapid service response system, adhering to the customer-centric service philosophy in the long run.
Sticking to independent technological innovation, the company develops calibrators tailored for metrological calibration technicians. Our pressure, temperature as well as temperature & humidity products have obtained a number of patents and software copyrights.
Our corporate mission follows the IQS principle: Innovationthrough collaboration, superior product Quality, and premium Services.Our core value lies in delivering customized metrological calibration laboratory solutions and sustaining long-term services to meet clients’ evolving demands.Our corporate goal is to achieve win-win cooperation with partners and build a customer-oriented technology service enterprise.
The company has independently developed a full range of metrological calibration equipment covering pressure, temperature and humidity fields, including:IQS900-X Laboratory Rapid Calibration Device for Pressure Instruments,IQS800-X Portable Rapid Calibration Device for Pressure Instruments,IQS890 Metrological Verification & Calibration Device for Aneroid Barometers,IQS810-X Handheld Rapid Calibration Device for Pressure Instruments,IQS700 Fully Automatic Gas Pressure Generator,IQS830 Metrological Verification & Calibration Device for Gas Pressure Regulators,IQS60X Portable Intelligent Dry Block Calibrator,IQS30X Portable Precision Constant-Temperature Liquid Bath,IQSLH Temperature & Humidity Calibration Chamber,Wireless Temperature, Pressure and Humidity Data Loggers,IQS516 Multifunctional Process Calibrator.
Our products are widely adopted in metrology institutes, metallurgy, petroleum, chemical, nuclear power, electric power, food, pharmaceutical, railway, shipbuilding, higher education, aerospace, third-party calibration institutions, medical devices, machinery manufacturing and other industries. Some of our products have been exported to Argentina, Serbia, Brazil, the United States, Malaysia, the Philippines, South Korea, Thailand, Singapore, the Democratic Republic of the Congo and many other countries.
