Help CenterEdgebander Radius Trimming Scraper Blades
Product Spotlights
2.Precision R3 arc cutting edge, smooth rounded finish
3.Mirror sharp ground edge, no scratch & no edge tearing
4.Standard size, fits most mainstream edgebanders
5.Left/right hand types for double trimmer units
6.10pcs per box, custom R radius & size available
7.Low maintenance, less machine downtime
Related Products
-
Tungsten Carbide Spectacle Plate for Concrete PumpUS$ 10 - 200MOQ: 1 Piece -
Electroplated Diamond Cylindrical Grinding HeadUS$ 0.5 - 100MOQ: 1 Piece
-
Tungsten Carbide Rolling MillsUS$ 300 - 600MOQ: 1 Set
-
Tungsten Carbide RodsUS$ 1 - 100MOQ: 5 Pieces
-
Tungsten Carbide End MillsUS$ 2 - 20MOQ: 5 Pieces
1. Product Introduction

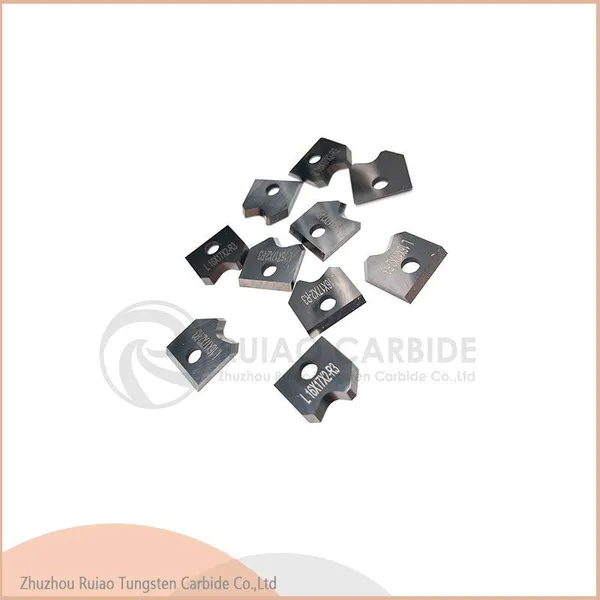

This tungsten carbide radius scraper blade is specially designed for automatic woodworking edge banding machines.

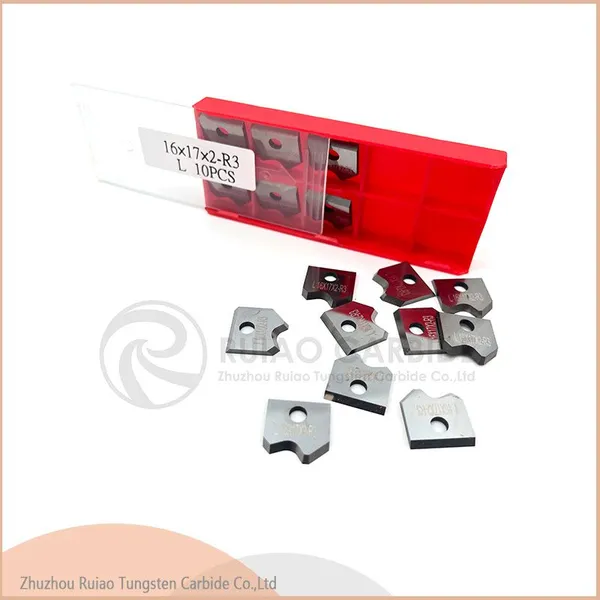

Model: 16×17×2-R3 L
Specification: 16mm×17mm×2mm thickness, R3 rounding arc, left-hand cutting version

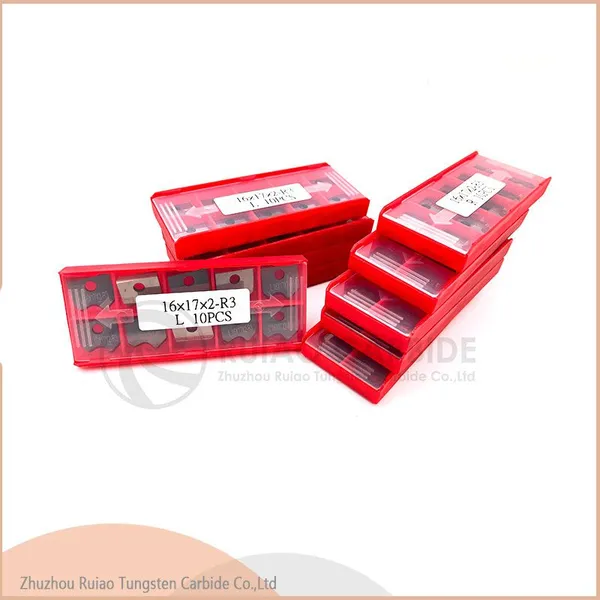

Packing: 10 pieces per plastic divided storage box
Made of ultra-fine grain solid tungsten carbide, the blade undergoes precision mirror grinding to form an integrated smooth R3 arc edge, used to trim excess PVC, ABS, veneer edge strips and create uniform rounded corners on furniture panels.
2. Core Advantages
Superior Wear Resistance
Solid carbide substrate delivers 3–5 times longer service life than ordinary high-speed steel blades, cutting down frequent tool replacement and production downtime.
Precise Integral R3 Arc Edge
One-piece forming rounding edge ensures consistent, silky smooth curved surface after trimming, eliminating secondary manual polishing.
Sharp Mirror Ground Cutting Edge
Ultra-fine polished edge realizes clean cutting, effectively avoiding edge strip tearing, scratching or damaging board surface.
Wide Compatibility
Standard mounting hole and overall dimension, perfectly fit mainstream edgebander brands including KDT, Nanxing, Fast, Howtek, Max etc.
Complete Specifications & Customization
Both left-hand (L) and right-hand (R) blades in stock for double trimmer assemblies. Custom radius sizes (R1/R2/R2.5/R4) and special dimensions are acceptable.
3. Applicable Materials
Wood Panels: MDF, particle board, multi-layer solid wood, ecological board
Edge Banding Strips: PVC, ABS, natural wood veneer, acrylic edge tape
4. Matching Equipment
Fully automatic linear edge banders & semi-automatic edge banders for furniture production lines.
5. Operation Guidelines
1.Confirm left/right model before installation to match the rotation direction of the cutter head.
2.Regularly clear wood chips accumulated on the cutter to prevent abrasion of cutting edge and poor trimming finish.
3.Reduce feeding speed when processing thick and hard edge strips to extend blade service life.
