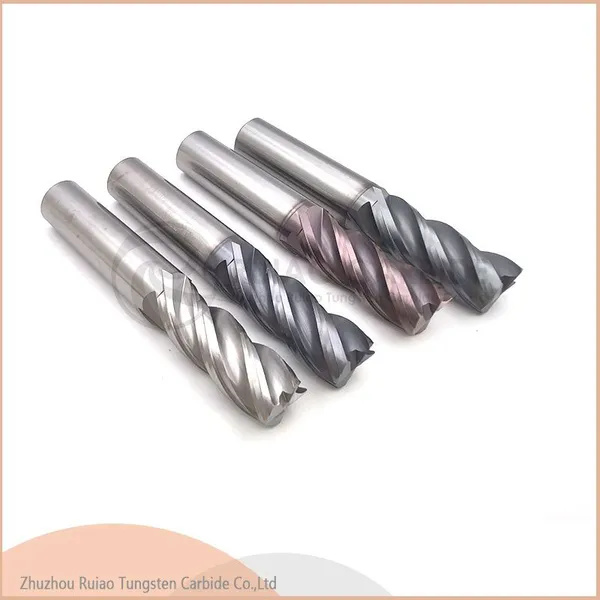

Tungsten Carbide End Mills
Product Spotlights
End mills feature ultra-fine grain substrate, high hardness and excellent wear resistance. With sharp cutting edges and stable performance, they ensure smooth machining finish, high precision and long service life. Suitable for steel, stainless steel and alloy processing. Good thermal stability
US$ 2 - 20
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Material:
Cemented Carbide
Type:
T Milling Cutter
Structure:
Indexable Type
Payment & Shipping
Payment Methods:
Port of Shipment:
Any China Port
Delivery Detail:
15 days
Related Products
Material
Cemented Carbide
Type
T Milling Cutter
Structure
Indexable Type
Tooth Form
Spiral Tooth
Tooth Space
Extra Dense Tooth
Coating
Coating
Transport Package
Carton
Specification
12*75mm
Trademark
RA Carbide
Origin
China
Products Description
-
Raw Material
With submicron grain size carbide, It has high hardness and good wear resistance
| HRC45 | HRC55 | HRC60 | HRC65 |
| YG10X | YG10.2 &WF25(Taiwan) | K44 & K40 | Kennametal/Sandvik |
| Grain Size: 0.7um Co: 10 % Flexural strength: 3320N/mm2 |
Grain Size: 0.6um Co: 10 % Flexural strength: 4000N/mm2 |
Grain Size: 0.5um Co: 12 % Flexural strength: 4300N/mm2 |
Grain Size: 0.4um Co: 12.5 % Flexural strength: 4300N/mm2 |

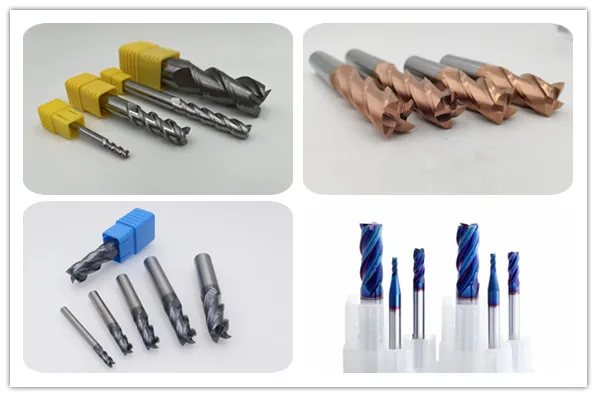

2. Super Coating AlTiN, TiAIN, TiSiN，Nano,containing silica, very high surface hardness and high thermal resistance
| AlTiN | TiAIN | TiSiN | Nano | |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
Flutes：Double-edge design improves rigidityand surface finish effectively. Cutting edge over the center reduces the cuttingresistance. High capacity of junk slot benefits chip removal and increases machining efficiency. 2 flutes design is good for chip removal, easy for vertical feed processing, widely used in slot, and hole processing
| TOLERANCE OF END MILLDIAMETER | |
|---|---|
| 1＜ D≤6 | -0.010～ -0.030 |
| 6＜ D≤10 | -0.015～ -0.040 |
| 10＜ D≤20 | 0 -0.020～ -0.050 |
