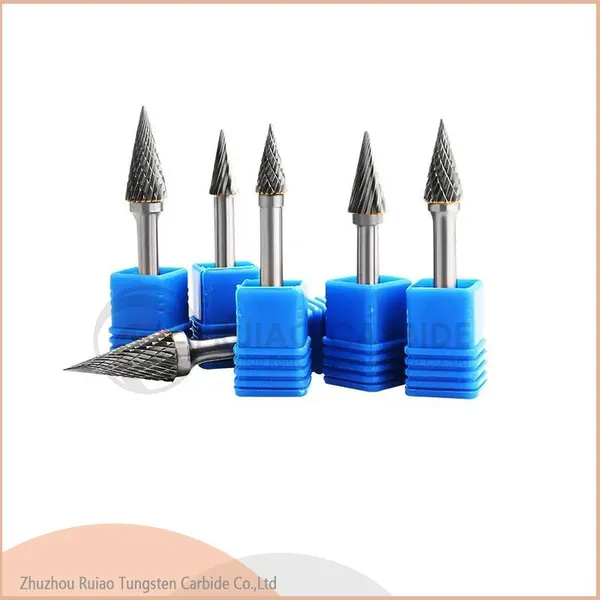

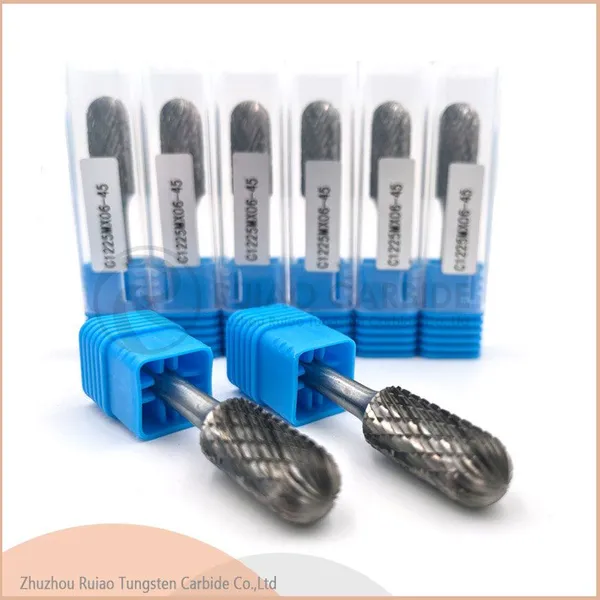

Tungsten Carbide Rotary Burrs are high-performance cutting tools designed for precision shaping, grinding, deburring, and material removal on hard surfaces. Manufactured from ultra-hard cemented carbide (WC-Co), they excel in demanding applications where speed, durability, and fine detail are critical.
Crade Application
Grade |
Co(%) |
Density | Hardness | TRS (Mpa) |
Grain Size | |
| HRA | HV10: | |||||
K10 |
6.0±0.2 | 14.85~15.01 | 90.5~91.2 | 1450~1520 | 2000 | fine |
| K20 | 8.0±0.2 | 14.64~14.80 | 89.7~90.5 | 1370~1450 | 2200 |
fine |
Key Features
Exceptional Hardness & Wear Resistance
Hardness: HRA 90–93
Outlasts HSS tools by 10x+ lifespan.
High-Temperature Stability
Maintains cutting edge integrity up to 800°C (1472°F).
Versatile Cutting Geometry
Single-cut (Aluma-cut): Aggressive material removal (soft metals, wood).
Double-cut (Standard): Balanced efficiency/surface finish (steel, stainless steel).
Fine-cut (Multi-cut): Smooth finishing (hard alloys, composites).
Multi-Shape Design

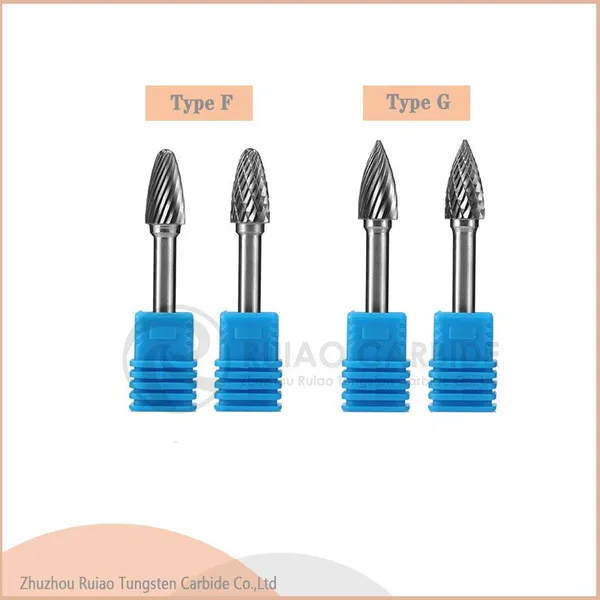

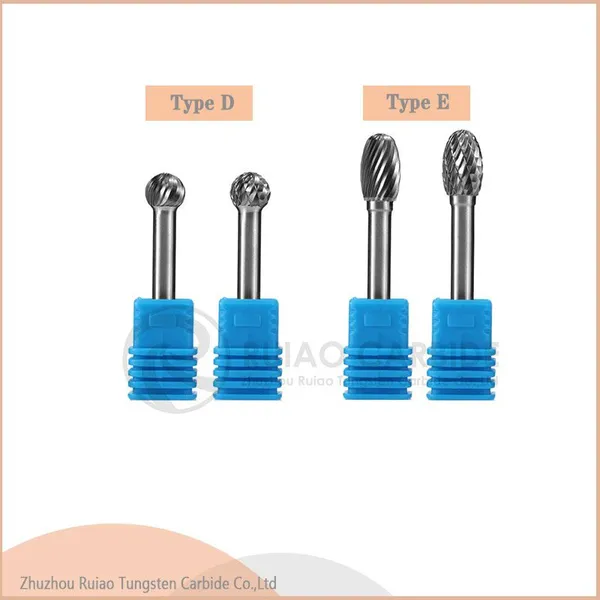

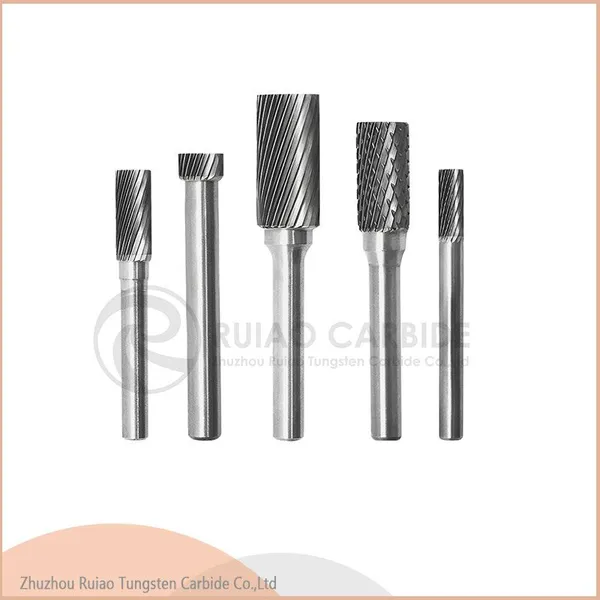

Cylindrical, Ball, Oval, Tree (Taper), Flame, and Inverted Cone profiles.
Primary Applications
Deburring: Remove sharp edges from machined parts.
Chamfering/Beveling: Create precise angles on edges.
Mold & Die Correction: Refine complex contours in tooling.
Weld Seam Cleaning: Smooth weld overflows.
Detail Carving: Engraving, grooving, and sculpting.
Industry Use Cases
Metalworking: Automotive/aerospace component finishing.
Foundries: Casting flash removal.
Medical Device Manufacturing: Implant polishing.
Woodworking & Composite Fabrication.
Technical Guidance
Speed:
Ø ≤6mm: 30,000–50,000 RPM
Ø >6mm: 15,000–25,000 RPM
Operation: Use in climb milling direction; apply coolant for ferrous metals.
Safety: Always wear ANSI-rated eye protection.
Optional Coatings
TiN (Gold): General-purpose wear resistance.
TiAlN (Violet): Enhanced thermal barrier for stainless steel/nickel alloys.
Value Proposition
Tungsten Carbide Rotary Burrs deliver unmatched precision and cost-efficiency in material removal tasks, reducing downtime and tool replacement frequency. Ideal for handheld grinders, CNC machines, and pneumatic tools.
Cylindrical, Cylindrical ball nose, Spherical, Oval, Arc round nose, Arc pointed nose, Torch-shaped, Conical,Taper with round top, Conical pointed nose, Inverted conical, Cone flat nose, Dise type with arc edge,Concave arc shape, Cplimni form with half round nose, Dise type of 90 degree.
