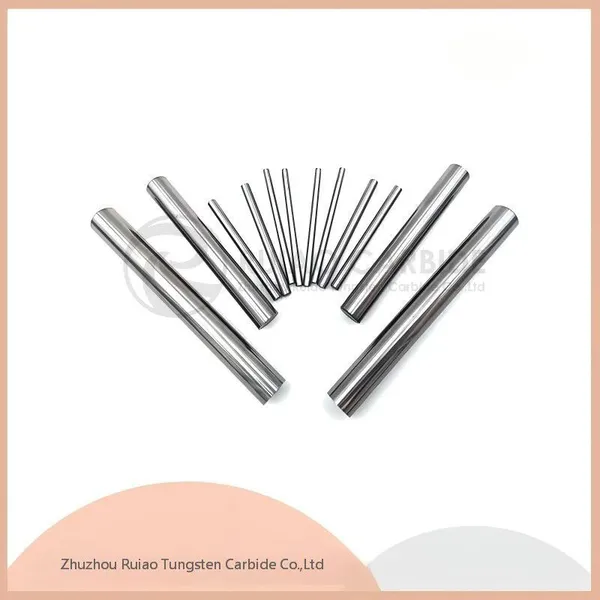

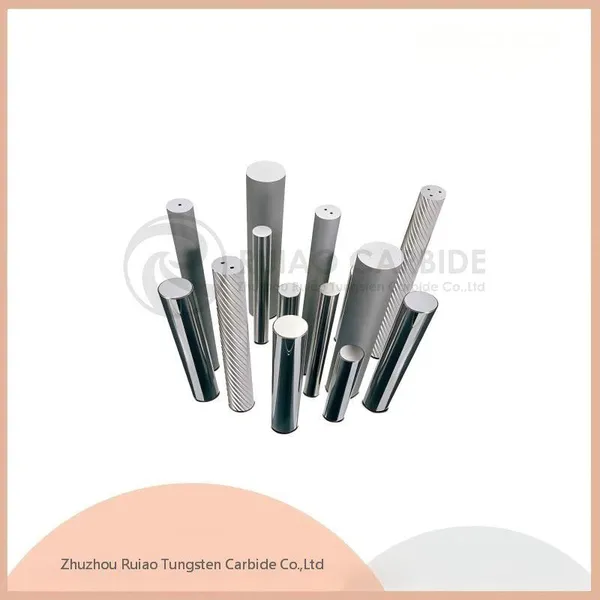

Help CenterCarbide Rods in Blank
Product Spotlights
Specifications:
Min BL – Φ3.0×330
Max BL – Φ50.0×330
Related Products
Used in welding/ making the drill bits/ endmills / reamers .automobile special cutters, printed circuit board special cutters, engine special cutters, Horologe processing special cutters, integral vertical milling cutter, graver and etc. Besides, they can bu used for making of cemented carbide stamping head, Core bar and perforation tools.
The Specification Range of extruded Grounded Tungsten Carbide Rod :
WC Grain size range: 0.3~0.5μ.m; 0.5~0.9μ.m; 1.0~1.3μ.m; 1.4~2.0μ.m.
Length range:3mm-600mm; (General Length: 100mm,300mm,320mm,330mm)

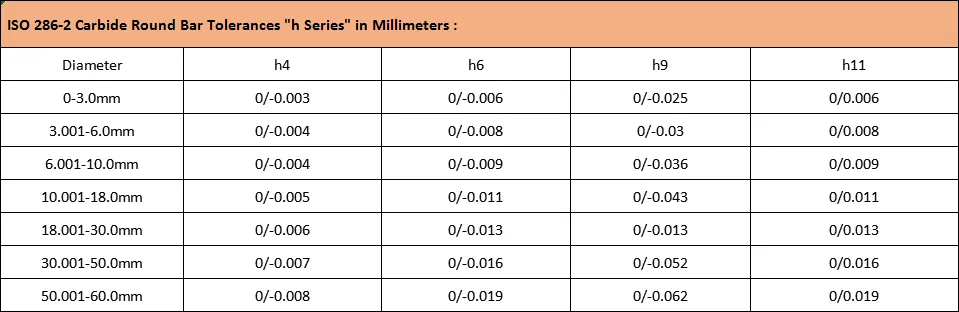

Diameter Grade: h4(H4), h5(H5), h6(H6), h7(H7), h8(H8), h9(H9), etc.
Good grinding machine to ensure the sphencity & the Linearity of rod at higher level standard;

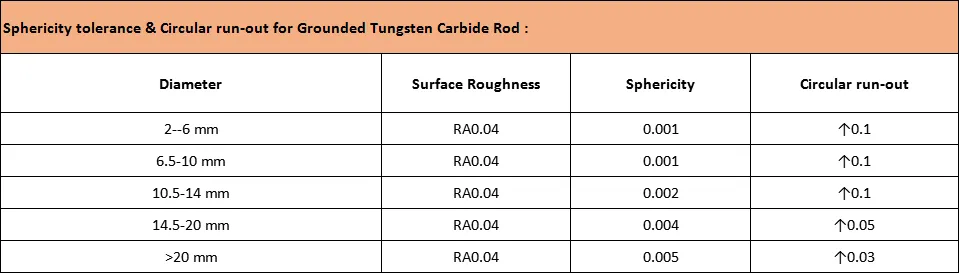

Sphericity tolerance range: 0.001mm ~ 0.005mm;
Linearity tolerance range: 0.001mm~0.1mm;
Surface Roughness can be reached to: RA0.04.(reach a mirror effect surface after fine grinding)
Send Inquiry to This Supplier
