Help CenterTungsten Carbide Grinding Jars
Product Spotlights
Related Products
Products Description

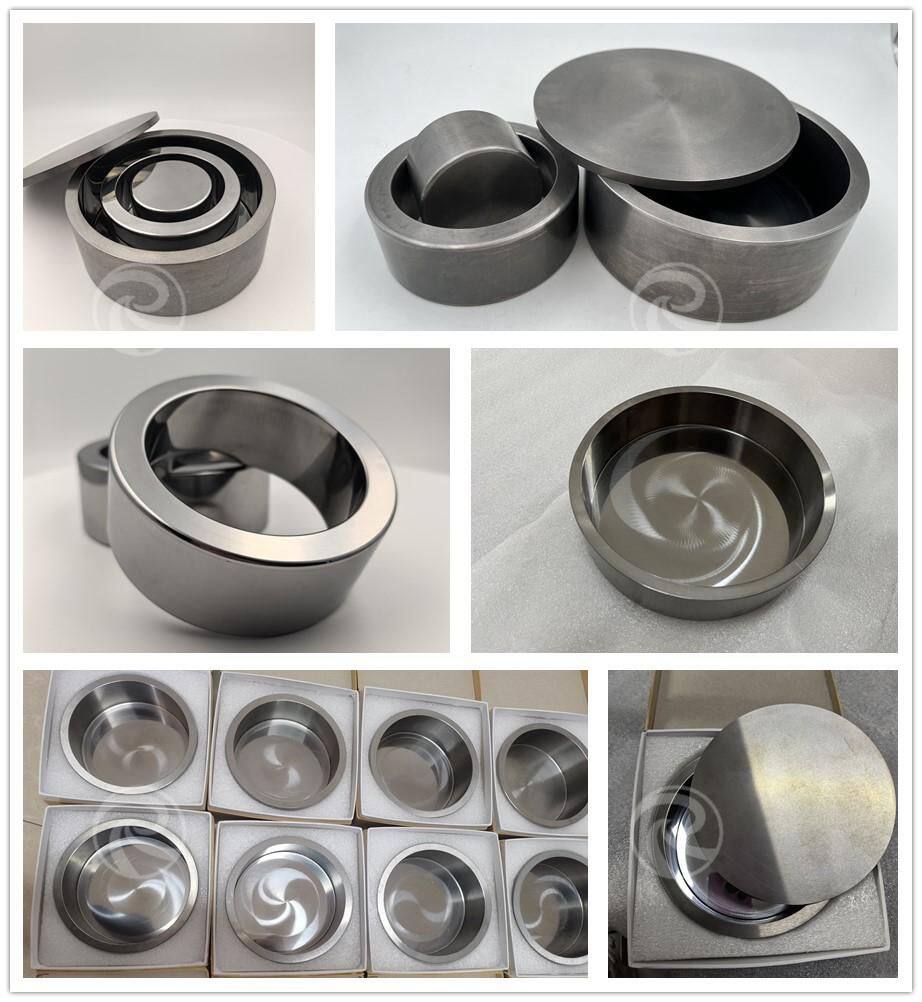

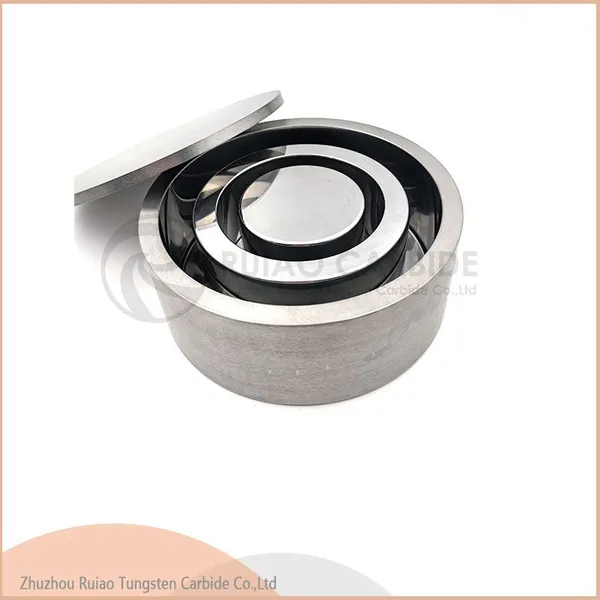

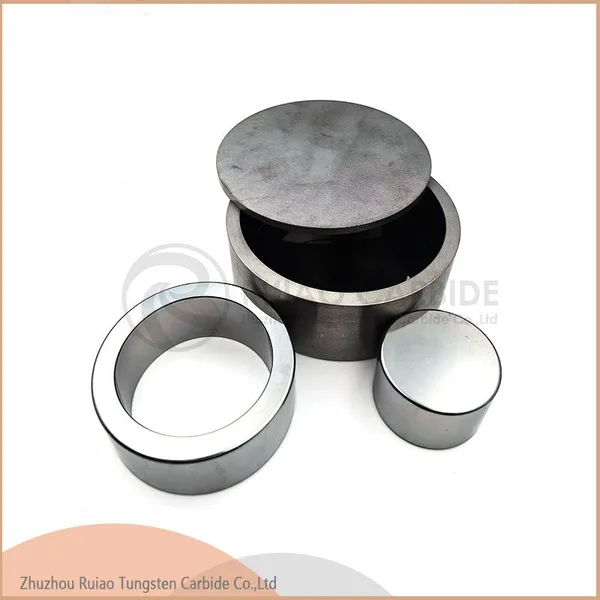

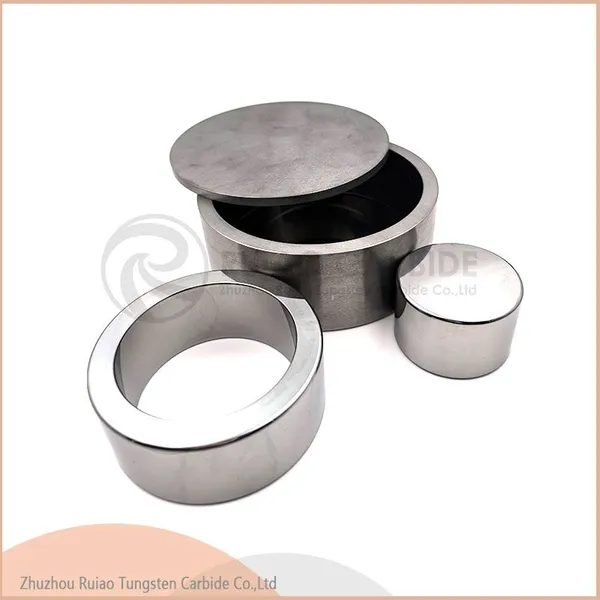

Tungsten carbide grinding bowls and mortar is the highest density grinding tools for laboratory grinding mill, ball mill machine, power grinder,ball mill crusher etc.High hardness and strengthness can meet the application of crushing and refining for most majority of metal powder, especially those hard and super hard metal powder.
Features:

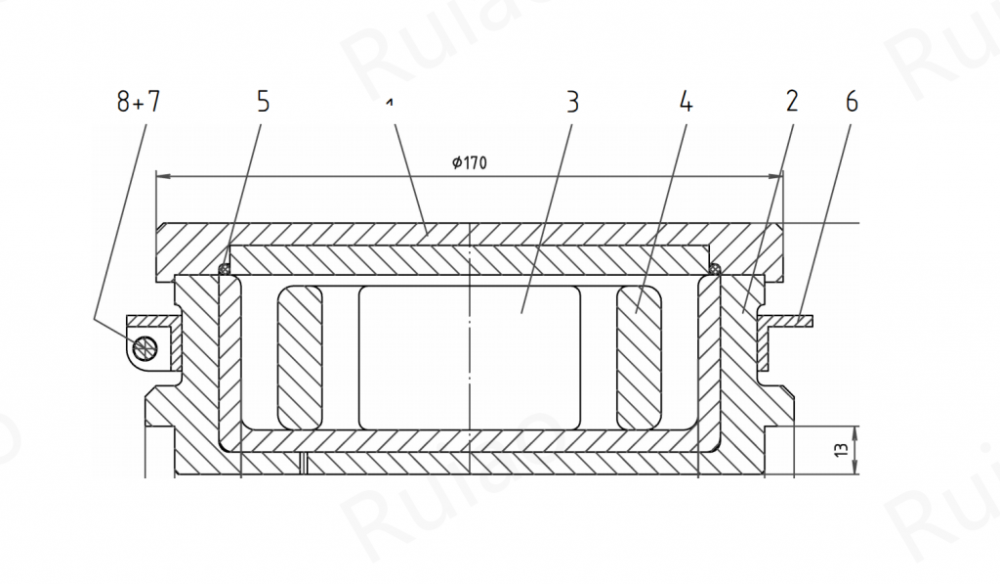

Products are generally used together, is composed of research body, crushing ring, crushing hammer, bowl cover, is the laboratory sample mill (disc vibration meter) in the process of grinding the key components. Because of its high density, its weight is much higher than that of ordinary steel, and it is inconvenient to move slightly during use.
2. Wide range of use: Tungsten carbide accessories for high mechanical load of harsh sample preparation conditions designed for grinding non-metallic minerals with a certain hardness, such as corundum, iron/chromium/molybdenum alloy, molybdenum steel, refractory materials, silicon carbide, slag and so on.
Performance: High hardness (1180-1280HV30), high wear resistance, strong impact resistance,
Seal: O-type sealing ring, prevent powder overflow, do not pollute the material;
Design and marking: the edge of the tank and top cover can be designed for easy grasping, and the body can be marked with laser recognition.
Product Parameters
| DETAILS | RUIAO JAR |
|---|---|
| Name | Tungsten carbide bowl, tungsten carbide cup, tungsten carbide pot, tungsten carbide container |
| Volume | 12ml, 25ml, 50ml, 100ml, 250ml, 500ml, 1L, 1.5L, 2L, 3L,5L, 10L, and customized. |
| Composition | WC92%+Co8.0%, WC89%+Co11%, customized |
| Brand name | Ruiao |
| Application | Tungsten Carbide ball grinding tank used in planetary ball mill, with cemented carbide grinding ball, used for grinding cemented carbide powder, diamond, emery and other high hardness powder |
| Use for | Tungsten Carbide bowl is suitable for all kinds of planetary ball mill, is the laboratory, fine grinding, mixing, small batch production of high-tech materials necessary equipment parts, widely used in electronics, magnetic, medicine, ceramics, geology, minerals, metallurgy, building materials, chemical, light industry, beauty, environmental protection and other industries. |
| Advantage | Ball mill jar, vacuum jar, roller jar, vibratory cup, mortar bowl and pestle |
Grinding Jars & Balls Configurations
| JAR VOLUME | 50ML | 100ML | 150ML | 250ML | 300ML | 400ML | 500ML | 1000ML |
|---|---|---|---|---|---|---|---|---|
| ø6mm | 50pcs | 100pcs | 150pcs | 280pcs | 330pcs | 420pcs | 500pcs | 1000pcs |
| ø10mm | 8pcs | 16pcs | 24pcs | 40pcs | 48pcs | 80pcs | 100pcs | 200pcs |
| ø20mm | 2pcs | 2pcs | 3pcs |
Details
Backed by our long-standing commitment to customer satisfaction, we ensure quality manufacturing and reliable supply of tungsten carbide grinding tools to meet your most demanding requirements for sample preparation.
