Help CenterTungsten Carbide Spectacle Plate for Concrete Pump
Product Spotlights
2.Bimetal composite, ultra long wear life
3.Precision ground sealing face, no slurry leakage
4.Anti-abrasion against sand & stone aggregate
5.Fit Sany, Zoomlion, XCMG all concrete pumps
6.Standard sizes in stock, custom service available
Related Products
-
Electroplated Diamond Cylindrical Grinding HeadUS$ 0.5 - 100MOQ: 1 Piece -
Tungsten Carbide Conical Engraving BitsUS$ 1 - 50MOQ: 1 Piece
-
Carbide V Groove Router Bits for WoodworkingUS$ 1 - 50MOQ: 1 Piece
-
Tungsten Carbide Rolling MillsUS$ 300 - 600MOQ: 1 Set
-
Tungsten Carbide RodsUS$ 1 - 100MOQ: 5 Pieces
1. Product Overview

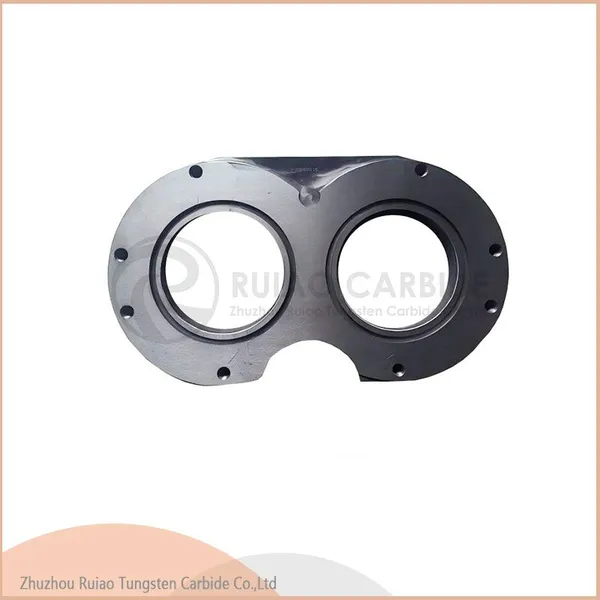

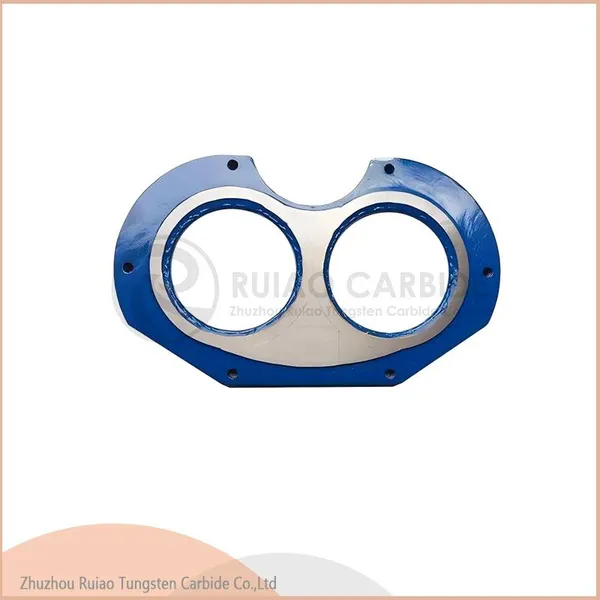

This spectacle plate is a key wear spare part for concrete pump trucks, also known as S-valve spectacle plate. It adopts bimetallic composite structure: cast steel base with solid tungsten carbide wear rings embedded inside two flow holes. Manufactured by Zhuzhou Ruiao Tungsten Carbide Co., Ltd., it matches Sany, Zoomlion, XCMG and other mainstream concrete pump brands.Structure: Dual through holes, 6 mounting bolt holes, precision ground carbide sealing surface, working with cutting ring to form the sealing wear pair of S distribution valve.
2. Core Selling Points
Bimetal Composite Wear ResistanceCast steel body with integrated tungsten carbide inner rings, service life 3–6 times longer than ordinary surfacing spectacle plates.
High Precision Sealing SurfaceMirror ground carbide flat surface fits tightly with cutting ring, no slurry leakage under high pumping pressure, protect piston from abrasion.
Impact & Sand ResistanceUltra-fine grain carbide substrate withstand continuous scouring of concrete aggregate, no groove or edge chipping during heavy-duty pumping.
Full Sizes & Customization In StockComplete standard sizes (180/200/230/260 bore diameter) available, custom non-standard dimensions & hole layout supported.
Wide CompatibilityFit Sany, Zoomlion, XCMG, Schwing, Hongda and all common concrete trailer pumps, truck-mounted pumps.
3. Application
Construction concrete delivery, used on trailer concrete pumps, truck-mounted concrete pumps, boom pumps, mortar transfer pumps.
4. Operation Tips
Install matching carbide cutting ring together, apply lubricant to reduce friction loss.
Replace the spectacle plate immediately if slurry leakage or sudden pressure drop occurs, which means carbide surface is grooved.
Regularly lubricate S valve when pumping dry concrete or large aggregate to extend plate service life.
