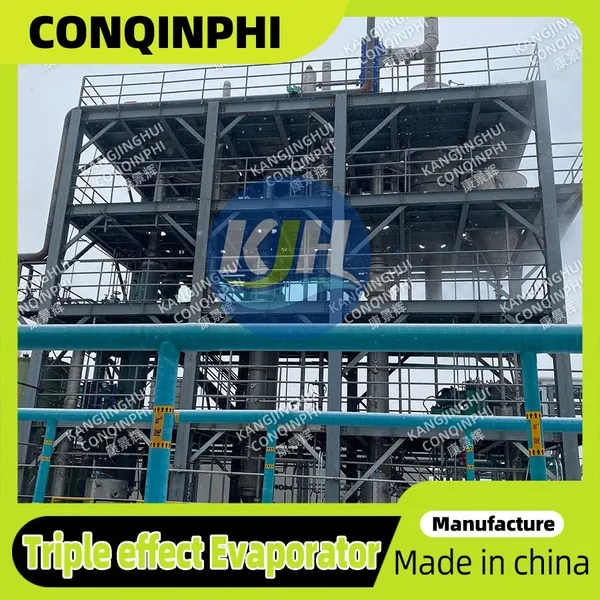

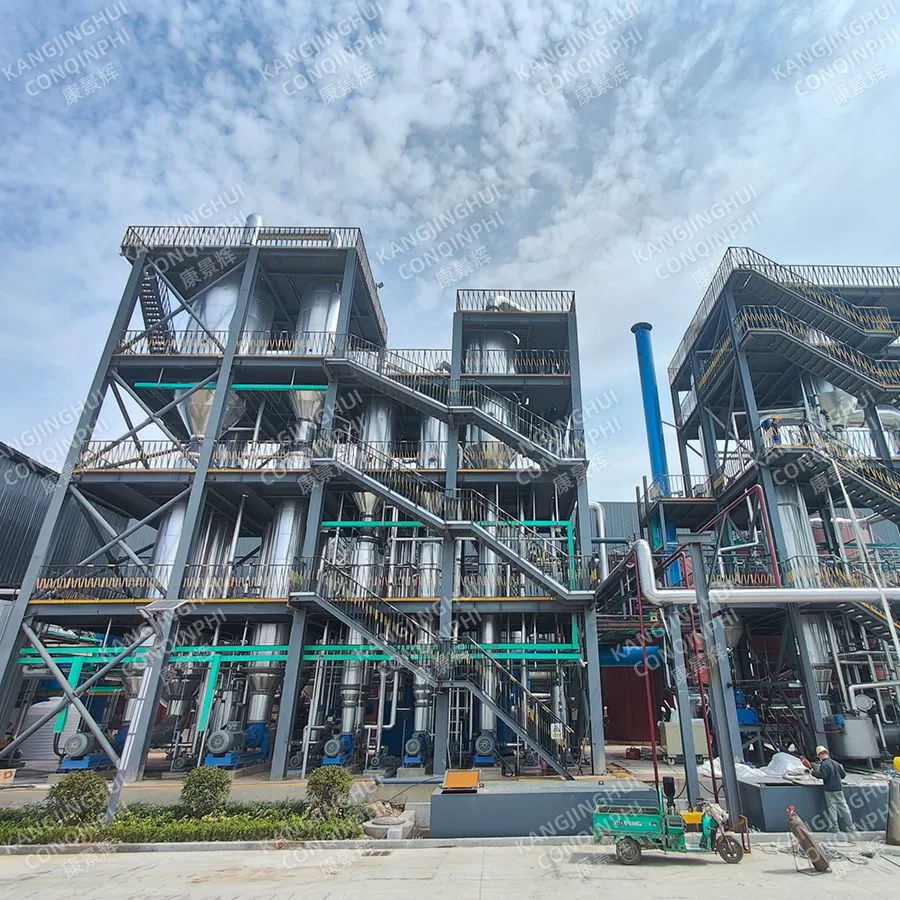

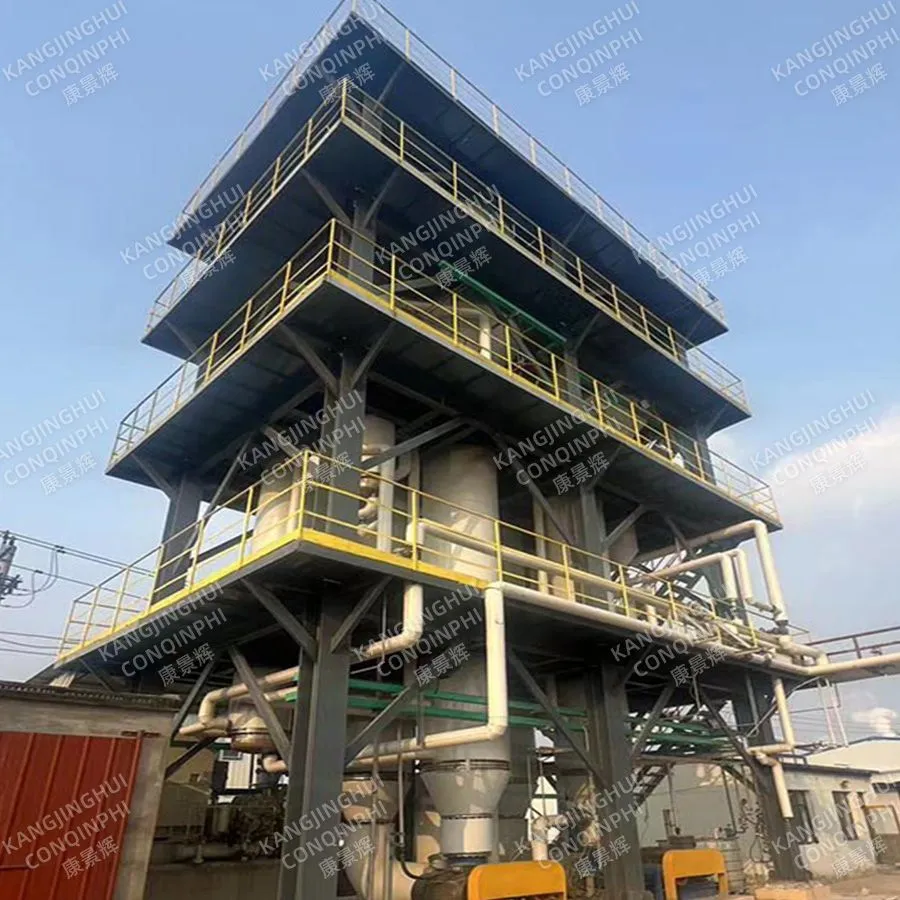

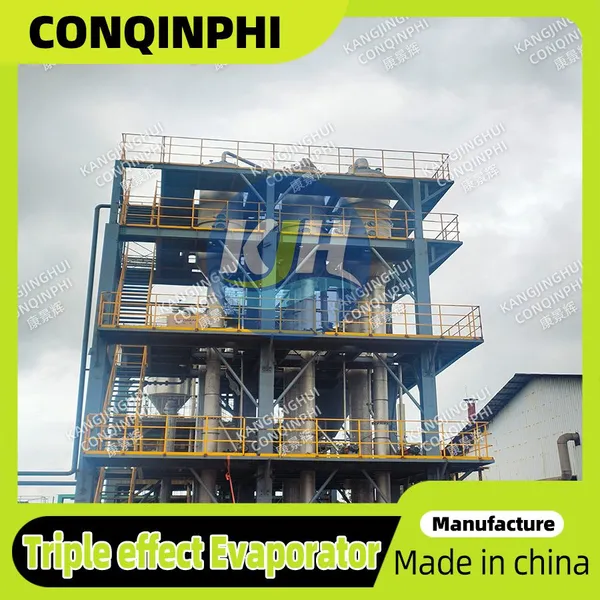

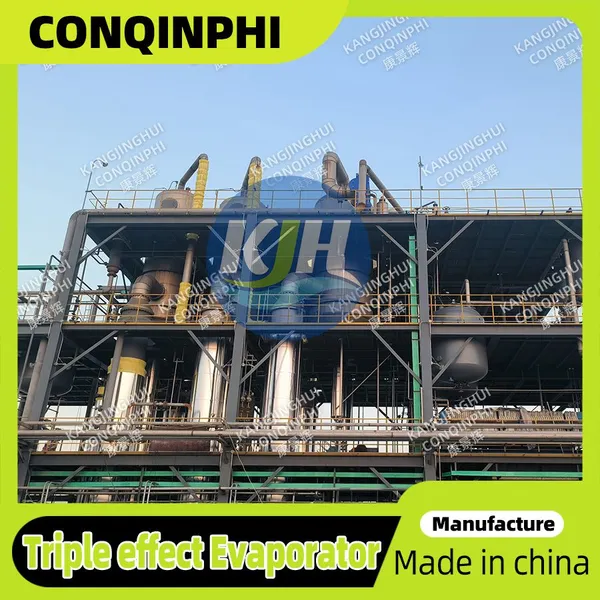

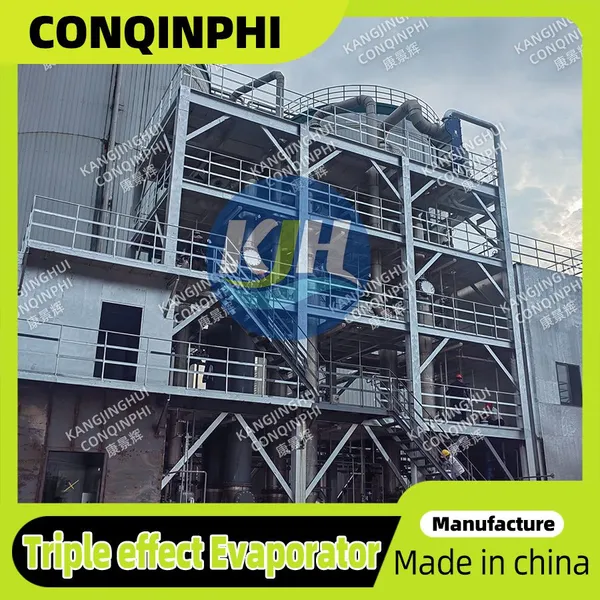

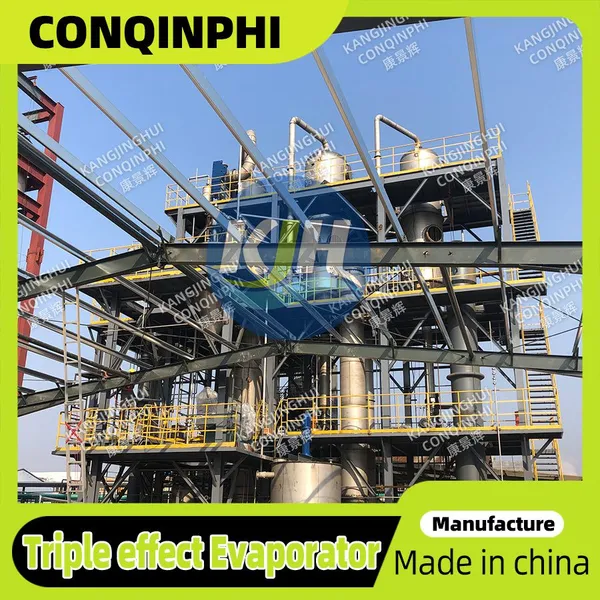

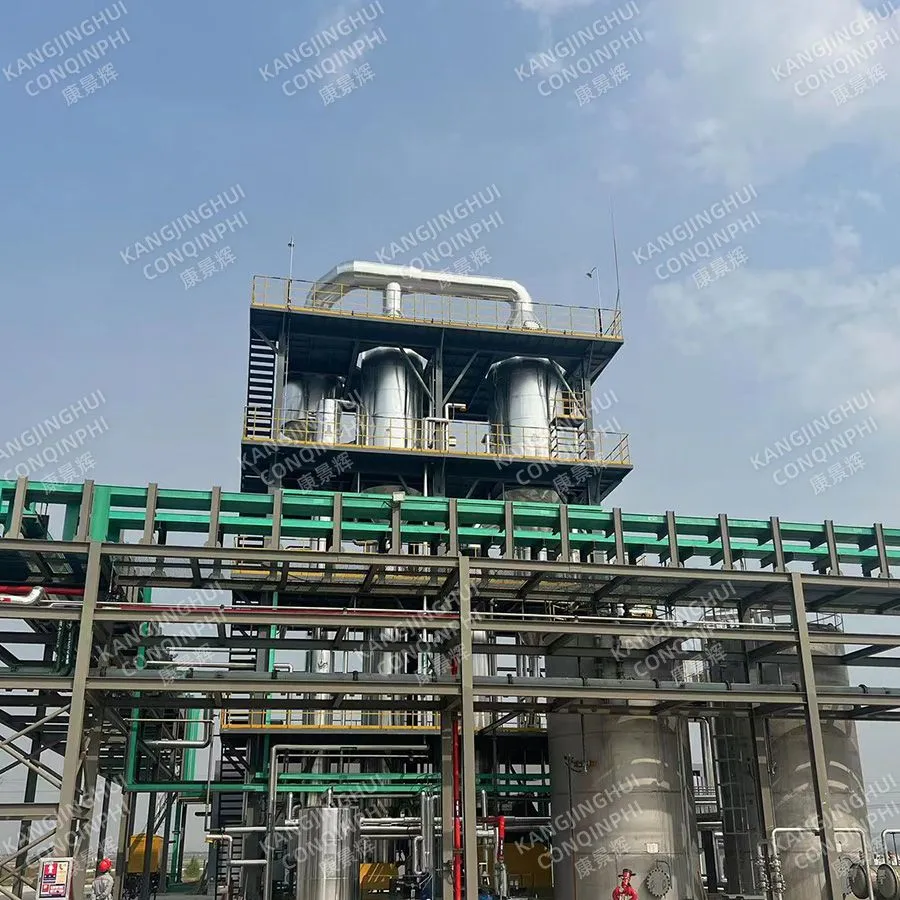

As a leading manufacturer with nearly a decade of experience, Qingdao Conqinphi Environmental Technology Group is proud to present our advanced Multi-Effect Evaporation Crystallizer. Engineered for superior performance and reliability, this system is designed to tackle the most demanding concentration and crystallization challenges in industries ranging from wastewater treatment to chemical processing. Our commitment to innovation and quality ensures that every unit delivers exceptional energy efficiency and operational stability, backed by a comprehensive 12-month performance warranty for your peace of mind.
Our Multi-Effect Evaporation Crystallizer stands out in the market due to its sophisticated design and robust construction. Below are the key features and technical specifications that define its excellence:
- High Energy Efficiency: Utilizes a multi-effect evaporation principle where the vapor from one effect serves as the heating medium for the next, significantly reducing steam consumption and operational costs.
- Superior Crystallization Control: Incorporates advanced forced-circulation or draft-tube baffle (DTB) crystallizer designs to produce uniform, high-purity crystals with controlled particle size distribution.
- Corrosion-Resistant Construction: Built primarily with high-grade materials like 316L stainless steel, titanium, or duplex steels to withstand aggressive process fluids and ensure long service life.
- Fully Automated Operation: Equipped with a state-of-the-art PLC control system for precise monitoring and control of parameters such as temperature, pressure, level, and density, enabling unattended operation and consistent product quality.
- Compact & Modular Design: Engineered for easier installation, maintenance, and potential future expansion, saving valuable floor space in your plant.
- Versatile Application: Ideal for zero liquid discharge (ZLD) systems, recovery of valuable salts from brine, concentration of chemical solutions, and treatment of high-salinity industrial wastewater.
The system's technical parameters can be customized, but standard configurations often include the following ranges:
| Parameter | Typical Range / Specification |
|---|---|
| Number of Effects | 2 to 6 effects (customizable) |
| Evaporation Capacity | 1 to 100 tons of water evaporation per hour |
| Operating Pressure | Vacuum to slightly above atmospheric |
| Heat Transfer Surface Area | Customized per duty requirement |
| Final Product Output | Dry crystals or concentrated slurry |
| Control System | PLC with HMI, optional SCADA integration |
Choosing our crystallizer brings tangible benefits to your operation:
- Drastic Cost Reduction: Multi-effect design can slash steam consumption by up to 70% compared to single-effect units, directly lowering your energy bills.
- Enhanced Product Recovery: Efficient crystallization maximizes the yield of saleable or reusable salts and minerals from waste streams.
- Environmental Compliance: Enables effective wastewater management, helping you meet stringent discharge regulations and achieve sustainability goals.
- Operational Reliability: Robust design and automated controls minimize downtime, reduce manual intervention, and ensure consistent process performance.
- Long-Term Investment: High-quality materials and construction translate to lower maintenance costs and a longer operational lifespan.
Trust in Qingdao Conqinphi is built on a solid foundation. Operating from a sprawling facility of 10,000-30,000 square meters and supported by a dedicated team of 201-300 professionals, we have the scale and expertise to deliver. Our commitment to quality is validated by a comprehensive suite of management system certifications, including ISO 9001 for quality and ISO 14000 for environmental management. With an annual export value ranging between US$10 Million and US$50 Million, our systems are proven across diverse markets in North America, South America, Europe, Asia, Africa, and Oceania. This global acceptance underscores the reliability and performance of our Multi-Effect Evaporation Crystallizer. We invite you to leverage our engineering prowess to optimize your process. Contact us today for a detailed consultation and discover how our warranted solution can enhance your productivity and profitability.
Frequently Asked Questions (FAQ)
Q1: What is the primary advantage of a multi-effect system over a single-effect evaporator?
A: The core advantage is dramatic energy savings. In a multi-effect system, the vapor generated in the first effect is used to heat the second effect, and so on. This cascading reuse of latent heat can reduce steam consumption by over 50%, making it a highly cost-effective solution for large-scale evaporation duties.
Q2: Can this crystallizer handle my specific feed solution, which contains fouling or scaling components?
A: Yes, our systems are designed with fouling mitigation in mind. We can recommend appropriate forced-circulation designs, anti-scalant dosing integration, and select materials of construction (like high-polish finishes or special alloys) to minimize scaling and facilitate easier cleaning. A detailed analysis of your feed composition is recommended for optimal design.
Q3: What does the "12-Month Performance Warranty" specifically cover?
A: Our warranty guarantees that the crystallizer will perform according to the agreed-upon design specifications (e.g., evaporation capacity, steam economy, crystal quality) under normal operating conditions for a period of 12 months from successful commissioning. It covers defects in material and workmanship, with dedicated support to resolve any performance-related issues.
Q4: How is the crystal size and purity controlled in your system?
A> We employ precise control strategies. The crystallizer's internal hydrodynamic design (like a DTB configuration), coupled with automated control of parameters such as supersaturation, residence time, and circulation rate, allows for fine-tuning of crystal growth. This results in consistent particle size distribution and high product purity.
Q5: Is the system fully automated, and what level of operator skill is required?
A: Yes, it features a fully automated PLC control system. The human-machine interface (HMI) is designed for intuitive operation. While basic training is provided for your staff, the system is designed to run with minimal manual intervention, requiring only routine monitoring. Advanced remote monitoring options are also available.
Q6: What is the typical lead time for a standard or custom unit?
A: Lead times vary based on the complexity and capacity of the system. For standard configurations, it typically ranges from 20 to 30 weeks from order confirmation. Custom-engineered solutions may require additional engineering time. We provide a detailed project schedule upon quotation.
Q7: Do you provide installation supervision and commissioning services?
A: Absolutely. We offer comprehensive services including detailed installation drawings, on-site supervision by our experienced engineers, and full commissioning support to ensure the system starts up smoothly and meets all performance criteria. This service package is highly recommended.
Q8: Can the system be integrated with our existing wastewater treatment or process plant?
A: Yes, integration is a key part of our design philosophy. Our engineering team will work closely with you to understand your existing plant layout, piping, and control systems to ensure seamless integration. Interfaces for utilities (steam, cooling water, power) and control signals (via Modbus, Ethernet/IP, etc.) are standard.
