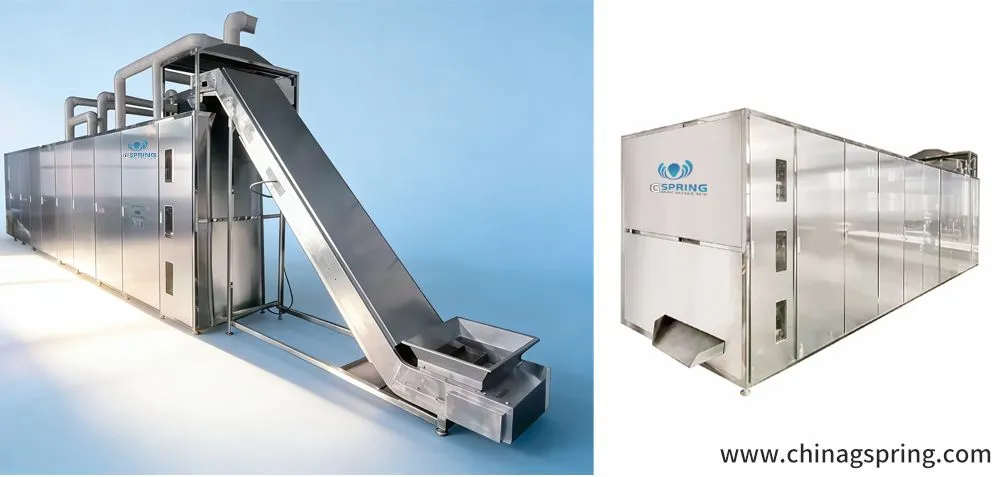

Easy Operation PLC Control Industrial Microwave Drying Machine
Intelligent Microwave Drying Solution for Efficient Industrial Production
Our Industrial Microwave Drying Machine is designed for fast, continuous, and energy-efficient drying applications across food, chemical, pharmaceutical, agricultural, and industrial material processing industries.
Equipped with an advanced PLC automatic control system, the machine provides stable operation, precise temperature adjustment, and reduced labor costs while improving production efficiency.
Compared with traditional hot air drying methods, microwave technology delivers uniform heating, shorter drying cycles, lower energy consumption, and better product quality retention.
Key Features
✔ PLC Intelligent Control System
Touch screen operation with automatic parameter setting and real-time monitoring.
✔ Easy Operation & Stable Performance
User-friendly interface reduces training requirements and simplifies production management.
✔ Fast Continuous Drying
Continuous conveyor design supports uninterrupted industrial production.
✔ Energy Saving Technology
Microwave directly heats materials internally, reducing heat loss.
✔ Uniform Heating
Improves product consistency and reduces over-drying.
✔ Stainless Steel Construction
Food-grade SUS304/SUS316 optional for durability and hygiene.
✔ CE / ISO Certification Optional
Supports international export requirements.

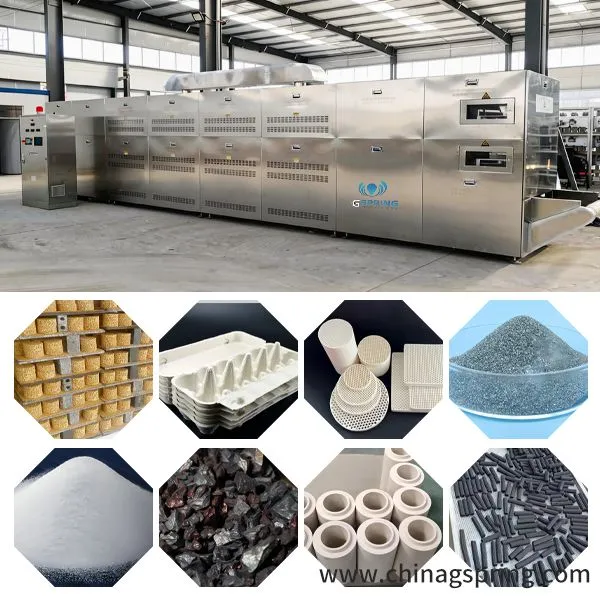

Typical Applications
Food Drying & Sterilization
Fruit & Vegetable Processing
Herbs & Spice Drying
Chemical Powder Drying
Pharmaceutical Materials
Tea Processing
Agricultural Products
Wood & Building Materials
Ceramic Materials
Why Choose Our Microwave Drying Machine?
More than traditional hot air drying efficiency
Lower operating costs
Continuous industrial production
Customized solutions available
OEM / ODM support
Professional installation and technical guidance
Technical Specifications
Machine Model |
GS-20HMV |
GS-40HMV |
GS-60HMV |
GS-100HMV |
GS-200HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤25KW |
≤50KW |
≤75KW |
≤120KW |
≤240KW |
Output Power |
≥20KW |
≥40KW |
≥60KW |
≥100KW |
≥200KW |
Dehydration Capacity |
16-20kg/hour |
30-40kg/hour |
48-60kg/hour |
80-100kg/hour |
160-200kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Water Cool/Air Cool |
Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool |
Work Time |
24h Continuously Work |
24h Continuously Work | 24h Continuously Work | 24h Continuously Work | 24h Continuously Work |
Operation |
PLC & Touch Screen |
PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Feeding Inlet Height |
40-100mm |
40-100mm | 40-100mm | 40-100mm | 40-100mm |
Belt Height |
60-1000mm |
60-1000mm | 60-1000mm | 60-1000mm | 60-1000mm |
Belt Running Speed |
0-4.5m/min or Customized |
0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized |
Belt Width |
500±100mm |
800±100mm |
800±100mm |
1000±100mm |
1200±100mm |
Belt Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
Size |
8640×1220×2200mm |
10960×1500×2200mm |
13200×1500×2200mm |
15600×1700×2200mm |
22560×1900×2200mm |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request
FAQ
Q1: Which materials can be processed?
Suitable for food, herbs, chemicals, pharmaceuticals, agricultural and industrial materials.
Q2: Can capacity be customized?
Yes, machine size, microwave power and output can be customized.
Q3: Is installation service available?
Yes, remote guidance and overseas technical support are available.
Q4: What certifications are supported?
CE, ISO and customized export standards are available.
