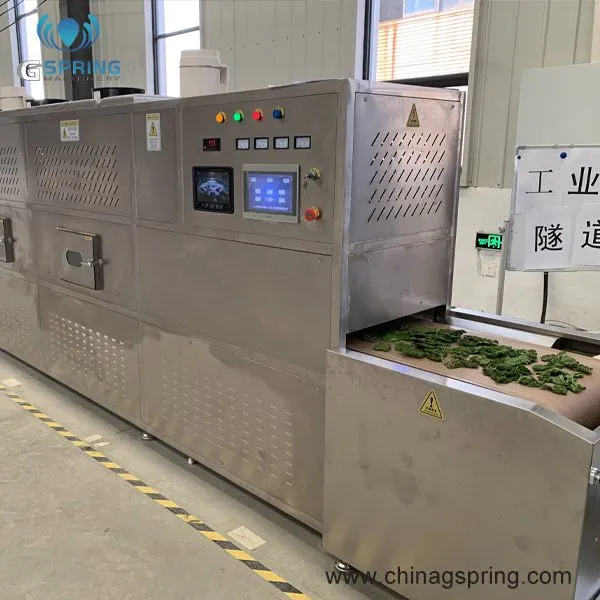

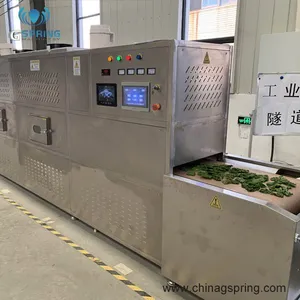

Export Standard Industrial Microwave Drying Machine for Pharmaceutical Processing
Our Industrial Microwave Drying Machine is specially designed for the pharmaceutical industry, providing efficient drying, moisture reduction and sterilization for herbal medicines, pharmaceutical intermediates, botanical extracts, granules, powders and other pharmaceutical materials.
Using advanced microwave technology, the machine heats materials from the inside out, achieving rapid and uniform drying while helping maintain product quality and processing efficiency. The continuous conveyor design supports automated production and can be customized to meet different capacity requirements.
Key Features
Continuous automatic production
Drying and sterilization in one process
Uniform internal heating
Low-temperature drying technology
Short drying time
High production efficiency
PLC intelligent control system
Adjustable microwave power
Adjustable conveyor speed
Food and pharmaceutical grade SUS304 stainless steel
Easy operation and maintenance
Stable 24-hour continuous operation
Customizable capacity and configuration
Suitable Applications
The machine is suitable for processing:
Herbal medicines
Botanical extracts
Pharmaceutical granules
Medicinal powders
Traditional herbal products
Health-care ingredients
Plant extracts
Functional food ingredients
Chemical raw materials requiring low-temperature drying
Working Principle
Microwave energy penetrates directly into the material, causing internal moisture to heat and evaporate rapidly. This volumetric heating method delivers faster drying than conventional hot-air systems while promoting more uniform moisture removal. The process can also reduce microbial contamination during drying, improving production efficiency.
Technical Specifications
Microwave Frequency: 2450 MHz / 915 MHz
Heating Type: Continuous Conveyor Belt
Control System: PLC Touch Screen
Material: SUS304 Stainless Steel
Capacity: Customized
Conveyor Speed: Adjustable
Microwave Power: Adjustable
Power Supply: Customized according to local standards
CE Certification: Optional
OEM & ODM: Available
Advantages
High drying efficiency
Continuous industrial production
Uniform moisture removal
Integrated drying and sterilization
Energy-saving operation
Easy cleaning and maintenance
Flexible customization
Suitable for pharmaceutical and botanical processing
Why Use Microwave Drying for Herbs & Pharma Products?
✅ Preserves Active Compounds – Unlike conventional hot-air drying, microwave drying prevents degradation of heat-sensitive compounds (essential oils,
flavonoids, alkaloids).
✅ Faster Drying Time – Reduces drying time by 50-70% compared to traditional methods, increasing production efficiency.
✅ Low-Temperature Drying –Customer also can adopt vacuum microwave oven to dry some heat-sensitive product & expensive product. Gentle heat prevents
overheating and nutrient loss, ensuring high-quality dried herbs.
✅ Uniform Moisture Removal – Eliminates uneven drying and mold growth, improving shelf life.
✅ Hygienic & Contamination-Free – Stainless steel construction & closed-system drying prevent contamination (critical for GMP compliance).
Microwave Machine Advantage in Herbs Pharma Industry
Drying herbs in a microwave oven is a quick and efficient method to preserve their flavors and extend their shelf life;
1. Microwave energy can evaporate water rapidly, drying fast, high efficiency, low cost;
2. Drying herbs in microwave machine compared to other traditional drying , can preserve the color, flavors & nutrition; which is also applicated
in Spices industry;
3. Microwave drying herbs also can kill inside insect eggs & bacteria which can extend herbs shelf life; or sterilize the herbs.
Herbs Pharma Microwave Machine Application
1.Drying kinds of herbs in microwave, it can dry fast, but preserve their flavor, nutrition such as Parsley, rosemary, cilantro, oregano, sage, thyme etc.
2.Drying kind of herbal slices, 50% faster than normal heating, such as Astragalus, angelica, ginseng, aconite, habitat etc.
3.Drying kinds of insects, which can be used in pharma industry, such as Tenebrio molitor, barley pest, hermetia illucens.
4.Sterilize Pharma liquid, especially liquid type medicine.
Technical Specifications
Machine Model |
GS-20HMV |
GS-40HMV |
GS-60HMV |
GS-100HMV |
GS-200HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤25KW |
≤50KW |
≤75KW |
≤120KW |
≤240KW |
Output Power |
≥20KW |
≥40KW |
≥60KW |
≥100KW |
≥200KW |
Dehydration Capacity |
16-20kg/hour |
30-40kg/hour |
48-60kg/hour |
80-100kg/hour |
160-200kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Water Cool/Air Cool |
Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool |
Work Time |
24h Continuously Work |
24h Continuously Work | 24h Continuously Work | 24h Continuously Work | 24h Continuously Work |
Operation |
PLC & Touch Screen |
PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Feeding Inlet Height |
40-100mm |
40-100mm | 40-100mm | 40-100mm | 40-100mm |
Belt Height |
60-1000mm |
60-1000mm | 60-1000mm | 60-1000mm | 60-1000mm |
Belt Running Speed |
0-4.5m/min or Customized |
0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized |
Belt Width |
500±100mm |
800±100mm |
800±100mm |
1000±100mm |
1200±100mm |
Belt Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
Size |
8640×1220×2200mm |
10960×1500×2200mm |
13200×1500×2200mm |
15600×1700×2200mm |
22560×1900×2200mm |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request.
Why Choose Us?
As a professional manufacturer of industrial microwave equipment, we provide:
Factory direct supply
Customized production solutions
Technical consultation
Installation and commissioning support
Operator training
One-year warranty
Lifetime technical support
Export experience in global markets
FAQ
Q1: What pharmaceutical materials can this machine process?
It is suitable for herbal medicines, botanical extracts, granules, powders, health-care ingredients and many other moisture-sensitive materials.
Q2: Can the machine be customized?
Yes. Capacity, microwave power, conveyor width and control system can all be customized.
Q3: Does the machine support continuous production?
Yes. The continuous conveyor system is designed for stable industrial production.
Q4: Is OEM service available?
Yes. We provide OEM and ODM manufacturing services for customers worldwide.
China Gspring Machinery are the manufactuer of Industrial Microwave Dryer, we can supply different kinds of microwave drying machine, like batch
microwave oven for lab use or for small capacity industrial use, industrial automatic tunnel mircrowave dryer, vaccum dryer specially for food & pharma
industry etc. We havemore than 10 years experience on export, export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam,
Indonesia, Pakistan,Philippines, Brazil, Egypt, Czech, Singapore, Armenia, Iraq, Iran, Malaysia, Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We are the professional supplier for high quality industrial microwave oven if any questions about the machine, pls email
