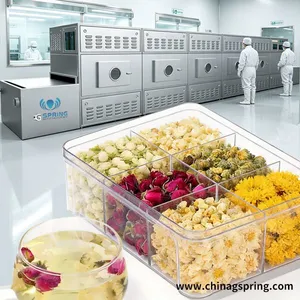

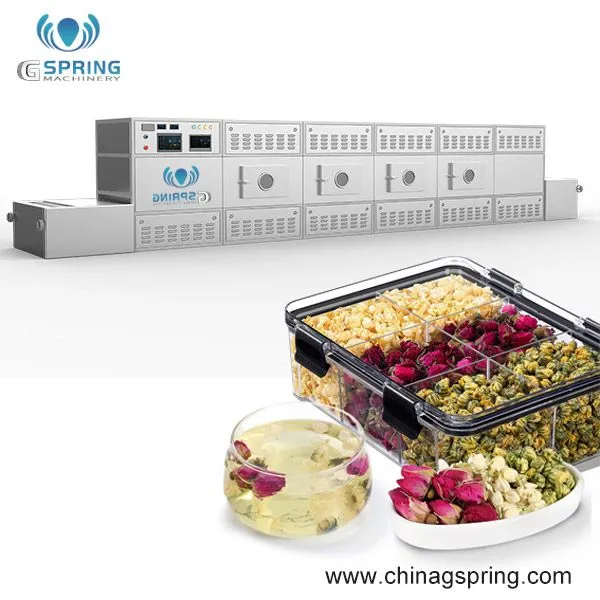

Industrial Continuous Rose Flower Microwave Drying and Sterilization Machine
Our Industrial Continuous Microwave Drying Machine is specially designed for rose flowers, rose petals, herbal tea, edible flowers, medicinal herbs, spices, and agricultural products. The advanced microwave drying technology combines rapid dehydration with sterilization, preserving the flower's natural color, fragrance, nutrients, and active ingredients.
Compared with traditional hot-air drying, microwave drying significantly reduces drying time while improving product quality and production efficiency. The continuous conveyor system enables automatic feeding and continuous production, making it suitable for medium and large-scale industrial processing plants.
Main Advantages：
✔ Continuous automatic production
✔ Fast drying with high efficiency
✔ Uniform microwave heating
✔ Simultaneous drying and sterilization
✔ Preserve natural color and aroma
✔ Low temperature drying technology
✔ Energy saving compared with conventional dryers
✔ PLC automatic control system
✔ Adjustable conveyor speed
✔ Adjustable microwave power
✔ Food-grade SUS304 stainless steel construction
✔ Easy cleaning and maintenance
✔ Stable operation for 24-hour production
Suitable Materials：
Rose Flower
Rose Petals
Jasmine Flower
Chrysanthemum
Lavender
Hibiscus
Osmanthus
Chamomile
Herbal Tea
Medicinal Herbs
Mint
Edible Flowers
Flower Powder
Spices
Fruits
Vegetables
Technical Features:
SUS304 stainless steel structure
PLC intelligent control system
Adjustable temperature and conveyor speed
Uniform microwave heating
Low labor cost
Continuous production design
Stable performance
-
CE certification available
-
Working Principle:
Microwave energy penetrates directly into the rose flower materials and causes water molecules to vibrate rapidly, generating heat internally.
This internal heating method ensures:
Faster drying
Uniform moisture removal
Better product quality
Reduced energy waste
The result is a highly efficient and environmentally friendly drying solution.
Technical Features
Microwave Frequency: 2450MHz / 915MHz
Heating Type: Continuous Conveyor Belt
Material: SUS304 Stainless Steel
Capacity: Customized
Conveyor Speed: Adjustable
PLC Intelligent Control
Automatic Temperature Control
Automatic Power Adjustment
Food Grade Design
CE Standard Available
OEM & ODM Service
Applications
Suitable for:
Herbal Tea Factory
Rose Tea Processing Plant
Medicinal Herb Factory
Food Processing Factory
Agricultural Products Processing
Flower Drying Plant
Botanical Extraction Factory
Health Food Production
Spice Processing Industry
Why Choose Our Microwave Dryer?
Our industrial microwave drying system has been exported to more than 100 countries and is widely used in food, herbal, pharmaceutical, and agricultural industries.
We provide:
Professional factory manufacturing
Customized solutions
Complete production line design
Overseas installation guidance
Technical training
One-year warranty
Lifetime technical support
CE optional certification
Technical Specifications:
Machine Model |
GS-20HMV |
GS-40HMV |
GS-60HMV |
GS-100HMV |
GS-200HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤25KW |
≤50KW |
≤75KW |
≤120KW |
≤240KW |
Output Power |
≥20KW |
≥40KW |
≥60KW |
≥100KW |
≥200KW |
Dehydration Capacity |
16-20kg/hour |
30-40kg/hour |
48-60kg/hour |
80-100kg/hour |
160-200kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Water Cool/Air Cool |
Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool |
Work Time |
24h Continuously Work |
24h Continuously Work | 24h Continuously Work | 24h Continuously Work | 24h Continuously Work |
Operation |
PLC & Touch Screen |
PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Feeding Inlet Height |
40-100mm |
40-100mm | 40-100mm | 40-100mm | 40-100mm |
Belt Height |
60-1000mm |
60-1000mm | 60-1000mm | 60-1000mm | 60-1000mm |
Belt Running Speed |
0-4.5m/min or Customized |
0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized |
Belt Width |
500±100mm |
800±100mm |
800±100mm |
1000±100mm |
1200±100mm |
Belt Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
Size |
8640×1220×2200mm |
10960×1500×2200mm |
13200×1500×2200mm |
15600×1700×2200mm |
22560×1900×2200mm |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request
Industrial Microwave Dryer
Rose Flower Drying Machine
Rose Petal Dryer
Rose Microwave Dryer
Microwave Sterilization Machine
Continuous Microwave Dryer
Flower Drying Equipment
Herbal Drying Machine
Rose Tea Processing Machine
Petal Drying Equipment
Microwave Dehydration Machine
Industrial Drying Equipment
Low Temperature Dryer
Continuous Belt Dryer
Food Processing Machine
Herbal Processing Equipment
Industrial Microwave Oven
Flower Sterilization Equipment
Industrial Dehydration Machine
Microwave Drying System
FAQ
Q1: Can this machine dry fresh rose flowers?
Yes. It is suitable for both fresh rose flowers and rose petals.
Q2: Will the flowers lose their fragrance?
No. Microwave low-temperature drying helps retain the natural fragrance, color, and active ingredients much better than conventional hot-air drying.
Q3: Can one machine process different flowers?
Yes. It is suitable for roses, chrysanthemums, jasmine, lavender, chamomile, hibiscus, and many other flowers.
Q4: Can capacity be customized?
Yes. We offer customized capacities from laboratory-scale equipment to fully automatic industrial production lines.
Q5: Do you provide overseas installation?
Yes. We provide installation guidance, commissioning, operator training, and lifetime technical support.
