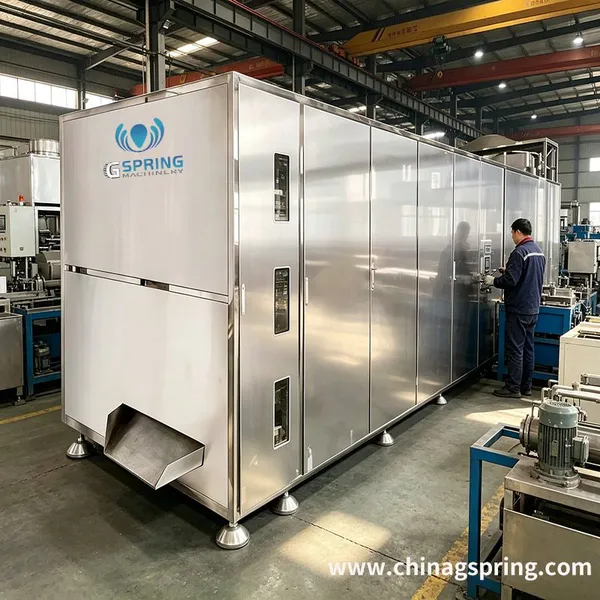

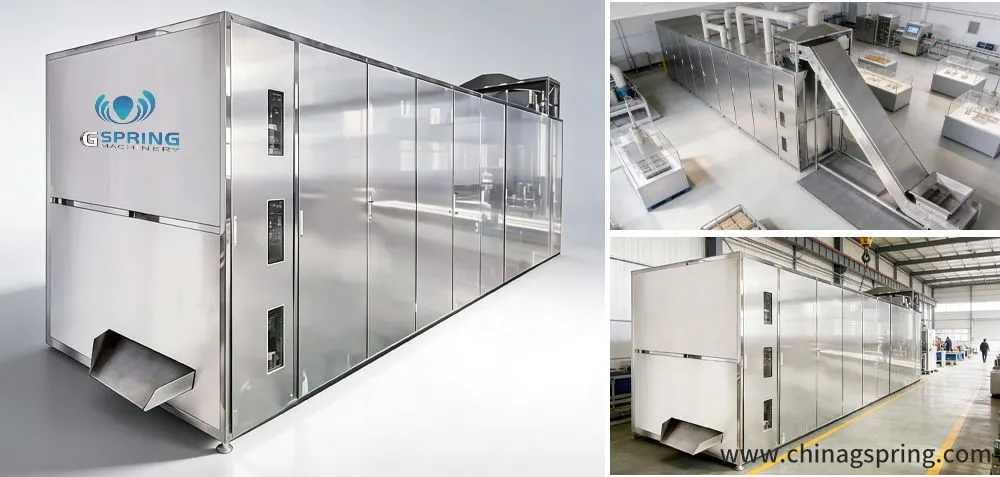

Tunnel Type Industrial Microwave Drying Machine for Bulk Production
Product Overview
The Tunnel Type Industrial Microwave Drying Machine is designed for continuous and large-scale industrial drying applications. Equipped with advanced microwave heating technology, this system delivers rapid moisture removal, uniform heating, and energy-efficient operation.
Compared with conventional hot air drying systems, microwave drying directly heats materials from the inside out, significantly reducing processing time while improving product quality and production efficiency.
This equipment is suitable for continuous operation and can be customized according to production capacity and product characteristics.
Key Features
✔ Continuous tunnel structure for uninterrupted production
✔ High drying efficiency with shorter processing time
✔ Uniform microwave heating for stable product quality
✔ PLC intelligent control system with easy operation
✔ Energy-saving design and reduced operating costs
✔ SUS304 stainless steel construction available
✔ Adjustable conveyor speed and microwave power
✔ Optional sterilization and moisture control functions
✔ Customized dimensions and output capacity
Working Principle

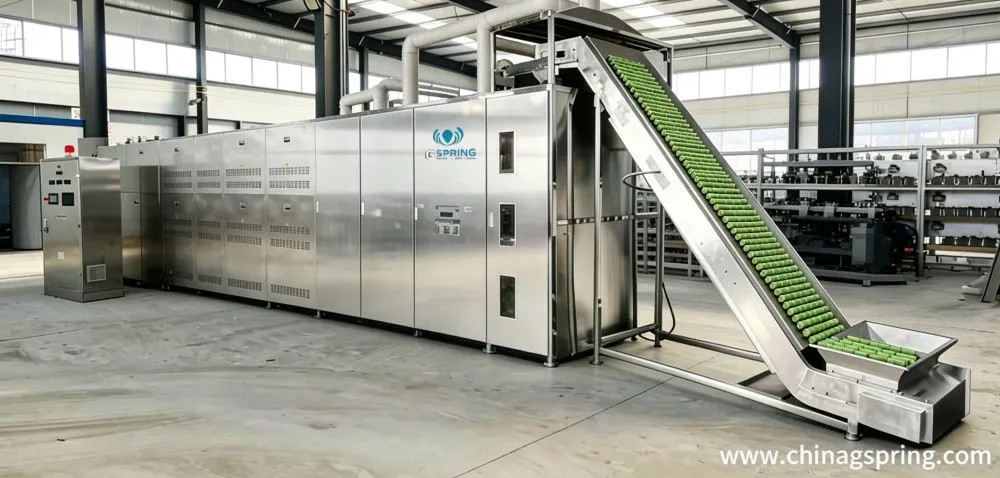

Materials are continuously transported through the microwave tunnel chamber by conveyor belts.
Microwave energy penetrates directly into the product and causes water molecules to vibrate rapidly, generating internal heat and accelerating moisture evaporation.
This process ensures:
Faster drying
Better product appearance
Lower energy consumption
Reduced production time
Applications
Suitable for drying and moisture reduction of:
Food products
Agricultural products
Herbs and spices
Chemical powders
Building materials
Ceramics
Wood products
Paper materials
Pharmaceutical materials
Why Choose Our Tunnel Microwave Drying Machine?
✓ Factory Direct Supply
✓ Stable Continuous Production
✓ CE / ISO Optional
✓ Technical Support Available
✓ Customized Production Solutions
✓ Global Export Experience
Based on Tunnel microwave drying equipment, it can be widely used in kinds of industries:
1. Industrial Tunnel Microwave Dryer for Food Industry
2. Industrial Tunnel Microwave Dryer for Herbs & Pharma Industry
3. Industrial Tunnel Microwave Dryer for Chemical Industry
4. Industrial Tunnel Microwave Dryer for Paper/Wood/Ceramics Industry
5. Industrial Tunnel Microwave Dryer for Coal/Construction Material
Tunnel Microwave Dryer Technology Parameter
Machine Model |
GSB-6HMV |
GSB-10HMV |
GSB-15HMV |
GSB-20HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤7KW |
≤11KW |
≤17KW |
≤23KW |
Output Power |
≥6KW |
≥10KW |
≥15KW |
≥20KW |
Dehydration Capacity |
≤6kg/hour |
≤10kg/hour |
≤15kg/hour |
≤20kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Air Cool |
Air Cool | Air Cool | Air Cool |
Work Style |
Batch Type/Small Capacity/ Lab Scale |
Batch Type/Small Capacity/ Lab Scale | Batch Type/Small Capacity/ Lab Scale | Batch Type/Small Capacity/ Lab Scale |
Tray No. |
Customized |
Customized | Customized | Customized |
Tray Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
If with dehumidification |
Yes, with dehumidification system |
Yes, with dehumidification system | Yes, with dehumidification system | Yes, with dehumidification system |
Material |
SUS304 or food material |
SUS304 or food material | SUS304 or food material | SUS304 or food material |
Size |
Customized Cabinet Microwave Dryer |
Customized Cabinet Microwave Dryer | Customized Cabinet Microwave Dryer | Customized Cabinet Microwave Dryer |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request.
FAQ
Q1: Can the machine support 24-hour continuous production?
A: Yes, the tunnel microwave drying system is designed for industrial continuous operation.
Q2: Can capacity be customized?
A: Yes, power, conveyor width, tunnel length, and output capacity can all be customized.
Q3: Which materials can be processed?
A: The equipment supports food, chemical, pharmaceutical, construction materials, and other industrial applications.
industrial microwave dryer
tunnel microwave drying machine
continuous microwave dryer
industrial drying equipment
bulk production dryer
microwave drying system
large capacity microwave dryer
industrial moisture removal machine
continuous conveyor microwave dryer
industrial tunnel dryer
Gspring Machine is the manufacturer of Industrial Microwave Dryer, we can supply different kinds of microwave drying machine, like batch microwave oven for lab
use or for small capacity industrial use, industrial automatic tunnel microwave dryer, vacuum dryer specially for food & pharma industry etc. We have more than 10 years
experience on export, export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan, Philippines, Brazil, Egypt, Czech,
Singapore, Armenia, Iraq, Iran, Malaysia,Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We can customized machinery specially based on your specific request. Welcome to contact grace@chinagspring.com to learn more.
