Product description:
Adopt newly upgraded brushless servo motor control
Dual sets of high-precision brushless servo control, faster, up to 1800mm, linear cutting efficiency increased by 40% year-on-year, higher precision, lower sound, longer life, high-quality motor runs smoothly, large load capacity, more stable control
Roller-type indentation design, active steering indentation It adopts a new roller type indentation, with active steering function, and automatically lifts the knife and rotates the angle according to the angle of the blade. The roller type indentation has stronger indentation force and better indentation effect! The double-knife structure design can also complete half-cutting, full-cutting, dotting, indentation, etc. at one time. Cutting and creasing are performed independently, the force of the knife is controlled more accurately, and the cutting and creasing effect is more stable.
High-precision linear guide rail adopts double-set high-precision linear guide design, high-strength materials and optimized design, which can withstand larger loads. Ensure the accuracy and stability of the machine for long-term operation. Reduce friction loss, reduce friction during operation, and improve the operating accuracy of the machine.

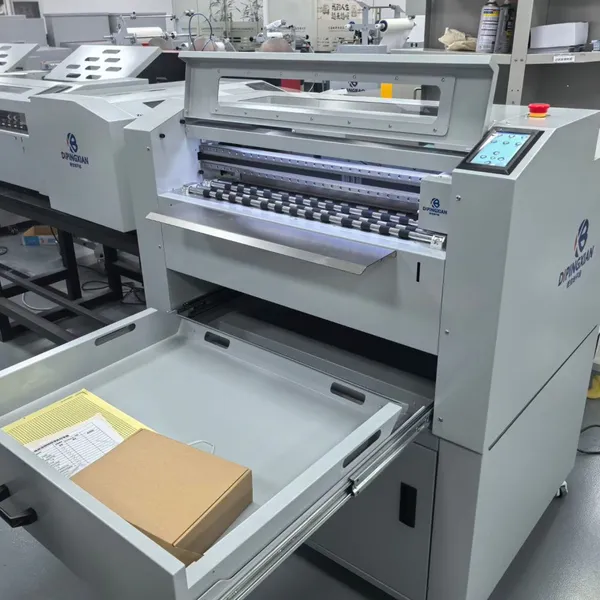

Upgraded large-capacity unloading capacity: Upgraded large-capacity unloading platform, which can place about 120mm (about 1000 sheets) of materials, effectively improving work efficiency and saving labor.

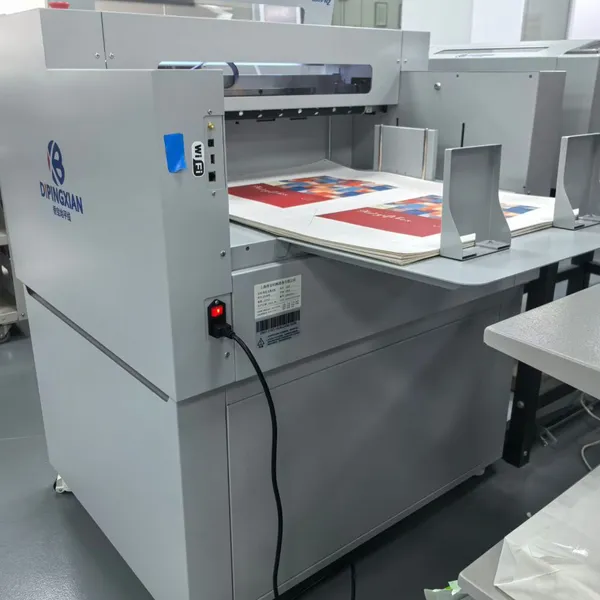

Multiple anti-double sheets and paper jam adsorption feeding structure adopts upper adsorption automatic feeding design, vacuum adsorption system, and widened adsorption belt to make large batch feeding more stable. Front dual-group blower design. Induction height adjustable system. Double-sheet prevention function after paper backing. Effectively reduces double-sheet problems. Multiple feeding optimization design, batch feeding is more stable, operation is smoother, and unattended operation is achieved.
Multi-layer reinforced frame structure: It adopts multi-layer reinforced frame structure. Thickened body materials. The weight can reach about 130KG. High-quality materials are used and are durable. Operation is more stable.
High-precision trolley ： The trolley adopts an all-aluminum lightweight structure, which is fast and highly precise. It runs on double sets of linear guide rails, which is highly stable and durable. The lowering of the knife is controlled by a voice coil motor (voice coil motor), which makes the lowering of the knife more precise and less likely to cause inconsistency in depth.

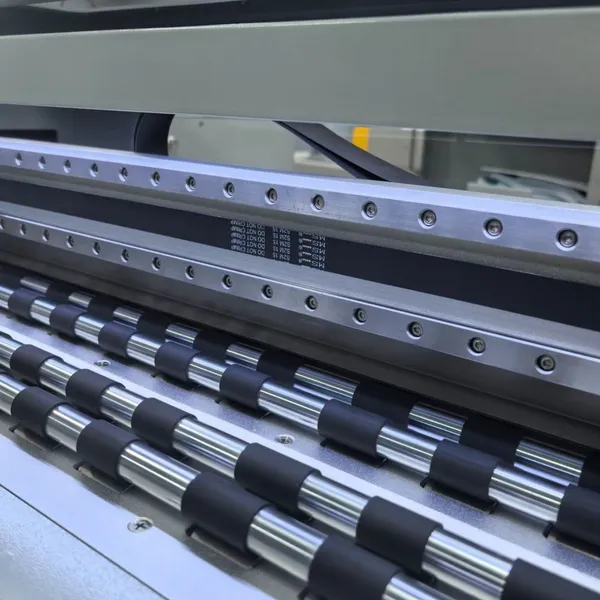

Double rows of reinforced pressure rods are used for operation. Double rows of fixed pressure rods are used for greater pressure and more stable high-speed operation without deflection. At the same time, 7 sets of pressure wheels are used. The contact area is larger, the pressure is released more evenly, and there will be no indentation marks due to high pressure. Double rows of pressure bars, smaller gaps, effectively reducing paper jam problems.

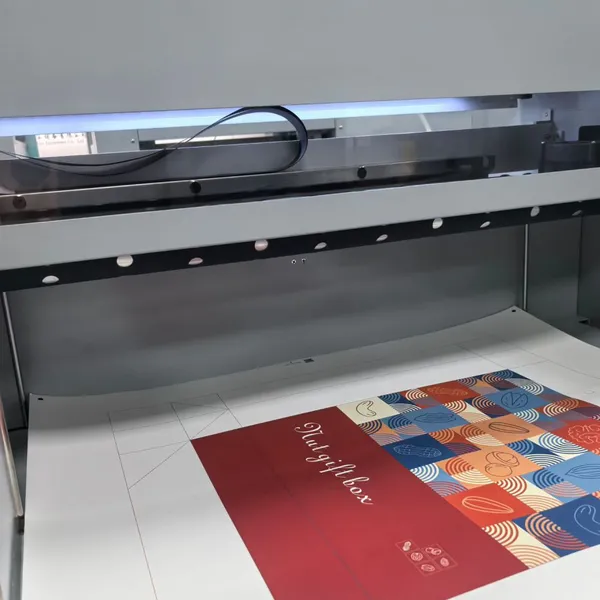

The identification uses a high-definition CCD camera. The CCD camera accurately detects marking points (compatible with corner lines and dots). The scanning range is larger and faster. It can also accurately detect marking points on colored and reflective materials.
High-performance data chip. The motherboard chip uses an STM imported chip, which has high performance, low power consumption, durability, and very good stability. 5-inch color capacitive touch screen, independent UI interface, icon + text display, easy and simple operation.
Intelligent operation QR code system automatically reads the QR code file and automatically retrieves the cutting data for cutting, which can effectively reduce the time of searching for files and improve work efficiency. At the same time, the QR code can also be scanned when the material is placed upright or upside down, and it can be cut accurately. The intelligent software adopts CDR and AI+ plug-in mode to automatically generate marker points. One-click typesetting, generate knife lines, one-click to add breakpoints, automatic sorting, optimize cutting paths, etc., which are user-friendly, simple, fast and efficient, and improve work efficiency. Multi-mode transmission: Remote control via network cable, WIFI, U disk, and USB data cable. It can support one computer to connect to multiple machines to send operations synchronously. The machine position can be placed at will. The machine can be operated remotely using the network port and WIFI. It can also be operated offline without using the network, USB data cable and U disk. It is simple and convenient to choose any mode.
Technical parameters:
Model ZN-6090 adsorption die-cutting machine
Display mode 5-inch color capacitive touch screen
Material placement range Width: 210-600mm. 297-900mm
Number of cutter heads Double cutter heads Cutting knife, wheel press
Mechanical accuracy 0.01254mm
Fastest cutting speed 1800mm/s
Maximum pressure 1300g
Minimum cutting pattern Diameter 5mm
Can cut the thickest material weight 400g
Feeding time: about 5 seconds
Transmission method: Network cable, WiFi, U disk, USB data cable,
Paper loading capacity: about 120MM
Language: Chinese, English, Spanish, Danish, Turkish, Hungarian
Voltage: Support 110V/220V (automatic voltage conversion)
Operating software AdobeIllustrator (CS6-2025), coreidraw (x4-x8.2017-2025) (continuously updated)
Operating environment Temperature: 10° to 35°
Humidity: 35 to 75%RH
Computer system Windows7-10
Unexpanded dimensions: length 920mm, width 1040mm, height 1240mm
Expanded dimensions: length 2070mm, width 1040mm, height 1240mm
