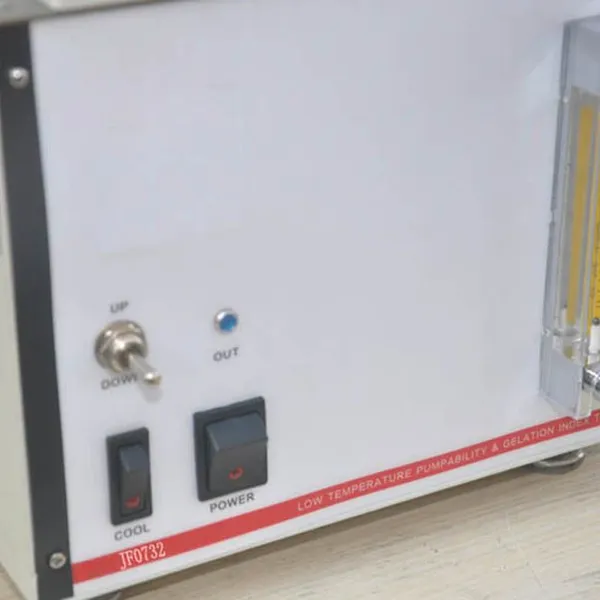

Gel Index of Lubricating Oil Tester ASTM D5133
Product model: JF0732
Product Introduction
The tester is used to measure the viscosity, gel index and gel index temperature of lubricating oil in the temperature range of -5℃～-40℃. The instrument includes test host, water bath, viscometer and supporting software. The host adopts semiconductor refrigeration, and the supporting water bath is used to dissipate heat from the semiconductor; the automatic lifting table can easily control the height of the viscometer for installation, disassembly and testing. The test software provides functions such as sample test, torque-viscosity curve calibration, temperature calibration, historical data query and instrument configuration. Users operate and view data through the software.
Technical Parameter
1. Applicable standards: ASTM D5133, D7110, SH/T0732, GB/T11121
2. Temperature control method: High-quality PID digital temperature controller
3. Refrigeration method: Semiconductor refrigeration
4. Temperature control range: Rt～-40±0.1℃
5. Measuring range: 0～40000 mPa·s
6. Operation mode: Touch screen operation
7. Lifting method: Automatic lifting
8. Power of the whole machine: 2000W
9. Instrument size: host: 400*250*700mm;
low temperature bath: 435*540*730mm
10. Net weight: host: 32KG; low temperature bath: 45KG
11. HS Code: 9027899090
Features
1. Adopt metal bath cold trap, no noise;
2. Microcomputer temperature controller, PID adjustment, PT100 temperature sensor, high precision;
3. One-key automatic lifting structure, automatic positioning of viscometer;
4. The unique test tube locking device prevents excessive viscosity from driving the test tube to affect the test accuracy;
5. Large screen touch screen operation;
6. Equipped with Addition® special analysis software, which can well calibrate the viscosity and analyze the linearity accuracy;
7. Automatic calibration process, graphic display of calibration data;
8. Multi-point temperature correction, you can also add temperature correction points by yourself;
9. Automatically scan viscosity, generate gel curve, and automatically analyze gel index and gel temperature;
10. Use a linear curve to cool down, and the cooling speed can be edited.
