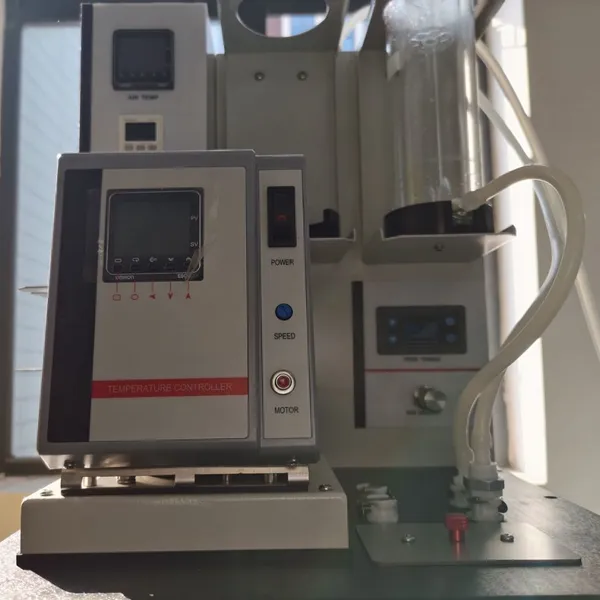

Air Release Properties of Hydrocarbon Based Oils Tester
ASTM D3427
Product model: JF0308A
Introduction
This instrument is suitable for testing the ability of lubricating oil to separate mist air, such as gas turbine oil, hydraulic oil and other petroleum products. When using the instrument, the sample is heated to a certain temperature, and the sample is vigorously stirred by blowing excess compressed air into the sample, and the air forms small bubbles in the sample, that is, mist air. Record the time when the volume of mist air in the sample decreases to 0.2 % after the gas is stopped.
Technical parameter
1. Applicable standards: ASTM D3427, IP313, DIN51585, NFT60151, SH/T0308
2. Electricity source: AC220±10% 50Hz±5%
3. Heating method: Electric heating rod heating
4. Temperature control method: PID temperature controller
5. Temperature control range: Rt～80±1℃
6. Working pressure: 19.6Kpa
7. Pressure control: Precise pressure regulating valve adjustment
8. Timing method: Digital display timer
9. Pressure display: Digital meter display
10. Machine power: 1500W
11. Instrument size: 460*400*590mm
12. Net weight: 25KG
13. HS Code: 9027899090
Main feature

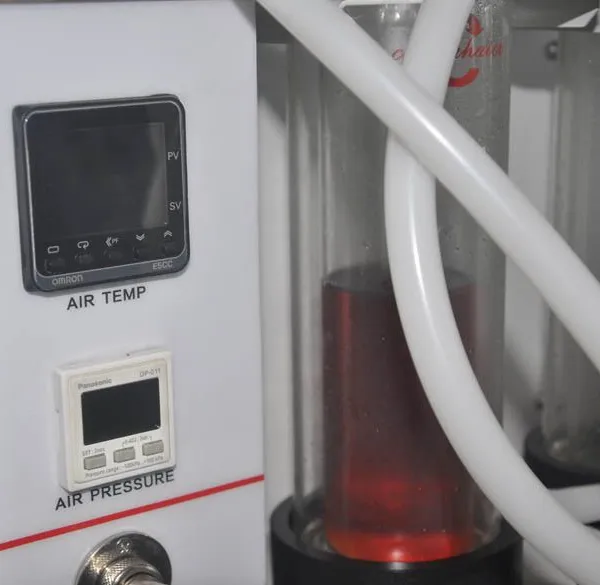

1. High-quality Omron PID thermostat, digital display temperature, accuracy 0.1℃
2. Digital display air pressure, with needle valve adjustment;
3. Automatically control the blowing time, and automatically record the defoaming time after
blowing, with an accuracy of 0.01s;

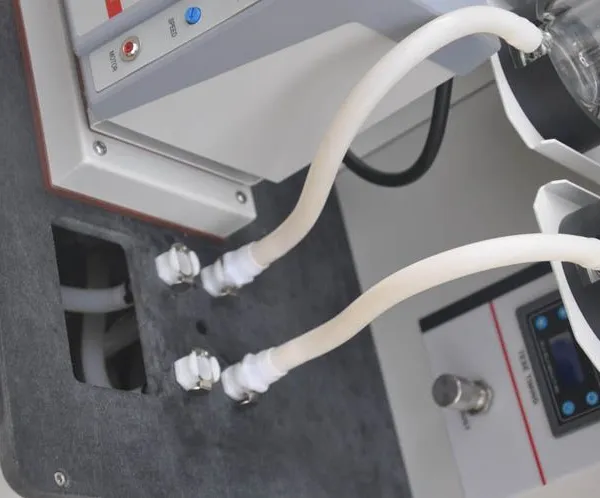

4. The press-type liquid circulation joint can quickly and conveniently disassemble the test tube;
5. Safety protection device to prevent the liquid level from being too low;
6. Two sets of constant temperature tests can be carried out at the same time;
7. The sputtering multi-channel liquid circulator can well ensure the temperature uniformity of each
point.
