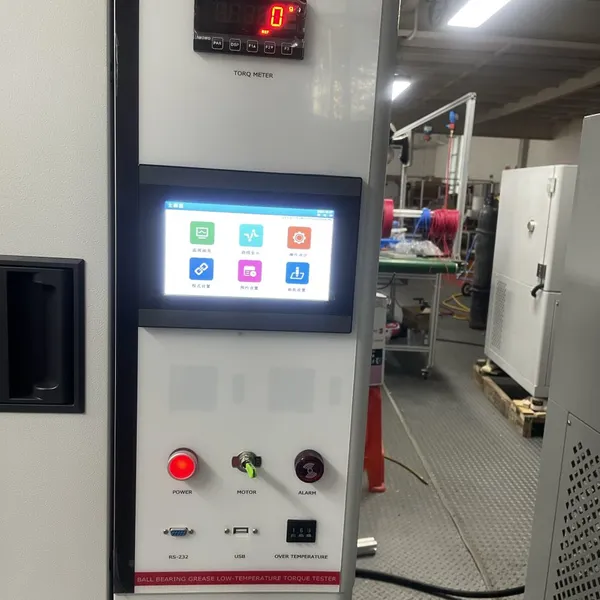

Automatic Lubricating Greases in Ball Bearings at Elevated Temperatures Tester ASTM D3336
Product model: JF0428Z
Product Introduction
The instrument is fully controlled by computer and automatically discriminates the results. After the sample is installed, the instrument automatically performs intermittent work according to the standard requirements, and the whole process does not require manual adherence, which greatly reduces the operation intensity. In order to avoid safety accidents, the new generation of products has a fault reminder in the program, and the instrument will automatically shut down when it fails to ensure the safety of equipment or other hardware.
Technical Parameter
1. Applicable standards: ASTM D3336, SH/T0428
2. Heating method: Electric heater heating
3. Speed display: Program control, digital display
4. Temperature control method: Program control, digital display
5. Timing method: Program control, Digital display
6. Temperature control range: Rt～380℃
7. Loading load: Radial 22～67 N axial 22N
8. Temperature control accuracy: ±1℃
9. Control method: Computer automatic control, test results
10. Power of the whole machine: 1500W
11. Working power supply: AC220V/50HZ
12. Instrument size: 800*440*450mm
13. Net weight: 48KG
14. HS Code: 9027899090
Features
1. High speed DC motor 10000 r/min ± 200 r/min;
2. The digital display of the motor speed is adjustable, and it is equipped with an overload protection device;
3. The test bearing meets the standard requirements;
4. Heat insulation material is used in the heating box for heat preservation;
5. Fixed loading device, no deviation, radial loading 22N, axial loading 22N;
6. Program temperature control, digital display, accuracy ±1℃;
7. Program timing, record test time;
8. There is a hole for inserting a thermometer on the bearing sleeve;
9. Long-life dry-burning electric heater, stainless steel box, easy to clean;
10. Windows operating system, English interface;
11. The test bearing tooling is convenient to disassemble and operate;
12. The system automatically detects faults and shuts down;
13. The test data automatically generates a curve and displays it in a digital manner;
14. The test results are automatically stored and can be queried.
