Oil Separation from Lubricating Grease During Storage Tester
ASTM D1742
Product model: JF0682
Product Introduction

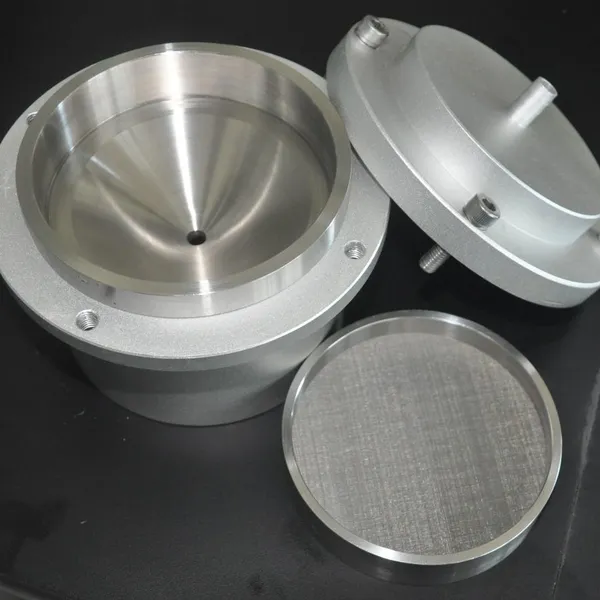

This instrument is designed and manufactured in accordance with the ASTM D1742 standard; it is used to measure the oil separation of grease with a consistency greater than No. 0 during storage. The test principle is as follows: put the grease on a 75μm filter screen, continue the test at 25℃±1℃ and 1.72kPa ± 0.07kPa air pressure for 24 hours, then weigh the quality of the oil separated and dropped into the oil container.
Technical Parameter
1. Applicable standard: ASTM D1742
2. Test unit: 2 units
3. Control temperature: 25℃±1℃
4. Pressure range: 1.72kPa±0.07kPa
5. Filter aperture: 75μm
6. Pressure display: Precision digital pressure gauge
7. Working power supply: AC220V 50HZ
8. Power of the whole machine: 1200W
9. Instrument size: 490*500*880mm
10. Net weight: 60KG
11. HS Code: 9027899090
Main Feature
1. The digital meter displays the pressure, and the results are clear at a glance.
2. High-precision needle valve control pressure.
Temperature display: digital display thermostat.
11. Sputtering vortex stirrer, to ensure the uniformity of the temperature field of the bath, and can carry out internal and external circulation;
