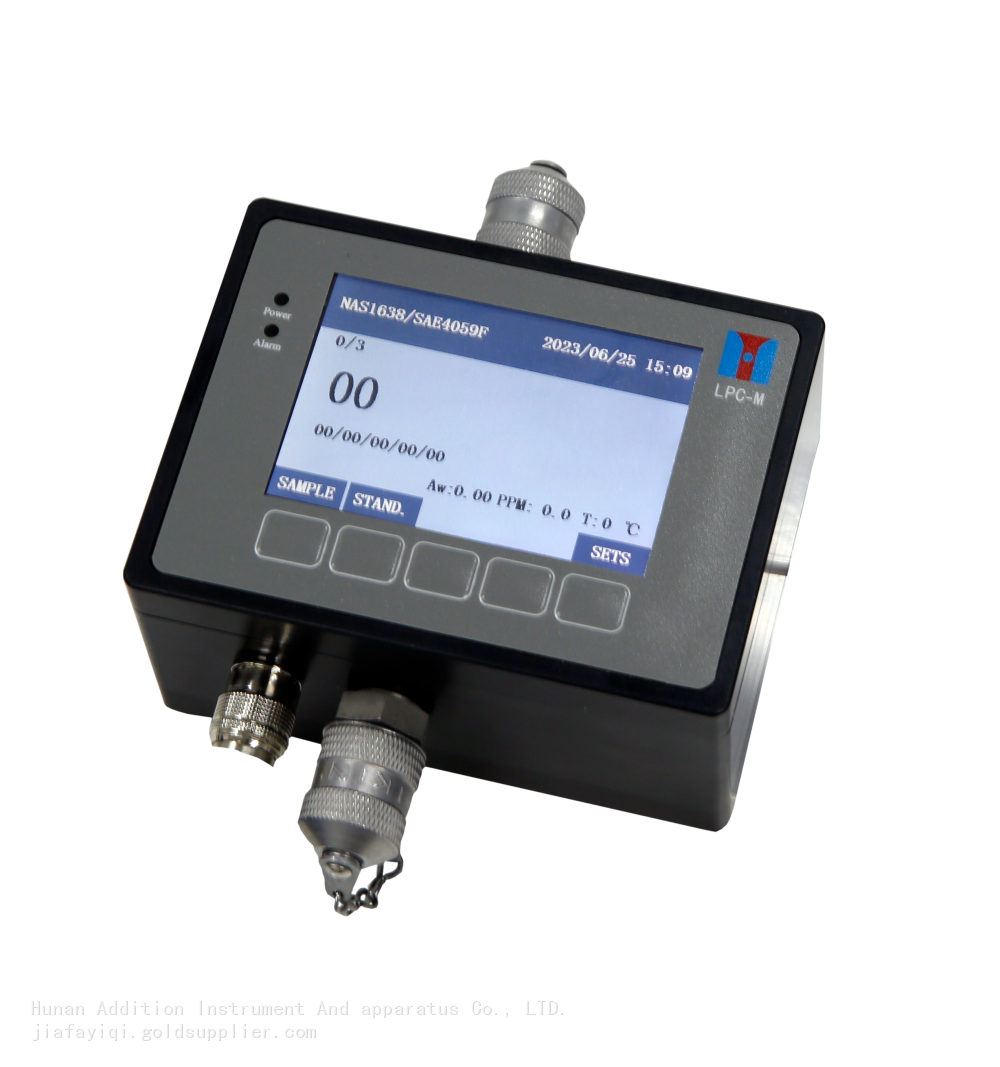

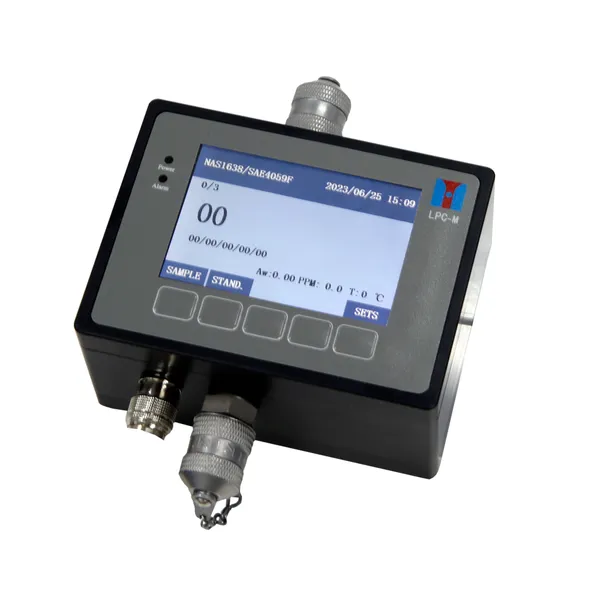

Help CenterISO4406、NAS1638 Measurement of Oil Contamination Level Detection Online Device
Related Products
-
ASTM D5800 DIN51581Lubricant Evaporation Loss Measuring InstrumentUS$ 6000 - 11000MOQ: 1 Set -
ASTM D3427 IP313 DIN51585 Measurement of the Ability of Lubricating Oil to Separate Atomized AirUS$ 2600 - 3000MOQ: 1 Set
-
ADDITION ASTM D1384 Automatic Unattended Antifreeze Corrosion TesterUS$ 5300MOQ: 1 Combo
-
ASTM D1881 Antifreeze Corrosion TesterUS$ 2500 - 3500MOQ: 1 Set
-
ASTM D7621 ISO 8217 IP 570 Determination of Hydrogen Sulfide in Fuel Oils by Rapid Liquid Phase Extraction StersUS$ 29000 - 38000MOQ: 1 Unit

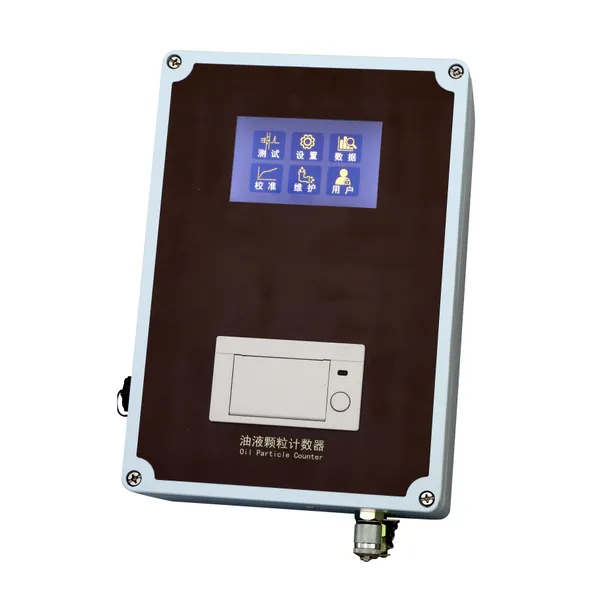

On-line particle counter is the adoption of the International Hydraulic Standard Committee specified photoresist (shading) method counting principle, specifically for on-site online measurement, oil contamination level detection device. It has the advantages of small volume, light weight, fast detection speed, high precision, good repeatability, etc., and can work in high temperature and high pressure and other harsh conditions. Applicable to engine oil, gear oil, transformer oil (i.e., insulating oil), hydraulic oil, lubricating oil, synthetic oil and other fluids, can be widely used in aerospace, petrochemical, transportation ports, iron and steel metallurgy, automobile manufacturing and other fields.
Main Features
u n Adopts the principle of photoresist (shading) method, using high-precision laser sensors, small size, high precision, stable performance
u n Is suitable for on-site on-line detection, and can monitor the particle contamination degree in the oil system in real time.
u n Has a built-in data analysis system, which can display the real data of particle size of each channel and determine the sample grade automatically.

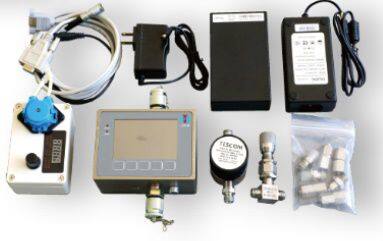

u n Can be equipped with an optional depressurization device for on-line high pressure measurement.
u n Has volume flushing and time flushing modes, which is convenient for users to use and maintain the equipment.
u n Has built-in ISO4406, NAS1638, SAE4095, GJB420A, GJB420B, ГOCT17216, GB/T14039 and other particle contamination level standards.
u nBuilt-in calibration function, can be calibrated according to GB/T21540, ISO4402, GB/T18854 and other standards
u nAny alarm level can be set to realize pollution or cleanliness detection
u nRS232 or RS485 interface, can be connected to a computer or other equipment for data monitoring, processing
u nLarge storage, you can choose to store in the instrument internal or external storage devices
u n Rugged structure, suitable for complex working environment.
Technical specifications
light source: semiconductor laser
n Flow rate range: 20-500mL/min
n Testing sample viscosity: ≤ 350cSt
n online detection pressure: 0.1-0.6Mpa (optional pressure reducing device up to 40Mpa)
nParticle size range: 1-500μm (choose different types of sensors)
n interface: USB interface, RS232 interface, RS485 interface
n data storage: provide 1000 groups of data storage space, and support for USB storage
n Sensitivity: 1μm or 4μm (c)
n Limit overlap error: 10000 grains/ml
n counting volume: 1-999ml
n Counting accuracy: ± 0.5 contamination level
n Protection grade: IP56
n Testing time interval: 1 second-24 hours
n Testing sample temperature: 0-80℃
n Working Temperature: -20-60°C
n Power supply: AC 220V±10%, 50/60Hz or DC12-40V
n Weight: 1.1kg
nBody size: 115×100×70mm
