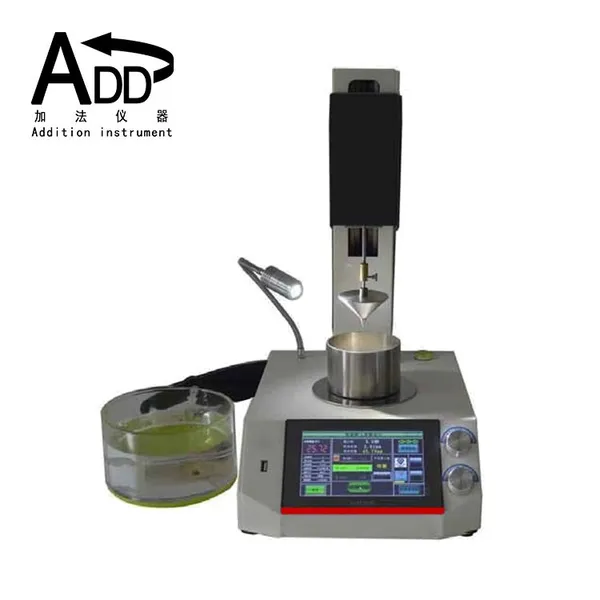

ASTM D217 Auto Cone Penetration of Lubricating Grease Tester
Product model: JF269D
Product Introduction
This instrument is measuring the consistency of lubricating greases by the penetration of a cone of specified dimensions, mass, and finish.
Technical Performance
1. Applicable standards: ASTM D217, GB/T269, ISO 2137
2. Thermostatic water bath: Temperature control range is Low temperature: 20℃ lower than the ambient temperature; High temperature: 60℃; Display resolution: 0.01 ℃; Temperature control accuracy: ≤ ± 0.5 ℃;
3. Time control: Time display and control 0-60 S (any setting); Display resolution: 0.1 S; Time control precision: ≤±0.1 S;
4. Offset: Range 0 ~ 640mm; Display resolution 0.01mm (0.1 cone penetration); Relative displacement accuracy ≤±0.1mm;
5. Storage data: 200 groups
6. Slide assembly: Total mass of full-size assembly: 150±0.05g, of which:
Full-size cone mass: 102.5±0.05g, cone rod mass: 47.5±0.05g
7. Device dimensions: 390× 310× 575mm (L × W × H)
8. Working power supply: 220±10%VAC/50Hz;
9. Machine power: Max 350W;
10. Net weight: 12.5Kg
11. HS Code: 9027899090
Main Feature
1. Adopting high-precision LVDT displacement sensor, split structure, no friction when the cone rod falls.
2. Animation simulation of reality, touch screen operation; human-computer interaction interface, more intuitive, more convenient
3. Integrated thermostatic water bath. It comes with a thermostatic water bath with heating/cooling function, and the precision of temperature control can reach ±0.5℃.
4. Quick positioning of cone tip. Stepping motor fast lifting + encoder coarse/fine adjustment, with position memory and automatic cone tip positioning function;
5. Experiment automatic computer. All tests are finished, and the average cone penetration test result is recorded and calculated automatically;
6. Automatic cone lifting. At the end of each test, the unique experience cone component automatically grabs and lifts the function;
7. Powerful Data Processing. Function. 200 groups of test data curves and other information can be stored; U-disk data dumping; 485 interface ModBus protocol
8. Powerful help function. With graphic help tips information such as installation, operation, checking, calibration, maintenance tips and abnormal judgement;
9. Optional circulating water bath
