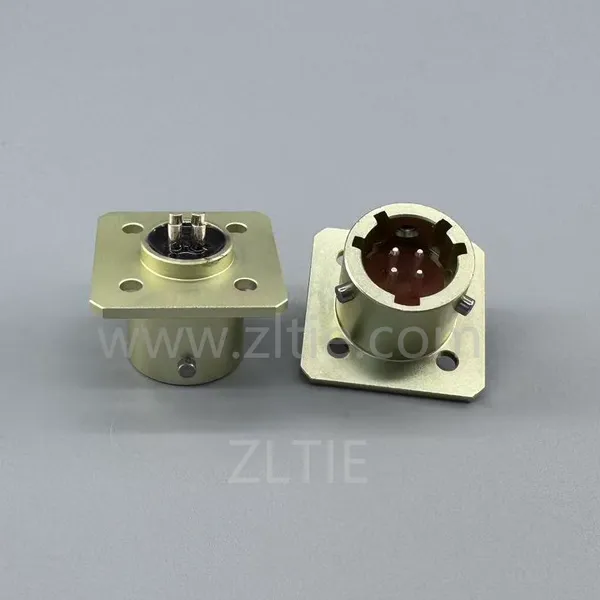

Help CenterОНЦ-БС-1(2) Series Connector Shell Size 10 4 Pin Male Socket-ОНЦ-БС-1-4/10-B1-1-B
Related Products
-
ОНЦ-БС-1(2) Series Connector Shell Size 10 4 Pin Female Plug With Tail Attachment (Optional)-ОНЦ-БС-1-4/10-P12-1-B OHS-BC-1-4/10-P12-1-BNegotiableMOQ: 200 Units -
FQ18 Series 4-Pin Square Flange Male Socket FQ18-4ZJNegotiableMOQ: 200 Units
-
P16 Series 3-Pin Straight Male Cable Plug With Shielded Tail Attachment P16J2PNegotiableMOQ: 200 Units
-
2PM-36 Series 20Pin Female Straight Cable Plug Unshielded – 2РМДТ36КПН20Г6В1В 2PM36K20QB2NegotiableMOQ: 200 Units
-
2PM-27 Series 19Pin Female Straight Cable Plug Unshielded With Gold Plated Pin – 2РМДТ27КПН19Г5А1В 2PM27K19QB1NegotiableMOQ: 200 Units
Product Details:
OHS series bayonet ultra-small connectors mainly adopt Russian connector technology. This type of connector is widely used in DC and AC circuits of various electrical, radio and control instruments. It consists of plugs and sockets, with multi-level key positions for installation. The coupling mode of the connector is bayonet type. The socket has no tail attachment and the plug has a straight plastic tail attachment. At the same time, it can be matched and interchanged with the original parts of the Russian ОНЦ-БС-1(2) series.
ATTRIBUTES:
Connector Type: Receptacle
Contact Type: Male
Number of Positions: 4 Pin
Shell Size: 10
Contact Material: Copper Alloy Gold/Silver Plating
Fastening Type: pps
Shell Material: Aluminum Alloy Surface Anodized Treatment, Zinc Alloy Nickel Plating (Industrial Grade)
Contact Size: Φ1.0
Maximum current per contact: 3.7A
Sum of Currents: 15A
Rated Voltage: 250V
Contact Resistance: ≤5MΩ
Contact Termination: Solder
Fastening Type: Bayonet Connection
Number of Insertions and Removals: 250
Operating Temperature: -60℃ – +85℃
