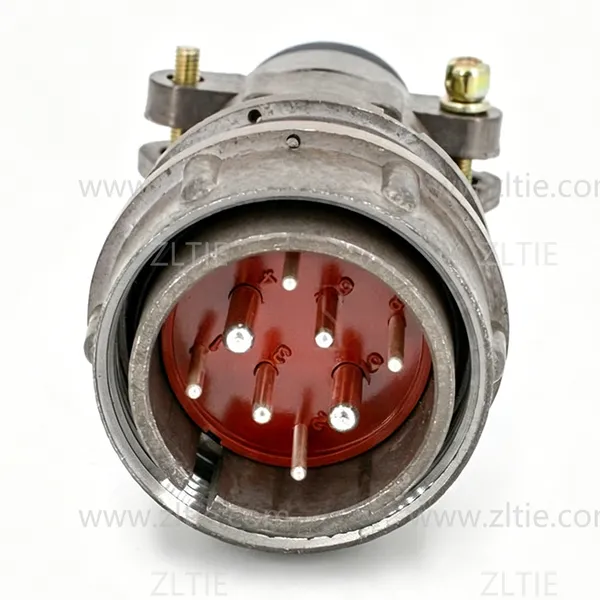

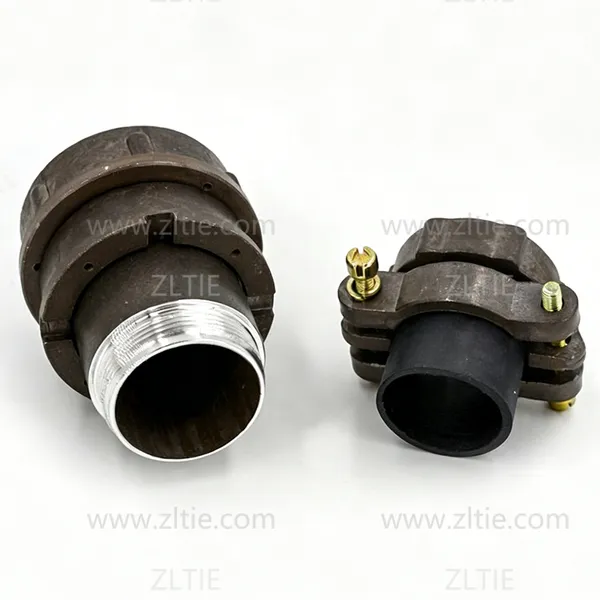

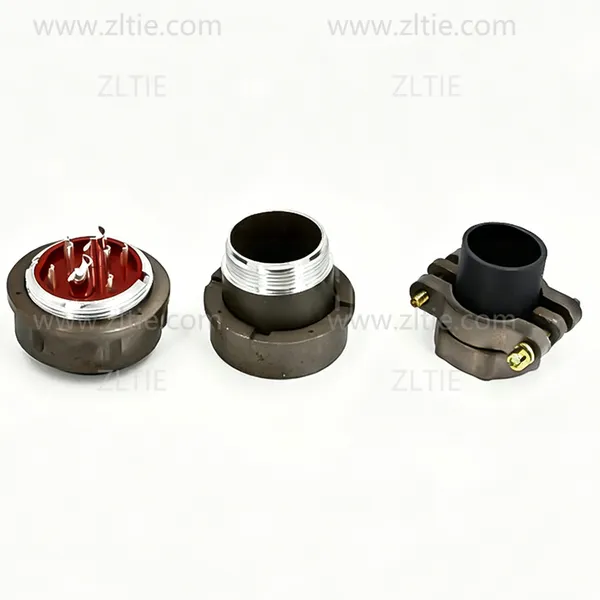

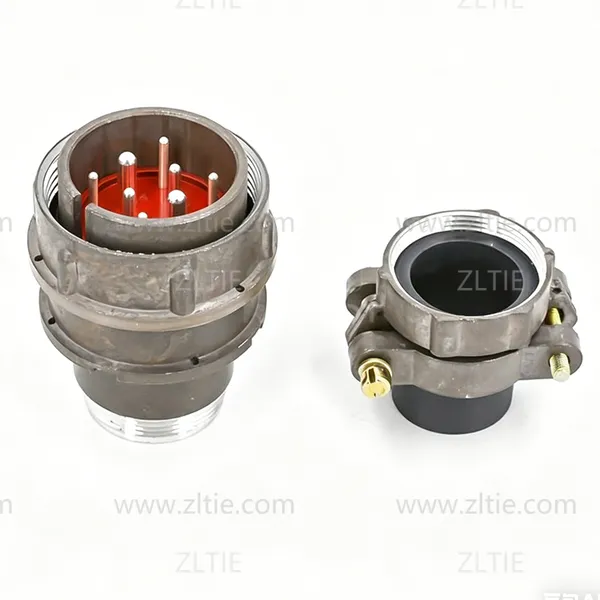

Help Center2PM-30 Series 8Pin Male Straight Cable Plug Unshielded – 2РМДТ30КПН8Ш7В1В 2PM30J8QB2
Related Products
-
ZH23 Series Shell Size 27 32 Pin Male Plug With Straight Tail Attachment (Key Position: A) – СНЦ23-32/27В-6А-В ZH23-32/27B-6a-BNegotiableMOQ: 200 Units -
2PM-30 Series 32Pin Male Angled Cable Plug Unshielded With Gold-Plated Pin – 2РМТ30КУН32Ш1А1В 2PM30J32WB1NegotiableMOQ: 200 Units
-
2PM-30 Series 8Pin Male Panel Socket – 2РМДТ30Б8Ш7В1В 2PM30J8Z2NegotiableMOQ: 200 Units
-
ZH23 Series Shell Size 22 10 Pin Female Plug With Straight Tail Attachment (Key Position: B) – СНЦ23-10/22Р-6Б-В ZH23-10/22P-6b-BNegotiableMOQ: 200 Units
-
2PM-30 Series 32Pin Male Straight Cable Plug Unshielded With Gold-Plated Pin – 2РМТ30КПН32Ш1А1В 2PM30J32QB1NegotiableMOQ: 200 Units
Product Details:
2PM series circular electrical connectors mainly adopt Russian connector technology. It is widely used for electrical connection and signal transmission between electrical equipment. Its unique structure can make up for the shortcomings of many other similar connectors, making it more convenient and scientific to use. The cable plug and panel socket are threaded connection. The panel socket has a glass sintered sealed socket (M) and a glass sintered sealed wall socket (C), which can simultaneously meet the use requirements in special environments such as vacuum, sealing, and high temperature. At the same time, it can be matched and interchanged with original parts of Russian 2PMT and 2РМДТ series.
Attributes:
Connector Type: Plug
Orientation: Straight
Number of Positions: 8 Pin
Contact Size:Φ1.5+Φ2.0+Φ3.0
Shell Material: Aluminum Alloy (die-cast aluminum, surface oxidation treatment)
Contact Finish: Silver/Gold
Fastening Type: Threaded
Rated Current: Φ1.5(10A) Φ2.0(10A) Φ3.0(30A)
Rated Voltage: ≤700V (AC)
Operating Temperature: -60℃ – +200℃
Insulation Resistance: Normal ≥1000MΩ Moistheat ≥20MΩ
Contact Resistance: 0.8-5MΩ
